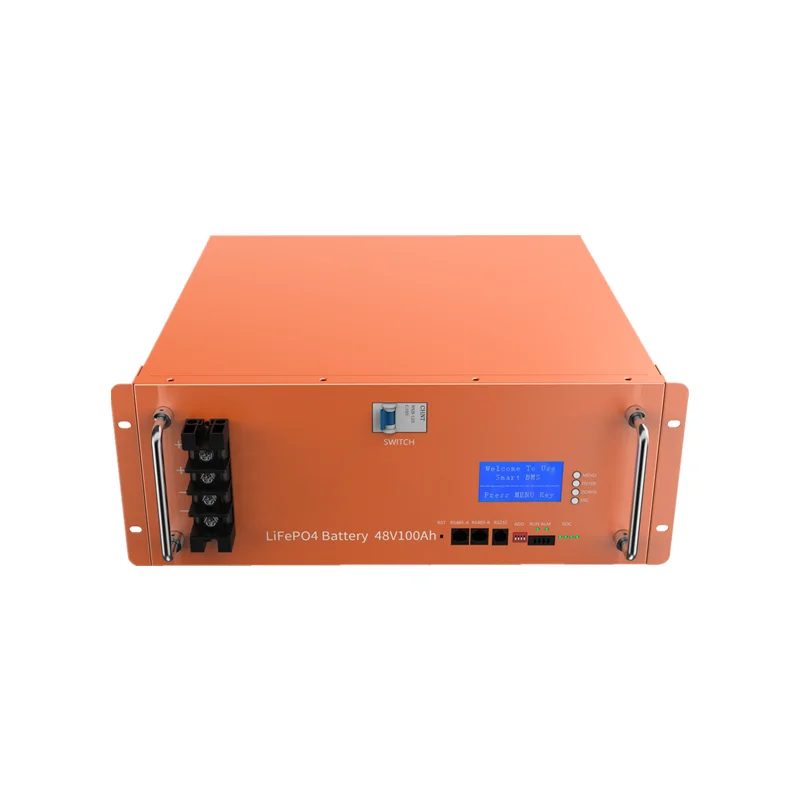

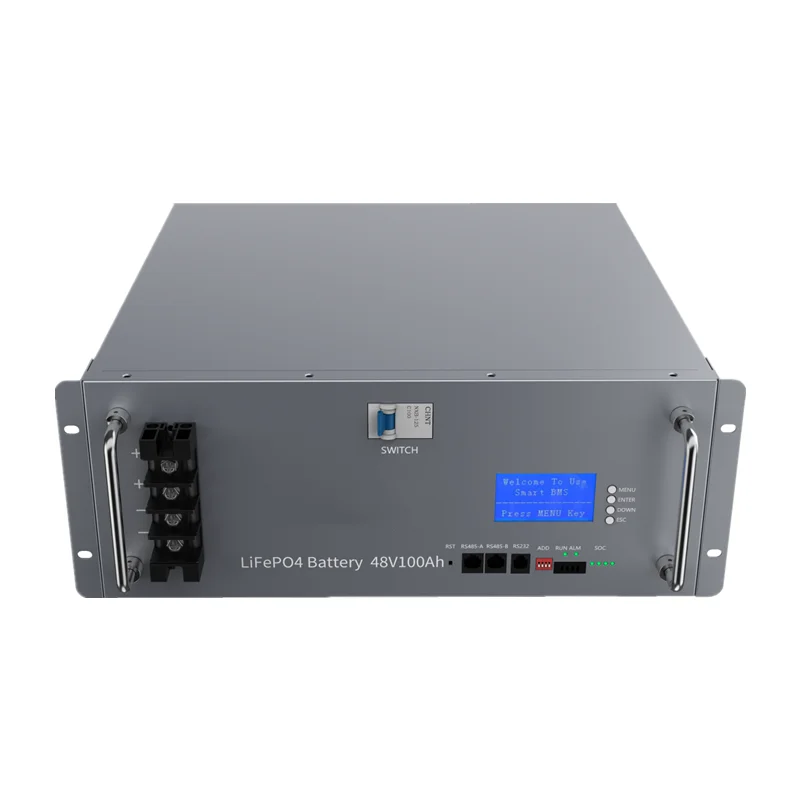

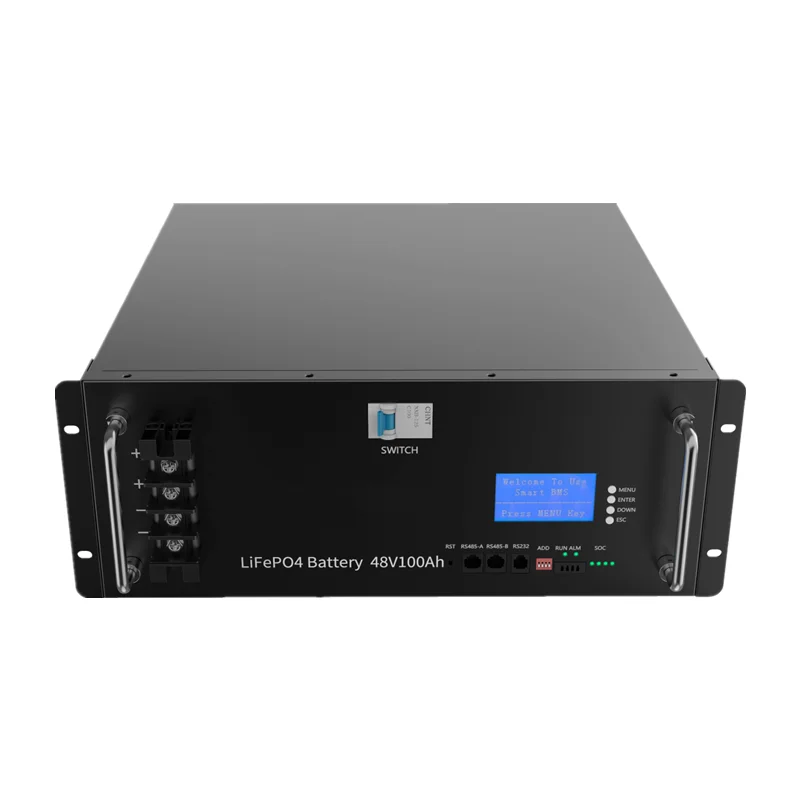

Electric Forklift Lifepo4 Battery 48v 300ah 51.2V 100Ah Lithium Ion Battery
- Category: >>>
- Supplier: Shenzhen Xianghao Industry Co. Ltd.
Share on (1600363570399):
Product Overview
Description
Items | Specifications |
Charge voltage | DC 58.4V |
Nominal voltage | 51.1V |
Nominal capacity | 100Ah |
Energy | 5.12KWh |
Charge current | Standard charge（标准充电）: 0.5C Approx 3 Hour（约 3 小时） Rapid charge（快速充电）: 1C Approx 1.5 Hour（约 1.5 小时） |
Standard Charging method | 0.5C.CC (constant current) charge to 58.4V, then CV(constant voltage 58.4V) charge till charge current decline to 0.05C |
Max. charge current | 50A |
Max. discharge current | 100A |
Max.Pulse Current | 150A（3s） |
Discharge cut-off voltage | 40V |
cell & Method | (3.2V100Ah)16S1P 中航-100Ah |
Operating temperature | Charging(充电): 0°C ~ 45°C Discharging（放电） : -20°C ~60°C |
Storage temperature | - 10°C ~ + 45°C |
Battery Weight | Approx.：43 kg |
Battery Dimension | 483mm*177mm*423mm(W*H*D) |
Battery outgoing voltage | 51.2~54.4V |
Thermal sol fire extinguishing device | NO |
Products Description
Company Profile
Our company specializes in the production of lithium batteries, and can recommend batteries suitable for your use according to your product requirements.
Why Choose Us
For Batteries LFP Prismatic cells , 4000+ cycles , 3 Years Warranty , Support 4S4P , Group24 size ,12KG
For services 24- hours after sales line , one step services , give you entile solutions for your project
For customize needs we can customize for you , such Voltage , Capacity , discharge current etc
For additional benefits For resellers we provide super price for you and policy, pls contact us if interest !
XIANGHAO strives to make the safest lithium iron phosphate batteries possible.
That’s why our batteries have been rigorously tested and are certified to be safely used in applications around the world.
What’s more, all Lithtech lithium batteries conform to CE, UN38.3,MSDS , shipping regulations.
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
For services 24- hours after sales line , one step services , give you entile solutions for your project
For customize needs we can customize for you , such Voltage , Capacity , discharge current etc
For additional benefits For resellers we provide super price for you and policy, pls contact us if interest !
XIANGHAO strives to make the safest lithium iron phosphate batteries possible.
That’s why our batteries have been rigorously tested and are certified to be safely used in applications around the world.
What’s more, all Lithtech lithium batteries conform to CE, UN38.3,MSDS , shipping regulations.
1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
Certifications
Shipping
FAQ
Q: Can I order samples? |
A: Yes, we welcome sample order to test and check the quality. |
Q: What is the delivery time? |
A: Samples need 2-12 days, and mass production time needs to be negotiated. |
Q: How do you ship the goods and how long will they arrive? |
A: We support a variety of logistics methods such as sea, air, express, etc. for you to choose. The time is usually 5-7 days, and the specific time is subject to the mode of cargo transportation. |
Q: Can I print my trademark on my product? |
A: It is absolutely possible. Customers need to provide their packaging or we can customize it for you. |
Q: What kind of certificates can be provided? |
A: CE, RoHS, UN38.3, MSDS, etc. Please consult us if you need it. |
Q: Where can I get a quote? |
A: We usually quote within 20 hours after receiving your inquiry. If you are very urgent to get a price, please call us or Tell us in your email so that we can prioritize your inquiry. |
