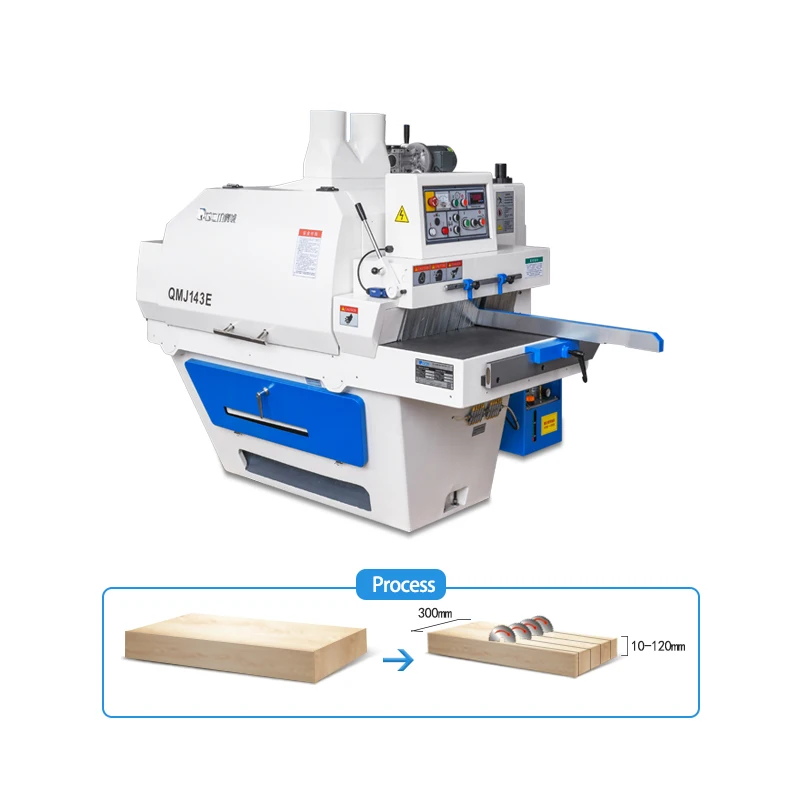

QMJ143E Multi-Blade Rip Saw Sierra De Carne Table Saw Price Saw Woodworking Machinery
Products Description
QCM High-efficiency multi-blade rip saw for woodworking industry | ||||||||||
Technical Parameter | ||||||||||
Specifications | Unit | QMJ143S | QMJ143E | QMJ143F | QMJ143H | |||||
Max. working width | mm | 300 | 300 | 300 | 300 | |||||
Working thickness | mm | 10-85 | 10-120 | 10-120 | 10-120 | |||||
Min. working length (intermitternt/ continuous) | mm | 530/200 | 600/300 | 585/300 | 600/300 | |||||
Saw spindle dia. | mm | φ55 | φ55 | φ55 | φ55 | |||||
Reducing sleeve dia. | mm | φ70 | φ70 | φ70 | φ70 | |||||
Saw spindle speed | r/min | 4000 | 4000 | 4000 | 4000 | |||||
Blade dia. | mm | φ205-φ305 | φ205-φ380 | φ205-φ380 | φ205-φ380 | |||||
Feeding speed | m/min | 4-30 | 4-30 | 4-30 | 4-30 | |||||
Total power | kW/HP | 32.57/43.5 | 39.57/52.7 | 39.57/52.7 | 39.57/52.7 | |||||
Feeding motor | kW/HP | 2.2/3 | 2.2/3 | 2.2/3 | 2.2/3 | |||||
Spindle motor | kW/HP | 30/40 | 37/50 | 37/50 | 37/50 | |||||
Lifting motor | kW/HP | 0.37/0.5 | 0.37/0.5 | 0.37/0.5 | 0.37/0.5 | |||||
Suction hood dia. | mm | 2*φ150 | 2*φ150 | 2*φ150 | 2*φ150 | |||||
Overall dimensions | mm | 1930*1580*1560 | 2200*1500*1580 | 4460*1570*1600 | 4460*1570*1600 | |||||
Weight | kg | 2250 | 2300 | 2300 | 2600 | |||||
ENTIRE CAST IRON
Extra heavy one-piece, cast Iron machine frame is specially heat treated for maximum stability and rigidity by standard
configuration.
configuration.

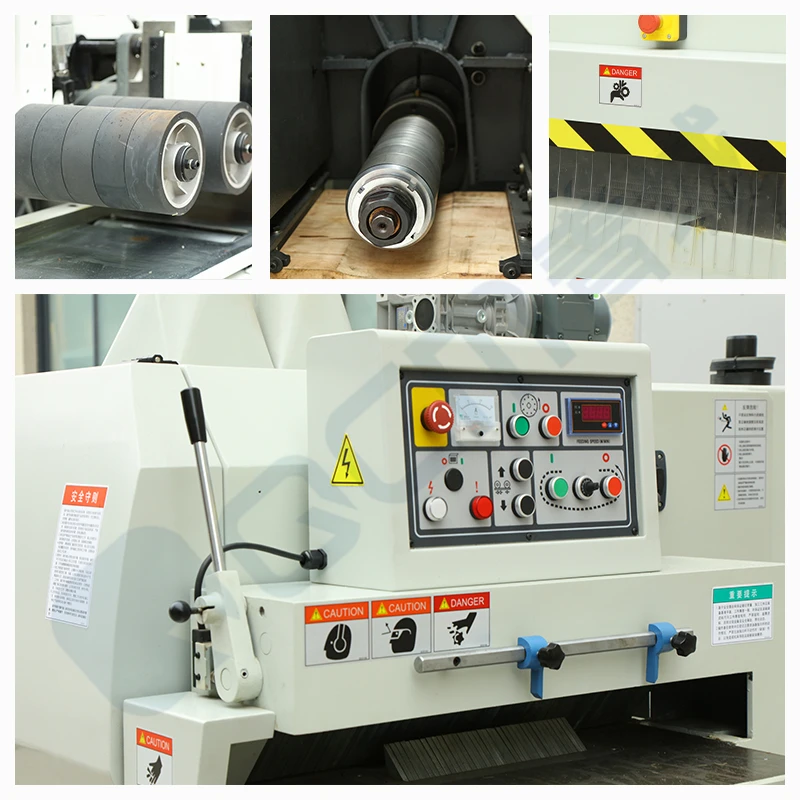

ANTI-REBOUND SAFETY DEVICE
The anti-rebound safety device located on the infeed ensures operational safety.
WEAR RESISTANCE GUIDE TRACK
The casting guide track and chain plate are made of special materials, specially processed and precisely processed, with high
surface hardness, high precision and good wear resistance
surface hardness, high precision and good wear resistance
AUTOMATIC LUBRICATOR
The automatic lubricator delivers frequent lubrication oil to the caterpillar chain.
DUST REMOVAL BRUSH
The dust removal brush made of special materials is matched with a quantitative oil injection device to clean and lubricate the
chain plates in real time
chain plates in real time
HIGH PRECISION SPINDLE
All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.
PROFESSIONAL ELECTRICAL APPLIANCES
Siemens and Schneider electrical products and appliances insure the whole machine run well with a stable performance
CAST IRON CHROMED FEED TABLE
The entire Cast Iron – Chromed Infeed table is normalization heat treated for maximum stability. Infeed Table & Fence adjustment
is quickly accomplished by means of a quick-setting levers.
is quickly accomplished by means of a quick-setting levers.
Recommend Products

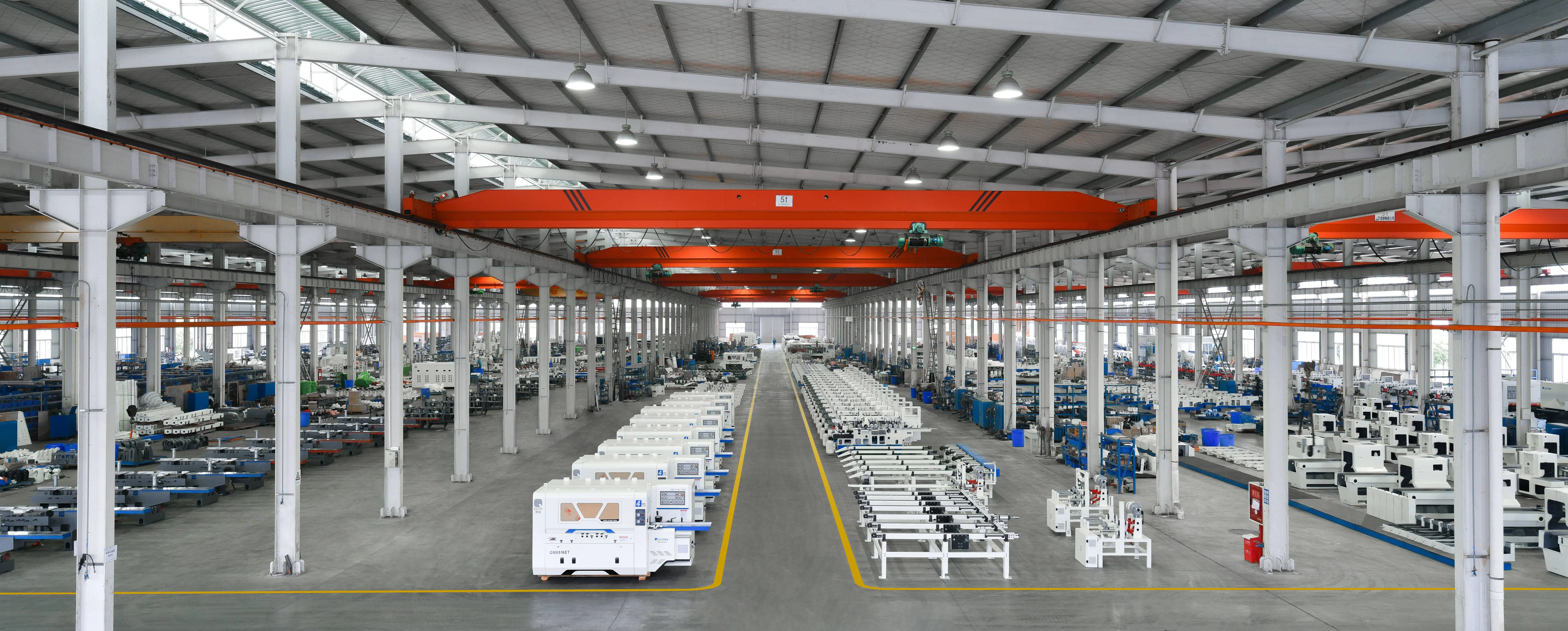

Company Information
Certificate & Delivery
FAQ
1. Manufacturer or Trading company?
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2. Payment Term?
TT , 50% advance payment and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving advance payment.
45-60 days for customized machines.
4. Warranty ?
3 years for machine, 3 years for the core components.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
8. Why us?
1). 50 years experience in wood working machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
4). Warranty: 3 years for machine, 3 years for the core3 years for machine, 3 years for the core components.
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2. Payment Term?
TT , 50% advance payment and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving advance payment.
45-60 days for customized machines.
4. Warranty ?
3 years for machine, 3 years for the core components.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
8. Why us?
1). 50 years experience in wood working machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
4). Warranty: 3 years for machine, 3 years for the core3 years for machine, 3 years for the core components.
