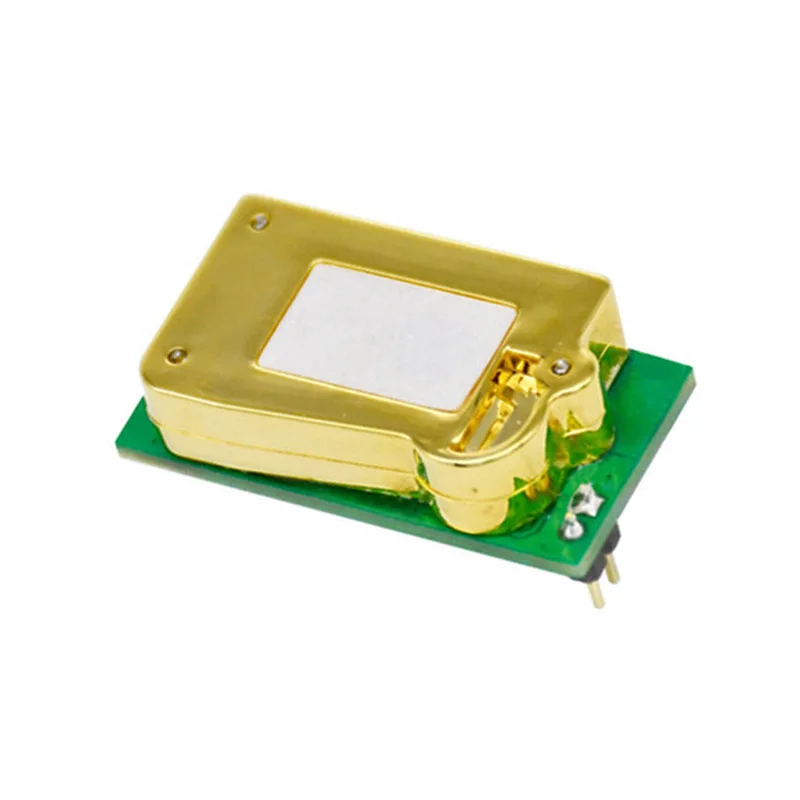

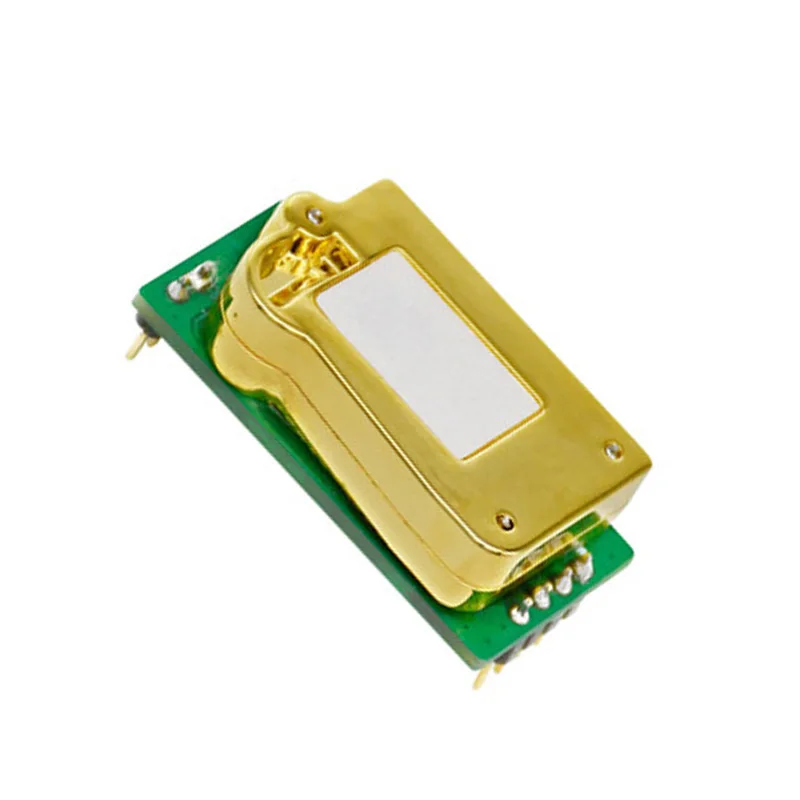

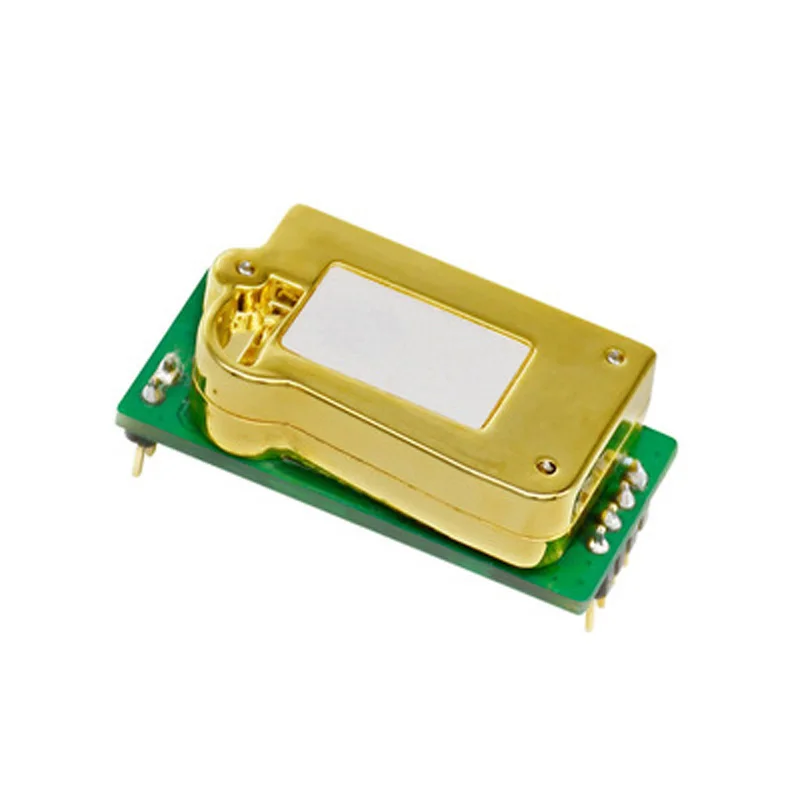

ASAIR ACD10 High precision and large range co2 sensor carbon dioxide smoke detectors
ASAIR ACD10 High precision and large range co2 sensor carbon dioxide smoke detectors
ASAIR ACD10 High precision and large range co2 sensor carbon dioxide smoke detectors
ASAIR ACD10 High precision and large range co2 sensor carbon dioxide smoke detectors
ASAIR ACD10 High precision and large range co2 sensor carbon dioxide smoke detectors
ASAIR ACD10 High precision and large range co2 sensor carbon dioxide smoke detectors

ASAIR ACD10 High precision and large range co2 sensor carbon dioxide smoke detectors

Share on (1600363633239):


Price:$12.50 - $13.15

Quantity:


Product Overview

Description









Product Summary
ACD10 uses the principle of non-dispersive infrared (NDIR) to detect the concentration of carbon dioxide in the air. ACD10 has the advantages of good selectivity, no oxygen dependence, and long life; built-in temperature compensation; with digital interface output, easy to use. ACD10 is a high-performance sensor that combines infrared absorption gas detection technology, precise optical circuit design, and high-precision signal detection circuit design.




Parameter
Condition
MIN
TYP
MAX
Unit
Measurement Range
-
400
-
5000
ppm
Preheat Time
-
-
120
-
S
Power Supply
-
4.75
5
5.25
V
Operating Temperature
-
-10
-
50
℃
Operating Humidity
Noncondensing
0
-
95
%RH
Accuracy
±(50 + 5% reading)
Data Refresh Frequency
1s
Output
UART or I2C
Warranty
12 months
