T232RL FT232BLUSB To TTL USB TTL Converter Basic Program Downloader Mini Interface FT232

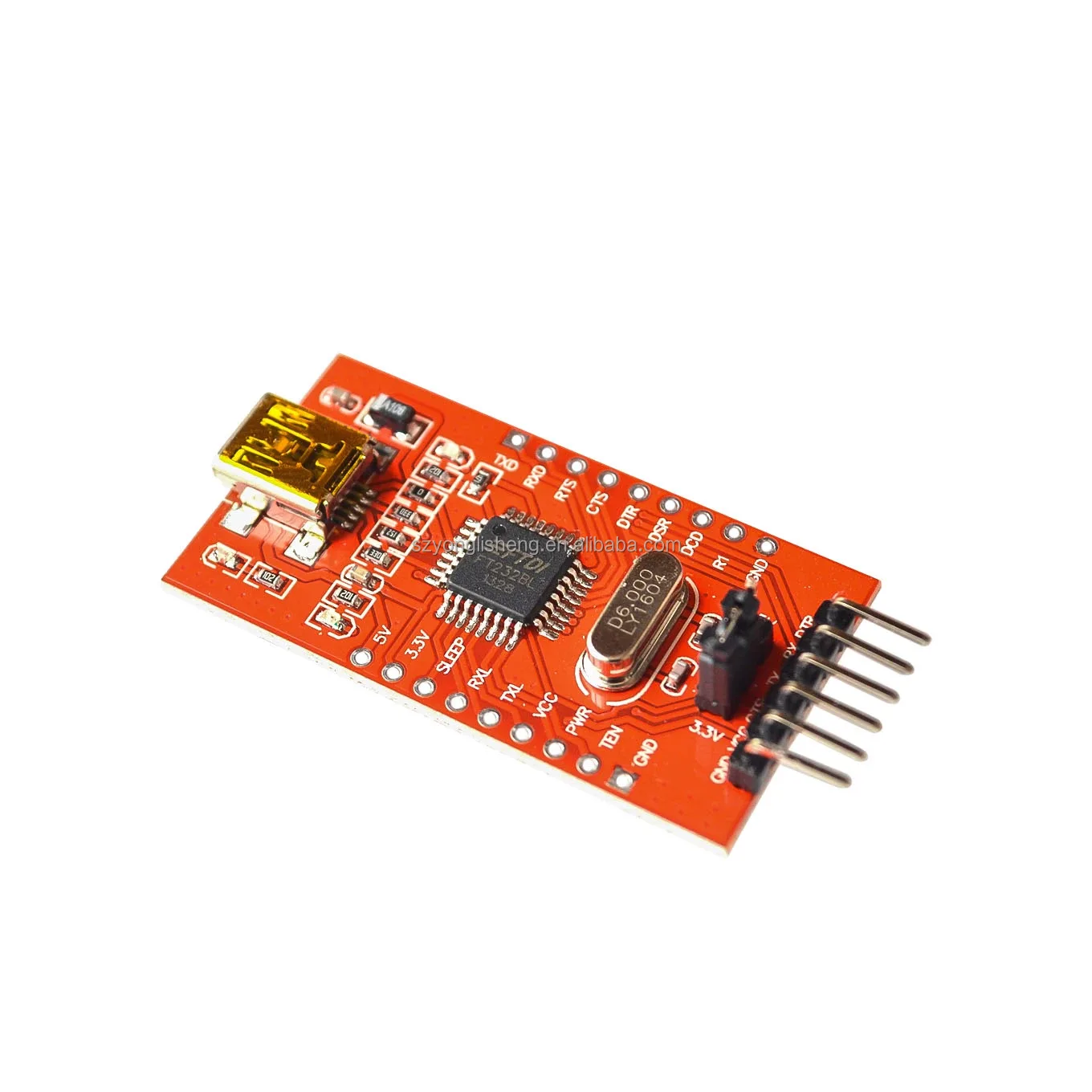

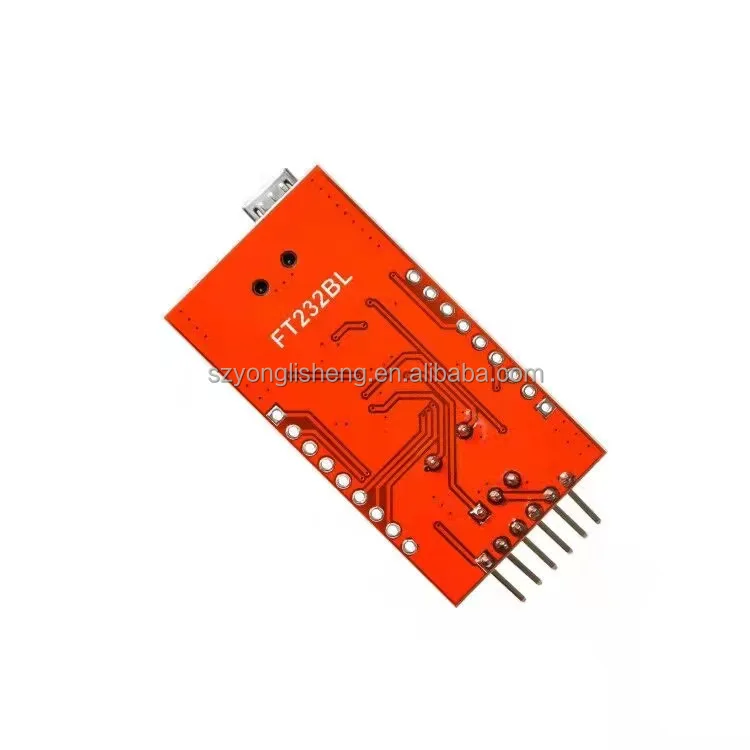

Using FT232BL chip; ·

Lead out all signal ports of FT232BL chip, TTL/CMOS level;

·RXD/TXD transceiver communication indicator;

·USB power supply, optional 5V or 3.3V interface level (if other levels are needed, you can directly provide the target voltage on the VCC and GND pins).

FT232BL USB to serial port module USB to TTL level

The king of flashing the USB-RS232-TTL line!

USB2TTL protection version over current protection version! ! On sale! ! Use USB2.0 good FT232RL chip, USB
power supply uses 500MA fuse (FUSE) to protect your USB power supply and equipment! More stable performance! !

This product uses a brand-new design and adopts the FT232RL chip with good USB2.0 to convert the USB into a serial port. There are two power supply versions. Before leaving the factory, each module adopts the self-sent and self-received 10W byte test to pass! !

PCB board size:17mm multiplied by 32.5mm

【Introduction of FT232B】

With the development of computer technology, parallel ports and serial ports
have slowly disappeared on PCs. Nowadays, even desktop computers have few parallel ports. But for engineers, both parallel and serial ports are essential interfaces, especially serial ports. For computers without a serial port, the most convenient solution is to use a USB to serial chip to virtualize a serial port. From a stability perspective, the FT232 series is the most reliable.
You can use it to debug programs without worrying about the blue screen. Appear
