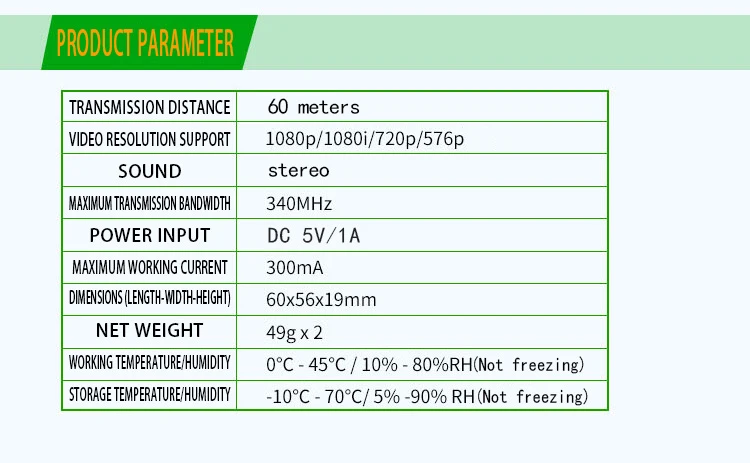

Features & Specifications

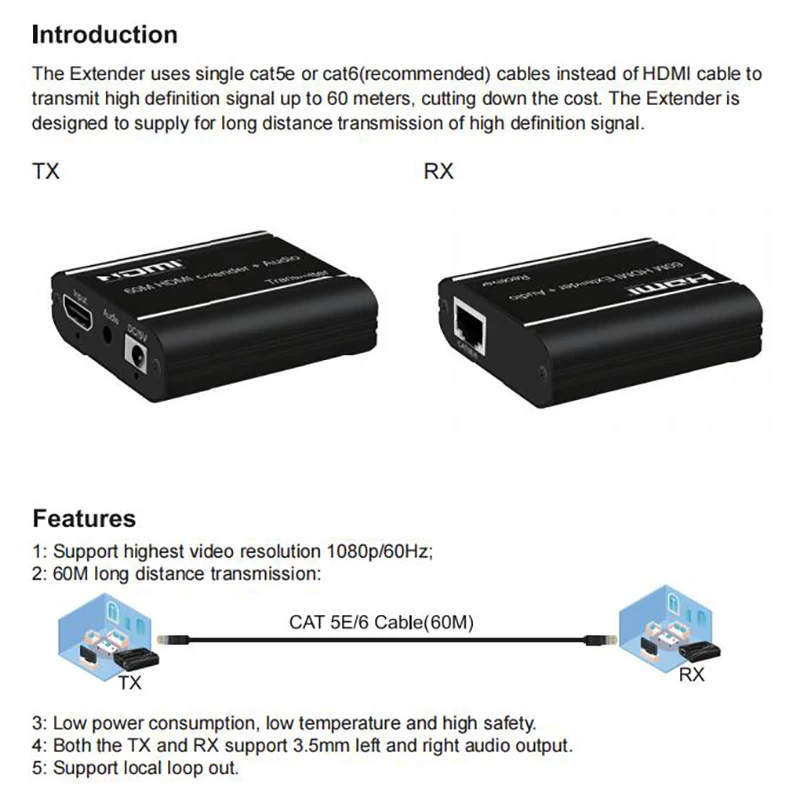

Length of CAT5e/CAT6 cable between Rx and TX | 60 meters |
HDMI Input | 1080p/720p/576p/576i/480p/480i |
HDMI Output | 1080p/720p/576p/576i/480p/480i |
Max baud rate | 3x3.4Gbps |
Input video signal | 0.5~1.5Volts p-p |
Output DDC signal | 5Volts p-p (TTL) |
Input HDMI cable distance | ≤10m AWG26 HDMI standard cable |
Output HDMI cable distance | ≤10m AWG26 HDMI standard cable |
| TX Max working current | 500mA |
| RX Max working current | 300mA |
Operating Temperature range | (0 to +45℃) |
Operating Humidity range | 5 to 90%RH (No Condensation) |
Dimension (L x W x H) | 64x59x22(mm) |
TX Weight | 53g |
RX Weight | 53g |
The Package includes

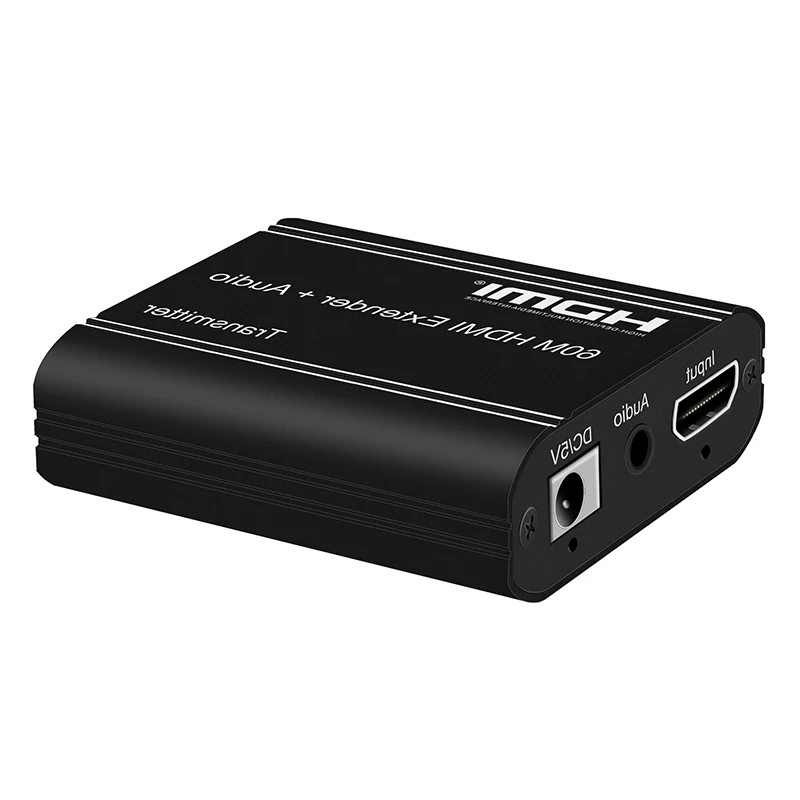

HDMI Transmitter | 1pcs |

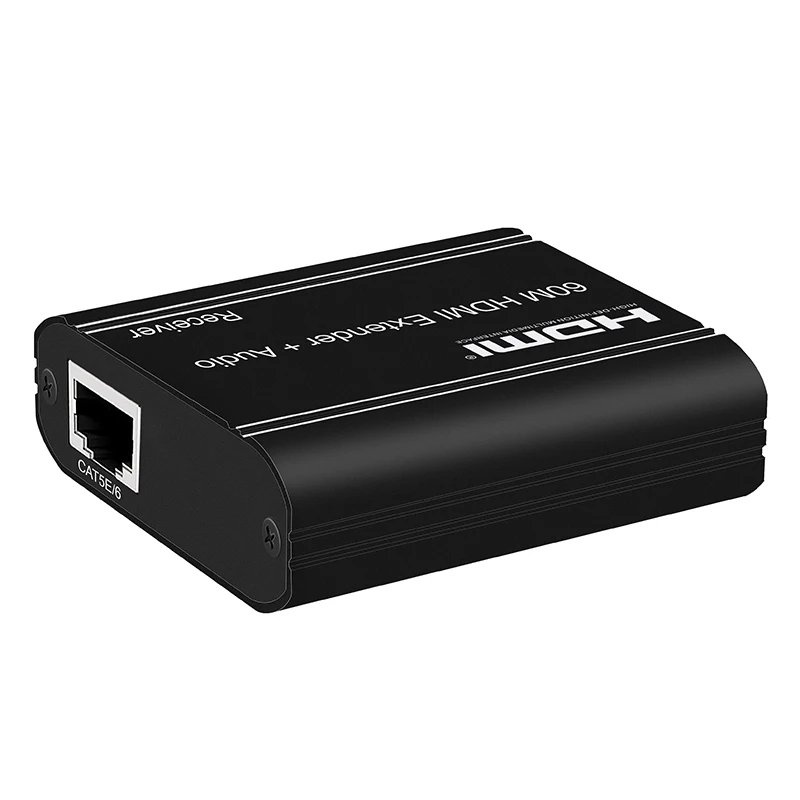

HDMI Receiver | 1pcs |
Cable adptar | 2pcs |
| User manual | 1pcs |



1. After-sales Service
1 year warranty for all kinds of products;
2. Payment
T/T, Paypal. Credit insurance on alibaba
3.Transportation
Transported by DHL,UPS,EMS, Fedex, Air freight, sea freight.
4.Can I get a sample for testing firstly?
Even if we are doing wholesale business, We could fully understand the further cooperation is based on time andquality. So one set of sample to test is totally welcomed. Also OEM/ODM is acceptable.
5. How long will I receive the product?
There are enough stock for most of products, regularly the delivery time is around 1~4 work days(except busy season)after payment received.
hank you for your inquiry!
