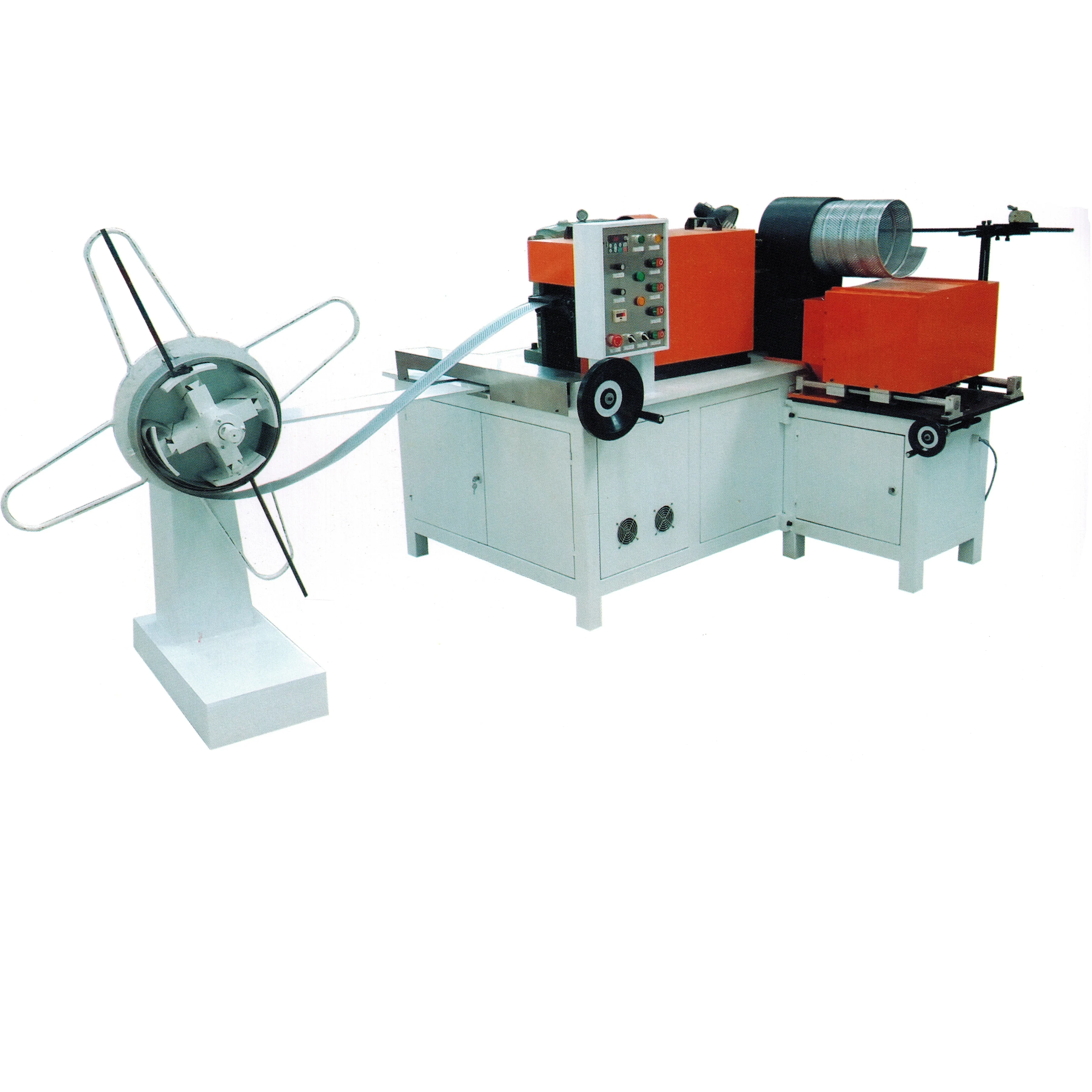

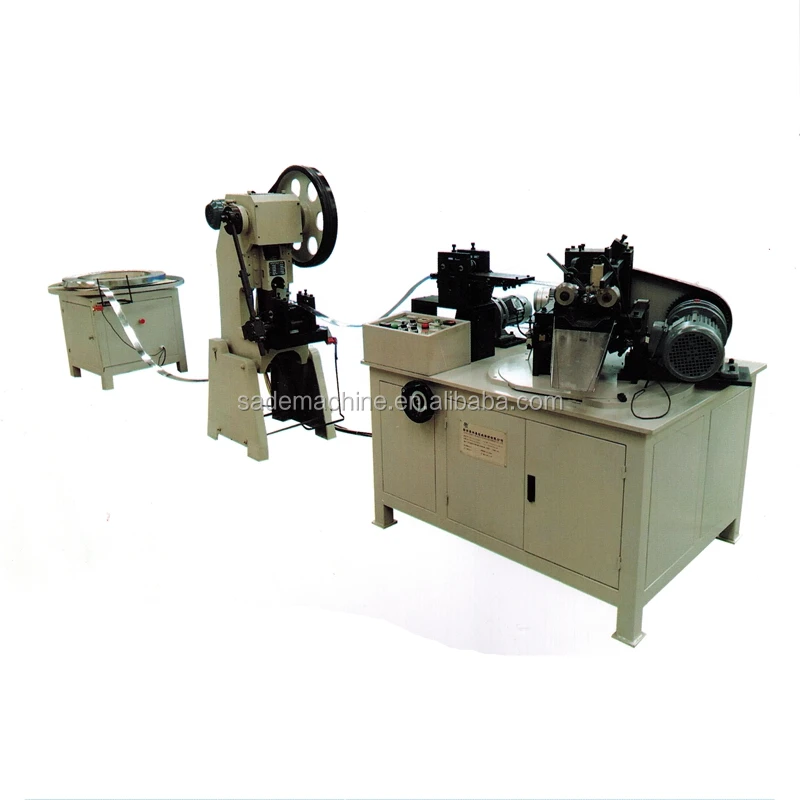

Automatic Car Oil Filter Spiral Core Making Machine

Product Overview

Description

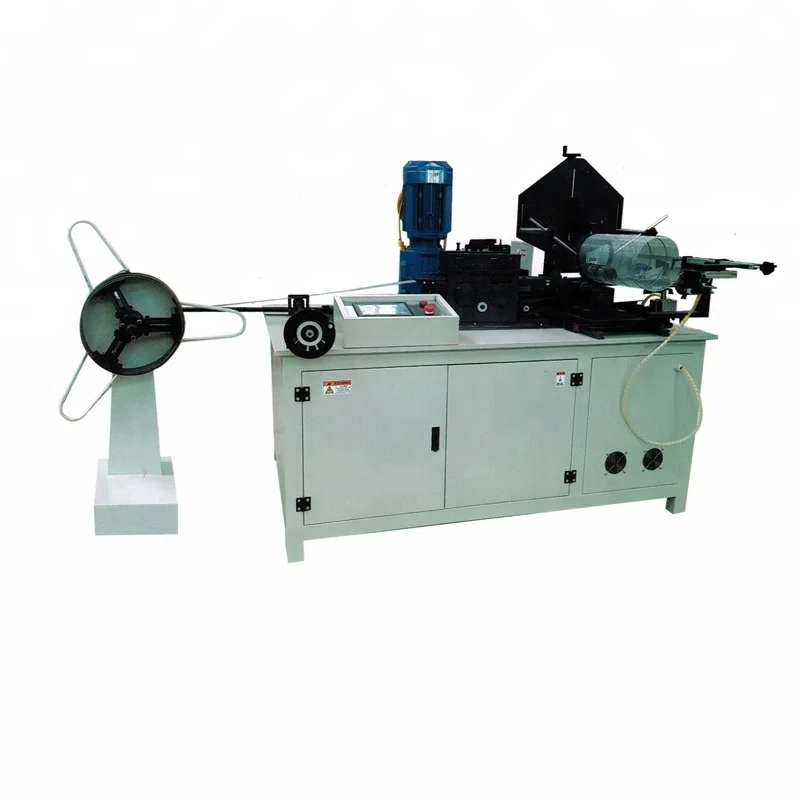

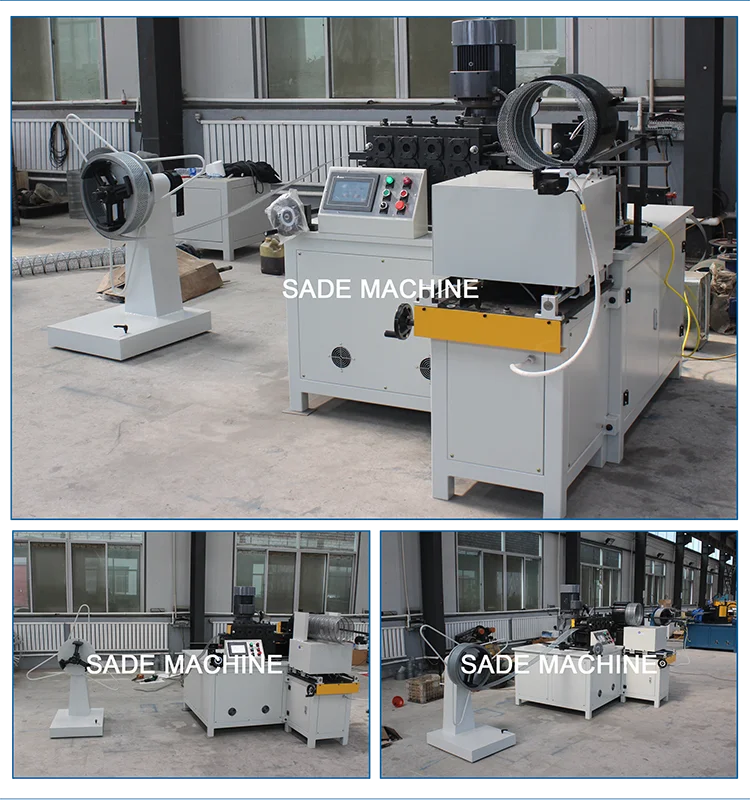

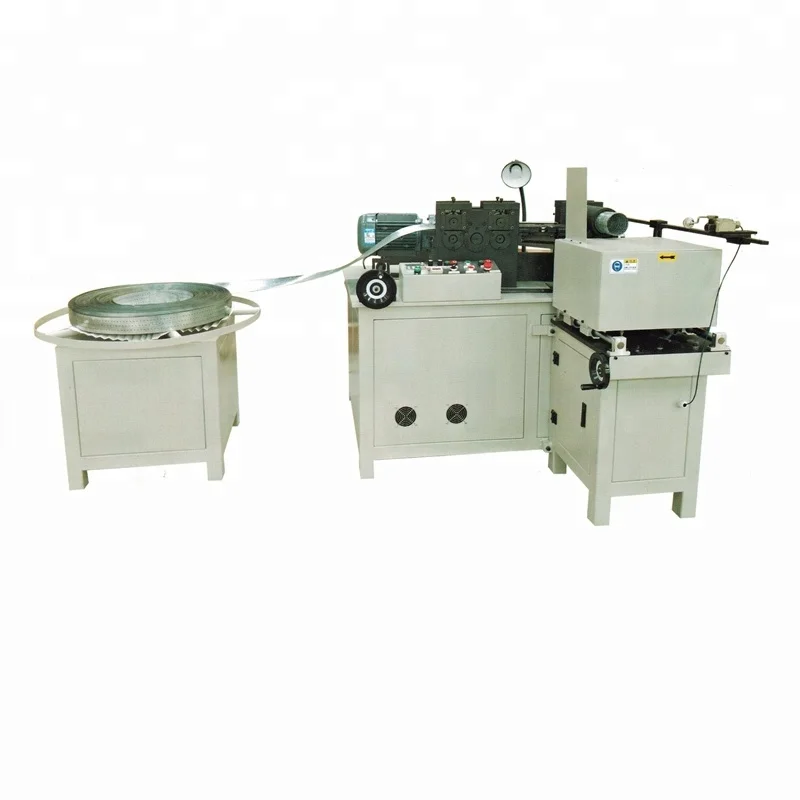

Sade full automatic filtering spiral tube mesh making machine

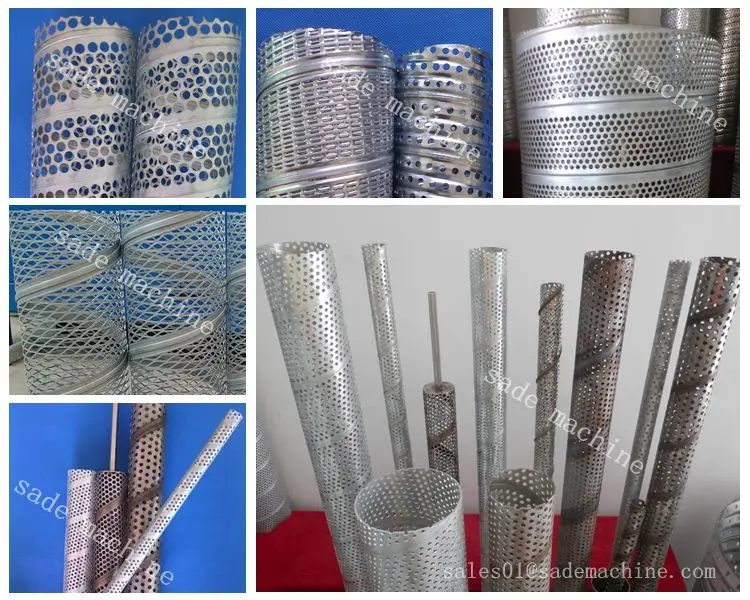

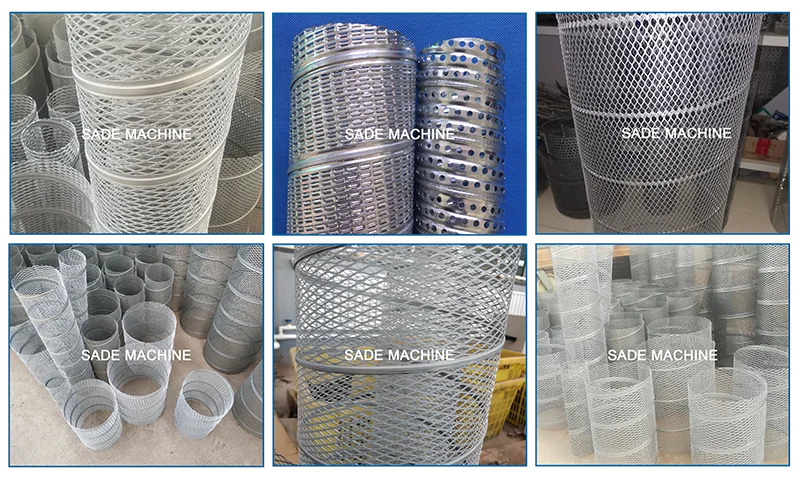

 The filter core making machine is used to produce the core tube for filtration purpose, the filter structure can be perforated hole, expanded mesh, split gap, etc. The core tube is mainly used for automotive oil filter, fuel filter, water purification, etc.

	SD-F1	SD-F2
thickness of sheet	0.4-0.6 mm	0.4-0.6 mm
sheet of width	65mm	54mm
diameter range	120-400mm	80-400mm
motor power	4.37kw	4.37kw
speed	6m/min	6m/min
dimension	1700*1100*1500	1700*1100*1500
weight	1200kg	1200kg
cutting mode	pneumatic cutting



Main features:
1.Very easy and quick to change the diameter of spiral tube.
2.Any length can be cut according to customer's requirement.
3.By adjusting clutch, the machine can be suitable for different thick materials.
4. PLC control makes high efficient, stable quality, less procedures and materials , so reduces the production cost.
5. Fluid drive, large driving moment and stable run.

 The core tube is mainly used for automotive oil filter, fuel filter, water purification, etc.



1. Enough spare parts of machines could be supplied.
2. All machines were tested and adjusted before delivery.
3.24 hour technical support by e-mail and online
4. We offer installation and train the workers for the customers.





If you have any other question, please Contact Us Any time!
