Машина для маркировки полов STiM Mark 4K
- Category: Road Marking Machines >>>
- Supplier: OOO STIM
Share on (1600364364752):
Product Overview
Description
PRODUCT DESCRIPTION

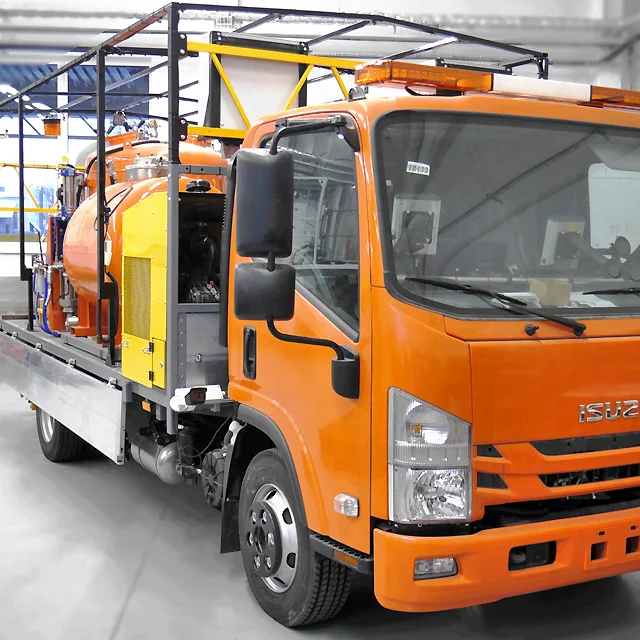

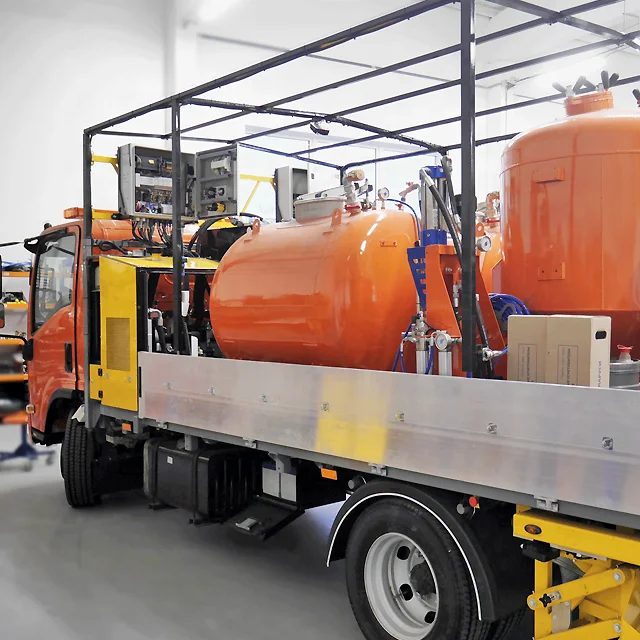

STiM Mark 4K is a representative of a new line of high-performance road marking machines.
The machine implements innovations aimed at reducing the workload on personnel, reducing wasted time for loading marking materials, preparing equipment for work, and personnel safety.
The machine implements innovations aimed at reducing the workload on personnel, reducing wasted time for loading marking materials, preparing equipment for work, and personnel safety.
The use of sensors for monitoring the weight of tanks with marking materials allows for operational control and accounting of marking materials.
The operator’s seat in the cab provides comfortable working conditions, reduces crew fatigue, and significantly increases safety.
The operator’s seat in the cab provides comfortable working conditions, reduces crew fatigue, and significantly increases safety.

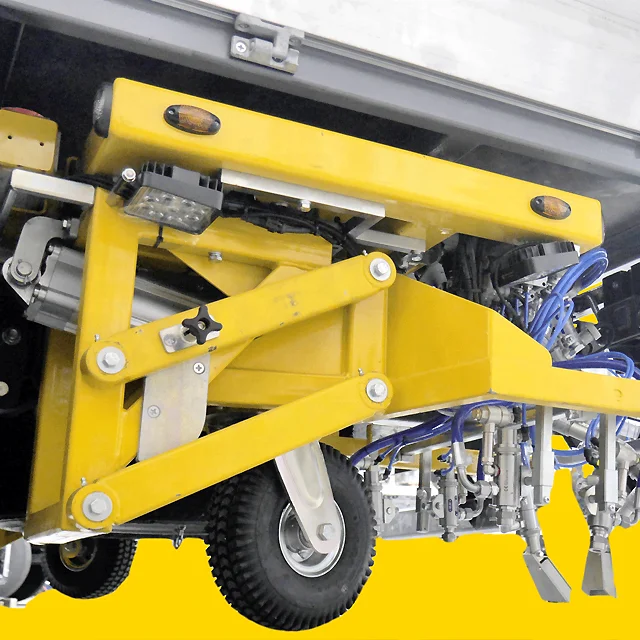

Marking units with adjustable reach directly in the process of work are capable of simultaneously marking two lanes to the right and left of the machine. Transfer of the machine from the transport position to the working position takes a few minutes.
The multichannel video surveillance system allows controlling the result of work, quickly responding to changes in conditions for marking, the road situation.
The use of two high-pressure paint pumps made it possible to achieve an increase in productivity directly during marking the lines. The machine speed during operation can reach 20 km/h.
The possibility of replacing standard paint tanks with IBC containers (intermediate bulk containers) allows to fit into the logistics chain of some suppliers of marking materials.
The integrated marking control systems allow equipping the machine at any time with the LIS system which is designed to repeat the marking with minimal involvement of the operator.
Active and passive safety elements are designed to ensure trouble-free operation of the equipment and machines.
The multichannel video surveillance system allows controlling the result of work, quickly responding to changes in conditions for marking, the road situation.
The use of two high-pressure paint pumps made it possible to achieve an increase in productivity directly during marking the lines. The machine speed during operation can reach 20 km/h.
The possibility of replacing standard paint tanks with IBC containers (intermediate bulk containers) allows to fit into the logistics chain of some suppliers of marking materials.
The integrated marking control systems allow equipping the machine at any time with the LIS system which is designed to repeat the marking with minimal involvement of the operator.
Active and passive safety elements are designed to ensure trouble-free operation of the equipment and machines.
STANDARD CONFIGURATION
- marking unit with hydraulic extension from the left side of the machine with two pairs of paint and bead guns;
- marking unit with hydraulic extension from the right side of the machine with one pair of paint and bead guns;
- operator’s seat in the cab:
- marking remote control console М12;
- technological equipment control panel;
- power unit alarm panel with emergency stop button;
- monitors of the video surveillance system and display of technological parameters of the equipment;
- driver’s seat:
- “Video marker” system, monitor of the video surveillance system and display of technological parameters of the equipment;
- toggle switches of the equipment control systems;
- control system of the number of marking materials:
- tanks on strain gauges;
- glass bead sensors;
- safety elements:
- beam-type beacon on the cab, two front lower stroboscopic lights in the front of the machine, two point-type beacons on the tent frame, stroboscopic lights on the marking units;

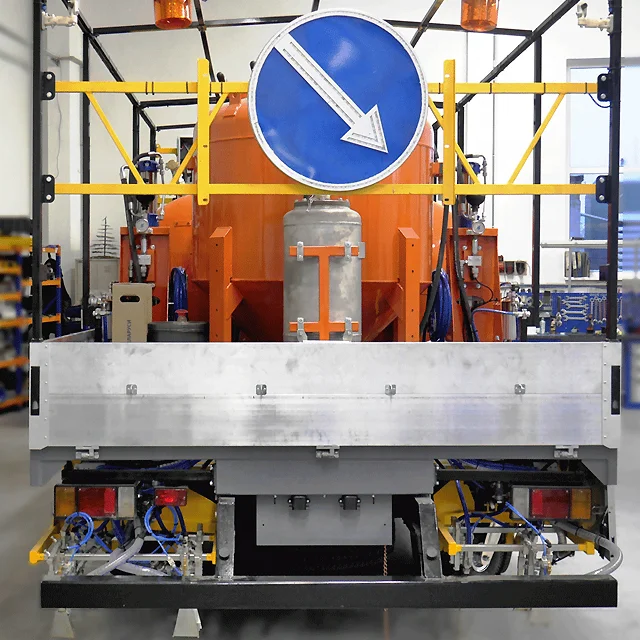

- cluster “Pass This Side” sign;
- intercommunication device;
- “Video marker” system, reinstalled from one side to the other;
- manual paint gun (extension cable 50 cm, hose 10 m);
- marking unit and operator’s seat lighting for night-time work;
- manual air gun for cleaning working equipment with air.
- marking unit with hydraulic extension from the right side of the machine with one pair of paint and bead guns;
- operator’s seat in the cab:
- marking remote control console М12;
- technological equipment control panel;
- power unit alarm panel with emergency stop button;
- monitors of the video surveillance system and display of technological parameters of the equipment;
- driver’s seat:
- “Video marker” system, monitor of the video surveillance system and display of technological parameters of the equipment;
- toggle switches of the equipment control systems;
- control system of the number of marking materials:
- tanks on strain gauges;
- glass bead sensors;
- safety elements:
- beam-type beacon on the cab, two front lower stroboscopic lights in the front of the machine, two point-type beacons on the tent frame, stroboscopic lights on the marking units;
- cluster “Pass This Side” sign;
- intercommunication device;
- “Video marker” system, reinstalled from one side to the other;
- manual paint gun (extension cable 50 cm, hose 10 m);
- marking unit and operator’s seat lighting for night-time work;
- manual air gun for cleaning working equipment with air.
OPTIONS
- equipment for use of paints of two different colours;
- independent paint contour for marking with an alternative color (paint pump 9.5 l/min, 130 bar, tank 60 l)* – replacement of the equipment for using paints of two different colors;
- paint pumping system to the tank;
- additional third pair of paint and bead guns for the marking unit on the left side of the machine;
- additional second pair of paint and bead guns for the marking unit on the right side of the machine;
- pedal duplicating the “start” button of the marking control panel;
- photo sensor of the line beginning (suitable for mounting on any gun);
- stationary platform for road traffic cones located at the rear of the machine;
- cluster “Pass This Side” sign (1050 х 1050 mm, cluster 200 mm) – replacement of the “Pass This Side” sign (700 mm);
- LIS system for one pair of paint and bead guns to be installed on the right marking unit;
- mixer in the paint tank;
- set of the equipment for application of spray plastic 98:2 (one line);
- set of the equipment for application of spray plastic 98:2 (two lines);
- third set of guns for application of spray plastic 98:2;
- manual pain gun for application of spray plastic 98:2;
- “Roadworks”, “40 km/h speed limit” signs at the rear of the machine;
- manual bead gun (hose 6 m).
* configuration is to be discussed during the order
- independent paint contour for marking with an alternative color (paint pump 9.5 l/min, 130 bar, tank 60 l)* – replacement of the equipment for using paints of two different colors;
- paint pumping system to the tank;
- additional third pair of paint and bead guns for the marking unit on the left side of the machine;
- additional second pair of paint and bead guns for the marking unit on the right side of the machine;
- pedal duplicating the “start” button of the marking control panel;
- photo sensor of the line beginning (suitable for mounting on any gun);
- stationary platform for road traffic cones located at the rear of the machine;
- cluster “Pass This Side” sign (1050 х 1050 mm, cluster 200 mm) – replacement of the “Pass This Side” sign (700 mm);
- LIS system for one pair of paint and bead guns to be installed on the right marking unit;
- mixer in the paint tank;
- set of the equipment for application of spray plastic 98:2 (one line);
- set of the equipment for application of spray plastic 98:2 (two lines);
- third set of guns for application of spray plastic 98:2;
- manual pain gun for application of spray plastic 98:2;
- “Roadworks”, “40 km/h speed limit” signs at the rear of the machine;
- manual bead gun (hose 6 m).
* configuration is to be discussed during the order
PRODUCT SPECIFICATIONS
Parameter | STiM Mark 4K |
Paint spray type | airless |
Technically achievable accuracy of marking according to length in the automatic mode | ±1 cm |
Marking speed at the following paint consumption: | |
- single sold line (width 15 cm, 800 g/m2) | up to 20 km/h |
- double sold line (width 15 cm, 800 g/m2) | 15 km/h |
Maximum marking speed | 20 km/h |
Autonomous pw: | |
- engine (Kubota) with maximum power | 33 kW |
- type of engine fuel | diesel |
- nominal compressor performance (maximum) | 600 (3800) l/min |
Conventional performance of paint pump | 26 l/min |
Number of paint pump | 2 |
Maximum paint working pressure | 172 bar |
Capacity of tanks for consumables: | |

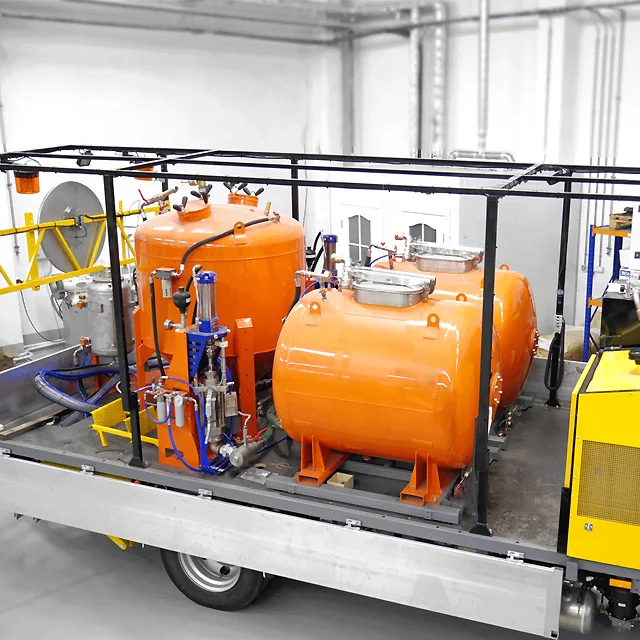

- for paint (constructive) | 2 х 1500 kg |
- for glass beads (constructive) | 1750 kg |
- for solvent | 35 kg |
Chassis fuel type | diesel |
Overall dimensions of the machine (Length х Width х Height), m: | |
- in working position | |
two working units in the working position | 7.10х4.70х2.85 |
one marking unit in the working position | 7.10х3.50х2.85 |
- in transport position | 7.10х2.30х2.85 |
Curb weight of the machine | 6600 kg |
Technically permissible weight of the machine | 9500 kg |
* Possible design with IBC containers
