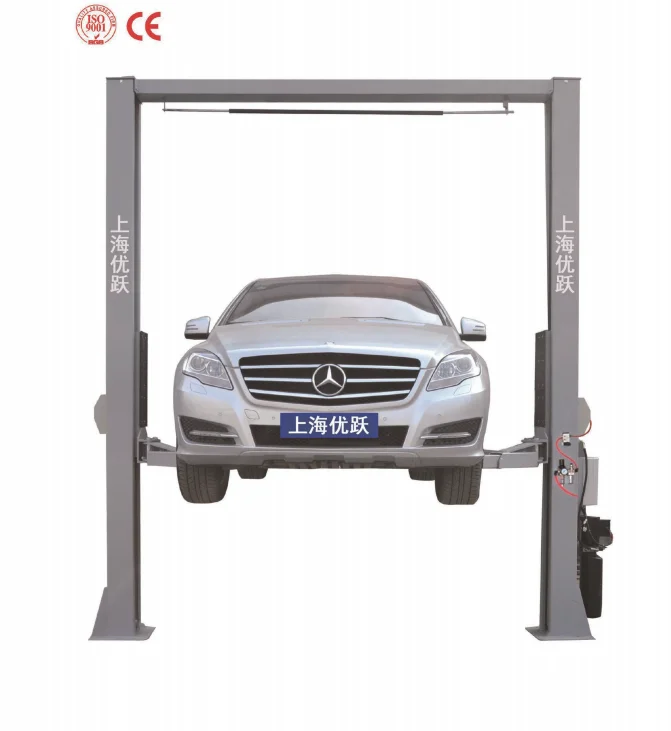

UE 2P5T 5T Hydraulic Single Side Manual Unlock Overhead Baseless Clear Floor Gantry 2 poles Vehicle Elevator 2 Post Car lift
- Category: >>>
- Supplier: Shanghai UE Automotive Technology Co. Ltd.
Share on (1600364483159):
Product Overview
Description
Products Description
Product Paramenters
Design | Tow post | Type | Double Cylinder Hydraulic Lift |
Lifting weight | 5000kg | Lifting height | 1750mm |
Min.Lifting height | 120mm | Total height of column | 2830mm |
Width between coulumn | 2800mm | Outer dimension of base | 3380mm |
Rise time | 60s | Passing width | 2510mm |
Descent time | 50s | Motor power | 2.2kw |
Long arm length | 680~1020mm | Short arm length | 860~1300mm |
N.W | 600kg |
Features
1.Clear floor design,can make the operator in the vehide under working more easily.

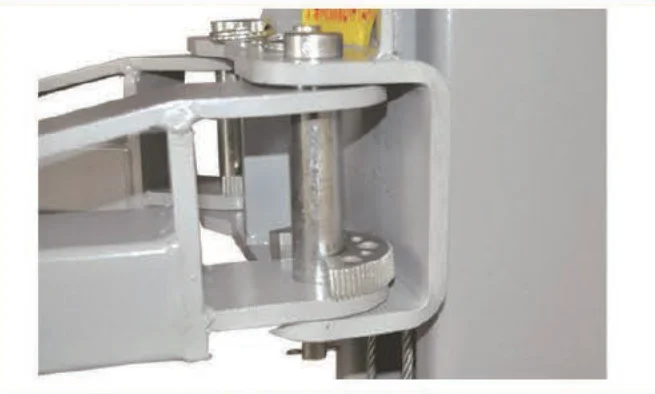

2. One type of sliding body bending plate welding, the arm. support more fimly.
3. By two cylinder,plate and wire rope chain balance system,lifting and lower ingsmooth.
4.hydraulic power unit comfiguration throtting device,can always adjust therate of decline.
5. Manual mechanical loce release from two sides.

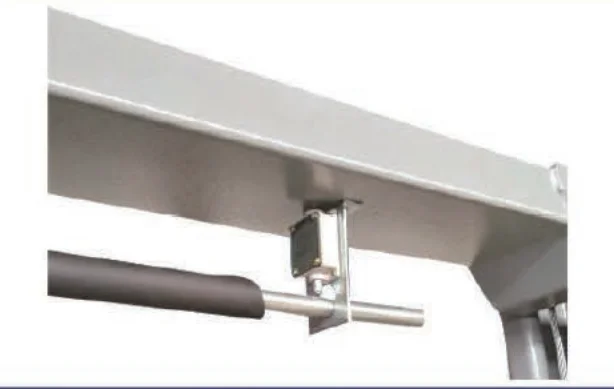

6.Height limit switch.Asymmetric arm design,leaves more space for the cars.
7, Strip design,elegant appearance
8.It has adopted 115% dynamic loading capacity and 150% staic loading capacity tested .
9. ISO9001、CE certified
