Mechanical Jacks Lifting 25 Ton 30 Ton 50 Ton Hydraulic Tank Jack
$600.00-1,000.00

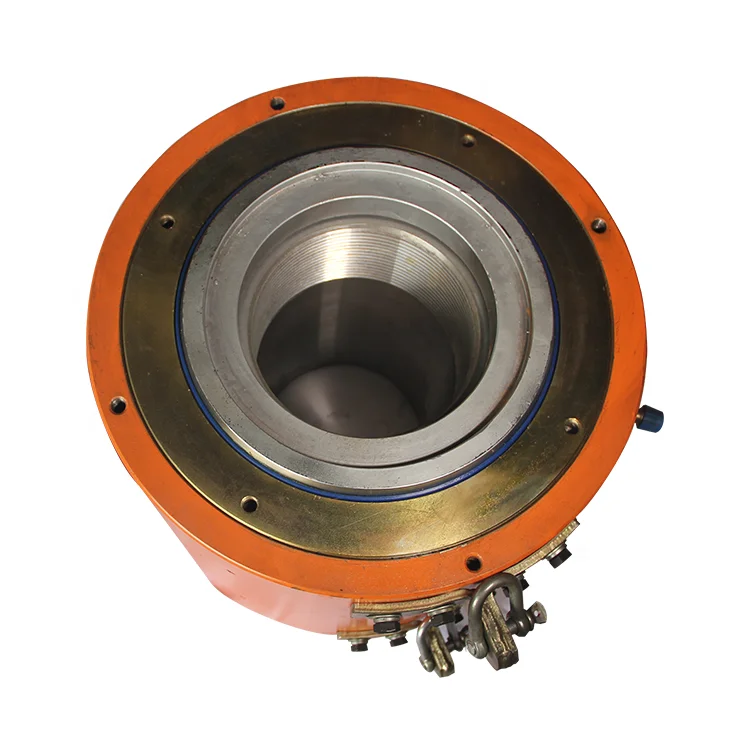

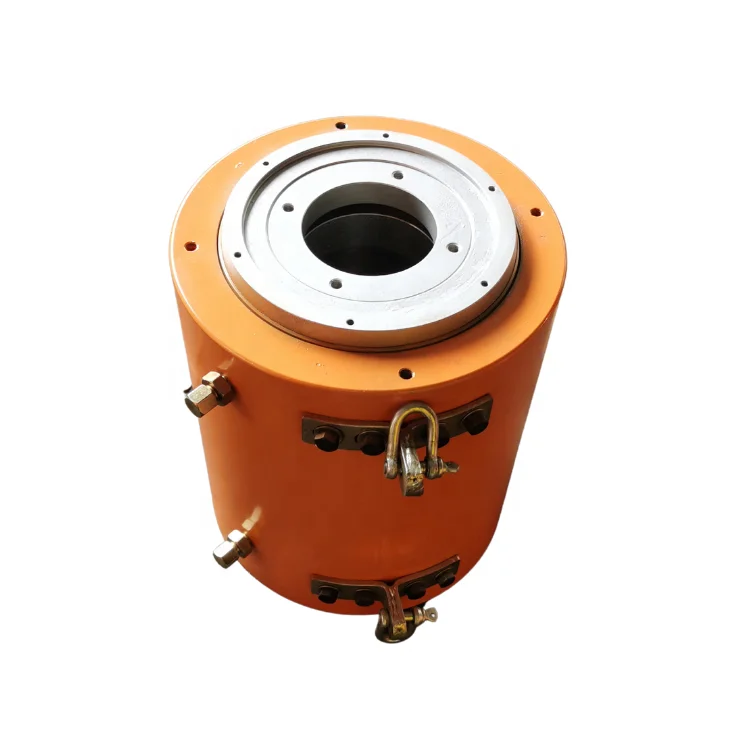

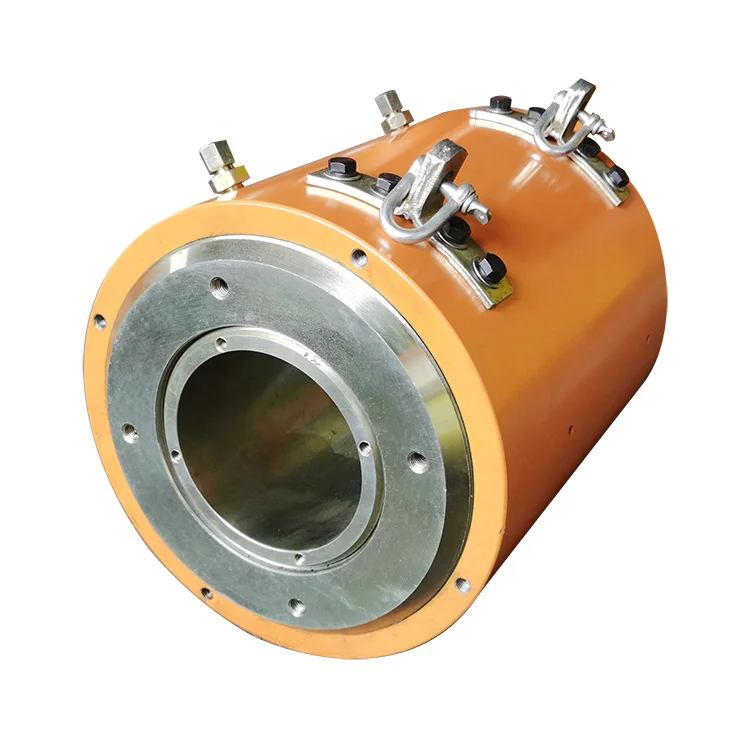

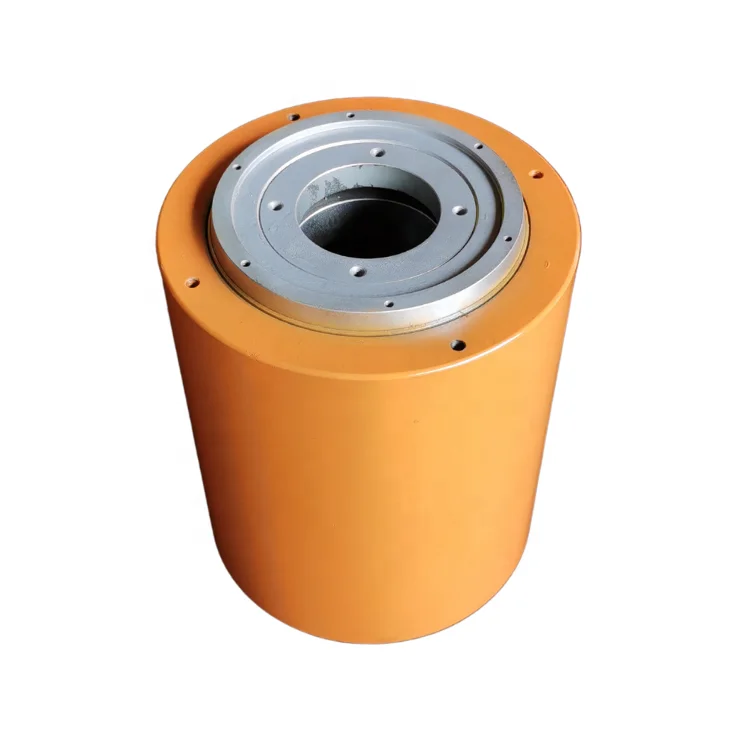

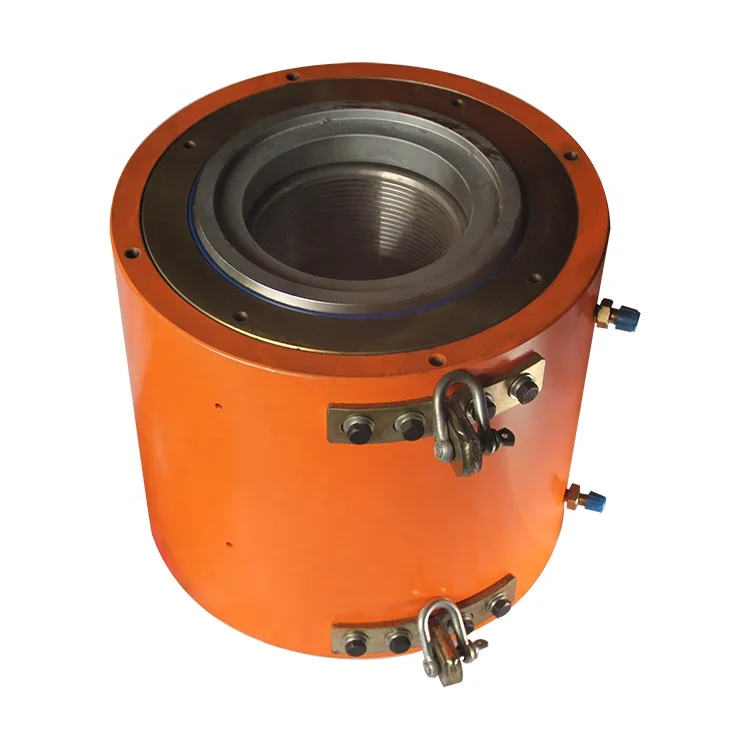

High Cost performance Prestressed Post Tensioning Piston Cylinder Hollow Stressing Jack, Gata Hydraulica 100 Ton Hydraulic Jack
- Category: >>>
- Supplier: Liuzhou Lingqiao Prestressed Machinery Co. Ltd.
Share on (1600364567167):
Product Overview
Description
Product Description

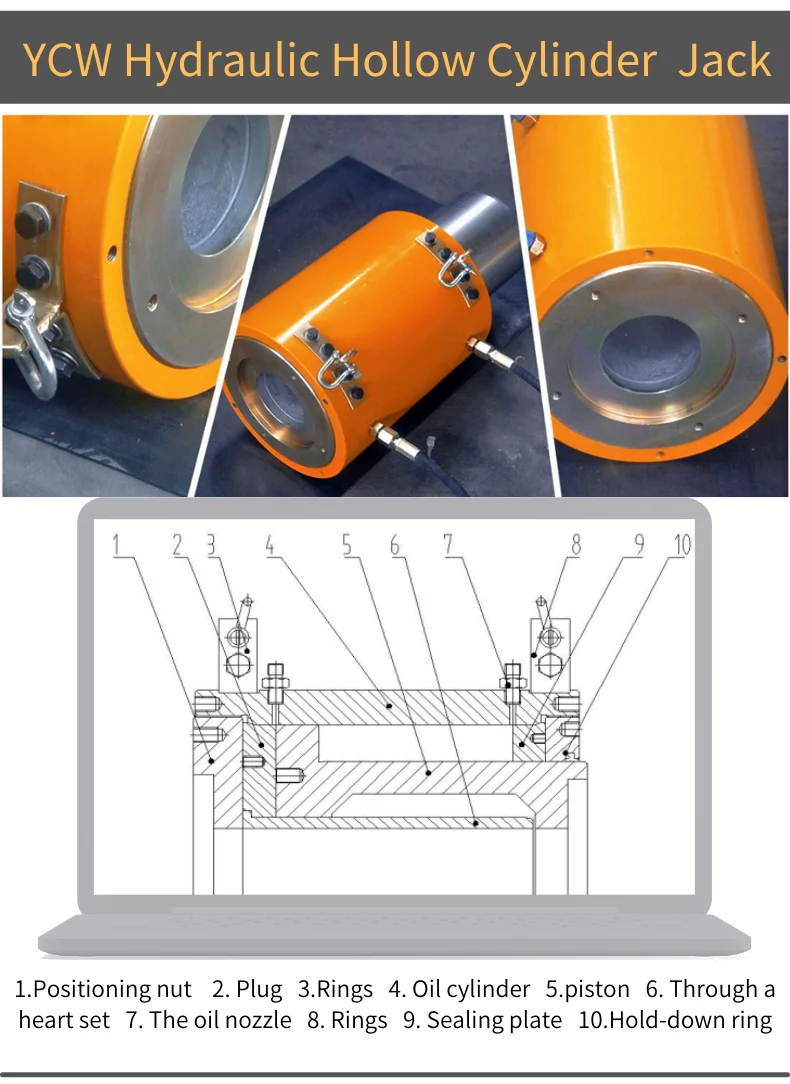

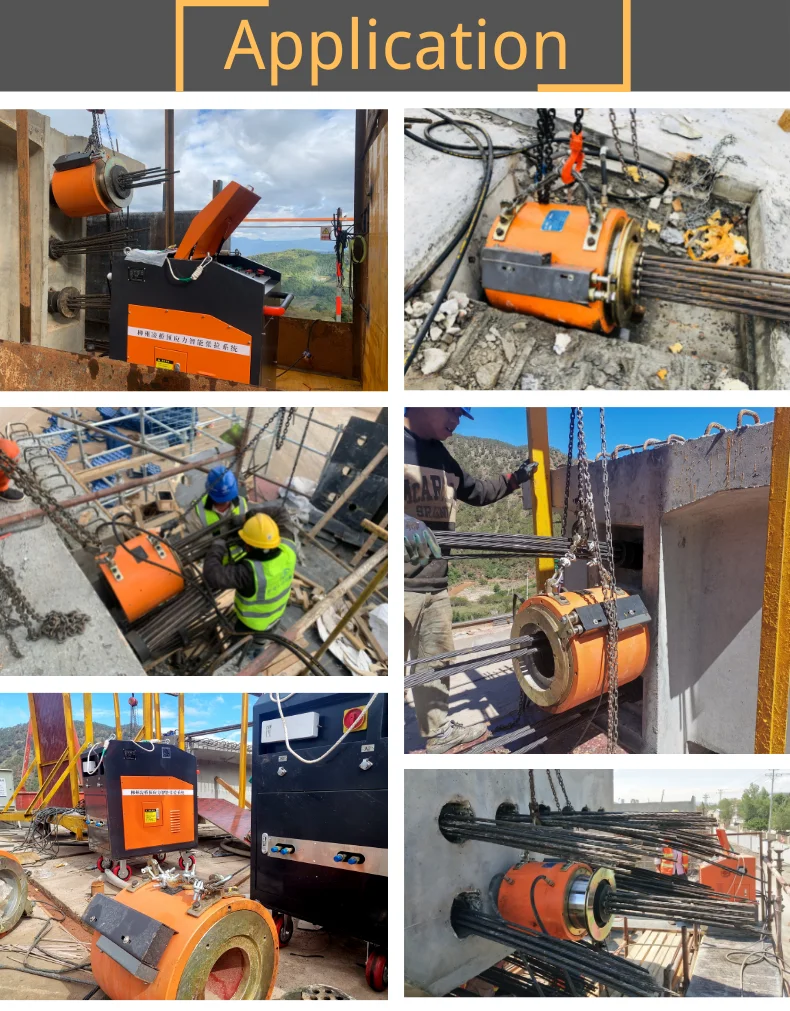

YCW series B type jacks are universal type light multi-function jacks, which are used for prestressed tensioning and anchoring of steel strands with various anchors (group anchors). Widely used in post-tensile construction of large buildings, structures, prestressed concrete Bridges, rock and soil anchoring, hydraulic structures, foundation anchoring and other projects.
This series of jacks is based on the original YCW series of jacks, using high strength steel, improved structure and sealing performance and processing technology and improved new light jacks.
YCW-B Jacks Technical Parameters | |||||||||
| Type | Nominal tension force KN | Nominal oil pressure MPg | Tension piston area m2 | Return piston area m2 | Return oil pressure MPg | Coss-core aperture mm | Stroke for tension mm | Overall size ΦA×L mm | Mass KG |
| YCW70B | 705 | 51 | 1.382×10-² | 0.636×10-² | <25 | Φ60 | 200 | Φ188×330 | 40 |
| YCW100B | 973 | 51 | 1.908×10-² | 0.534×10-² | <25 | Φ78 | 200 | Φ216×337 | 60 |
| YCW150B | 1493 | 51 | 2.927×10-² | 1.609×10-² | <25 | Φ103 | 200 | Φ283×376 | 117 |
| YCW200B | 1998 | 53 | 3.769×10-² | 2.168×10-² | <25 | Φ120 | 200 | Φ310×378 | 130 |
| YCW250B | 2480 | 54 | 4.594×10-² | 2.803×10-² | <25 | Φ140 | 200 | Φ345×382 | 188 |
| YCW300B | 3011 | 51 | 5.904×10-² | 3.518×10-² | <25 | Φ145 | 200 | Φ385×382 | 230 |
| YCW350B | 3529 | 52 | 6.786×10-² | 3.463×10-² | <25 | Φ165 | 200 | Φ410×389 | 280 |
| YCW400B | 3927 | 52 | 7.611×10-² | 4.595×10-² | <25 | Φ175 | 200 | Φ440×389 | 315 |
| YCW450B | 4490 | 51 | 8.804×10-² | 5.788×10-² | <25 | Φ175 | 200 | Φ465×413 | 364 |
| YCW500B | 5026 | 50 | 10.05×10-² | 4,775×10-² | <25 | Φ196 | 200 | Φ495×418 | 445 |
| YCW600B | 6050 | 50 | 12.1×10-² | 6.83×10-² | <25 | Φ196 | 200 | Φ530×443 | 550 |
| YCW650B | 6566 | 50 | 13.13×10-² | 6.291×10-² | <25 | Φ240 | 200 | Φ570×445 | 610 |
