High quality professional digital audio Usb Mixer Amplifier, Public Address Mixer Amplifier With Usb (1600364775832)

Share on:


Price:$80.00 - $84.00
Price in USD:Details

Quantity:


Product Overview

Description

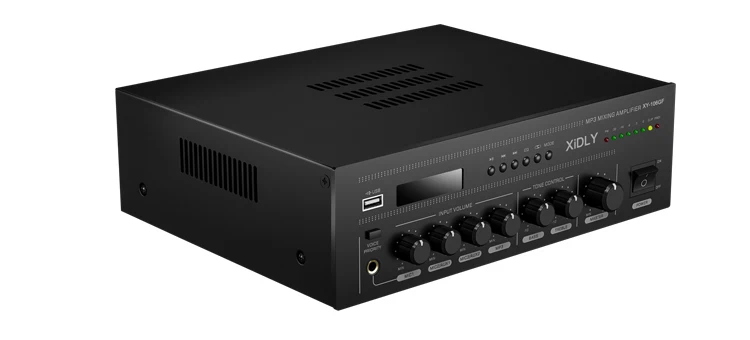

High quality professional digital audio Usb Mixer Amplifier, Public Address Mixer Amplifier With Usb


This compact mixer-amplifier provides 60 watts of output power with with blue tooth,intergral USB audio player power, and 5 inputs including 3 balanced MIC (MIC1 has another port of 6.35mm socket on front panel),


2 unbalanced AUX, each with individual volume controls.





Features include a button "VOICE PRIORITY" that the MIC1 can be set with priority overriding the other inputs.


Separate controls for treble bass and allow adjustment of tonal quality,TREBLE ontrols the amount of cut or boost of treble frequencies above 10 kHz.BASS ontrols the amount of cut or boost of bass frequencies below 100 Hz.Colorful indicators on front panel include the ones of power,signal,peak and protection.


This amplifier is compatible with 70V,100V,4-ohm,and 8-ohm speaker systems,it is a hugely versatile component of your background music and paging system.





Features


 Built-in Blue tooth receiver and USB player.


 70/100-volt and 4/8 ohms(Ω) output loads.


 SMT circuit boards with highly stable performance.


 Powerful amplifier tubes.


 Three microphone sockets support unbalanced 6.35mm jack.


 Mic 1 has priority over the inputs with 0~30dB dB attenuation.


 High-definition display for the working status of playing programme.


 Individual volume controller for inputs,and master volume controller for all.


 BASS and TREBLE tone controllers.


 Complete protection is provided for output short circuit, overload, high temperature,peak current limiters.





Specification






































































Model



XY-106GF



Rated Power



60W



Output Mode



Low impedance:4/8 ohms (Ω),
Voltage line:70V(81.7ohms),100V(166.7ohms)



MIC Input



10Kohms(Ω) 9.2 mv,unbalanced



Line Input



LINE:10K ohms(Ω) 260 mv,unbalanced



Frequency Response



30Hz-15KHz(±3dB)



THD



<0.05% at 1kHz,1/3 rated power



S/N



Line:85 dB , MIC:> 80 dB



Tone Control



BASS:100Hz(±10dB),TREBLE:12k Hz(±10dB)



Power Cable



(3×0.5 mm )×1.5M (standard)



Power Supply



AC 220V ± 10% 50-60Hz (Optional)



Power Consumption



80W



Dimensions



75(H)x280(W)x240(D)mm



Packing Size



155(H)x365(W)x305(D)mm



Net Weight



5.2kg



Gross Weight



6.3kg
