Portable Ecg Monitor Machine Holter Ecg Device 24 Hour For Sale
- Category: >>>
- Supplier: Nantong Yikun Medical Apparatus Co. Ltd.
Share on (1600364861127):
Product Overview
Description
Product Description

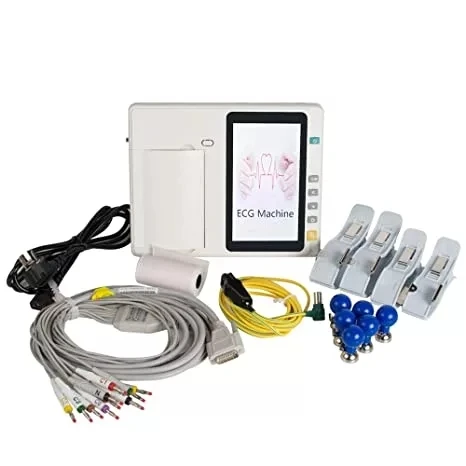

Portable Ecg Monitor Machine Holter Ecg Device 24 Hour For Sale
Specification
Function features of ECG machine
1、Simultaneously acquisition of 12 lead, full screen display of 12 channel ECG waveforms.2、Both push-button and touch operation, simple and practical
3、7-inch colorful TFT-LCD display, more powerful functions
4、Electrocardiogram automatic measurement, diagnostic and analysis. Self-Determined whether to print analysis report
5、Lead off detection function with sound indication，real-time ECG waveform freezing
6、Multiple operation modes: manual, automatic, rhythm, physical examination
7、Support high-capacity SD memory，real-time storage of waveforms and diagnostic analysis
8、Built-in rechargeable li-ion battery, AC/DC power conversion.
9、High-performance processors and thermal plotting integration printer
10、Portable with only 1.2kg weight, convenient to carry it outside for diagnoses.
Technical data:
Input mode: Floating, defibrillation protection，pacemaker pulse rejection
Lead: 12 standard leads，Auto-switching leads
Operation mode:Simultaneously 12 channel
A/D switching: 12 / 16/ 24
Measurement range: > ±5mV
Time constant: ≥ 3.2s
Frequent response: 0.05Hz ~ 150Hz
Sensitivity: 2.5，5，10，20 (mm/mV)
Input impedance: 50M（10Hz）
Input circuit current: ≤ 50nA
Input voltage tolerance: < ±5 mVpp
Calibrating voltage: 1mV±3%
Noise level: < 15Vp-p
Inter-Channel Interference: ≤ 0.5mm
Patient current leakage: < 10A (220V-240V/50Hz)
Patient auxiliary current leakage: < 0.1A (DC)
Insulation strength: 4000V rms
Filter: AC filter ON/OFF/Baseline drift filter 0.05/0.15/0.25/0.5/ADP/EMG filter 25Hz，35Hz，OFF/Low-pass filters 150Hz/100Hz/75Hz
CMRR: >100dB
What will you get?

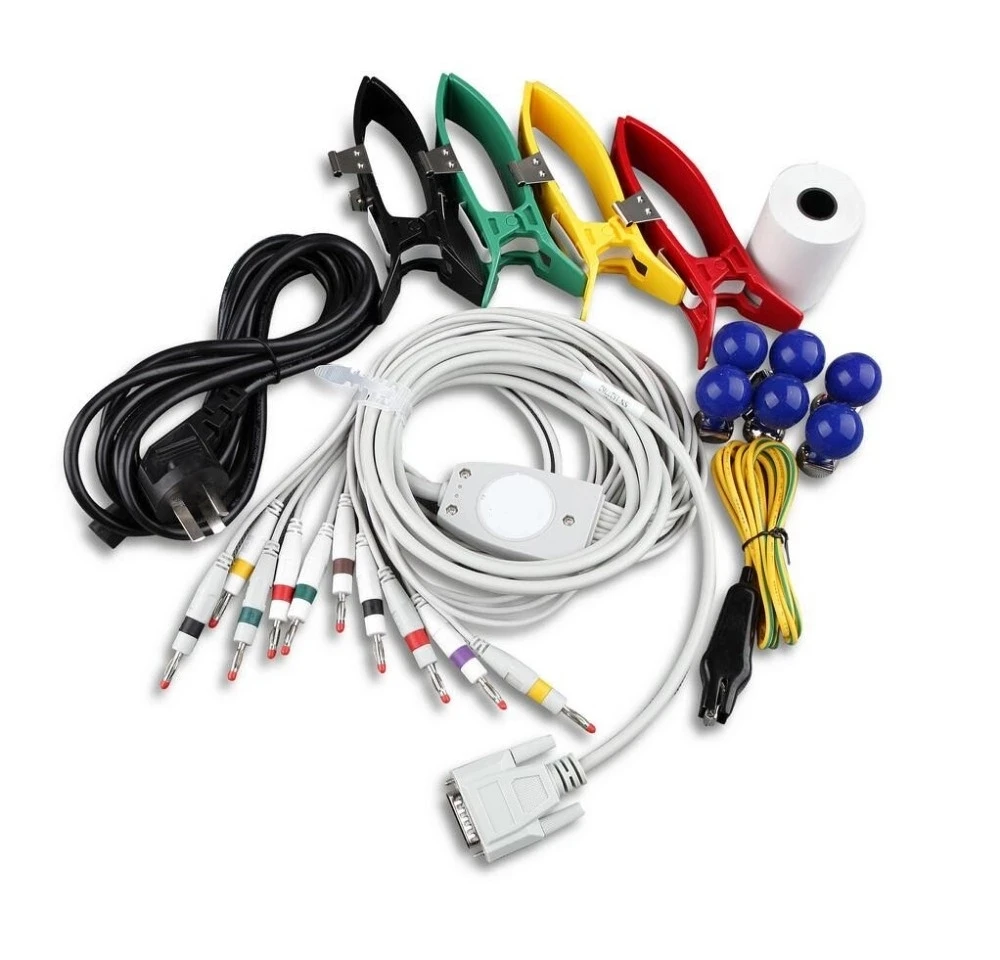

Accessories:
Standard:
A lead cable
A limb electrode
A chest electrode
A thermal recording paper
A power cord
An earth wire
A user manual
Optional:
ECG-Sync software+USB cable
ECG electrode
Bag
Conductive paste
USB cable
3G card
Wi-Fi card
Remote Operation Guide
Model Number | YK-8203 | ||||||
Weight | Approximately 1.2kg | ||||||
Dimension | 255mm×205mm×65mm | ||||||

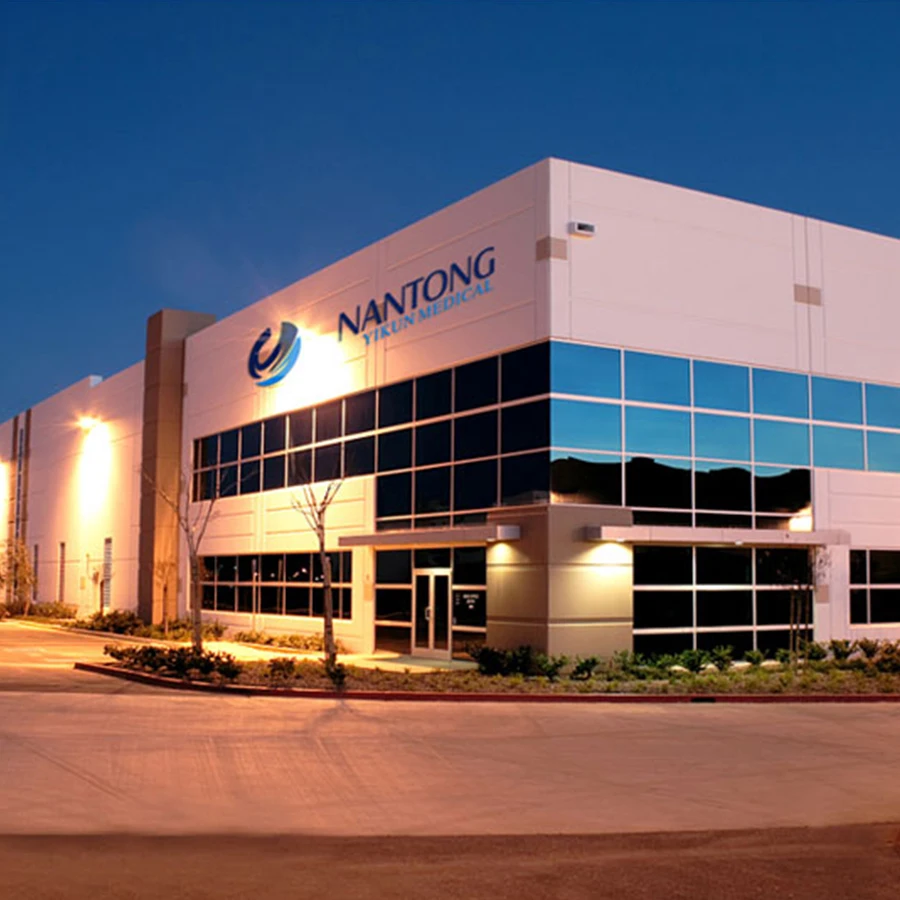

Our Company
