Shenchen BT100N Liquid Measuring Low Flow Rate Peristaltic Pump
Shenchen BT100N Liquid Measuring Low Flow Rate Peristaltic Pump

Shenchen BT100N Liquid Measuring Low Flow Rate Peristaltic Pump

Share on (1600364951083):


Price:$259.00

Quantity:


Product Overview

Description



Product Description


* FlowRate: 0.000829-570mL/min
* Speed range: 0.5-150rpm
* Housing: Plastic coated metal housing compact structure
* Power consumption: ＜50W
* Drive dimension: 188*131*194mm
* Drive weight: 4.20kg


Technical Parameters


Technical Parameters
Flow rate
0.000829-570 mL/min
Speed range
0.5-150 rpm/min
Speed resolution
0-100 rpm, 0.1rpm; 100-600 rpm, 1 rpm
Testing time range
0.5sec-999sec
Outlet pressure
0.8-1.0 mm wall thickness tubing: 0.1 Mpa; 1.6-2.4mm wall thickness tubing: 0.1-0.27 Mpa

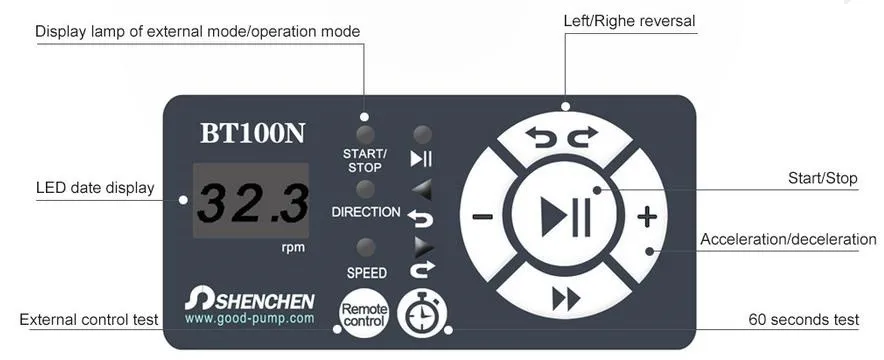

Display
LED Display
Control method
Mechanical keypad
Keypad lifetime
300,000 times
External speed control signal
0-5V, 0-10V, 4-20 mA for option
Start/stop, reversing signal
Passive switch signal, such as foot pedal switch, Active switch signal: 5V, 12V and 24V for option
Communication interface
RS232, RS485 support MODBUS protocol(RTU mode)
Power supply
AC 220V±10% 50Hz/60Hz(Standard); AC 110V±10% 50Hz/60Hz(Optional)
Drive dimension(LxWxH)
188x131x194mm
Drive weight
4.20kg
Power consumption
<50W
Environment temperature
0-40℃
Relative humidity
<80%
IP rate
IP31


Pump Head & Flow Rate
Drive & Speed
Pump Head
Tubing Size
Flow Rate(mL/min)


BT100N
0.5-150 rpm
YZ1515x
13#, 14#, 19#, 16#, 25#,17#, 18#
0.035-570
YZ2515x
15#, 24#
0.85-435
MC1-MC12(10)
Diameter: 0.13-3.17mm
Wall thickness: 0.8-1mm
0.000829-49
MC1-MC12(6)
0.000925-65




Related Products




Shenchen Workshop




Packing & Delivery


● Packing: 1 set/carton.
● Delivery Time: within 3 days after payment.
● Courier: DHL, TNT, UPS, Fedex, delivery door to door.
● Power Plug: GB, European standard, American standard, British standard.





Company Profile


Baoding Shenchen Precision Pump Co., Ltd. is a high-tech enterprise, specialized in R&D, manufacturing and sales of peristaltic pump, syringe pump and other fluid precision transfer equipment. We constantly research and develop advanced technology product and provide whole fluid solution program for our partners




Shenchen Team is a young and innovative team, with research engineer, application engineer, sales and service team.
