Product Overview
Description

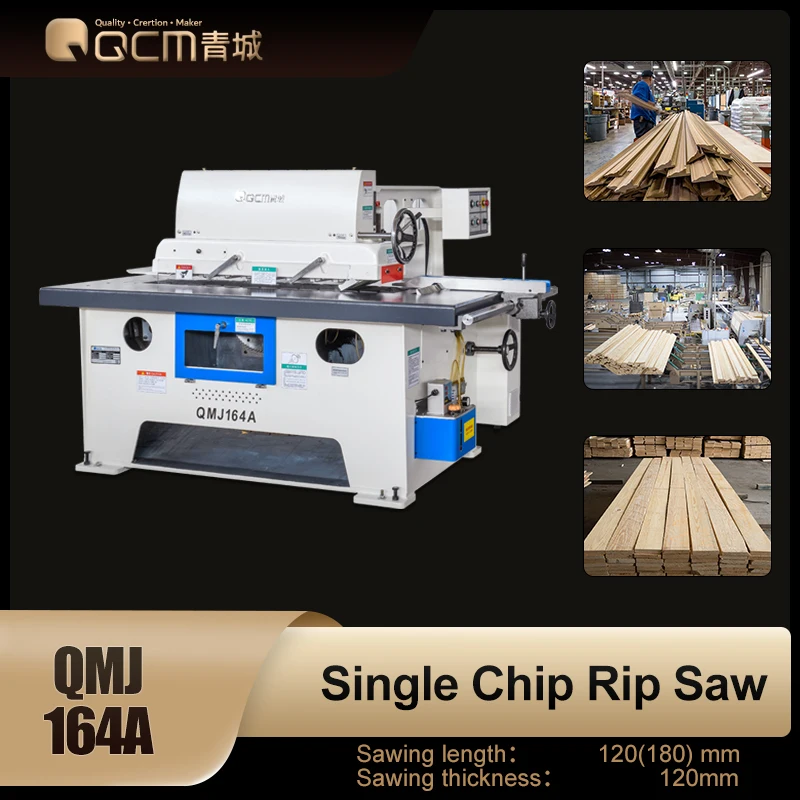

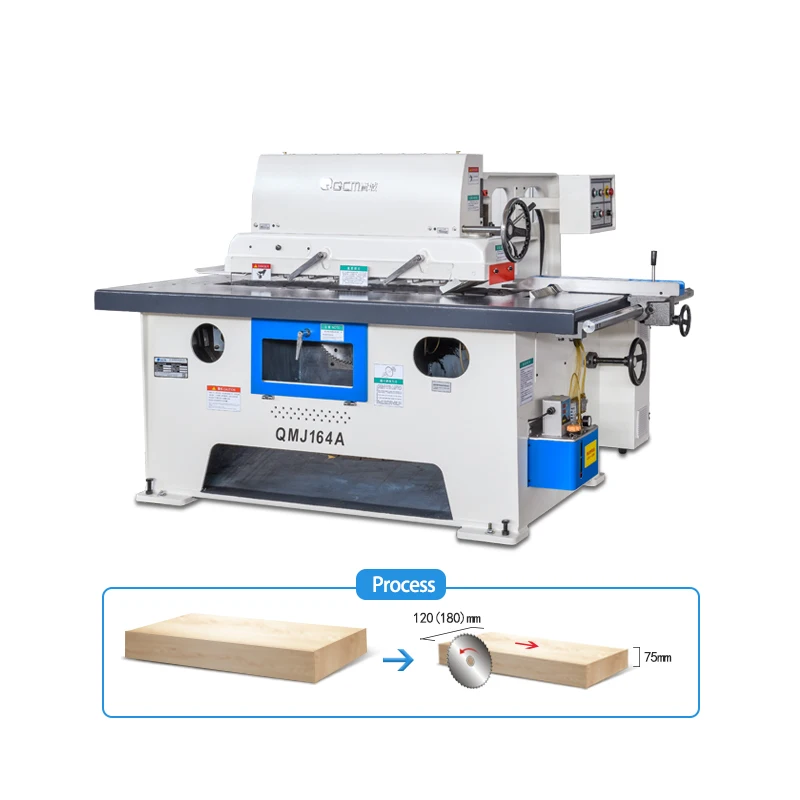

QMJ164A Single Blade Rip Saw Sierras Industriales Table Saw Bearing Aoke 6200Z Power Saws
Products Description
QCM Smart Panther Woodworking Machinery Sawmill Wood Cutting Table Saw QMJ Automatic Single-chip Rip Saw | ||||||||
Technical Parameter | ||||||||
Specifications | Unit | QMJ164A/A-T | QMJ164AF | QMJ163S/S-T | ||||
Maximum sawing thickness | mm | 120 | 120 | 75 | ||||
Minimum sawing length | mm | 120 (trimming 250) | 120 (trimming 250) | 120 (trimming 180) | ||||
Deep throat | mm | 660 | 660 | 510 | ||||
Saw shaft diameter | mm | Φ50.8 | Φ50.8 | Φ50.8 | ||||
Saw shaft speed | r/min | 3000 | 2950-4000 | 4000 | ||||
Saw blade diameter | mm | Φ355-Φ455 | Φ355-Φ455 | Φ305-Φ355 | ||||
Feeding speed | m/min | 5-24 | 10-40 | 5-26 | ||||
Total motor power | kW/HP | 13.2/18 | 13.57/18 | 9/12 | ||||
Main motor | kW/HP | 11/15 | 11/15 | 7.5/10 | ||||
Feeding motor | kW/HP | 2.2/3 | 2.2/3 | 1.5/2 | ||||
Lifting motor | kW/HP | 0.37/0.5 | 0.37/0.5 | 0.37/0.5 | ||||
Vacuum port diameter | mm | Φ150+Φ120 | Φ150+Φ120 | Φ150+Φ120 | ||||
Overall dimensions | mm | 2250*1680*1550 | 2250*1680*1550 | 2000*1160*1380 | ||||
Weight | kg | 1750 | 1950 | 1350 | ||||
Air supply pressure | MPa | 0.3~0.6 | 0.3~0.6 | 0.3~0.6 | ||||
Suction hood Dia. | mm | 4x Φ140 | 4x Φ150 | 2x Φ150 | ||||
Overall dimension | mm | 3050x1350x1650 | 2400x1310x1550 | 2300x1190x1480 | ||||
Weight | kg | 2350 | 1780 | 1900 | ||||

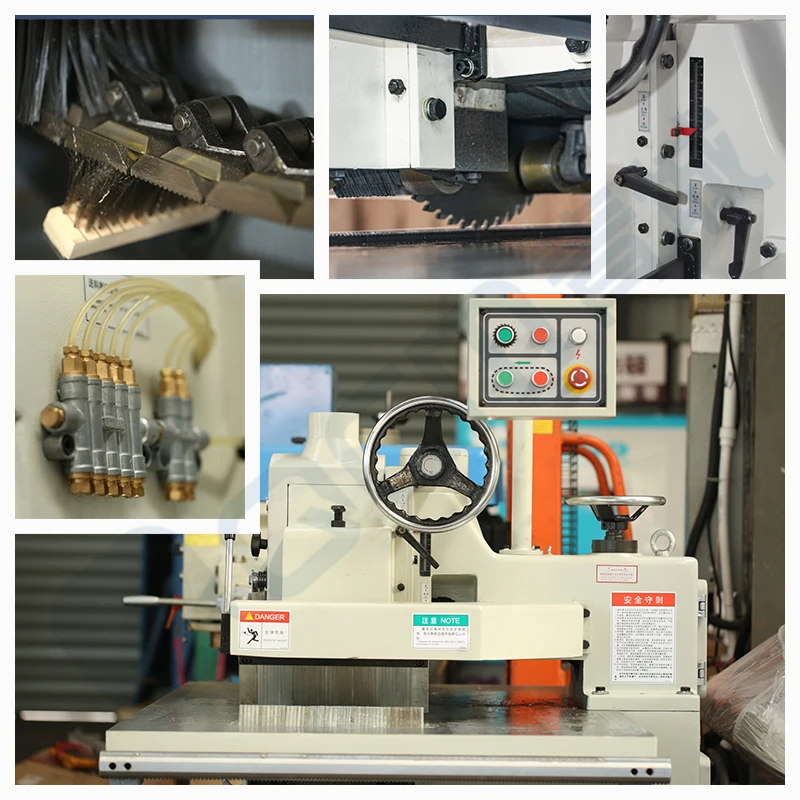

Our Advantages
1. Entire Cast Iron
This machine adopts integral casting body with stable performance, good precision and good rigidity.
2. Anti-Rebound Safety Device
The anti-rebound safety device located on the infeed ensures operational safety.
3. Wear Resistance Guide Track
The casting guide track and chain plate are made of special materials, specially processed and precisely processed, with high surface hardness, high precision and good wear resistance;
4. Automatic lubricator
The automatic lubricator delivers frequent lubrication oil to the caterpillar chain.
5. Dust Removal Brush
The dust removal brush made of special materials is matched with a quantitative oil injection device to clean and lubricate the chain plates in real time.
6. High Precision Spindle
All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.
7. Professional Electrical Appliances
Siemens and Schneider electrical products and appliances insure the whole machine run well with a stable performance.
8. Cast Iron Chromed Feed Table
The entire Cast Iron – Chromed Infeed table is normalization heat treated for maximum stability. Infeed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.
2. Anti-Rebound Safety Device
The anti-rebound safety device located on the infeed ensures operational safety.
3. Wear Resistance Guide Track
The casting guide track and chain plate are made of special materials, specially processed and precisely processed, with high surface hardness, high precision and good wear resistance;
4. Automatic lubricator
The automatic lubricator delivers frequent lubrication oil to the caterpillar chain.
5. Dust Removal Brush
The dust removal brush made of special materials is matched with a quantitative oil injection device to clean and lubricate the chain plates in real time.
6. High Precision Spindle
All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy.
7. Professional Electrical Appliances
Siemens and Schneider electrical products and appliances insure the whole machine run well with a stable performance.
8. Cast Iron Chromed Feed Table
The entire Cast Iron – Chromed Infeed table is normalization heat treated for maximum stability. Infeed Table & Fence adjustment is quickly accomplished by means of a quick-setting levers.
Company Information
Certificate & Delivery
HUZHOU QINGCHENG MACHINERY CO., LTD
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop and more than 300 sets of modern CNC machining equipment and testing equipment. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
We have our own casting workshop and more than 300 sets of modern CNC machining equipment and testing equipment. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
Recommend Products
FAQ
1. Manufacturer or Trading company?
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2. Payment Term?
TT , 50% advance payment and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving advance payment.
45-60 days for customized machines.
4. Warranty ?
3 years for machine, 3 years for the core components.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
8. Why us?
1). 50 years experience in wood working machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
4). Warranty: 3 years for machine, 3 years for the core3 years for machine, 3 years for the core components.
QCM (Qingcheng Machinery) is a professional manufacturer of woodworking machinery since 1970. With more than 50 years experience, we have developed to be the top and most powerful manufacturer of woodworking machinery in China.
2. Payment Term?
TT , 50% advance payment and 50% balance before delivery.
3. Lead Time?
Within 15 days for regular stock machine after receiving advance payment.
45-60 days for customized machines.
4. Warranty ?
3 years for machine, 3 years for the core components.
5. Spare Parts?
Unified standards spare parts are available anytime. It will not be a problem if you want to replace spare parts of the machine you bought anytime.
6. Pre-sale Service?
As a leader in woodworking machinery field for more than 50 years, professional and efficient proposals can be provided anytime. Our strong R&D team with more than 50 persons are also your team.
7. After-sale Service?
Professional after-sales service team, 24 hours technical support by email, call and video.
If remote support is not workable, our engineer is available to visit at your expenses of accommodation and round tickets.
8. Why us?
1). 50 years experience in wood working machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity by standard configuration.
3). All spindles are precision constructed and specially heat treated to provide maximum cutting stability and permanent accuracy. Spindle is processed in constant temperature workshop to insure high precision and stability, +-0.1mm high accuracy.
4). Warranty: 3 years for machine, 3 years for the core3 years for machine, 3 years for the core components.
