Power energy storage system 10kw pack 12v generator lifepo4 200ah 5kw home use battery 48v 200ah solar power generator
- Category: >>>
- Supplier: Foshan Snat Energy Electric Technology Co. Ltd.
Share on (1600365233428):
Product Overview
Description

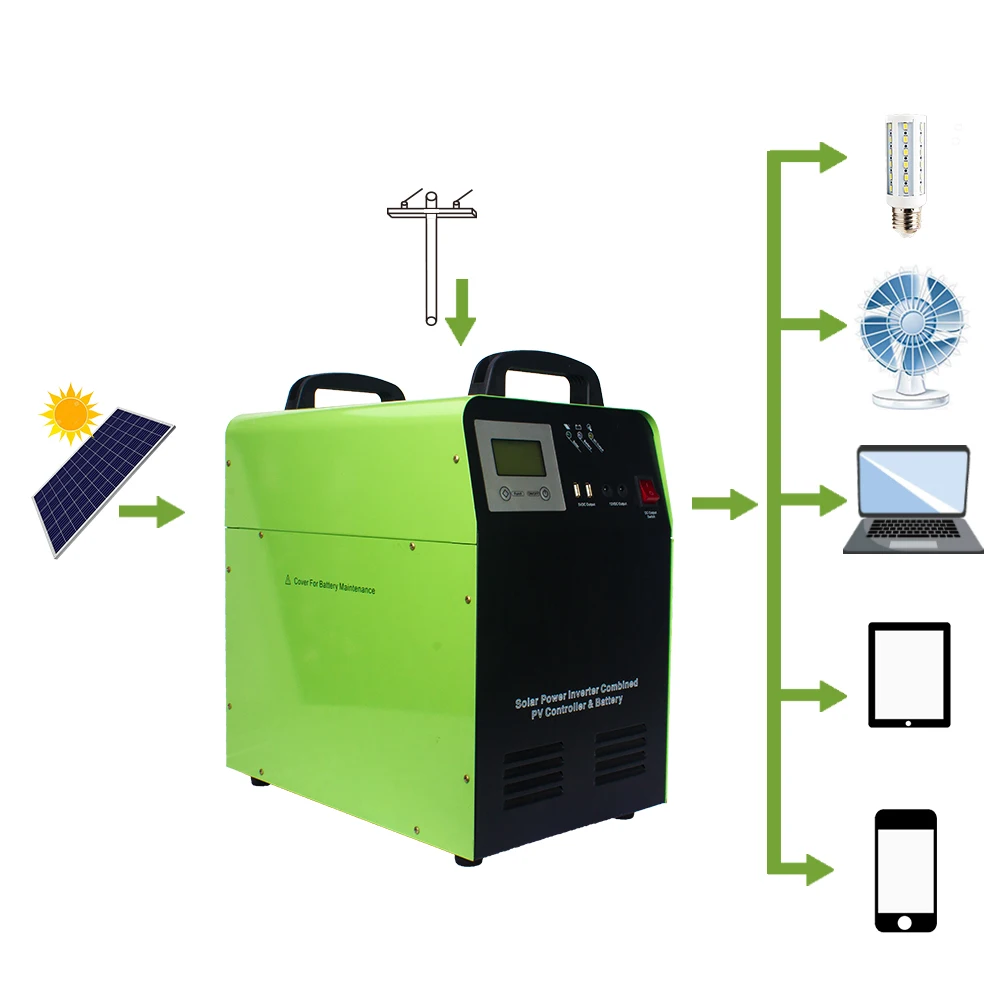

All in one solar generator:
AC power supply to be widely applied to small solar power generation occasions including families, schools, street monitoring, forest monitoring,industrial and mining enterprises, frontier defense sea islands, pasturing areas,etc.
Model | 300W | 500W | 1000W | ||||||||
Battery rated voltage（VDC） | 12 | 24 | |||||||||
Inverter | Rated power（W） | 300W | 500W | 1000W | |||||||
Input voltage range（VAC） | 160-275VAC | ||||||||||
Input frequency（Hz） | 45-65 | ||||||||||
Output voltage（VAC） | 110/220VAC | ||||||||||
Output frequency（Hz） | 50/60 | ||||||||||
Output wave | Pure Sine Wave | ||||||||||
Speficifation of built-in battery | 1*55AH/12V | 2*55AH/12V | |||||||||
Communication | RS232 | ||||||||||
Solar input | Max. PV voltage（VDC） | ≤25 | ≤50 | ||||||||
Range of charging voltage（VDC） | 10-25 | 20-50 | |||||||||
Rated charge current（A） | 20 | 30 | |||||||||
Voltage for overcharge protection（VDC） | 14.2 | 28.4 | |||||||||
Voltage for overcharge recovery（VDC） | 14.0 | 28.0 | |||||||||
Voltage for floating charge（VDC） | 13.7 | 27.4 | |||||||||
DC output | Voltage for high voltage protection（VDC） | 16V | 32V | ||||||||
High voltage recovery voltage（VDC） | 15.2V | 30.4 | |||||||||
Low voltage recovery voltage（VDC） | 12.6V | 25.2 | |||||||||
Low voltage protecton voltage（VDC） | 11 | 22 | |||||||||
5VDC USB output | 2 units /MAX 2A | ||||||||||
12VDC output ports | 2 units /MAX 2A | ||||||||||
Heat dissipation/Cooling | Temperature control by intelligent exhaust fan | ||||||||||
Operating ambient temperature | -20 - +50℃ | ||||||||||
Storage ambient temperature | -25 - +55℃ | ||||||||||
Operating/Storage ambient | 0-90% No condensation | ||||||||||
External size：W*D*H（mm） | 343×225×440 | 423*260*453 | |||||||||
Package size：W*D*H（mm） | 420×290×490 | 520*370*520 | |||||||||
Home solar system | ||
Target facilities | Personal residence | |
Application | Refrigerator, energy-saving lighting, TV, fan, street light | |
Advantage | The system structure is simple; Very suitable for scattered rural areas; Use more accurately because the user is a separate household. | |

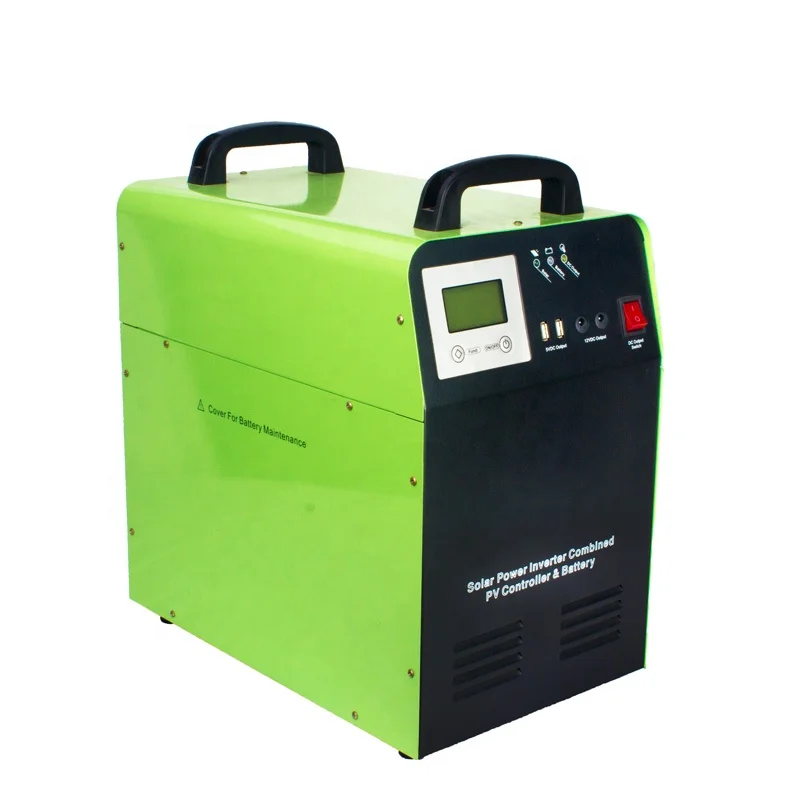

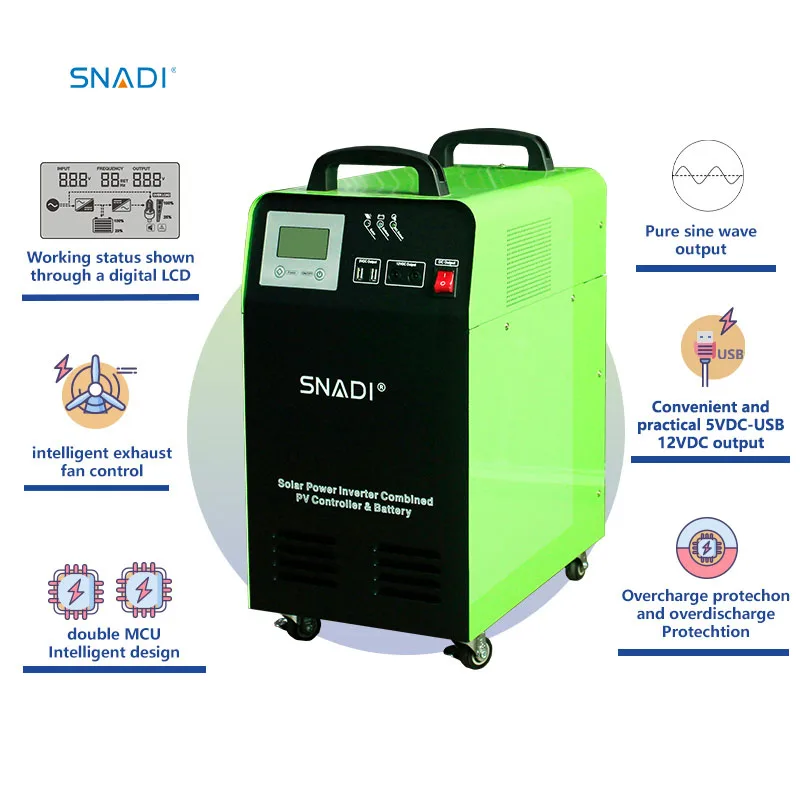

AL Solar Generator ---1KW
- MCU intelligent control technology
- Settable the mains mode
- Controlled by intelligent fan
- Pure sine wave AC output
- LCD display
- Automatic protection
- Overall automatic protection and alarms including AC output overload protection, short circuit protection.
Q1 MOQ
A MOQ form our conpany is required 1 unit.
Q2 Are you manufacturer or trading company?
A We are professional manufacturer since 2004.
Q3 I need this product and wanna a system for family/industrial/commerical using,can you help me?
A Yes,we have professional technology team average 10 years experience,they can design solar
power system in accordance with customers' special requirements.
Q4 How long is your delivery time?
A Within 15 days.
Q5 How about your after sales service?
A Our quality warranty for 1-2 years,any parts will be shipped for free during warranty period.
