100mls pp empty botteling blowing/bottle making machine
- Category: Extrusion Blow Molding Machines >>>
- Supplier: Shanghai,Hongqi,Machinery,Manufacture,Co.,Ltd.
Share on:
Product Overview
Description

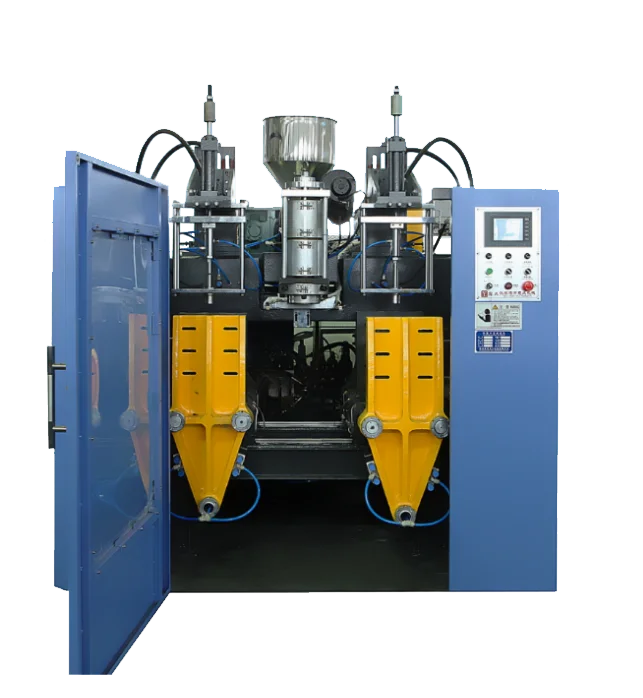

1L Plastic Extrusion Blow Molding Machine (single stage)
Production picture
Bottle picture
Product Description
Machine Features:
| ITEM | HQ-ZA-1 | HQ-ZA-2 | HQ-ZA-3 | |
| SUITABLE RAW MATERIAL | PE,PP... | PE,PP... | PE,PP... | |
| MAX.VOLUME OF PRODUCT | L | 1 | 2 | 3 |
SCREW DIAMETER | MM | 50 | 55 | 65 |
| SCREW L/D RATIO | L/D | 15:1 | 25:1 | 25:1 |
| SCREW SPEED | RPM | 20-60 | 20-60 | 20-90 |
| PLASTICISING CAPACITY | KG/H | 30 | 45 | 58 |
| NUMBER OF HEATING ZONE | 3 | 3 | 4 | |
| EXTRUDER HEATING POWER | KW | 6 | 10 | 12 |
| DIE HEATING ZONE | 2 | 2 | 3 | |
| DIE HEATING POWER | KW | 3.5 | 4.2 | 5.5 |
| EXTRUDER DRIVING POWER | KW | 7 | 11 | 18.5 |
| CLAMPING FORCE | KN | 35 | 50 | 70 |
| AIR PRESSURE | MPA | 0.6 | 0.6 | 0.7 |
| AIR CONSUMPTION | M3/MIN | 0.4 | 0.4 | 0.6 |
| MACHINE WEIGHT | KG | 2000 | 3000 | 3500 |
| MACHINE DIMENSIONS | M | 2.6*1.8*2.2 | 3.0*2.1*2.2 | 3.2*2.3*2.2 |
Customer factory
Our Customer
Package
Company profile
Shanghai Hongqi Machinery Equipment Co.,Ltd is located in Shanghai Nanxiang, which include develop and design the products, production and sales, we have 24 years experience within the field of blow bottle module,washing, Filling,capping and sterilization for one-stop production equipment,and committed to become the leading company in the field of machinery for beverage and water production.
After Service
1.Reply within 2 hours at working time 9:00-6:00 pm.
2.Professional R&D team to support the project.
3.QC, training and repair video for online after-service.
