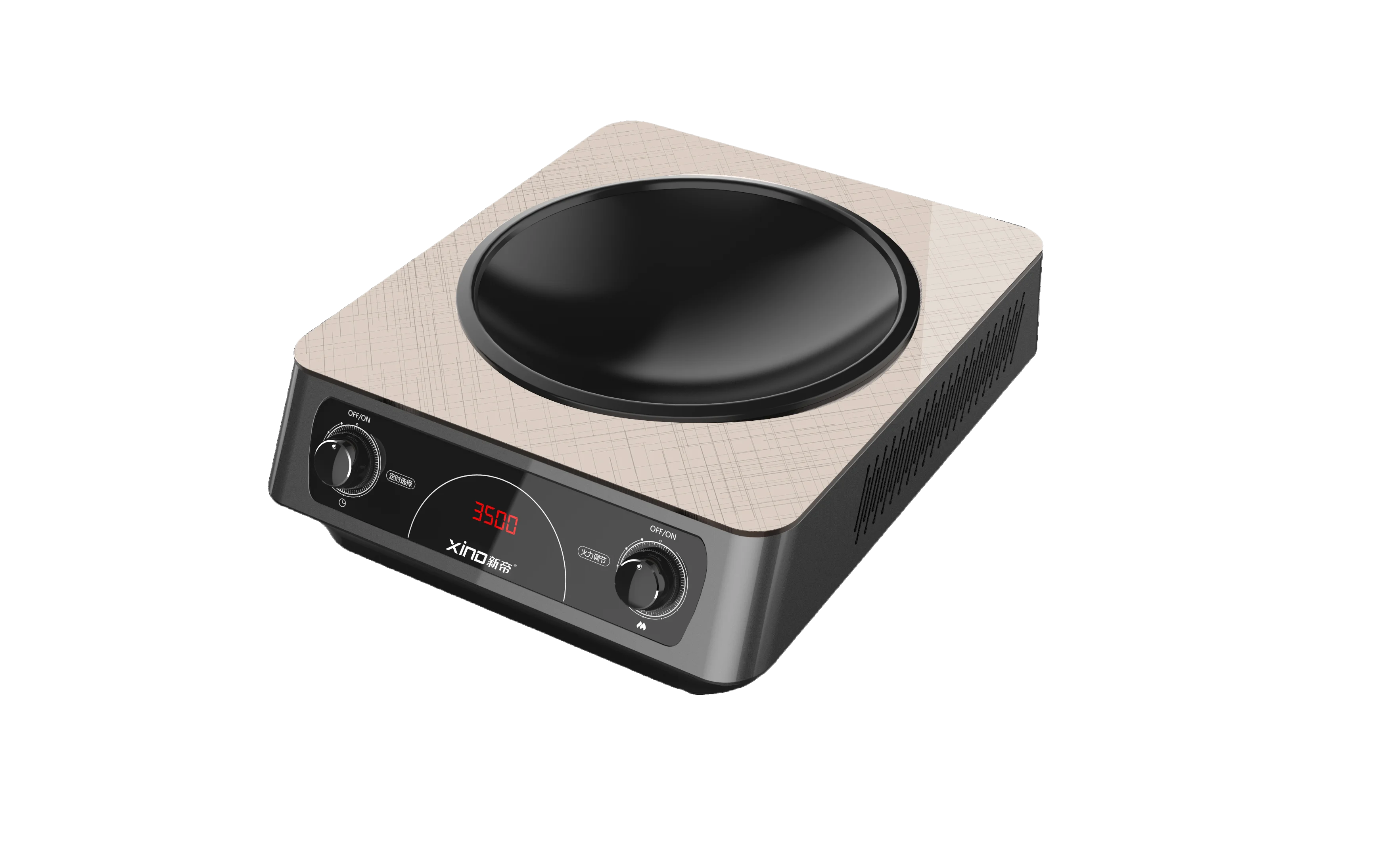

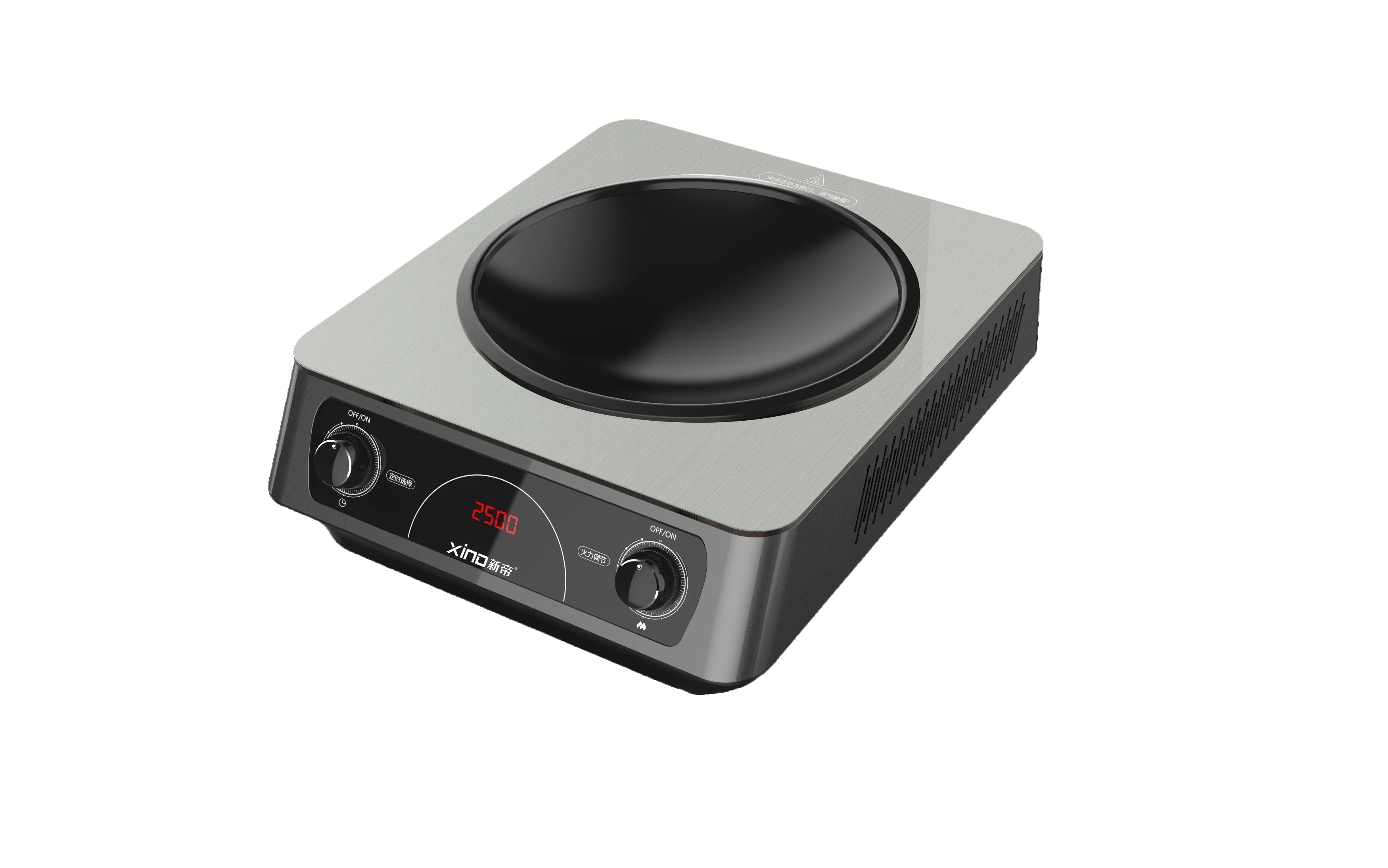

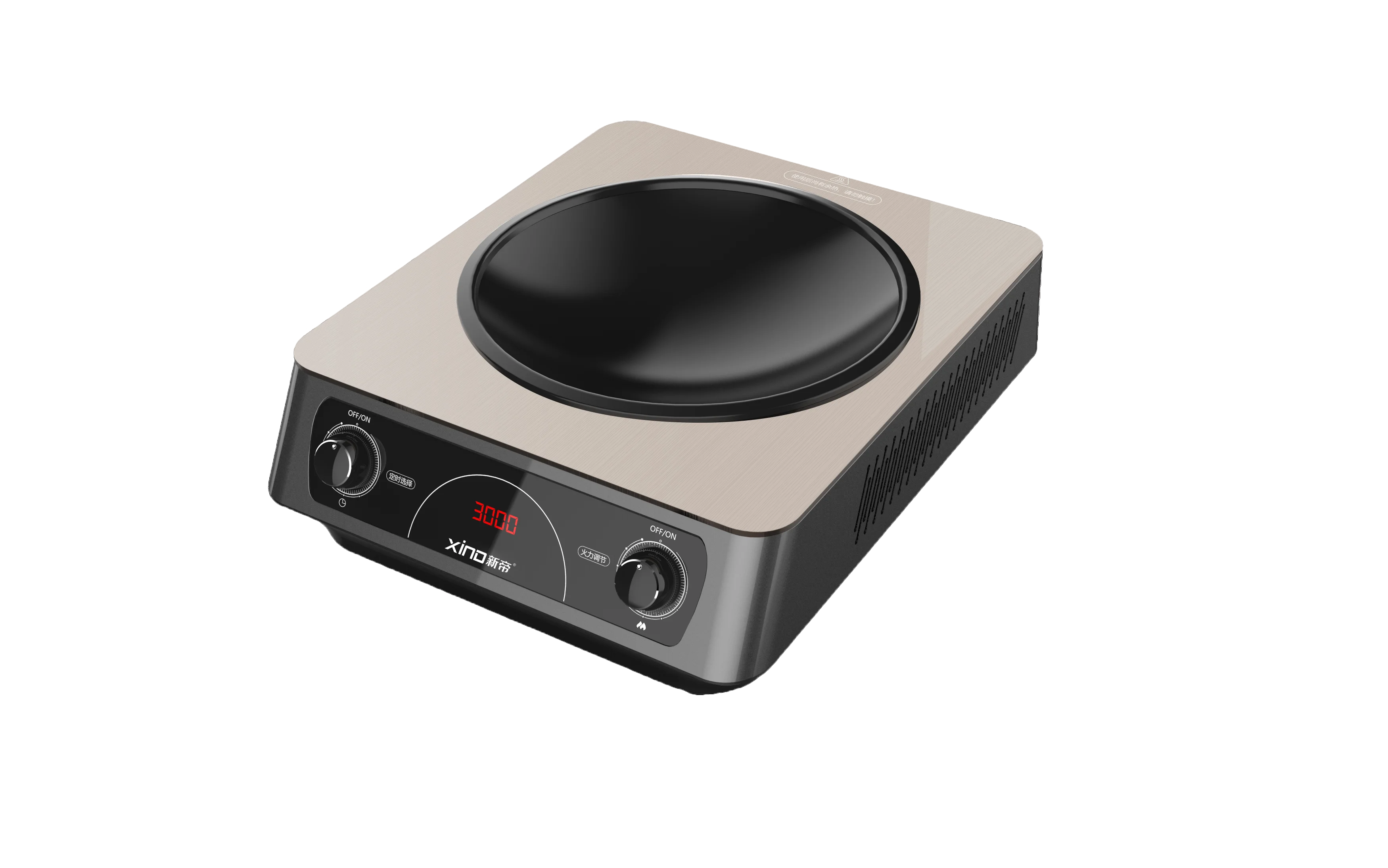

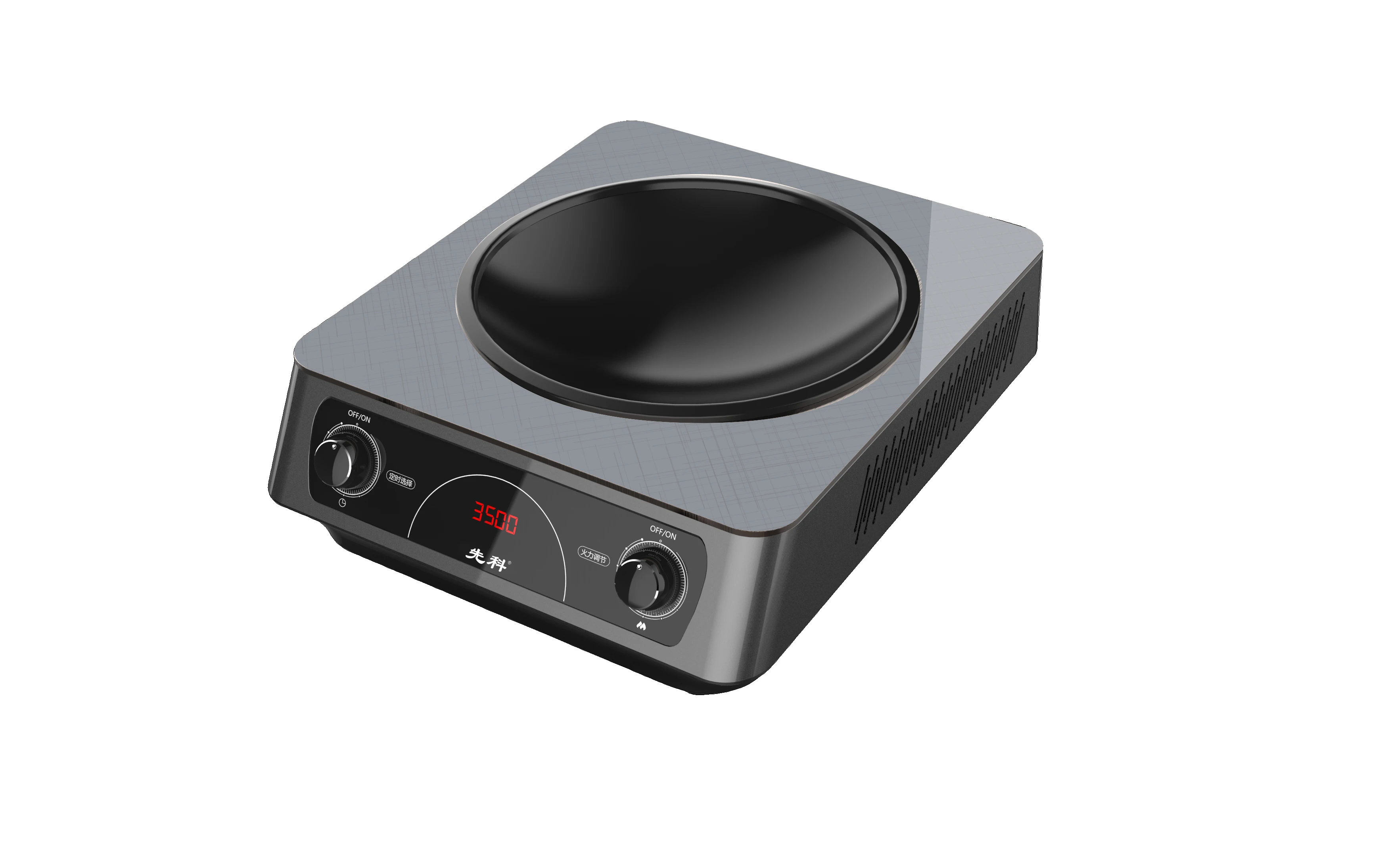

Concave Induction Cooker Stove Cooktop for Wok own Patented own Design & Mould High Quality Induction Cooker
- Category: >>>
- Supplier: Zhongshan Xindi Electrical Appliance Manufacturing Co. Ltd.
Share on (1600365372418):
Product Overview
Description
Product Description
Details Images
Specification
After-sales Service Provided: | Free spare parts |
Warranty: | 1 Year |
Application: | Household |
Power Source: | Electric |
Housing Material: | Plastic+LG Stainless Steel |
Certification: | CB，EMC，CCC |
Power (W): | 3500 |
Voltage (V): | 220 |
Model Number: | XD-35Y |
Brand Name: | OEM |
Place of Origin: | Guangdong, China |
Power: | 3500W |
Product name: | Induction Cook Stove |
Control: | Ally Knob Contro Panel |
Plate: | A Grade Black Round Crystal Concave Plate |
Display: | 4 Digital LED Display |
Color: | Mocha gold |
IGBT: | 20A, Infineon |
Panel: | Crystal PP Panel |
Function: | Multifunction |
Heating plate: | Whole Copper/Al Coil |
Product type:
Model No.: XD-35Y
Available colors: Black, Silver, Gray
Customizable power: 2500, 2800, 3000W， 3500W
Available colors: Black, Silver, Gray
Customizable power: 2500, 2800, 3000W， 3500W
Technical parameters:
Display power: 3500W
Rated power: 3500W
Rated voltage: 220 V ~ 50 Hz
Timing options: 180 minutes level 11 (3, 5, 7, 10, 15, 20, 30, 45, 60, 120, 180)
Power options: 11 levels (100W, 300W, 600W, 800W, 1000W, 1200W, 1400W, 1800W, 2200W, 2600w, 3500W)
A Grade Black Round Crystal Concave Plate: Φ 278mm;
Coil: All Copper/Aluminum coil
PCB Material: main board CEM-1; lamp board FR-4 double side tin spraying
IGBT: 20A (Infineon, Siemens, Germany)
Power line: 2 * 1.5㎡
Rated power: 3500W
Rated voltage: 220 V ~ 50 Hz
Timing options: 180 minutes level 11 (3, 5, 7, 10, 15, 20, 30, 45, 60, 120, 180)
Power options: 11 levels (100W, 300W, 600W, 800W, 1000W, 1200W, 1400W, 1800W, 2200W, 2600w, 3500W)
A Grade Black Round Crystal Concave Plate: Φ 278mm;
Coil: All Copper/Aluminum coil
PCB Material: main board CEM-1; lamp board FR-4 double side tin spraying
IGBT: 20A (Infineon, Siemens, Germany)
Power line: 2 * 1.5㎡
Product introduction：
1. Deep concave microcrystalline pot, stir fry evenly without pasting the bottom;
2. Siemens IGBT imported from Germany has strong power and fast firepower
3. Imported PC transparent cover, integrated display window, 8D full waterproof design
4. High end led warm light source dual screen display, power and time at a glance;
5. Concave convex shaped black crystal panel, 800 degrees impact resistance, scratch resistance and wear resistance, durable;
6. Concave patent high-efficiency poly magnetic aluminum coil with double temperature control makes heating more uniform and
temperature control more accurate;
7. Patent fully enclosed turbocharged split duct system, uniform heat dissipation, ensuring the use effect and service life of
electronic components, and more stable quality of the whole machine
2. Siemens IGBT imported from Germany has strong power and fast firepower
3. Imported PC transparent cover, integrated display window, 8D full waterproof design
4. High end led warm light source dual screen display, power and time at a glance;
5. Concave convex shaped black crystal panel, 800 degrees impact resistance, scratch resistance and wear resistance, durable;
6. Concave patent high-efficiency poly magnetic aluminum coil with double temperature control makes heating more uniform and
temperature control more accurate;
7. Patent fully enclosed turbocharged split duct system, uniform heat dissipation, ensuring the use effect and service life of
electronic components, and more stable quality of the whole machine
Company Profile
About Company Zhongshan XINDI Electrical Appliance Manufacturing Co., Ltd., established in 2009, is a high-tech, Professional, R & D Induction Cooker manufacturer in china.
XINDI is located in Small Home Appliances Hometown----Nantou town, Zhongshan City. XINDI has more than 12 years production, research and innovation experiences in Induction Cooker.
XINDI independently perform its own patent technology, designs, injection & metal mold development, electric circuit designing, and quality control.
XINDI have more than 56 patents (Including authorized patents), and have more than 118 sets high precision plastic & metal mold.
XINDI is located in Small Home Appliances Hometown----Nantou town, Zhongshan City. XINDI has more than 12 years production, research and innovation experiences in Induction Cooker.
XINDI independently perform its own patent technology, designs, injection & metal mold development, electric circuit designing, and quality control.
XINDI have more than 56 patents (Including authorized patents), and have more than 118 sets high precision plastic & metal mold.
XINDI have over 50 employees, including 5 technologists & engineers, Modern & Intelligent Factory covering 3,000 sqm area.
XINDI is one of the leading O D M /O E M service providers high quality induction cookers in China. In 2017, realized Automatic Stamping Production Line. In 2019, realized Induction cooker electronic workshop Robot automation system and visual management.
So far, XINDI accounted for 95% domestic market share of Anti-radiation Induction Cooker. In addition, we have obtained CB, EMC, CCC Certificate. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Vietnam, Malaysia, Indonesia, Russia. We also welcome you place orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Welcome to visit XINDI Intelligent Factory any time!
XINDI is one of the leading O D M /O E M service providers high quality induction cookers in China. In 2017, realized Automatic Stamping Production Line. In 2019, realized Induction cooker electronic workshop Robot automation system and visual management.
So far, XINDI accounted for 95% domestic market share of Anti-radiation Induction Cooker. In addition, we have obtained CB, EMC, CCC Certificate. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Vietnam, Malaysia, Indonesia, Russia. We also welcome you place orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Welcome to visit XINDI Intelligent Factory any time!
Team Photos
Production workshop
Packing & Delivery
Package information: Size (mm)
Product size: L455 * W340 * H59
Box size: L505 * W387 * H107
Outer box size: L660 * W400 * H520
Packing quantity: 6pcs / Carton
Quantity of containers: 20FCL/40HQ 1200 / 2977PCS
Box size: L505 * W387 * H107
Outer box size: L660 * W400 * H520
Packing quantity: 6pcs / Carton
Quantity of containers: 20FCL/40HQ 1200 / 2977PCS
