19 l water bottle per pet per blowing machine

Share on:

Price in USD:Details


Product Overview


Product Description

Service on bottles blowing machine semi automatic
» Provide whole drawing for the perform mould and bottle mould. Free charge for word design on the mould.
» We can help you install the machine; from setting machine, testing, and to check the machine is on the good working condition.
» Delivery time:25 days upon deposit and approval to the bottle drawing.
» Payment:For machine: 30% T/T deposit within five days after the contract is signed against invoice of the seller. » » The balance of 70% will be paid before shipmment.
» Guarantee: We response for 1 year warranty for the machine, however, it without any human conduct. And provide one-year free spare part for client.
» And send engineer to client's company, help install the machine, teaching their staff operate the machine and also,
» After sales service:The buyer pays travel expenses; hotels, airfares, meals and ground transportation and any other expenses related to installation and training at customers facility.


Main Machine
Max Volume
3-6 gallon
50-180 pcs/hr
Neck Size
< 160 mm
Useful Area Of Mould Thickness
420*660 mm
Mould Thickness
350-420 mm
Mould Stroke
< 350 mm
Clamping Force
80 kn
Stretching Stroke
530 mm
Working Pressure
<10 kg/cm2
Blowing Air Pressure
< 40 kg/cm2
Power Of Main Machine
2 kw
Weight Of Main Machine
2500 kg
Measurement Of Main Machine
2.8*0.72*2.16 m

Power Of Preheater
16 kw
Wight Of Preheater
800 kg
Measurement Of Preheater
2.2*0.75*1.88 m

    Using PET material, HQ blow molding machine is especially used to produce 3 gallon to 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.. Those bottles are mainly used to contain pure drinking water for office and family uses. Our KINTL-5G is designed to produce high quality water drums at very competitive prices.

● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.
● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer's requirements.

PLC controller. FESTO hydraulic elements, valves and pipes. The mould clamping system design is adopted by the advanced toggled lock design producing strong clamping force. The mould thickness can be adjusted by gear-turned belt automatically. On the blowing base of machine, an automatic moving device is assembled.

The preheater is an infrared heater. When the preforms being heated in the infrared heater by circulation movement, they can also be rotating independently. Inside the preheater, there are 22 holding heads for the preforms and 12 infrared pipes providing 12 zones of different heating temperature. It ensures accurate temperature at each zone pipe without fluetuation, guarantee high percentage of perfect end products.

As the preform for 5 gallon bottle is thick and hard for uniform heating, some times, the final bottles will be pale if the preform is heated with the normal preheater. Therefore, besides the normal preheater, we add one inner heater to this line to get ideal uniform heating results, which is beneficial for easily forming the final bottle. The final bottle made in this way will be clear and even. There will be less deformed bottles so that you can save your production cost considerably. (With unique inner preheater, you can easily use our blow molding machine to make a beautiful 5 gallon bottle with high quality and transparency)

Detailed Images

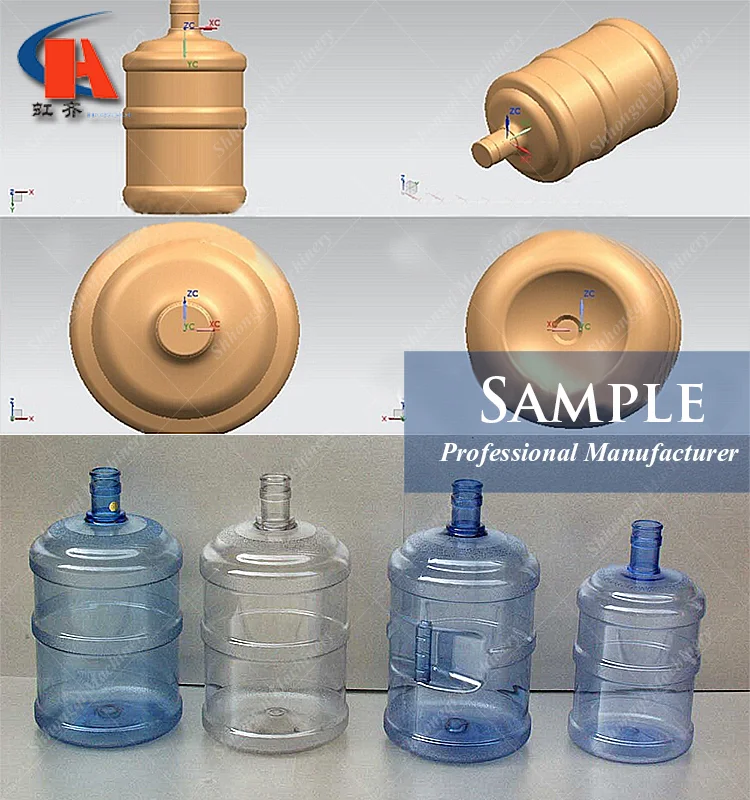

1. Special design for PET Gallon Bottle up to 6 Gallon
2. Produce wide mouth jar up to 25 liter with neck size up to 200mm.
3. Using Infrared reheat units to achieve uniform heating throughout the wall of preform
4. Adopt special designed preform heating system to ensure the optimal heating effect for 730g thick-wall preform
5. Special designed fan-cooling system in the heating channels to keep the oven with constant temperature and ensure the preform can be heated completely.
6. Water cooling system ensures the quality of preform neck.
7. Up to 90 bottles/hour using one-cavity mold for 5-gallon bottle
8. Use advanced PLC control system with counting function and time-control precision to 0.01second, and a use-friendly panel.
9. Equipped with special designed air storage units
10. Simple installation & startup adjustment

Production Process


About Us

Our main beverage machinery includes as below:
* PET Bottle Blowing Machine

* 3 in 1 Filling Machine

* Water Treatment System
* PP/HDPE/PE Bottle Molding Machine

* Mould

* Auxiliary Machine
* Soft Drink Production Line
* All kinds Of Tanks

All the products are sold well both at home and aboard. We've exported to more than 20 countries, and built stable business relationships with foreign customers.


Buyer Feedback

    Our factory in Zhejiang Wenzhou have a very strong and wide after sale service system, no matter where you are, no matter what problem you met, we will provide the most efficiency mechnical service in time to save your precious time.
    If you want to visit our factory, we are very welcome, we can arrange the car to pick you up.

Customer Feedback



1: Are you a factory or trading company?
Yes ,we are the professional manufacturer in Shanghai over than 20years, OEM services can be supplied

2.What's the minimum order quantity and warranty ?
There is no MOQ requirement ,Welcome to order.
12 months warranty promise ,some customized products will 24 months warranty

3.What's the term of payment ? How about trade terms ?
Payment term: TT,L/C ,Western Union , Cash etc .
Trade term :EX-WORKS ,FOB ,CIF,CNF...

4.What kind of package for shipping ?
Usually ,we use the basic stretch film and PE film wrap around the whole machine ,and packed with export longdistance wooden case ,it's the free for you ,if you have other special requirement for packed machine ,please ask it alone.
