Busbar Processing Machine punching dies, punch molds
US $110.00-$115.00
Shandong Factory CNC алюминиевый закрытый 3 в 1 шиномонтажный станок по индивидуальному заказу
- Category: Busbar Machine >>>
- Supplier: Jinan Deshang CNC Equipment Co. Ltd.
Share on (1600365614656):
Product Overview
Description
Products Description

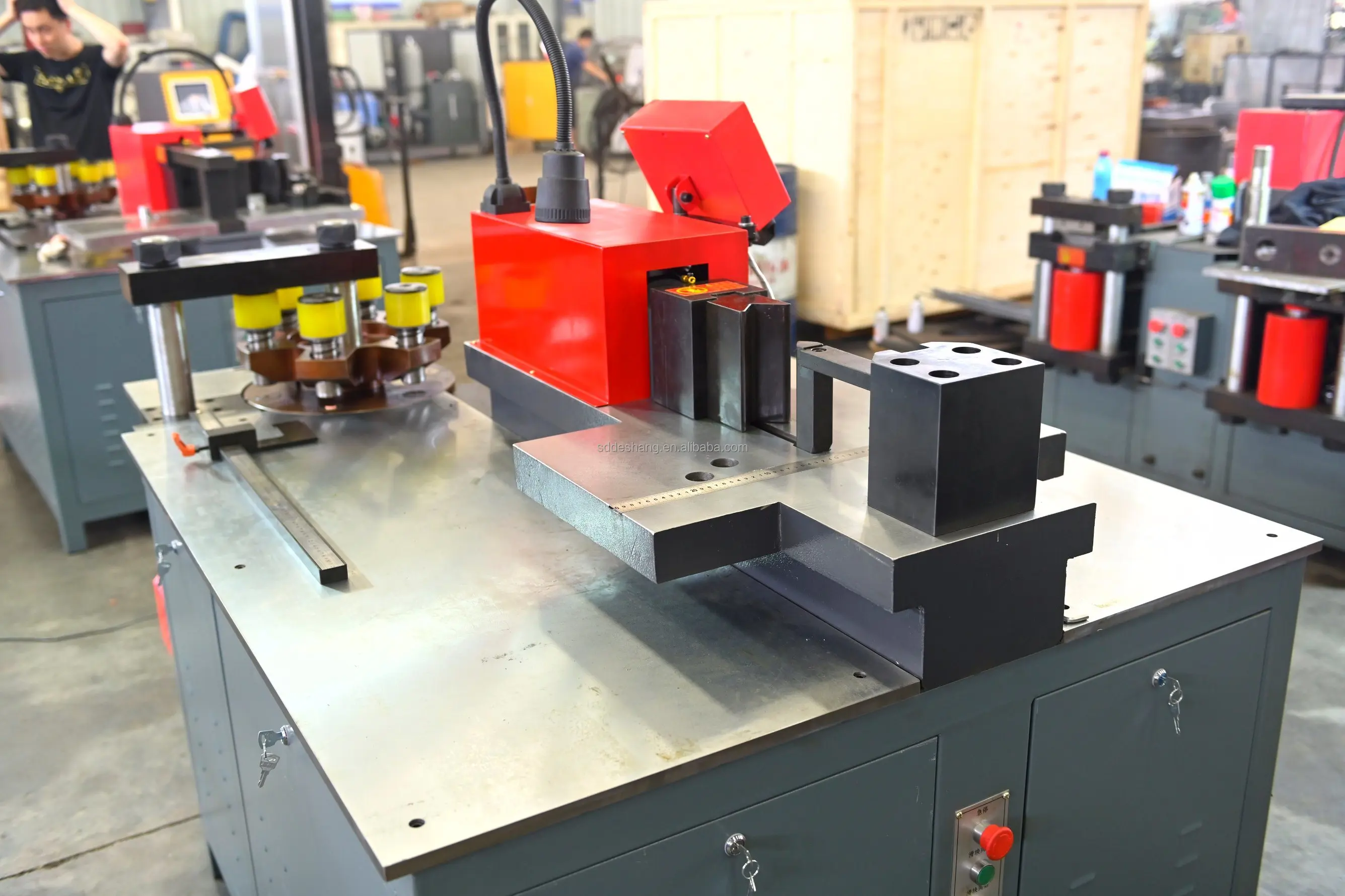

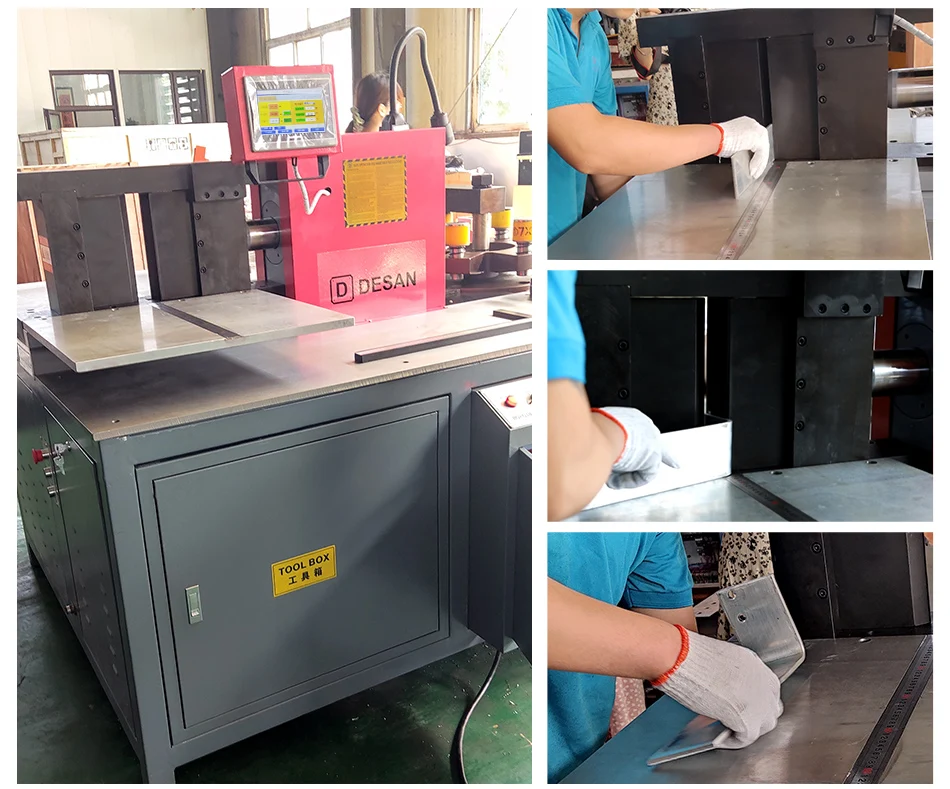

DS-803SK-B CNC Copper 3 in 1 Multifunction Hydraulic Busbar Processing Machine
DESAN Copper Cutting Machine 803SK-B machine punching/bending force can reach 800kn, the widest processing
range can be processed to 300mm, and
the thickest can be processed to 20mm.
range can be processed to 300mm, and
the thickest can be processed to 20mm.
Model No. | DS-803SK-B | ||
Colour | Grey | ||
Punch | Max. Punch Force | 800kn | |
Punch Diameter | ∅4.3—∅36mm | ||
Max. Thickness | 20mm | ||
Max. Width | 300mm | ||
Shear Cut | Max. Cut Force | 800kn | |
Max. Cut Thickness | 20mm | ||
Max. Cut Width | 300mm | ||
Horizontal Bend | Max. Punch Force | 800kn | |
Max. Thickness | 20mm | ||
Max. Width | 300mm | ||
Vertical Bend | Max. Width | 10 x 100 | |
Max. Angle (Degree) | 90° | ||
Packing Dimension | MM | 2200*1850*1750 | |
Moteur Power | KW | 3*5.5 | |
Weight | KG | 2850 | |
CNC Precision | Bend Precision | ±1° | |
Repeat Bend Precision | ±0.2° | ||
Operation Instructions

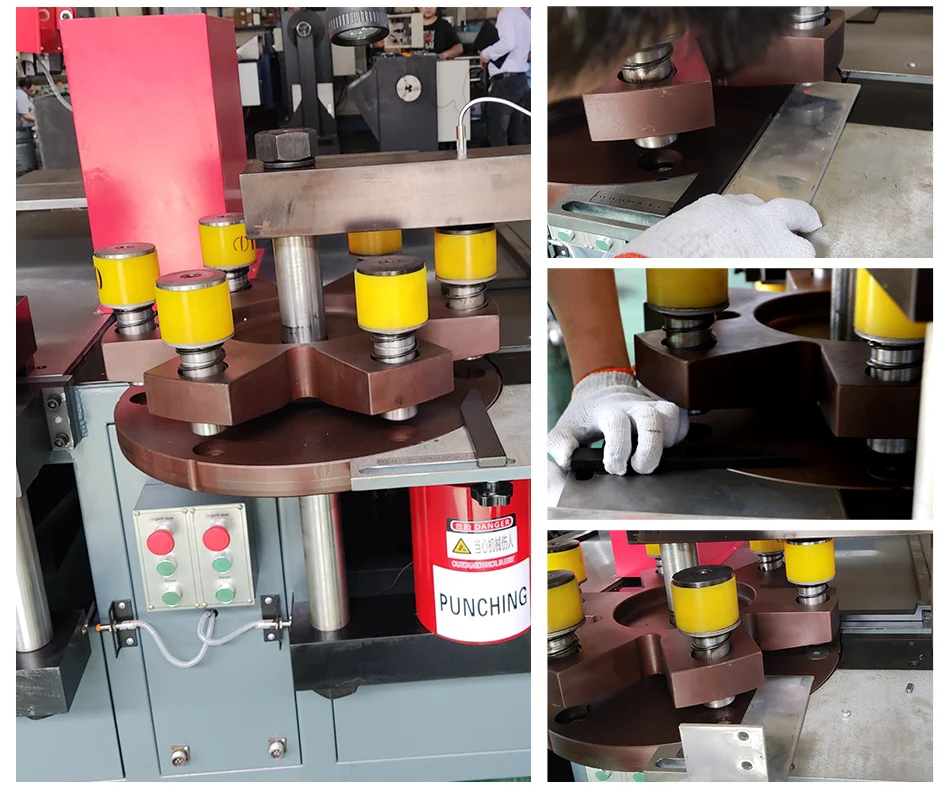

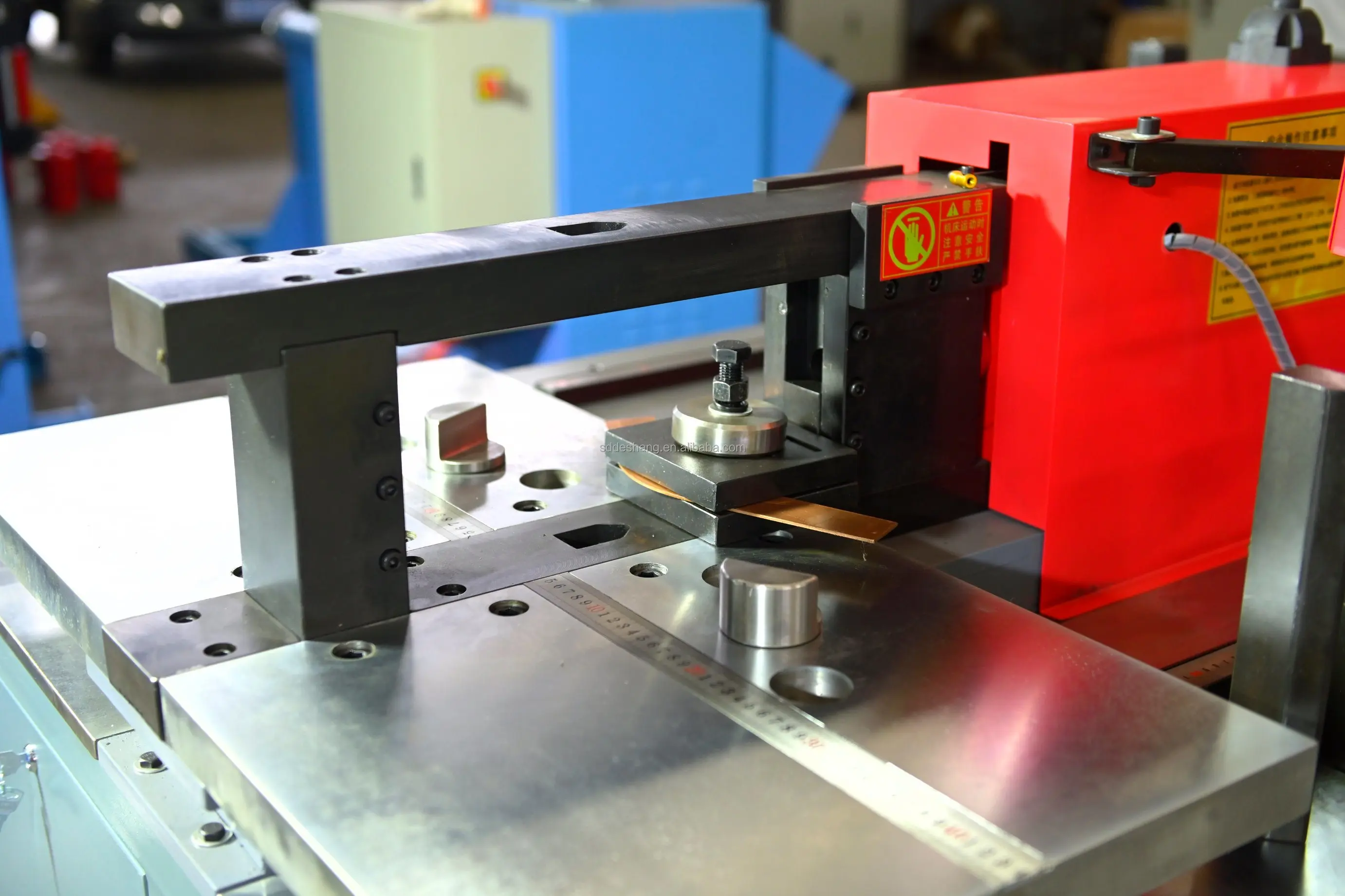

DESAN Copper Busbar Punching Machine：

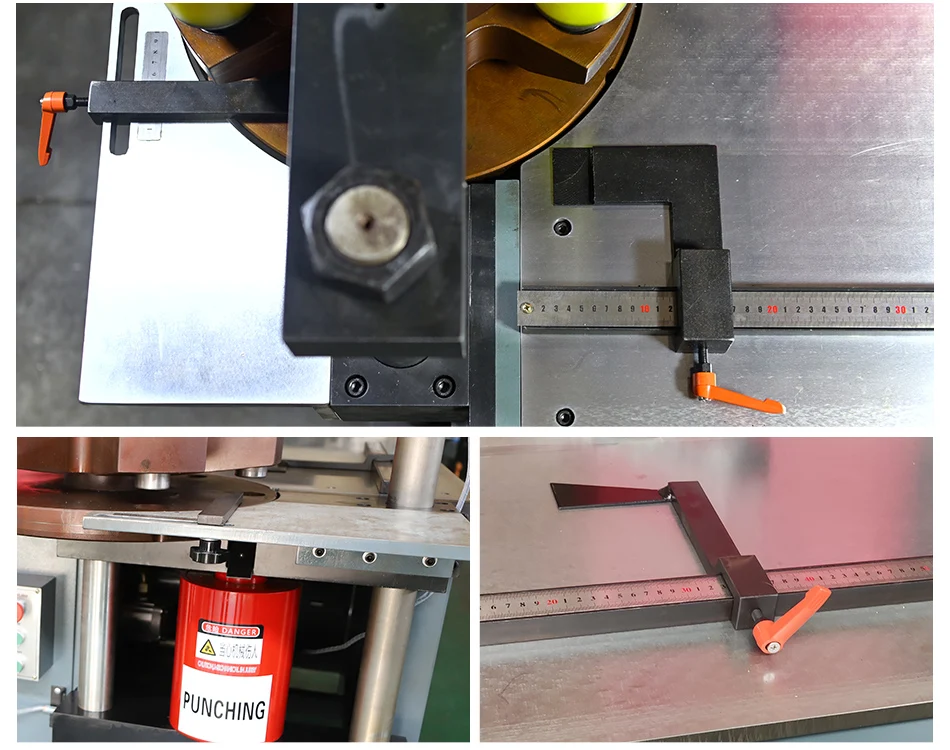

The perfect combination of the two-way positioning design and the table scale makes the product punching more accurate, and the
precise scale can be measured at any time, which improves the work efficiency and reduces the production of defective products.
precise scale can be measured at any time, which improves the work efficiency and reduces the production of defective products.

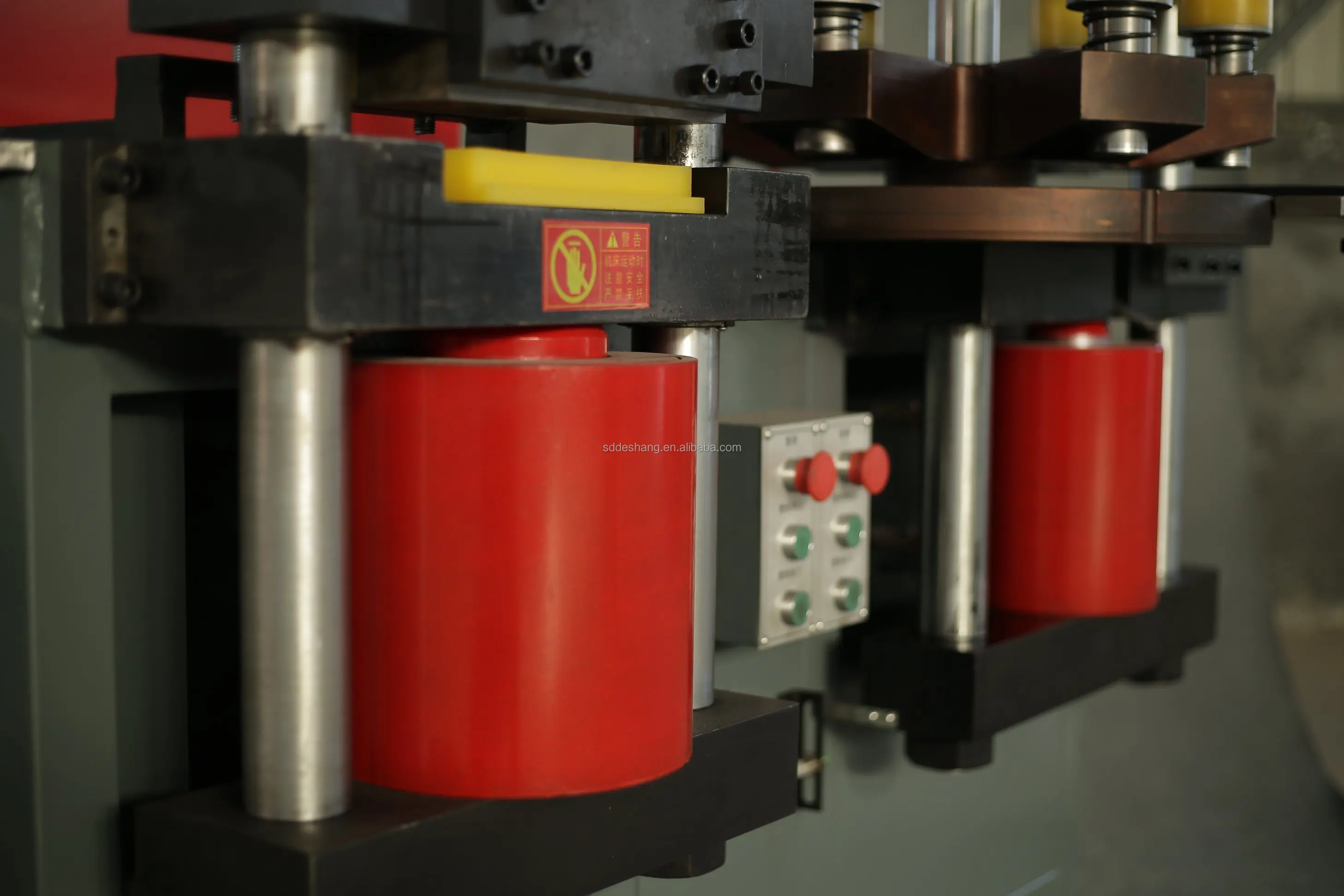

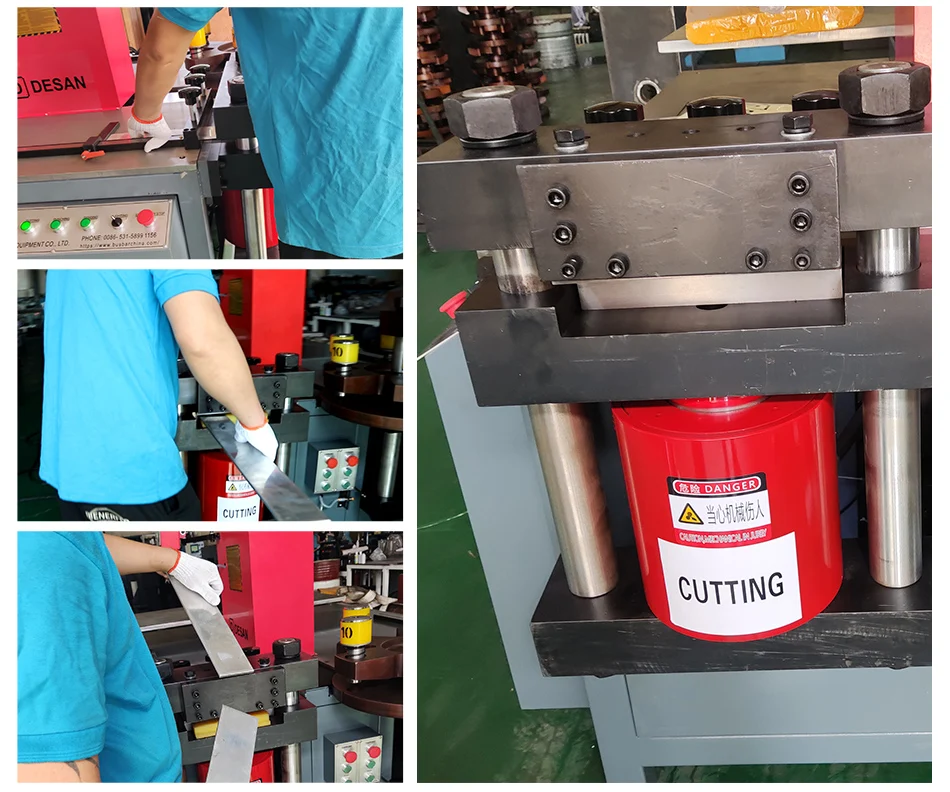

Cutting cylinder
The shearing station adopts the double-column shearing structure, the shearing cylinder is increased to 50 tons, the shearing
force is greater, the cutting mouth is flat and there is no waste, and it is not easy to appear burrs, collapsed feet, etc.
force is greater, the cutting mouth is flat and there is no waste, and it is not easy to appear burrs, collapsed feet, etc.

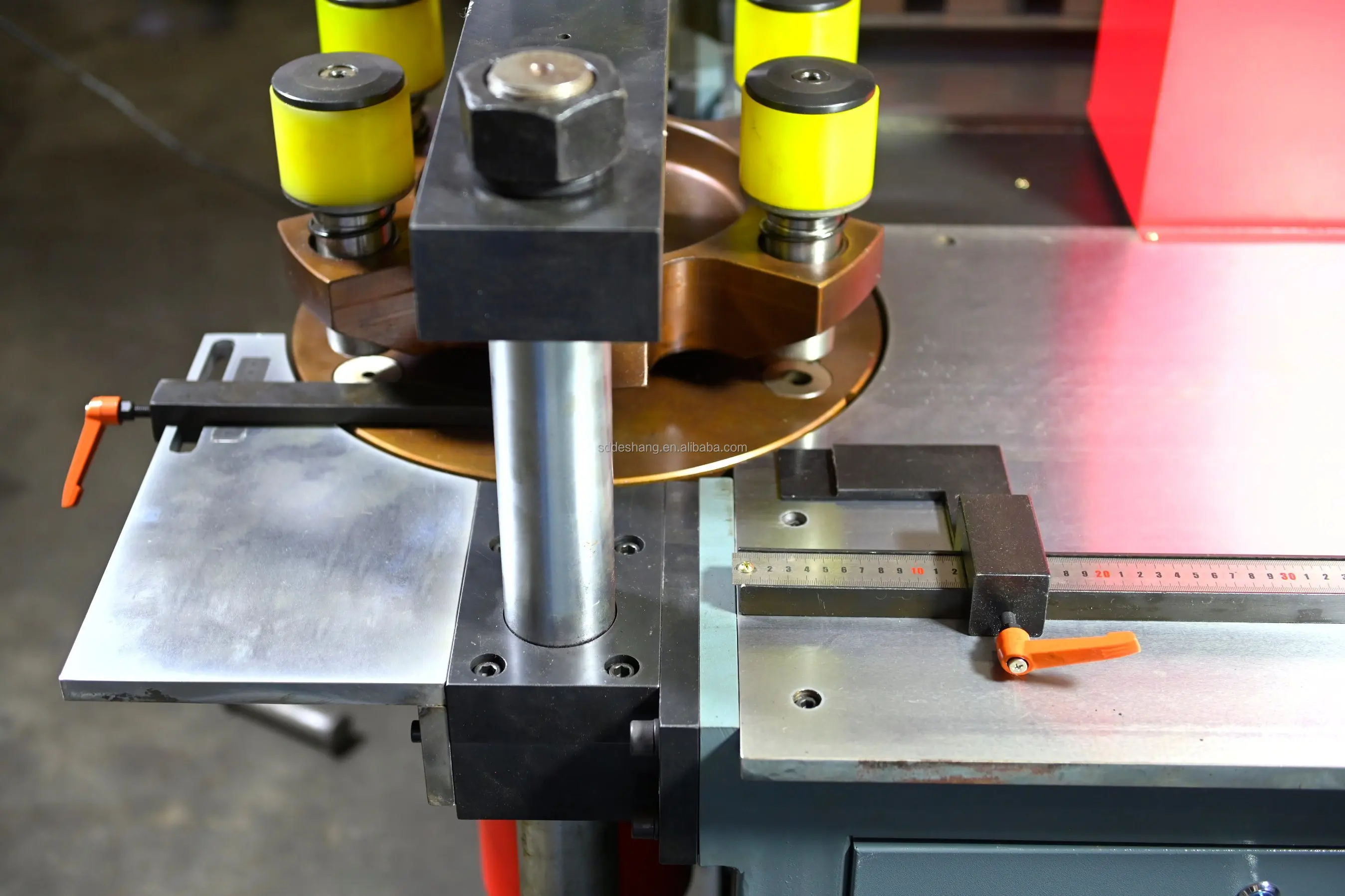

Busbar machine bending station
The bending unit adopts the horizontal type, and the bending of flat bending, vertical bending, embossing, flattening, crimping
nose, and twisted twist can be completed by changing the mold.
nose, and twisted twist can be completed by changing the mold.

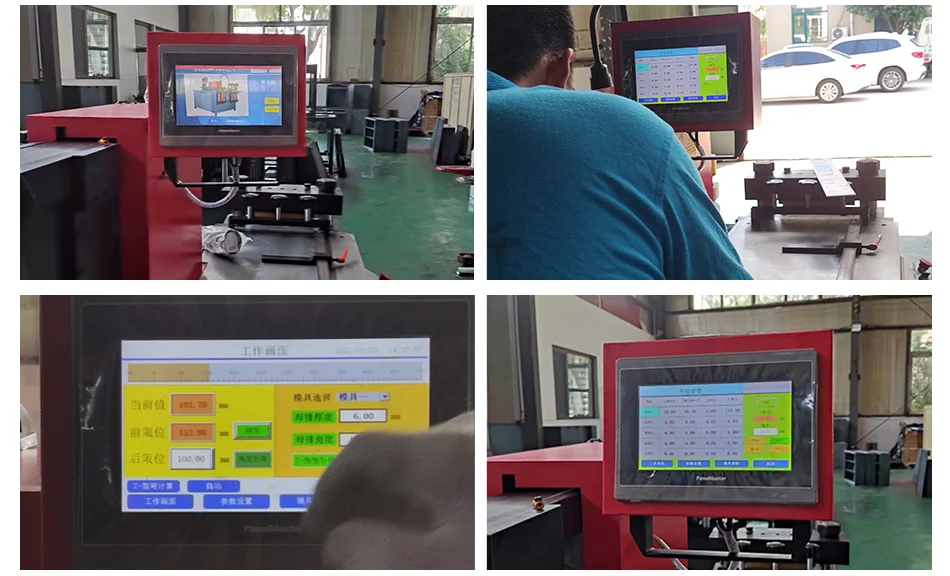

The bending angle is controlled by the PLC and the displacement sensor in cooperation with each other, and it has the functions of
storage and memory and error compensation, and the bending accuracy and angle consistency are guaranteed.
storage and memory and error compensation, and the bending accuracy and angle consistency are guaranteed.
Product Advantage
1. Three power motors are used to ensure that the power of the three stations is stable and does not interfere with each other.
2. Imported Siemens PLC is used to ensure the safety and stability of the circuit to avoid machine failure and more durable
3. Double-layer workbench design, three motors drive three stations to work at the same time, saving time and effort.
4. The oil tank adopts a sealed design, which can prevent foreign matter from falling into the oil tank, causing pollution to the
hydraulic oil, and better protecting the equipment from damage.
2. Imported Siemens PLC is used to ensure the safety and stability of the circuit to avoid machine failure and more durable
3. Double-layer workbench design, three motors drive three stations to work at the same time, saving time and effort.
4. The oil tank adopts a sealed design, which can prevent foreign matter from falling into the oil tank, causing pollution to the
hydraulic oil, and better protecting the equipment from damage.

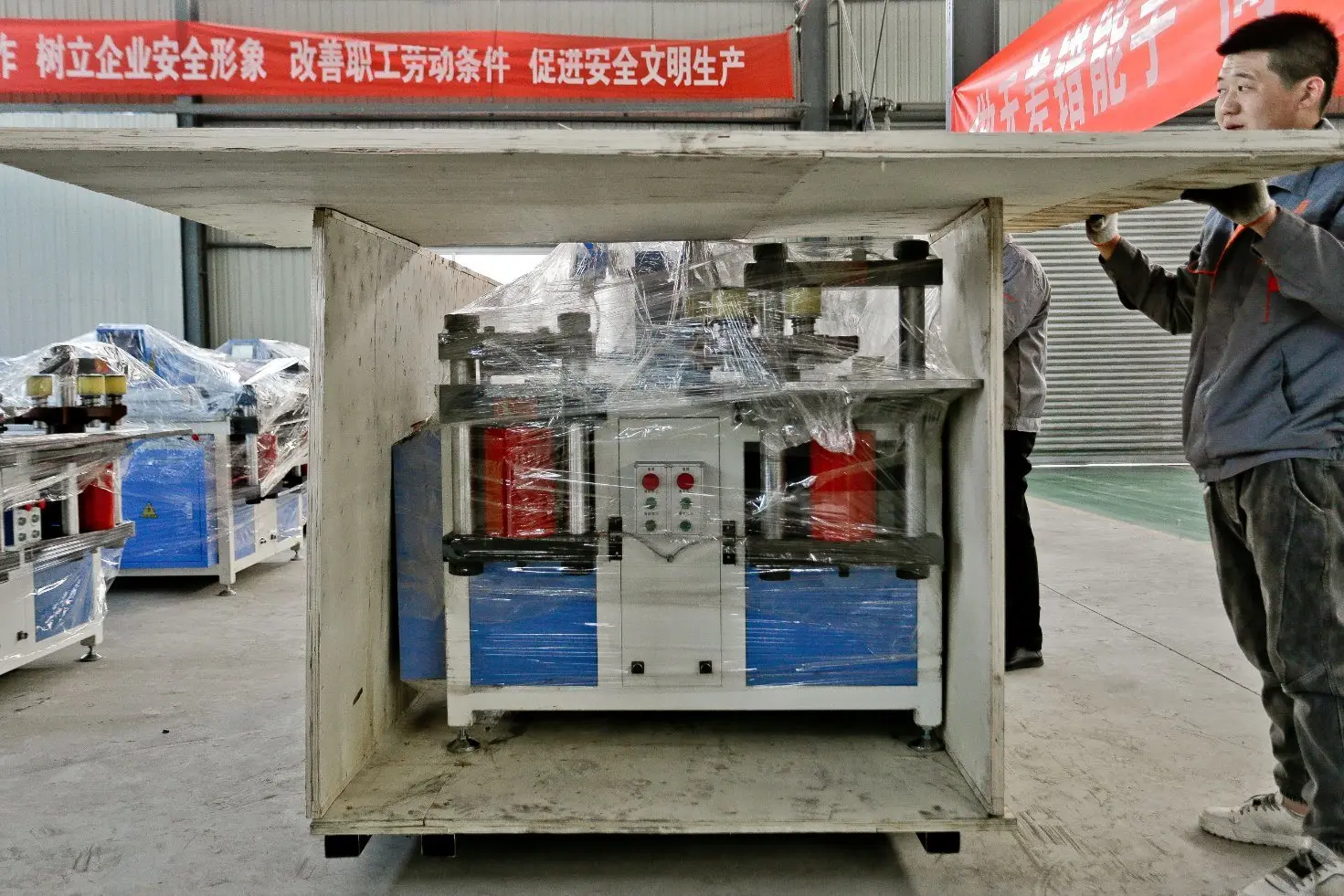

Packing & Delivery
Exhibition
Certifications
FAQ
1. What is your payment terms?
40%T/T deposit, 60% balance be paid before loading after good ready.
2. What is your delivery time?
Within 15 business days after your paying.
3. What is your power supply?
It will depend on your local power supply and we will adjust for you.
4. What is your minimum order quantity?
One set.
5. Are the all labels and instructions English?
Yes. Our labels, instructions and control system are all English.
6. What else busbar machine you can provide?
Actually we also have busbar bending/cutting/punching machine, portable busbar machine, automatic busbar cutting punching machine,wire coiling machine, busbar leveling machine etc.
7. How will you give us technical support?
We can provide technical support online. Based on the situations of the COVID-19 we also can send our engineer to your local factory to help you.
8. How long of the guarantee?
One year.

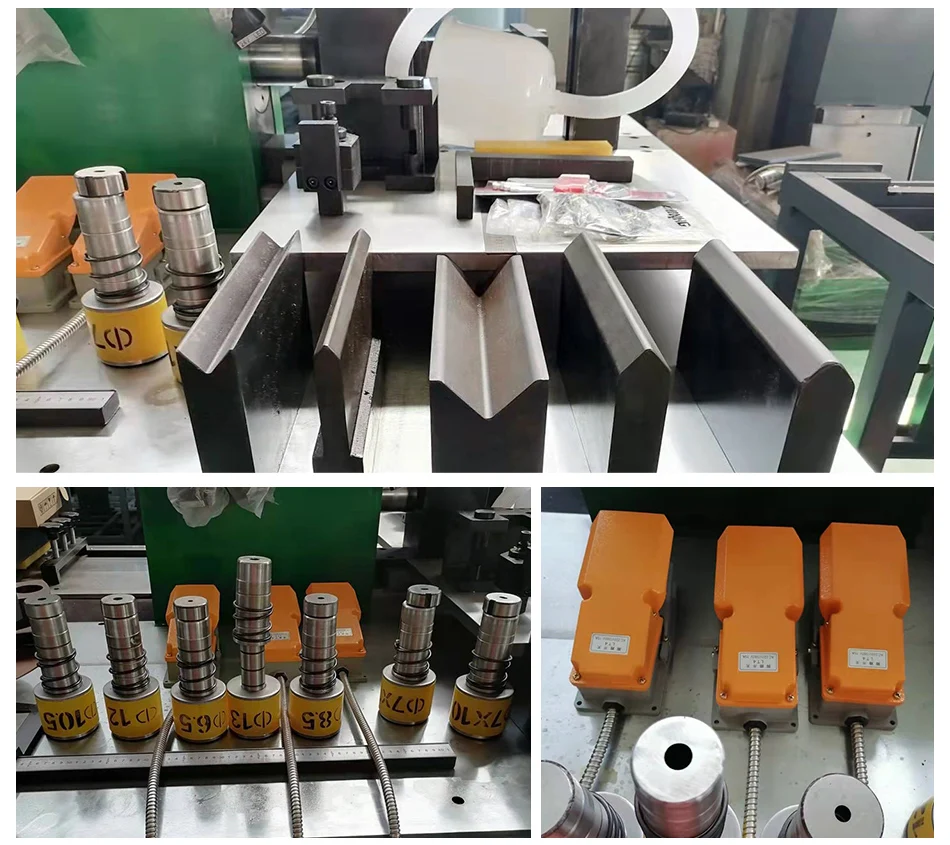

9. Do you also have dies of punching and bending?
Of course! If you need customized dies please feel free to contact us. Not only our machine but the same machine we also can provide the dies.
10. Can you be customized?
Yes. Cause we are factory directly supply so we can exchange the color and logo to the version you need.
40%T/T deposit, 60% balance be paid before loading after good ready.
2. What is your delivery time?
Within 15 business days after your paying.
3. What is your power supply?
It will depend on your local power supply and we will adjust for you.
4. What is your minimum order quantity?
One set.
5. Are the all labels and instructions English?
Yes. Our labels, instructions and control system are all English.
6. What else busbar machine you can provide?
Actually we also have busbar bending/cutting/punching machine, portable busbar machine, automatic busbar cutting punching machine,wire coiling machine, busbar leveling machine etc.
7. How will you give us technical support?
We can provide technical support online. Based on the situations of the COVID-19 we also can send our engineer to your local factory to help you.
8. How long of the guarantee?
One year.
9. Do you also have dies of punching and bending?
Of course! If you need customized dies please feel free to contact us. Not only our machine but the same machine we also can provide the dies.
10. Can you be customized?
Yes. Cause we are factory directly supply so we can exchange the color and logo to the version you need.
