Hdpe extruder/extrusion machine/jerry can making machine
- Category: Extrusion Blow Molding Machines >>>
- Supplier: Shanghai,Hongqi,Machinery,Manufacture,Co.,Ltd.
Share on:
Product Overview
Description

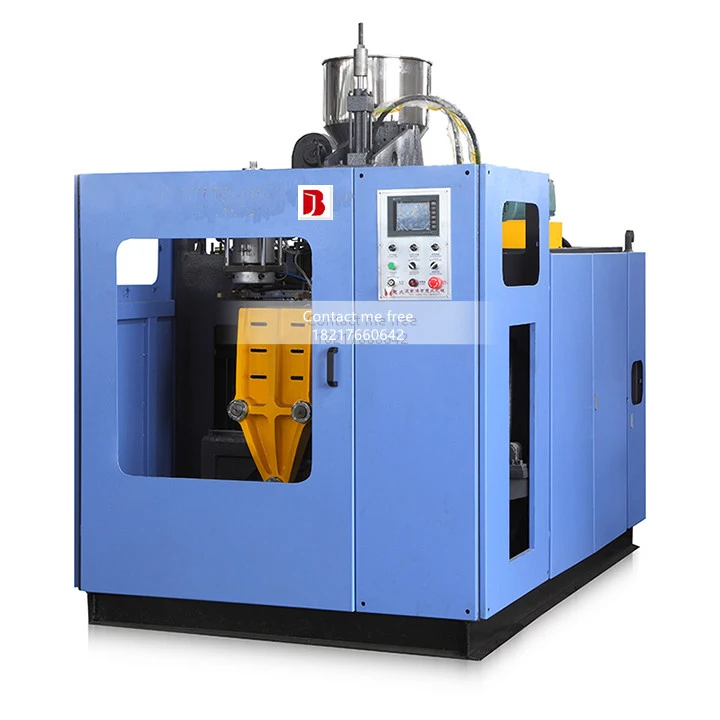

10L Plastic Extrusion Blow Molding Machine (single stage)
Production picture
Bottle picture
Product Description
Machine Features:
| Specifications | HQ-ZB-2L | HQ-ZB-5L | HQ-ZB-10L | HQ-ZB-16L | |
| Application material | PE\\PP... | PE\\PP... | PE\\PP... | PE\\PP... | |
| Max container capacity | L | 2 | 5 | 10 | 16 |
| Number of die | Set | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 |
| Output | pcs/hr | 1400 | 1000 | 800 | 700 |
| Machine Dimension | m | 2.5*1.6*2.4 | 2.9*1.85*2.65 | 4.2*2.95*3 | 4.8*3.2*3.1 |
| Total weight | ton | 3 | 4.5 | 6 | 7 |
| Number of die heating | zone | 3 | 3 | 3 | 4 |
| Power of die heating | kw | 4.2 | 5.8 | 6~7 | 6~7 |
| Max die-pin diameter | mm | 60 | 80 | 140 | 140 |
| Center distance of ewin-die | mm | 130 | 160 | 240 | 260 |
| Center distance of four-die | mm | 65 | 85 | 120 | 130 |
| Clamping force | kN | 38 | 70 | 110 | 155 |
| Platen opening stroke | mm | 135~370 | 145~510 | 230~600 | 230~600 |
| Platen size | mm | 280*320 | 320*390 | 450*490 | 500*490 |
| Max mould size | mm | 300*320 | 350*370 | 520*500 | 600*500 |
| Mould thickness | mm | 135~210 | 150~300 | 235~380 | 235~380 |
| Screw diameter | mm | 50 | 60 | 70 | 75 |
| Screw L/D ratio | L/D | 24:1 | 24:1 | 24:1 | 25:1 |
| Extruding volume | Kg/hr | 30~50 | 60~80 | 100~120 | 100~130 |
| Number of heating zone | Zone | 3 | 3 | 3 | 4 |
| Extruder heating power | kw | 3~4.4 | 5~6.6 | 6~8.2 | 7.3~8.6 |
| Extruder driving power | kw | 11~15 | 15~18.5 | 22~30 | 22~30 |
| Oil pump drive power | kw | 5.5 | 7.5 | 11 | 11 |
| Fan power for screw | kw | 0.25 | 0.25 | 0.25 | 0.6 |
| Total power | kw | 22 | 32 | 41 | 52 |
| Air pressure | Mpa | 0.6 | 0.6 | 0.6 | 0.6 |
| Air consumption | m3/min | 0.4 | 0.6 | 0.8 | 0.8 |
| Average energy consumption | kW | 12 | 18 | 22 | 24 |
Customer factory
Our Customer
Package
Company profile
Shanghai Hongqi Machinery Equipment Co.,Ltd is located in Shanghai Nanxiang, which include develop and design the products, production and sales, we have 24 years experience within the field of blow bottle module,washing, Filling,capping and sterilization for one-stop production equipment,and committed to become the leading company in the field of machinery for beverage and water production.
After Service
1.Reply within 2 hours at working time 9:00-6:00 pm.
2.Professional R&D team to support the project.
3.QC, training and repair video for online after-service.
