offset thermal Ctp Plate Offset CTP Thermal Plate Positive high impression Thermal CTP Plate

Share on:

Price in USD:Details


Product Overview


Product Description

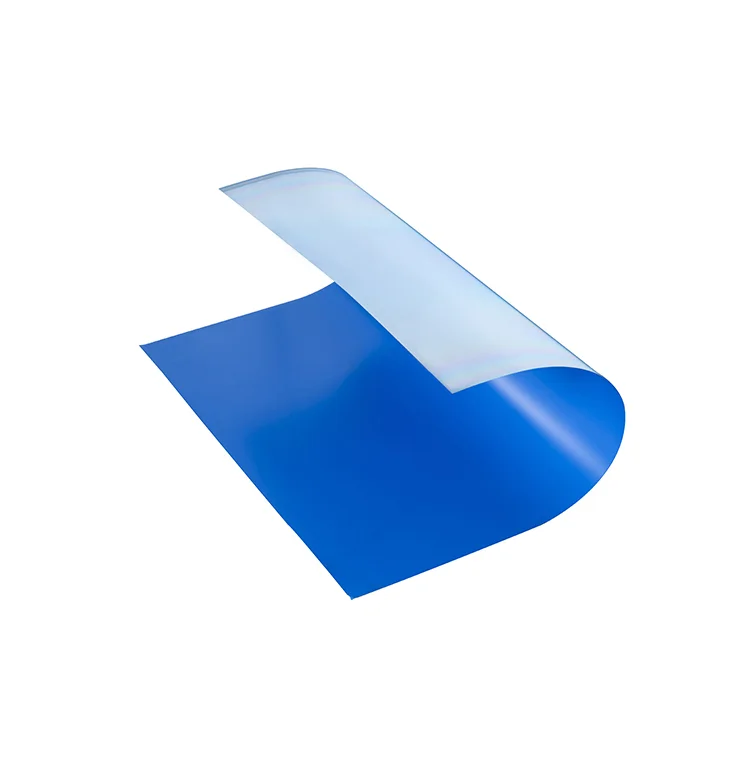

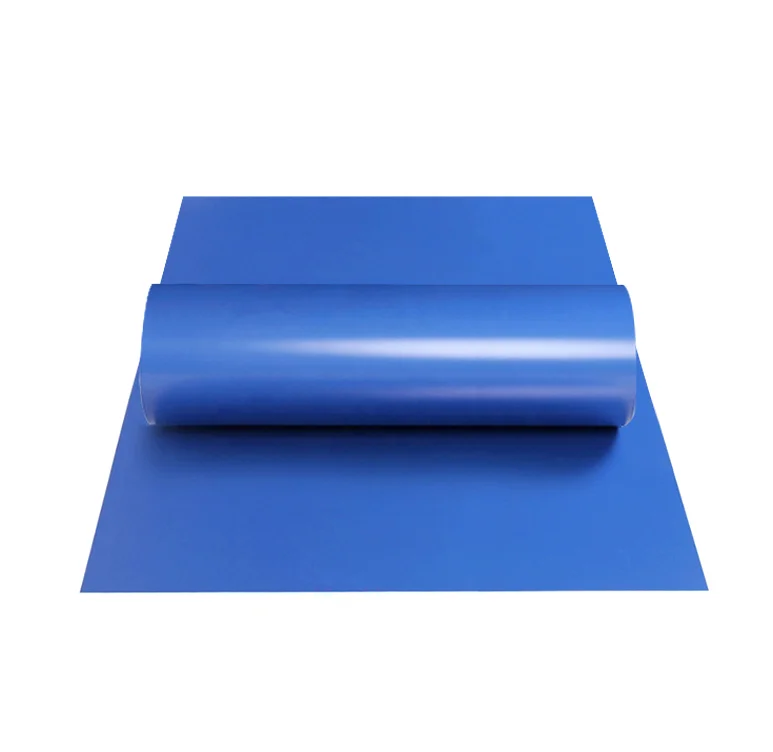

Thermal CTP Plate.
1. High Sensitivity

2. Long Run Length

3. Wide Latitude

4. Outstanding Compatibility

5. Good Stability

Double Layers CTP Plate CXK-G4

Spectra Sensitivity
830 nm
Laser Power
110-140 mj/c㎡
1-99% 200 Lpi/10μ FM
UV Compatibility
Baking Condition
0.15-0.40 mm
Store in a dry, bleak place.
(Temperature range 5-30℃ , RH around 40%-60%)
Warranty Period
18 months

CXK-K1-DVP, Kodak Golad Star Premium, etc.
Developer Temperature
24℃ ± 2℃
Process Speed
23-27 seconds
Replenish Rate
Dynamic 100 ml/㎡ ; Static 40-80 ml/㎡
Brush Speed
90-110 rpm
Chemical Replacement
2500-3000 ㎡
(The replacement cycle shall not exceed 8 weeks
100,000 (UV ink)
Varies with its printing conditions and imaging content.

Strict Material Selection: Superior CtP specialized aluminum, good planeness, unique electric-chemical grain, anodic oxidization and hydrophilic processed substrate.

Strong Stability: Advanced automatic production equipments, strict quality inspection to guarantee the plate consistency of each batch.

Compatibility: Compatible to most common CtP machines, processors and developer.

Cost-effective: Fast exposure, excellent ink-water balance, high ink efficiency, and good chemical resistance.

Convenience: Daylight process, pre-heated free.

Production Process



We can provide superior quality product
because of professional R&D team,
advance production line and
precision Instrument.

What we are and will be Insisting to do Is
that innovative technology and helping
our customers to solve printing problem
Let's develop and be strong together

Our product have passed ISO9001 and
SGS test, which has won a great
reputation for its high quality
and competitive price.

Company Profile

CXK factory is located in Huizhou City, Guangdong Province.Branches are located in Guangzhou , Shenzhen, Foshan, Dongguan, and Shantou. It is the largest offset printing plate manufacturer in southeast of China. With 2 automatic production lines, our yearly production capacity up to 5,000,000 square meters.

CXK Thermal CTP plate, UV-CTP/CTCP plate, Positive PS plate are highly reputed by customers from worldwide. CXK is the provincial “High-Tech Enterprise” “Observing Contract & Credit Valuing” awarded by government.

We will keep providing the best product & service to our customers.

Customer Visit


Payment Shipping

One polybag/hanger/colour box per piece, packing into standard exporting carton.
Also could be customized.

If the quantity of order is not very big,we could send them to you by express delivery,such as TNT,DHL,UPS OR EMS etc.
If order is big ,we will advise you use Air Shipping or Sea Shipping through your nominated forwarder agent.Our long-term cooperated agent also available.

Q: When can I get the price?
A: We will reply you within 24 hours after receiving inquiry. Or you can call us directly.

Q: Can I get samples for testing?
A: Sure you can. We are willing to provide sample freely and freight cost on your account.

Q: How long is the production time?
A: 7-15 days.

Q: Can you supply technical support?
A: Yes we can. We have a professional technical teams.
