12/24V DC Water leak detector auto shut off wired water leak sensor

Share on (1600366103766):


Price:$15.00 - $21.00

Quantity:


Product Overview

Description



Specification


item
12/24V DC water leak detector auto shut off wired water leak sensor
Place of Origin
China
Guangdong
Brand Name
iHING
Model Number
wwls-485
Network
wired
Product name
Water leak detector auto shut off wired water leak sensor
Keyword
Water leak detector
Color
White
oem
support
Power
12V or 24V



Overview

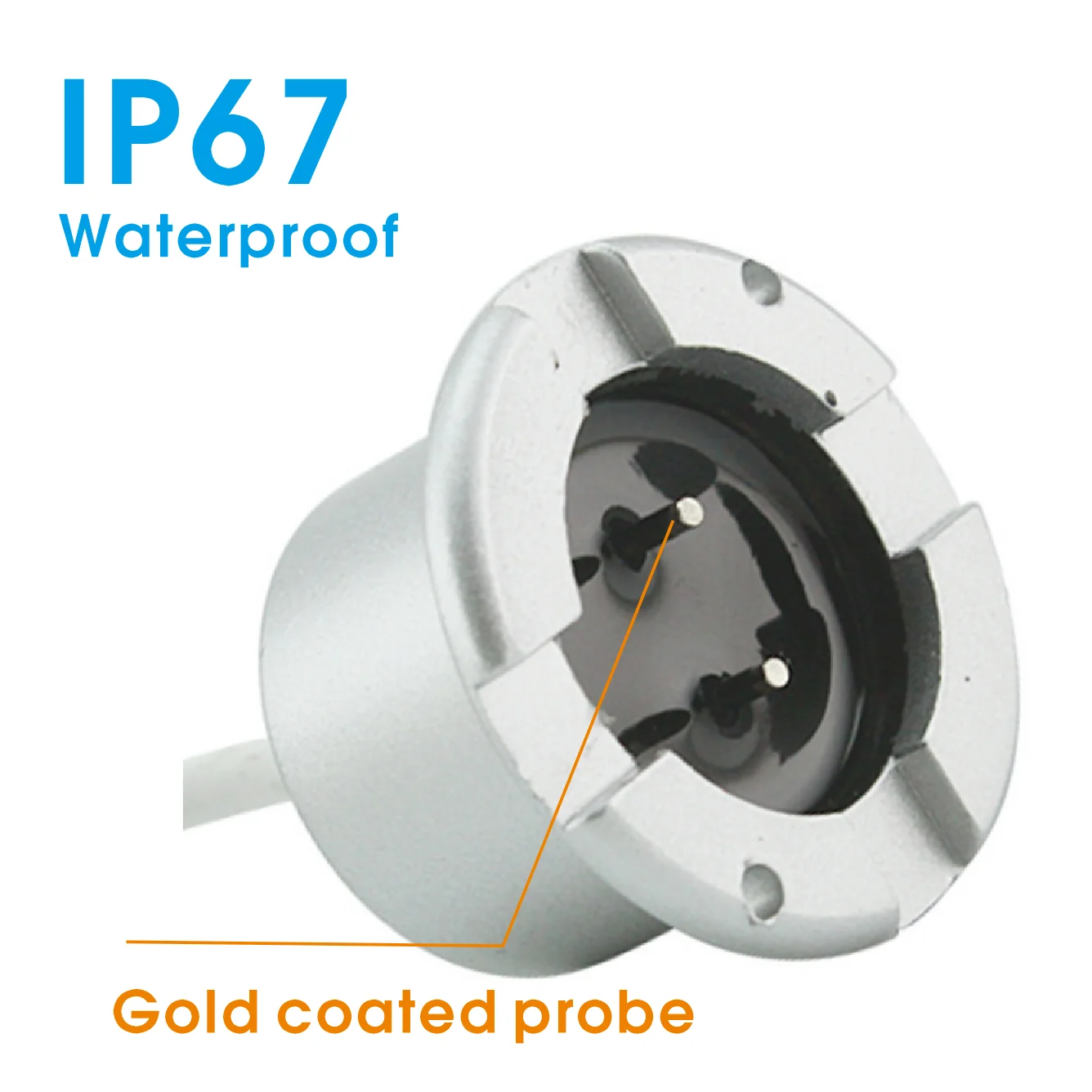

The water immersion sensor is based on the principle of liquid conduction, using an electrode detector to detect whether there is water, and then using the detector to convert it into a dry contact output.
There are two output states: normally open and normally closed (usually normally open)

Main Specifications:

Detection: Min 2mm water deepth
Output:
Dry contact, output NO signal standby, output NC when alarm
Relay capacity:3A/30VDC, 3A250VAC

Working power supply: DC12V±5%, (24VDC optional)
Working current:
Standby: <100 mA;
Alarm: <300mA

Detection height: 2.0±0.5mm
False alarm rate: 500ppm
Working environment: temperature -10℃~60℃;
Working humidity: 20~95%RH (non-condensing)
Storage environment: temperature -40℃~65℃
Sealing method: inject epoxy resin

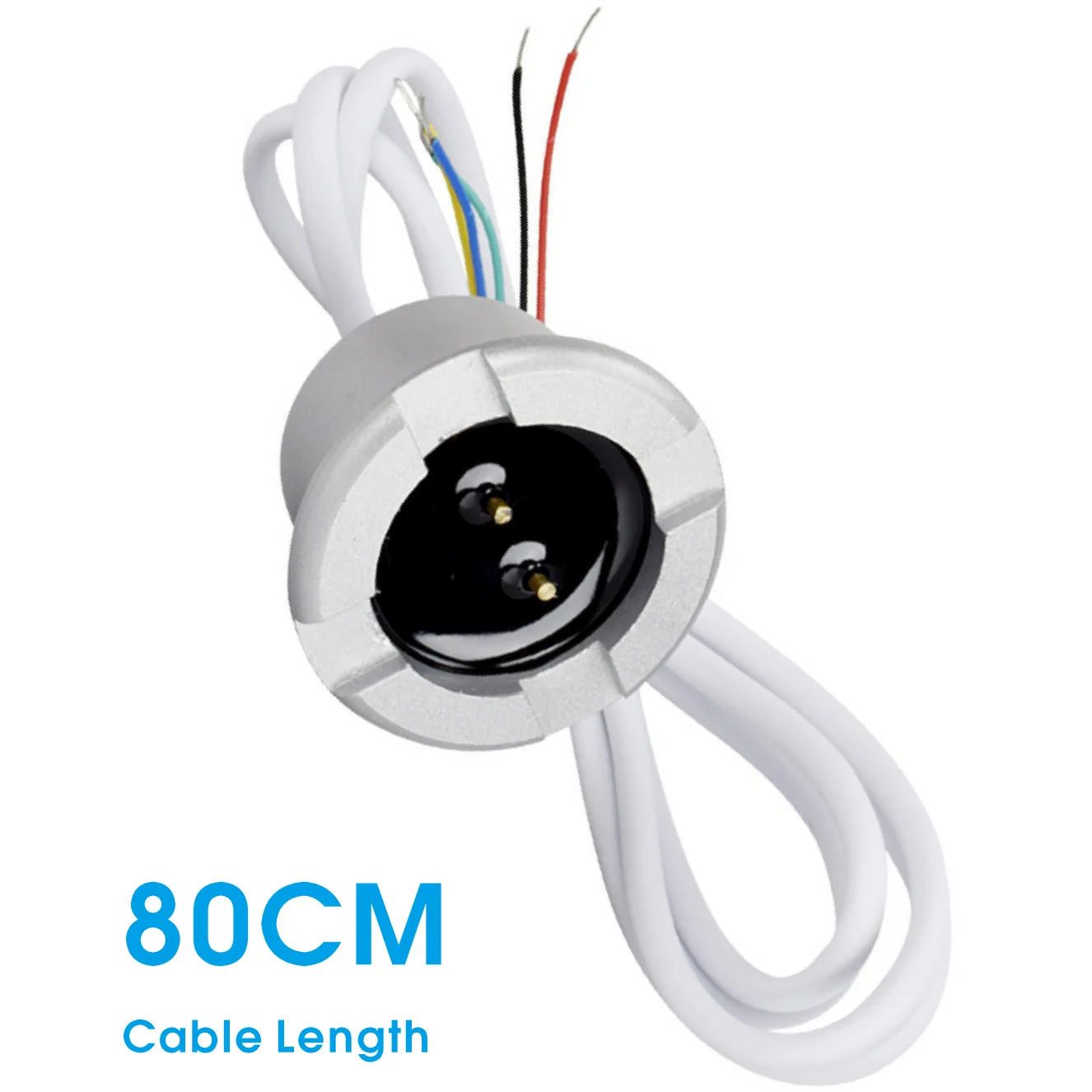

Cable specification: AVVR 5*0.3mm2, length 80cm
Conductor resistance (69.2Ω/KM20℃), flame retardant VW
Shell material: zinc alloy

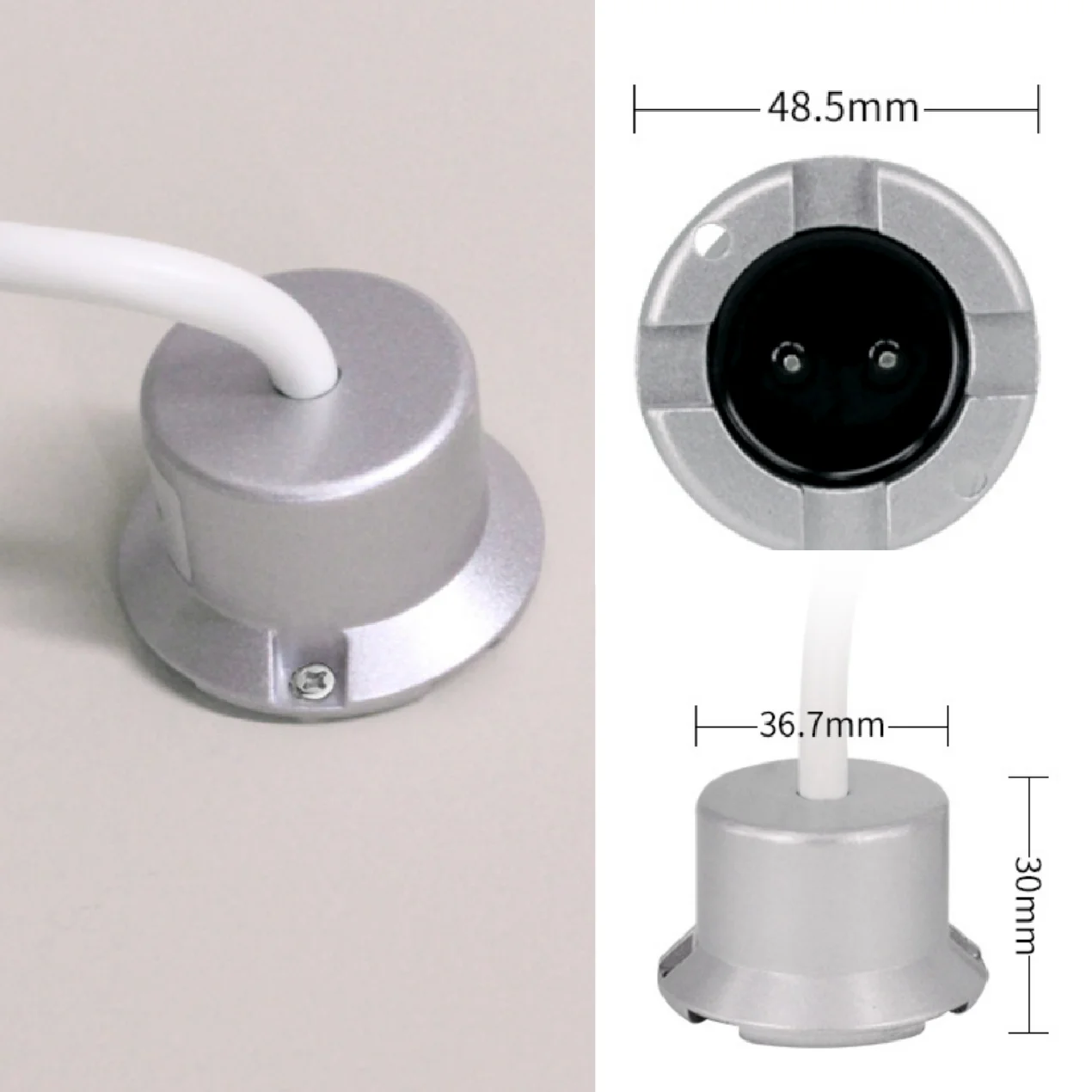

Dimensions: Φ47*30mm

Color definition:
Red: POWER +
Black: GND
Yellow: COM
Blue: NC
White:NO

Installation:

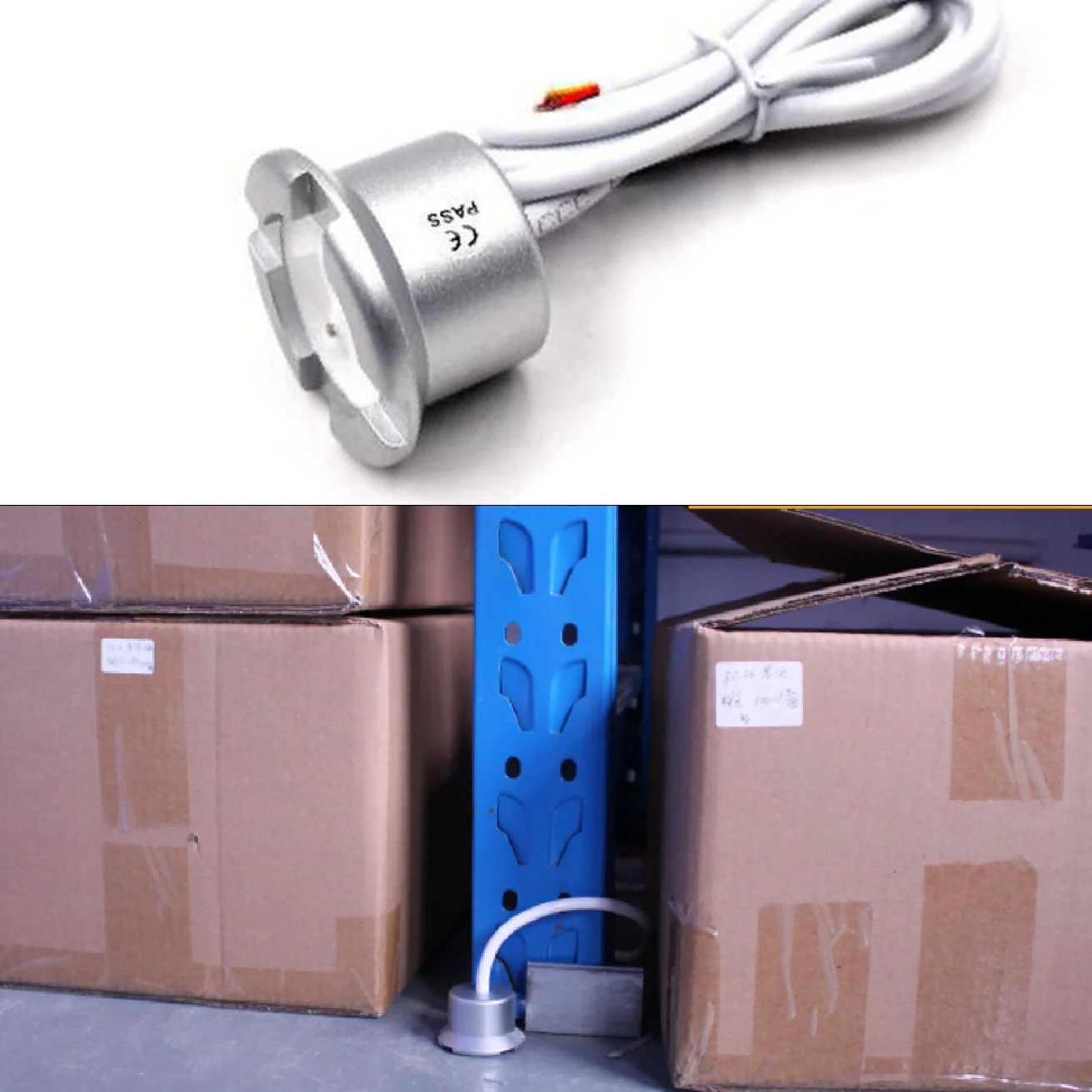

The probe of the sensor faces downwards and is placed vertically on the surface to be detected. Attention should be paid to the topography of the plane during installation, and the low topography should be selected as much as possible.
Fixed hole distance: 41mm
Screw size: M3*12






Product Description
