1 / 14 metal power medium axle without brake plate

Product Overview

Description

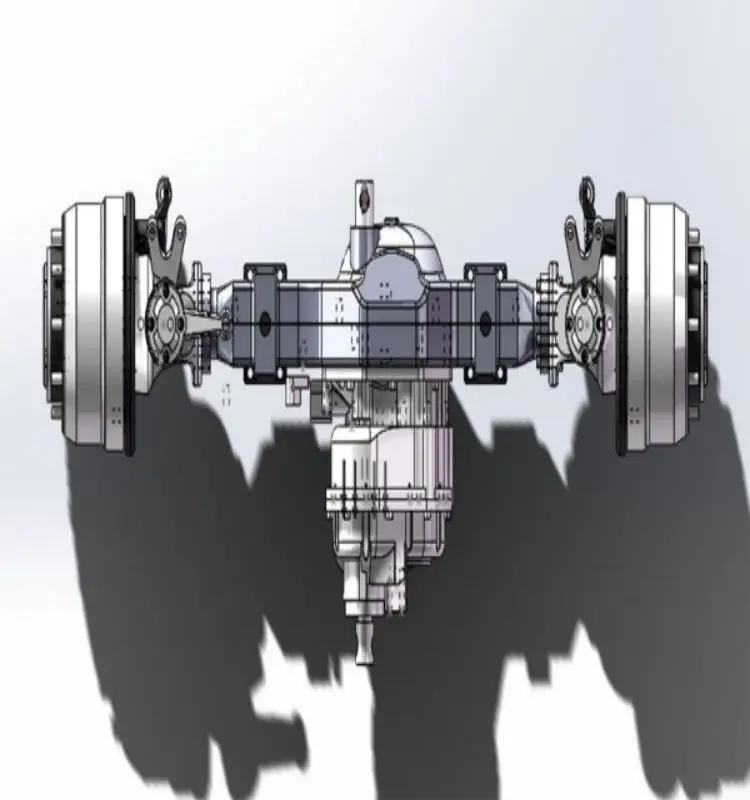

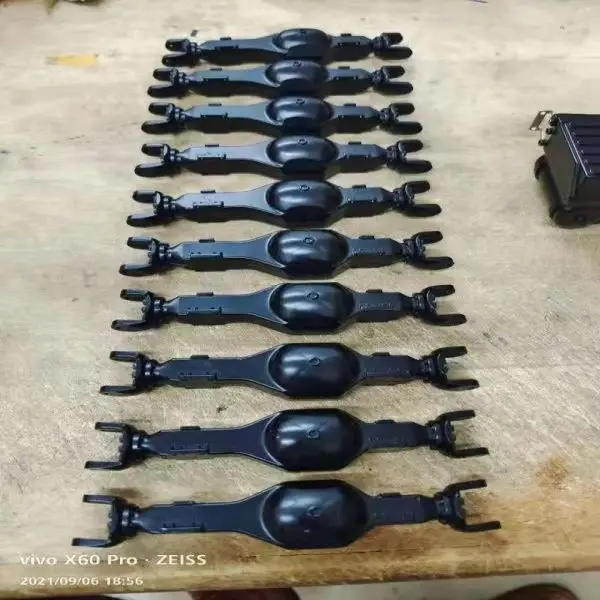

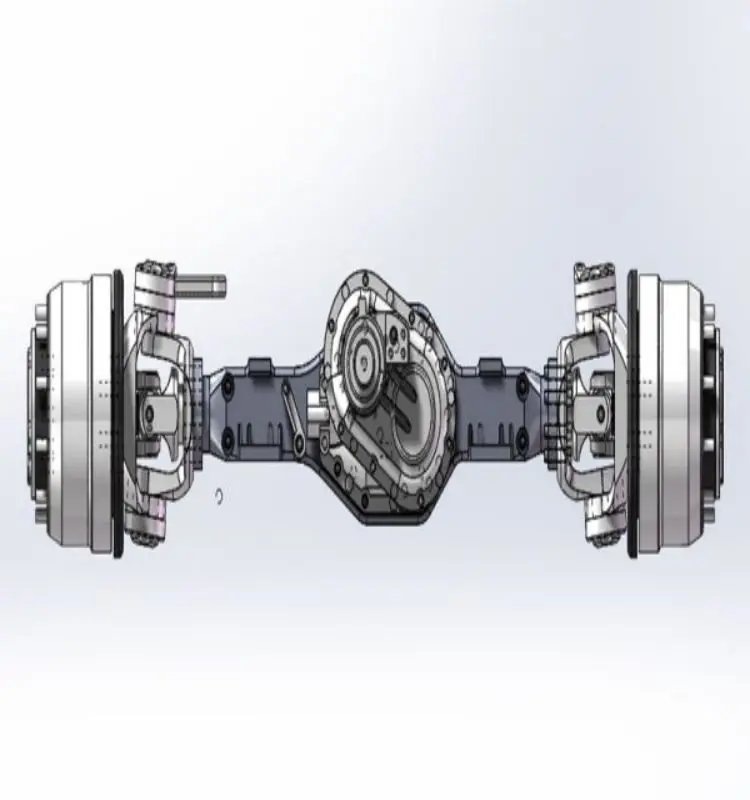

The front and middle axle of high simulation wheel side deceleration drive is officially put on the shelf, and the standard configuration is without brake (without brake, i.e. excluding brake pad, brake cam shaft and external link seat of brake shaft, which can be purchased and upgraded by yourself in the later stage). Mold friends who need brake axle can choose to have brake axle, which is closest to the real vehicle design to the greatest extent. The axle includes pipe sleeve, flange head and wheel side deceleration planetary gear, Brake pads, etc. the middle axle incorporates the design of the real vehicle's inter axle differential. Two locks on the middle axle and one lock on the rear axle are very good in both appearance and performance. At the same time, they are of great collection value. The speed ratio of the axle is 4.4, the outer diameter of the axle egg is reduced to 26mm, better trafficability and quality assurance. The input shaft is 5mm steel gears, all steel gears of the differential are made of, and four planetary gears are not easy to sweep the teeth, More durable. It is recommended to match with our all metal medium bridge and suspension. You are welcome to buy it.
