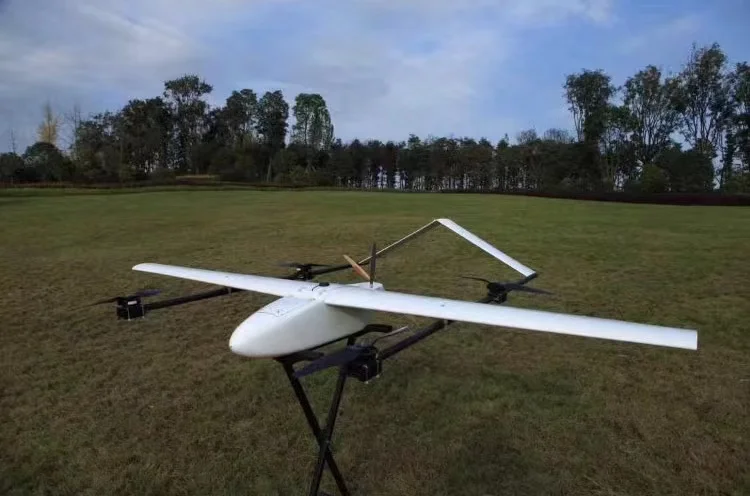

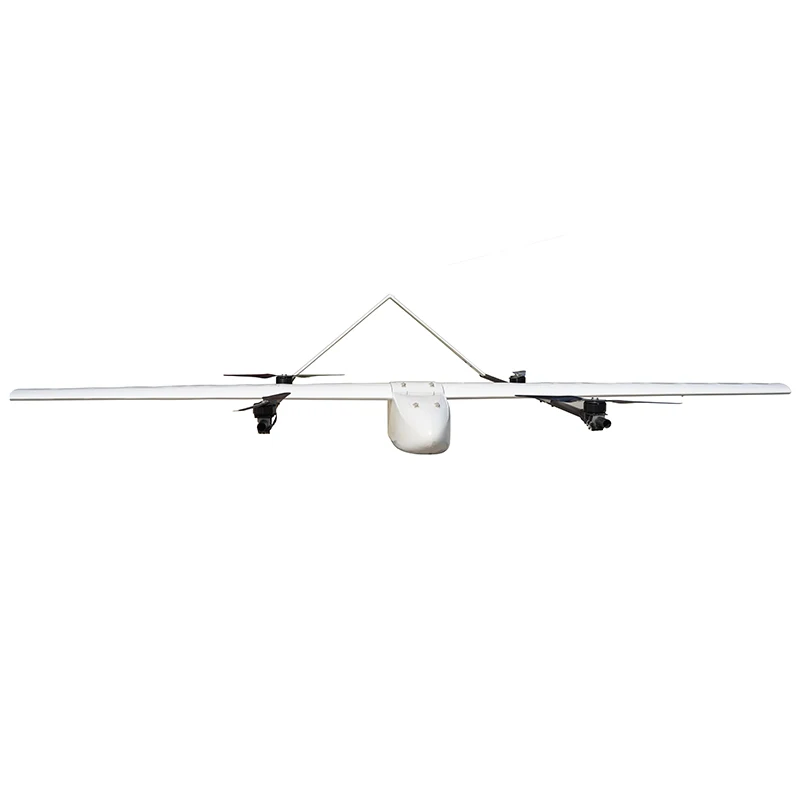

Cloud UAV New hybrid oil electric remote e 15 VTOL UAV

Share on (1600366159220):


Price:$17,000.00 - $18,000.00

Quantity:


Product Overview

Description





E-15 UAV is a small portable UAV flight platform for pure electric multi-purpose modular fixed-wing vertical take-off and landing UAV that can be equipped with a variety of mission payload to accommodate aerial survey, inspection, environmental protection and ultra-near-range tactical environment applications.After long-term civil mapping field and long-term operation of environmental monitoring, E-15 UAV has proved its excellent performance, powerful function, easy operation and ability to operate in a harsh environment.
Features:
Excellent pneumatic design and digital simulation
Modular design, quick conversion function purpose (support electric quick conversion module)
Rapid deployment flight and evacuation are completed in 5 minutes
Excellent power endurance, without professional experience to support
Bring a constant temperature system to support mission flight in alpine areas
Support for day / night operation mode (optional navigation light system)
Support relay relay mode to expand the application distance
We will support takeoff and landing in high-altitude areas and expand the scope of applications
High-performance UAV platform, low selling price and low-cost maintenance costs









Pure electric VTOL version
Hybrid VTOL version
Wingspan
2780mm
2780mm
Fuselage Diameter
200*180Biggest place
200*180Biggest plac
Length /Fuselage Length
1600mm
1600mm
height
450mm
450mm
Empty weight
8kg
9.2kg
MTOW(Maximum Take-Off Weight)
18
19
Take-Off Weight
14kg
15kg
payload
<3kg
<5kg
Duration/Endurance Time
>1.5h
>4h
Cruise Speed
85km/h
100km/h
Cruising altitude
3000Meters above sea level
3000Meters above sea level
Voyage
-
-
Takeoff speed
-
-
stall speed
60km/h
62km/h
Max. Speed
100km/h
130km/h
ceiling altitudes
4500m
4500m
Wind Resistance
<8m/s
<10m/s
Working Temperature
—20~40°
—20~40°
Power
2.0kw
2.8kw
Fuel consumption
-
-
Fuel load
-
Max 4L
battery pack
44.4V
44.4V
Starting voltage
-
11.1V
Starting mode
application start
application start
Takeoff and Landing
VTOL
VTOL
RTK /PPK
Optional
Optional
Material
carbon fibre&PMI
carbon fibre&PMI
packing size
1.4*0.5*0.5M
1.4*0.5*0.5M
gross weight
30kg
30kg
net weight
15kg
16kg
Mission Radius
30km
30km
Hovering Ceiling
4500m
4500m
rate of climb
5m/s
6m/s






Mianyang Cloud technology co., LTD., was founded in 2013, focusing on the research and development of UAV technology, to long-time aerial UAV system application, short-range take-off and landing UAV, military target aircraft, tactical UAV, ground-air, air-to-air missile targets as the core products, formed for the government, enterprises, scientific research, national defense, different scale, different applications of targeted solutions of a technical company.
The company designs, develops and produces a variety of miniature UAV complete machine business by itself. The company has mastered the aerodynamic design, structural design, unmanned vehicle design, special mold design, mold manufacturing, carbon fiber unmanned vehicle products and other whole processes are completed by itself.At the same time, the company focuses on the development of core components needed for unmanned aerial vehicles, such as high-precision satellite navigation and positioning system, UAV data chain special digital transmission station, digital image transmission system, UAV flight autopilot system and other products.
At the same time, we continue to make innovations and breakthroughs in technology and application. Based on the realization of UAV technology, we have extensively cooperated in various surveying and mapping industries, oil pipeline inspection, forest fire prevention inspection, water conservancy investigation, disaster emergency response and other units.The full composite target aircraft developed by the company is provided to many air defense units for live ammunition training and military assessment.










uav vtol uav drone uav drone long range drone uav 10kg payload drone uav fixed wing uav uav plane uav fixed wing surveillance vtol
drone uav uav aircraft uav helicopter for agriculture uav ground control station long range uav





fixed wing drone uav aerial survey uav uav vtol x-uav uav long range mapping uav uav military uav vtol ppk uav helicopter
large uav uav militar industrial uav uav drone military drone mapping aerial survey uav









1. Why Choose our company? Drone Professional,Unmanned Aerial Vehicle,Uav Long Range
Dear customers, choose us and you will definitely feel the value.If the same product we compete with Quality, if the same quality,we compete with Price, if the same price we compete with Service, if the same service we compete with Consistency.Uav,Uav Fixed Wing,Fixed Wing,Drone With Night Vision Camera,Night Vision Drone,Drone Uav Uav Long Range,Uav,Drone,Uav Drone,Drone Professional,Drone With Camera,Uav , Hybrid Drone Best Fixed Wing Drone,
2. How to know the DH products original or not?
Download the soft from official website of DH,only genuine Fixed-wing Vtol Uav,
products is compatible with the software. Gasoline Vertical Take-off And Landing Drone Uav,Long Flight Distance ,Uav,Drone Professional,Vtol Drone Long Range Drone,Uav With Thermal Camera ,Payload 10kg long Flight Time,Uav For Inspection
3. How to reset the DH password ?
Our technical department can solve all the technical problem for our
customers.


4. When will you shipping the order?
We will shipping them within 1-2 days after payment.

5. How about warranty?
Three years warranty
