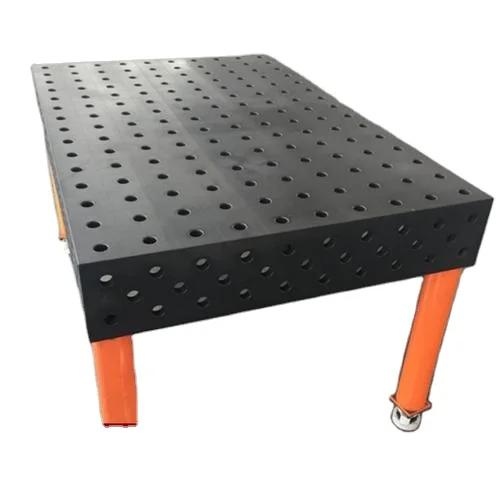

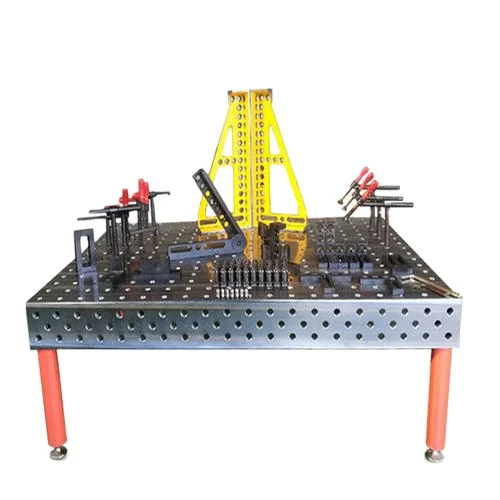

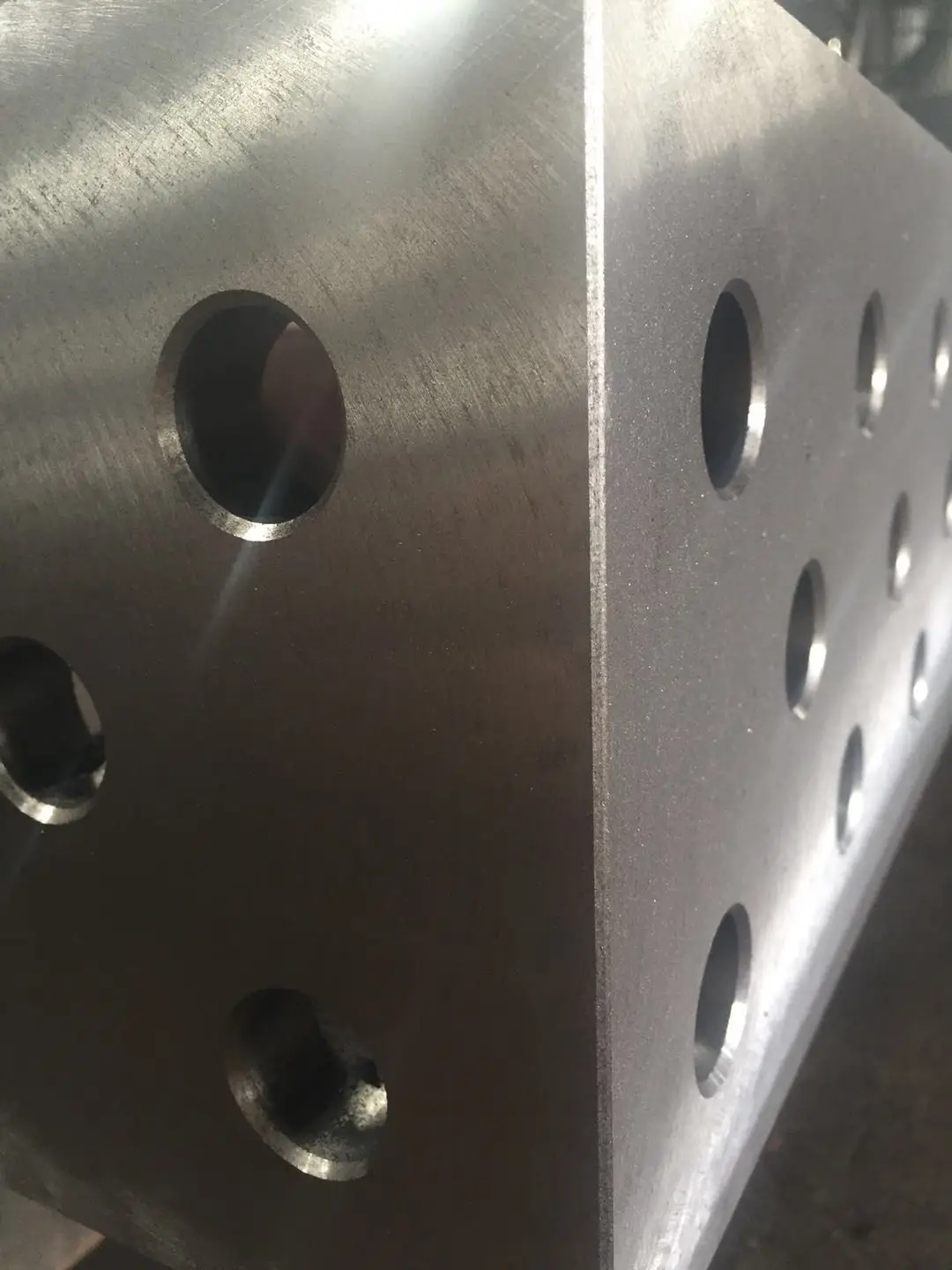

Лучший приветствуемый Модный высококачественный сварочный стол 3D
- Category: Welding Equipment >>>
- Supplier: Botou Kaicheng Mechanical Equipment Co. Ltd.
Share on (1600366180614):
Product Overview
Description
Product Specifications
Brand: Kaicheng
Model: Class A
Purpose: benchmark workbench
Material: HT250-300 QT450-600
Structure: Box-shaped ribbed plate
Whether standard parts: yes
Custom attributes:
1. Aging treatment: two artificial tempering aging
2. Casting process: real casting
3. Working face treatment: grinding process
4. Precision: level 1, 2, 3
5. Hardness: HB170-240
6. Tempering temperature: 600-700 degrees
7. Roughness: Ra0.8-3.2
8. Weight error: 5%
9. Scope of application: machinery manufacturing
10. Density: 7.3-7.85
Model: Class A
Purpose: benchmark workbench
Material: HT250-300 QT450-600
Structure: Box-shaped ribbed plate
Whether standard parts: yes
Custom attributes:
1. Aging treatment: two artificial tempering aging
2. Casting process: real casting
3. Working face treatment: grinding process
4. Precision: level 1, 2, 3
5. Hardness: HB170-240
6. Tempering temperature: 600-700 degrees
7. Roughness: Ra0.8-3.2
8. Weight error: 5%
9. Scope of application: machinery manufacturing
10. Density: 7.3-7.85
Cast iron surface plate mainly used for machinery, machine tool board manufacturing, electronics, electric power, all kinds of industries, Most commonly used in industrial production, 95 per cent of the total output .
The material of surface plate is HT200-300.after your using ,pls daub rust-proof to avoid rust.
The material of surface plate is HT200-300.after your using ,pls daub rust-proof to avoid rust.
Attached form information
pecification (mm) | |||||
1 | 2 | 3 | |||
precision grade (um) | |||||
200×200 | 10 | 20 | 50 | ||
300×200 | 12 | 24 | 60 | ||
300×300 | 12 | 24 | 60 | ||
300×400 | 12 | 24 | 60 | ||
400×400 | 12 | 24 | 60 | ||
400×600 | 14 | 28 | 70 | ||
500×500 | 14 | 28 | 70 | ||
500×600 | 14 | 28 | 70 | ||
500×800 | 16 | 32 | 80 | ||
600×800 | 16 | 32 | 80 | ||
600×900 | 16 | 32 | 80 | ||
1000×750 | 18 | 36 | 90 | ||
1000×1000 | 20 | 39 | 96 | ||
1000×1200 | 20 | 40 | 100 | ||
1000×1500 | 24 | 48 | 120 | ||
1000×2000 | 26 | 52 | 130 | ||
1500×2000 | 28 | 56 | 140 | ||
1500×2500 | 32 | 64 | 152 | ||
1500×3000 | 70 | 174 | |||
2000×3000 | 74 | 184 | |||
2000×4000 | 88 | 219 | |||
2500×3000 | 79 | 186 | |||
2000×4500 | 237 | ||||
2000×5000 | 255 | ||||
2000×6000 | 292 | ||||
3000×6000 | 308 | ||||
Production Capacity | 50000 Piece/Pieces per Month |
Automatic Grade | N/A |
Voltage | N/A |
Power | N/A |
Place of Origin | China |
Year | 2012 |
Certification | factory inspection |
Dimension(L*W*H) | 200*200*75mm-2000*4000*280mm |
Weight | 6kgs-2400kgs |
Warranty | One year |

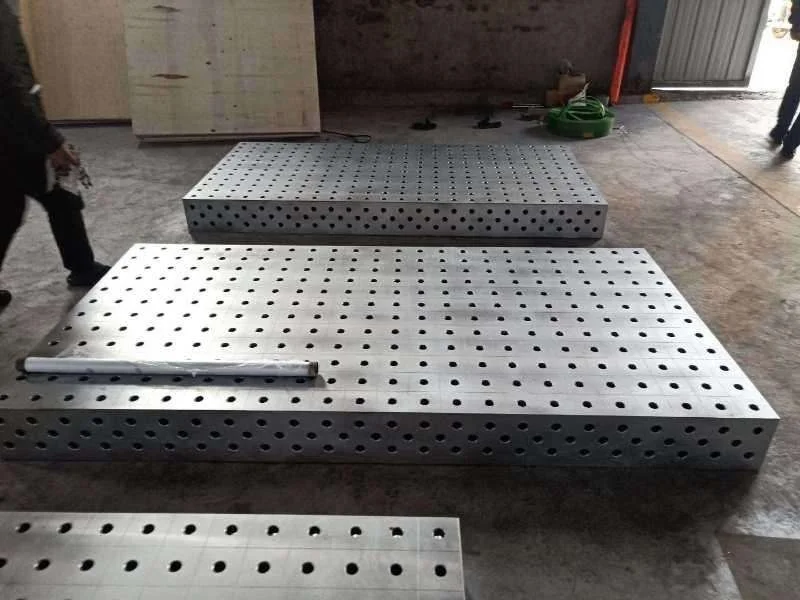

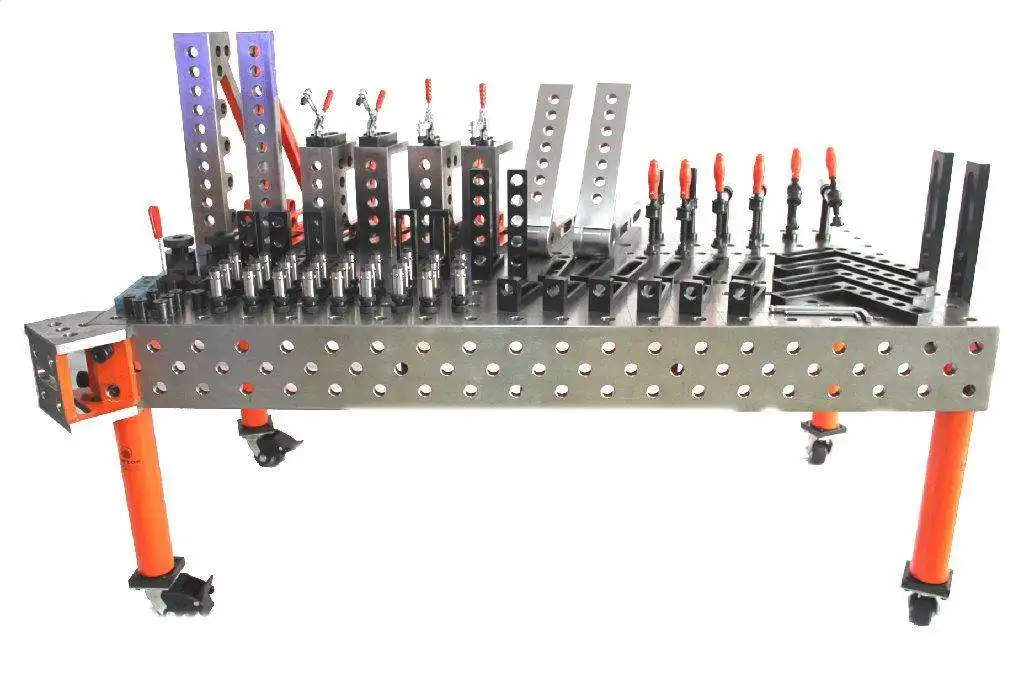

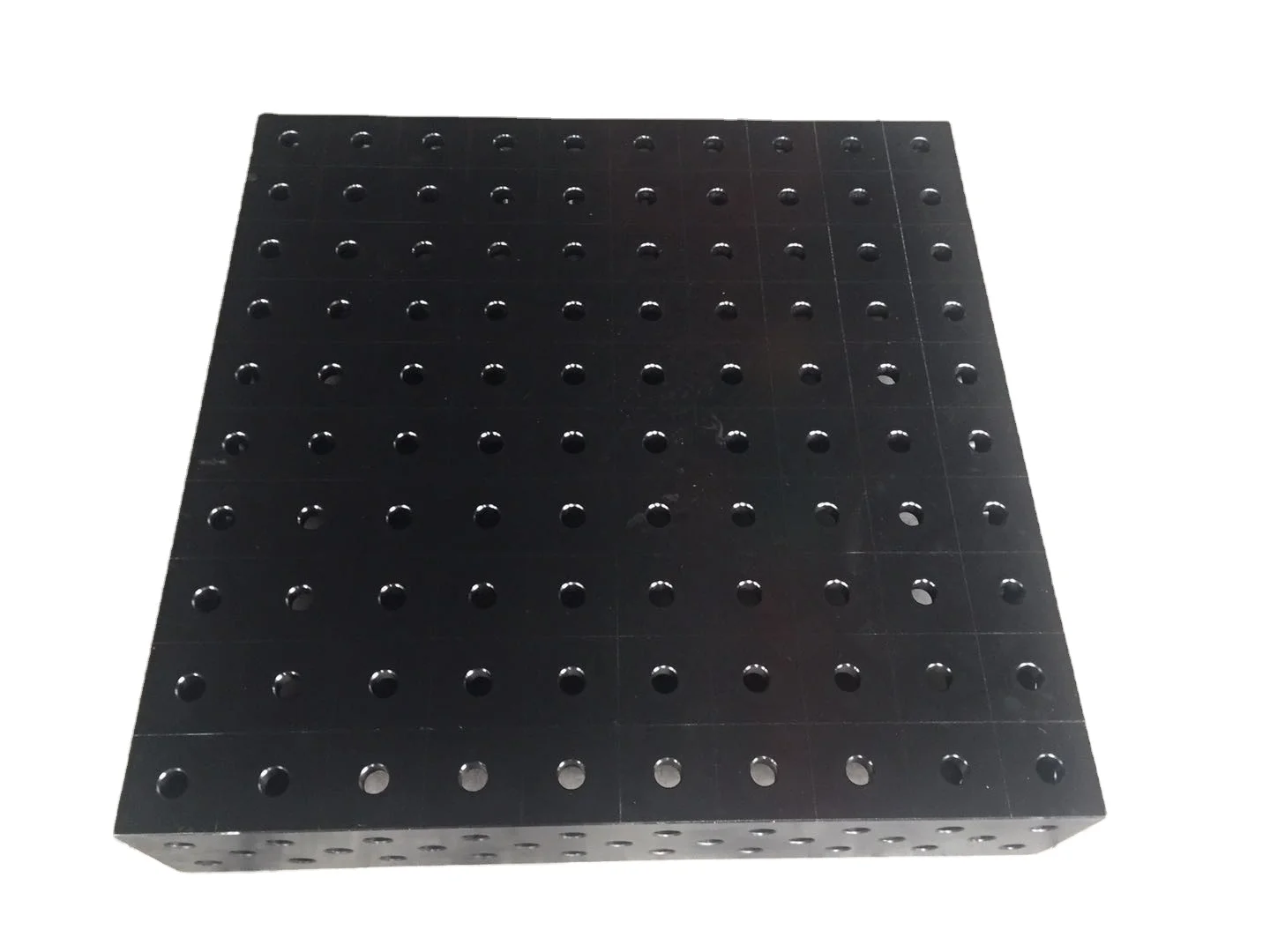

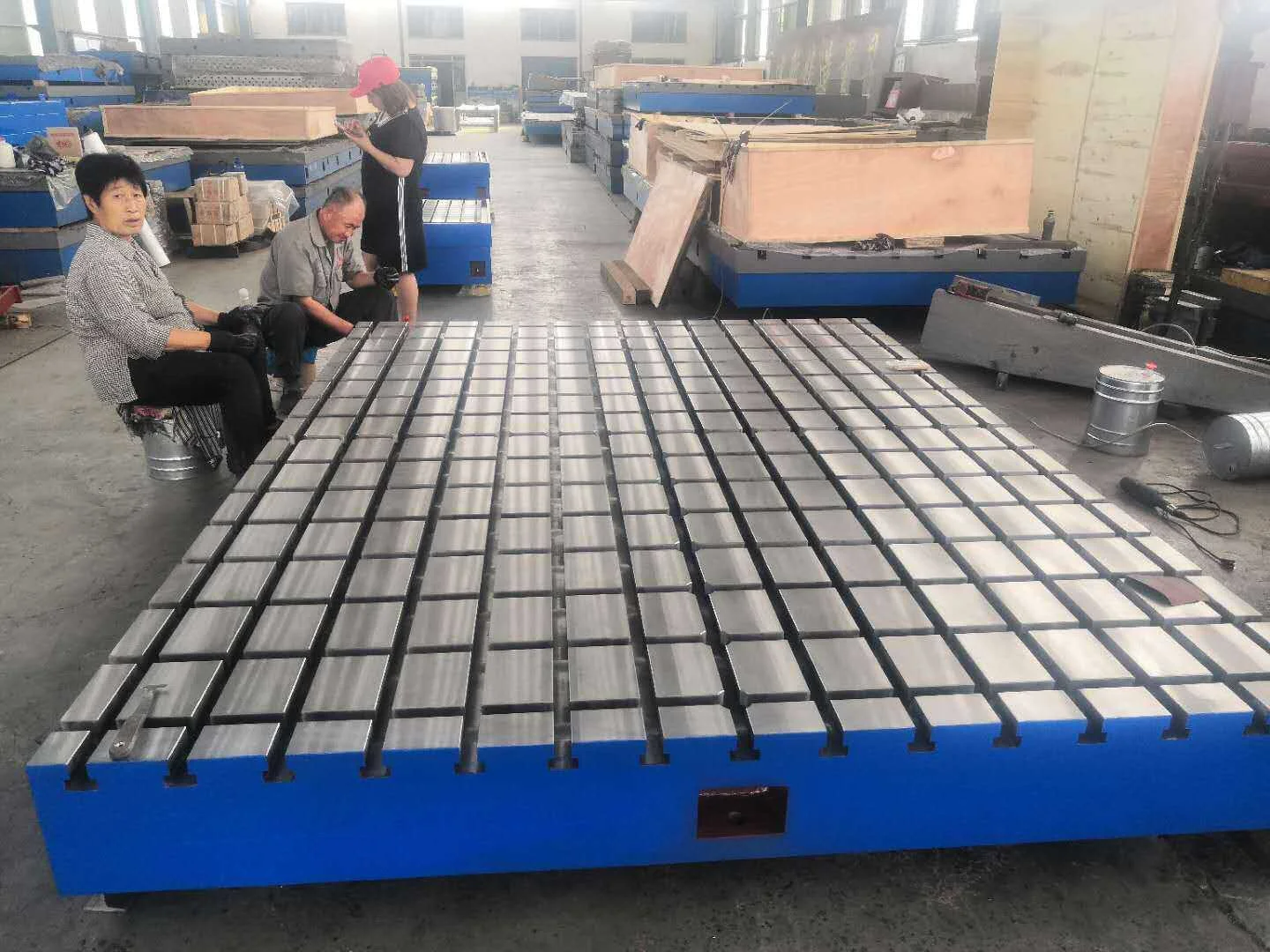

Product Display
Product Advantages
1. Quick positioning fixture, no adhesive tape required
.2. The five sides can be realized through modular extension and extension.
3. Different products and standards can be reused.
4. The ribs at the bottom of the steel plate ensure the stability and non-deformation of the product.
5. The customer can adopt reasonable support method according to the actual situation.
3. Different products and standards can be reused.
4. The ribs at the bottom of the steel plate ensure the stability and non-deformation of the product.
5. The customer can adopt reasonable support method according to the actual situation.
Title goes here.
Botou Kaicheng Machinery Equipment Co., Ltd. is a manufacturer specializing in the production of measuring tools, casting machine tools, large, medium and small machine tool castings and machine tool accessories. Our company is located in China's famous "Hometown of Foundry" Botou City, Hebei Province.
Main Products

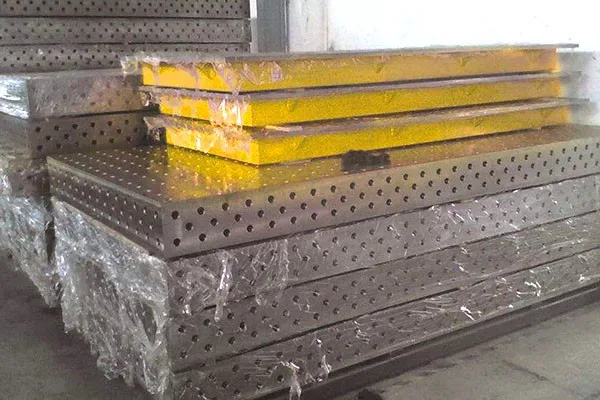

Packaging & Shipping
Company Profile
FAQ
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you jave to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
A: Yes, sample order is available for quality check and market test. But you jave to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
