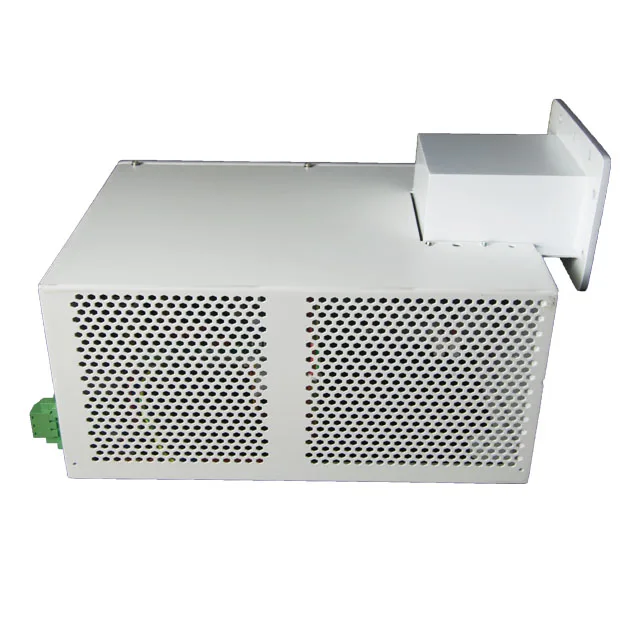

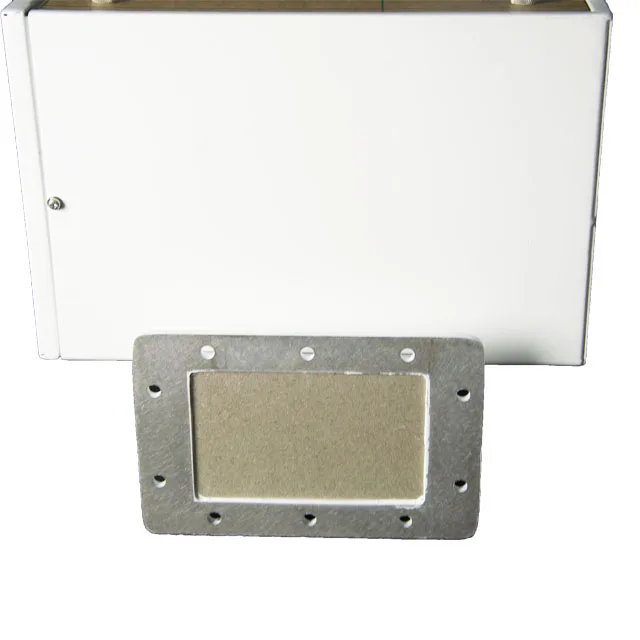

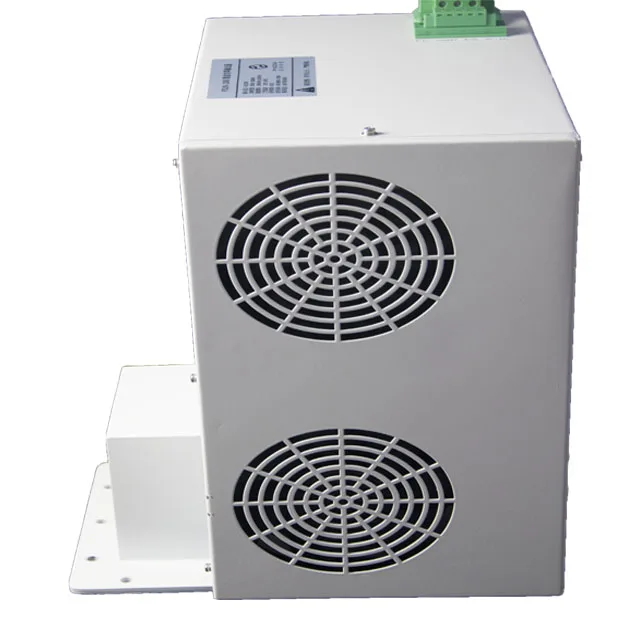

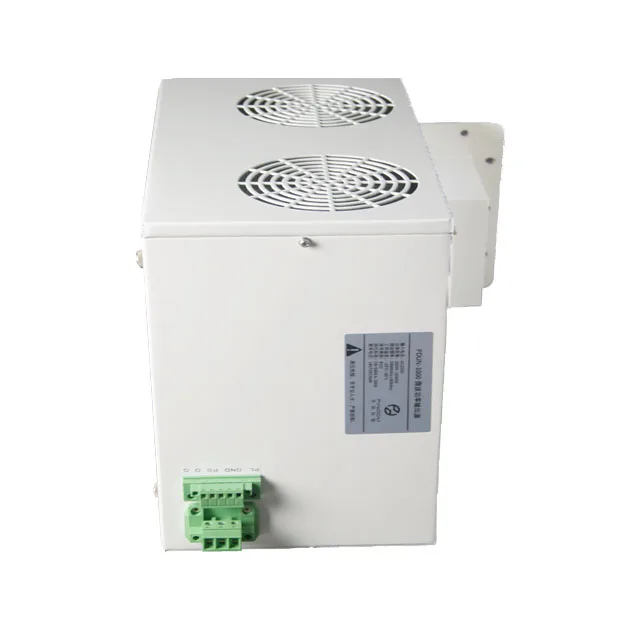

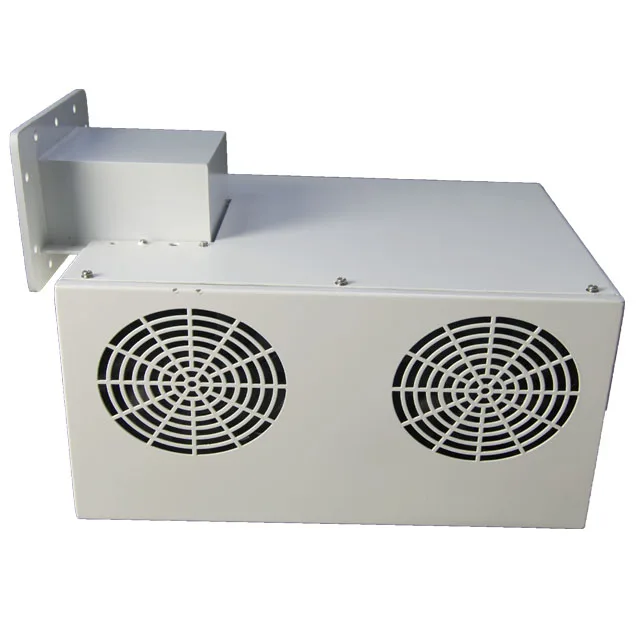

250 1000W 1kw continuously stepless adjustable microwave generator for oven
- Category: >>>
- Supplier: Zhuhai Pindom Technology Co. Ltd.
Share on (1600366264731):
Product Overview
Description
Specification
Electrical data | 250-1000W continuously stepless adjustable microwave generator for oven |
Input voltage | 200-240Vac,+/-10%,47-63Hz |
input current | 16A Max,220Vac,full load |
The average efficiency | 68% standard,(at 200Vac to 240Vac input) |
leakage current | <0.5mA,230Vac input |
Maximum input withstand voltage | 300Vac |
Standard output power (VSWRs1.1) | 850W |
Output Microwave power range | 250-1000W (continuously stepless adjustable） |
microwave frequency | 2450MHZ+50MHZ |
Preheat time | 0 sec |
Ac input | 3-PIN AC terminal |
Communication link | RS485 3-Pin communication line /PWM frequency modulation control mode. |
Product Description
Mechanical Characteristics | |
net weight | 6.5KG |
measure | See the structure drawing for details |
The cooling air volume | 1600l/m |
Cooling wind direction | crossing |
waveguide type | BJ22 |
project | PDUN-1000eco | PDUN-1000pro | PDUN-1000PLUS |
Microwave power | 850 w fixed | 300 w-1000 w frequency conversion | 300 w ~ 1000 w frequency conversion |
Microwave frequency | 2450士50MHz | 2450+50MHz | 2450+50MHz |
The whole machine is guaranteed for | 12 months | 12 months | 15 months |
The magnetron is guaranteed for | 6 months | 12 months | 15 months |
The regulation mode | No | Modbus | Modus/PWM frequency modulation |
Parameter | |
working temperature | -20℃-50℃ |
storage temperature | -35℃ ~ 60℃ |
Working humidity | 5%-95%, non-condensing |
Working altitude | 0 ~ 4,000 meters (0 ~ 10,000 feet) |
Safety standard | GB50959.6-2008 hygienic standard for microwave radiation |
