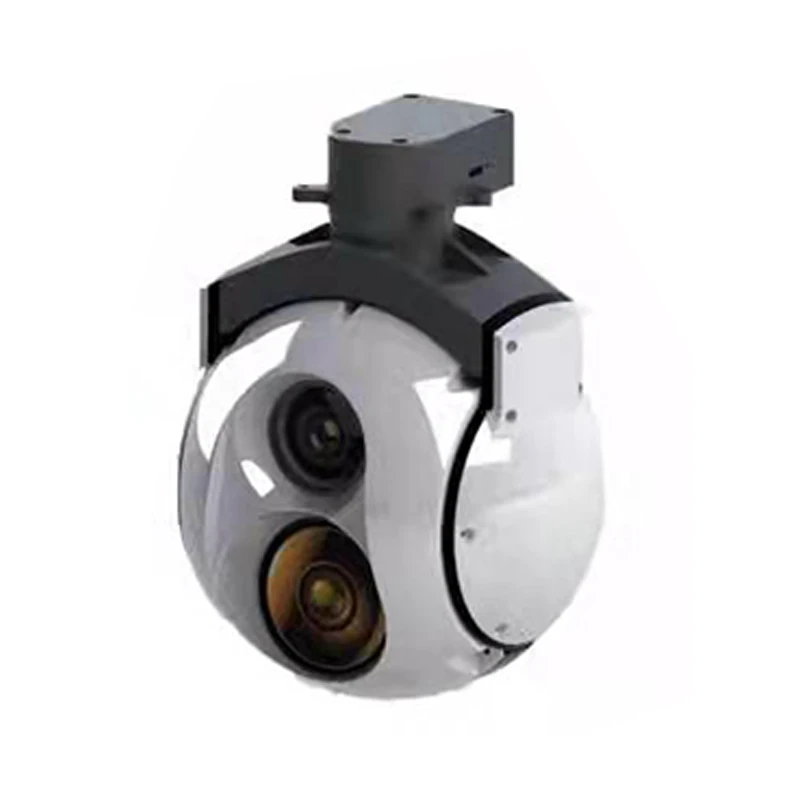

Самолет с двойным датчиком слежения за объектами 30 кратный зум EO ИК тепловизионная камера
- Category: CCTV Lens >>>
- Supplier: Mianyang Cloud Technology Co. Ltd.
Share on (1600366307372):
Product Overview
Description
Three-axis double-light, photoelectric pod
Technical specifications
² Three-axis double light |
Features: ² The three-axis frame posture is stable ² Strong structural rigidity, to adapt to the high vibration environment ² The azimuth axis rotates 360 degrees and is suitable for various aircraft ² 30 x Optical Zoom, Used, SONY Brand High Specification Camcorder FCB-EV 7520 ² Infrared movement 35mm lens, 640 * 480 resolution ² Night and low-illumination environments are clearly imaged ² Real-time 1080P HD video streaming, support for video system setting ² Built-in tracking module ² SD card HD video flow storage, support visible light, thermal imaging photo function ² Visible light video and infrared thermal imaging video on the same way of HD SDI or IP network output, can realize in-painting and image tracking ² Wide voltage power supply, supporting 20V~50V ² External connectors use high reliability military connectors J 30J series ² Support for one-way RS 232 or RS 422 serial communication interface, complete with upper computer control software ² Support for all-way Futab a S.BUS remote control interface for easy use of Fu taba remote control ² Provide background software technical support and customization |
Ping, Taiwan, special, levy | Platform type | Three axes, stable | |
Junction rotation range | Continuous rotation at 360 degrees | ||
Subduction range | : Up 30 ° ~ down 110 ° | ||
Maximum angular velocity | 120°/s | ||
Maximum angular acceleration | 120°/s^2 | ||
Stability accuracy of the optic axis | 0.01° | ||
Point position resolution | 0.022° | ||
Point position accuracy | 0.1° | ||
Electricity Gas Receive mouth | Visible light video and infrared video output: 1-way SDI HD video output interface or 1-way IP network output (description at order) | ||
1-Road Power supply input port + 20V ~ + 50V | |||
Route 1 RS232 communication full duplex serial port | |||
1 Road S.BUS remote control receiver input (10-channel control of all functions required) | |||
The 1-way RS232 external data serial port (supporting flight control data input, such as Mavlink) | |||
Power parameters | Standard voltage | 24V or 6S lithium | |
Voltage range | +20V ~ +50V | ||
Power consumption | The constant value ≤ 15W, peak ≤ 40W | ||
Mechanical features | Main size | 146mm*169mm*201mm | |
Main weight | 1200g | ||
Video output connector | RJ45(network port) / SMA-KWE (SDI) | ||
Communication / Power Connector | J30J-21 | ||
Environmental adaptability | Working temperature | -15℃~+60℃ | |
Storage temperature | -30℃~+85℃ | ||
Protection performance | IP34 | ||
Can See Light Photo Like Machine | Core model | SONY FCB-EV7520 | |
Sensor type | 1/2.8 Type “Exmor” CMOS Sensor | ||
Effective pixels | 2.14 million | ||
Video format | 1080p/25 | ||
The lens size | 30 x Optical Zoom, f= 4.3 mm ~ 129 mm,F1.6 to F4.7 | ||
View field angle | 63.7 ° (Wide Angle) ~ 2.3 ° (farthest end) | ||
Minimum illumination | 0.0015 lx (Starlight Class) | ||
Hot Into Like Photo Like Machine | Sensor type | Non-cooled vanadium oxide (VOx) micromeasured radiometer | |
Scene dynamic range | -25 to + 135 °C (high multiplier) | ||
Video display format | 640 × 480（PAL） | ||
Pixel spacing | 17μm | ||
wavelength range | 7.5 - 13.5 μm | ||
Full frame frequency | 25 Hz (PAL) | ||
Sensitivity | （NEdT）@f/1：<50 mK | ||
The lens focal length | 35mm @ f/1.2 | ||
View field angle | 12.4° x 9.9° | ||
Anti-temperature sudden change | 5 ° / min | ||
Operating temperature range | -40 °C to + 80 °C | ||

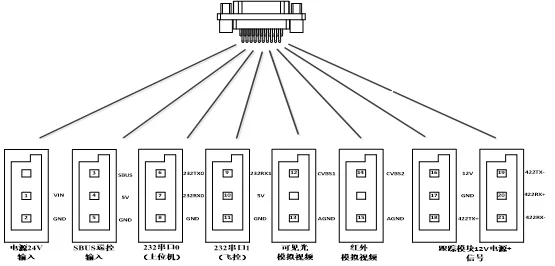

Interface definition, and schematic diagram
1、Communication / power supply interface
Note: RS232 serial port 0, port rate 115200bps;RS232 serial port 1, and port rate 57600bps.
Remote control channel definition (for example, left-hand throttle)
Channel number | Define the name | Description |
CH1 | Left and right direction | Control the rotation of pod field |
CH2 | Direction up and down | Control the pod field of view rotation up and down |
CH3 | Not defined | Not defined |
CH4 | zoom | Control pod optical zoom zoom and shrink |
CH5 | Night view | Set three gear switch, low gear no gain, middle gear high gain, high-grade black and white night vision |
CH6 | Work mode | Set three-gear switch, low-gear stabilization mode, mid-gear tracking mode, and high-grade following mode |
CH7 | calibration | Set two gear switches, low gear cut to high grade to trigger a gyroscope calibration |
CH8 | Video switch | Set two gear switch, low gear visible light, high-grade thermal imaging |
CH9 | Fog | Set two switches, low gear fog close, high-end fog open |
CH10 | Electronic stability | Set two gear switch, low gear electronic steady off, high-grade electronic steady off open |

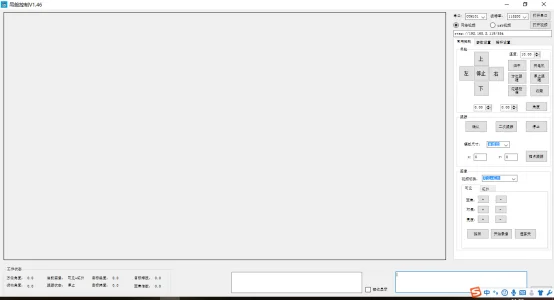

Hammer supporting software

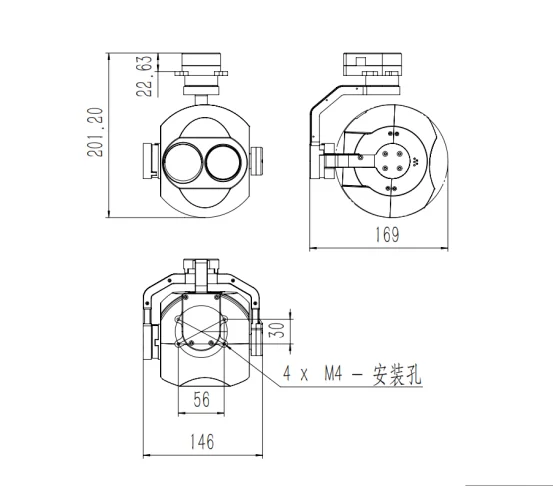

Size diagram
