Bandsaw Wood Cutting Machines Industrial Band Mobile Lintzaag Sawmill Machine Woodworking Saw Mill
- Category: >>>
- Supplier: Woodtrucker
Share on (1600366364524):
Product Overview
Description
Product Information
Product Paramenters

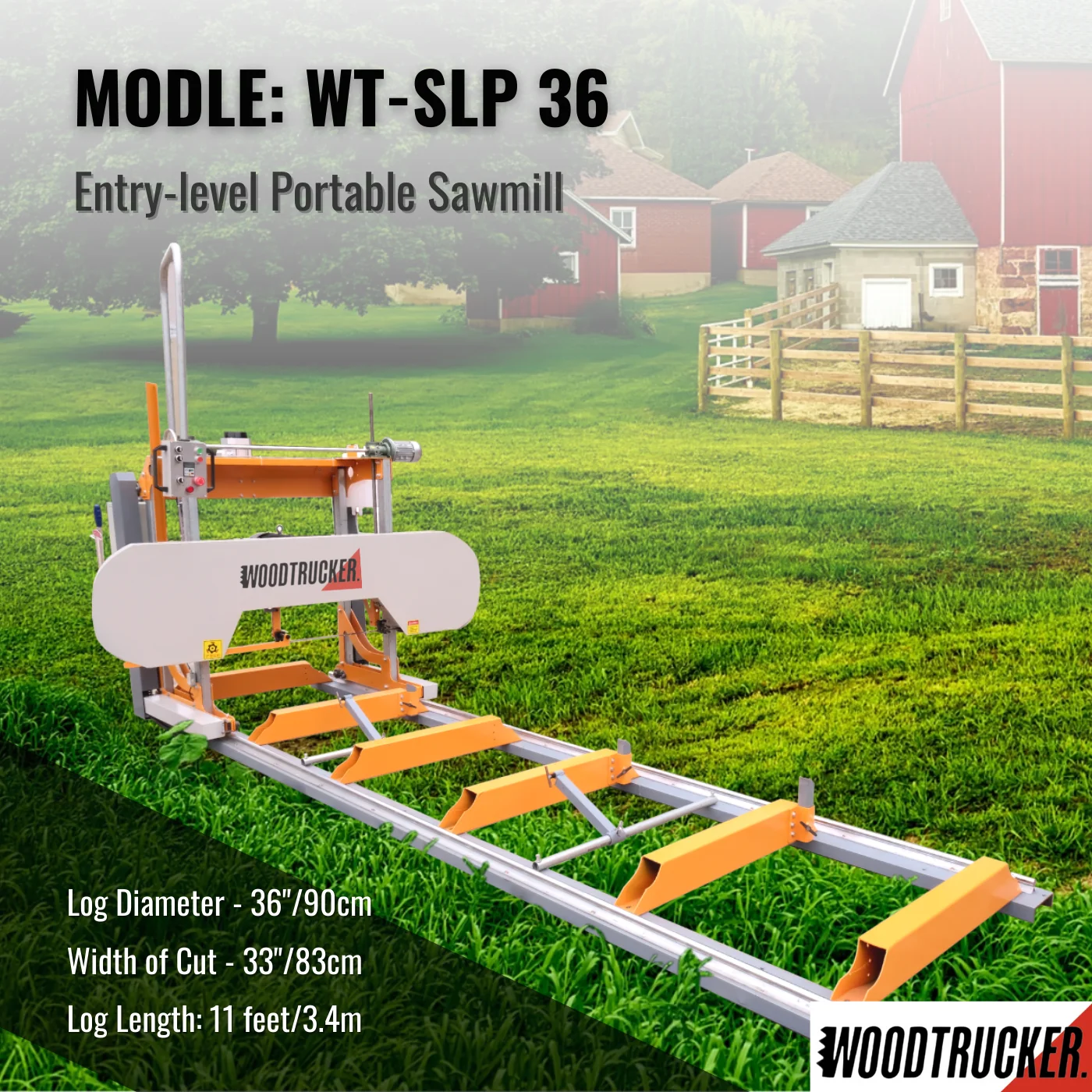

Product Name: Portable Sawmill
Model: WT-SLP 36
Log Deameter: 36''/90cm ; Width of cut: 33'' /83cm ; Log Length: 3.4m
Woodtrucker WT-SLP series horizontal band saw is a portable wood processing equipment specially designed for farm owners and DIY woodworking.The cutting diameter of is 900mm, which is suitable for processing small and medium diameter logs and can meet the daily needs of most DIY woodworkers.
Model | WT-SLP23 | WT-SLP27 | WT-SLP36 |
Wheel Saw Diameter | 410mm | 410mm | 510mm |
Diameter of Cutting Log | 590mm | 690mm | 900mm |
Cutting Square Timber Width | 530mm | 630mm | 830mm |
Single Processing Thickness | 150mm | 150mm | 200mm |
Thinnest Thickness | 3-4mm | 3-4mm | 3-4mm |
Log Length | 3400mm | 3400mm | 3400mm |
Machine Dimensions | 1700*900*1250mm | 1800*900*13500mm | 2000*900*1550mm |
Saw Blade Strip | 3270mm | 3470mm | 4350mm |
Saw Blade Width | 35mm | 35mm | 35mm |
Saw Blade Thickness | 0.9mm | 0.9mm | 0.9mm |
Machine Weight | 500kg | 500kg | 500kg |
Packaging Size | 2300mm*950mm*1350mm | 2300mm*950mm*1450mm | 2300mm*1200mm*1500mm |
| (2300*600*600mm) | (2300*700*600mm) | (2300*900*600mm) | |
Saw Wheel Drive | Electric Motor | Electric Motor | Electric Motor |
| Power | 380v/4kw | 380v/4kw | 380v/7.5kw |

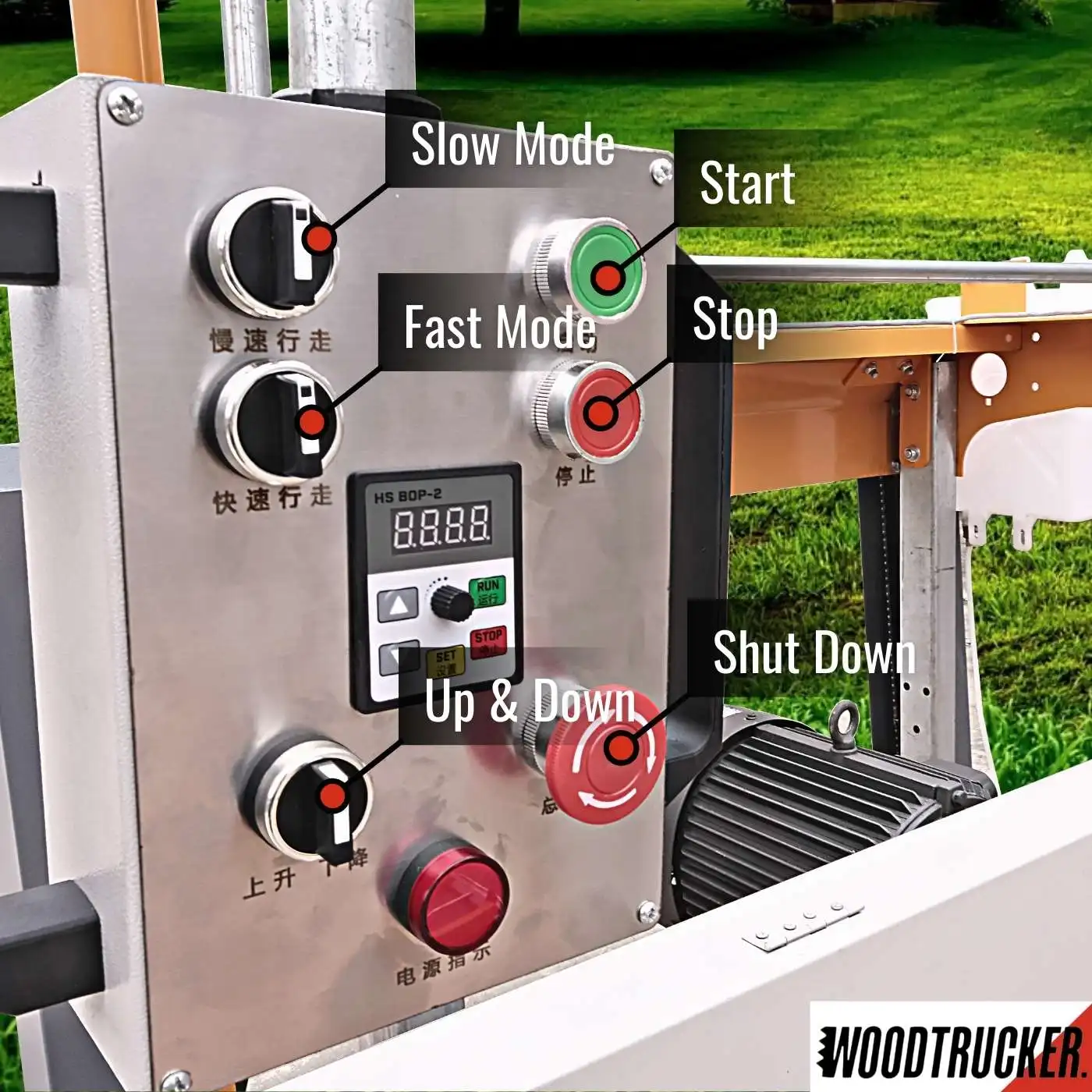

Power Control, Flexible And Convenient
We have two modes to choose from for the advancement and elevation of the sawmill: manual and electric.The electric mode can start the machine with one key and control the moving speed of the machine, which is very flexible and convenient.

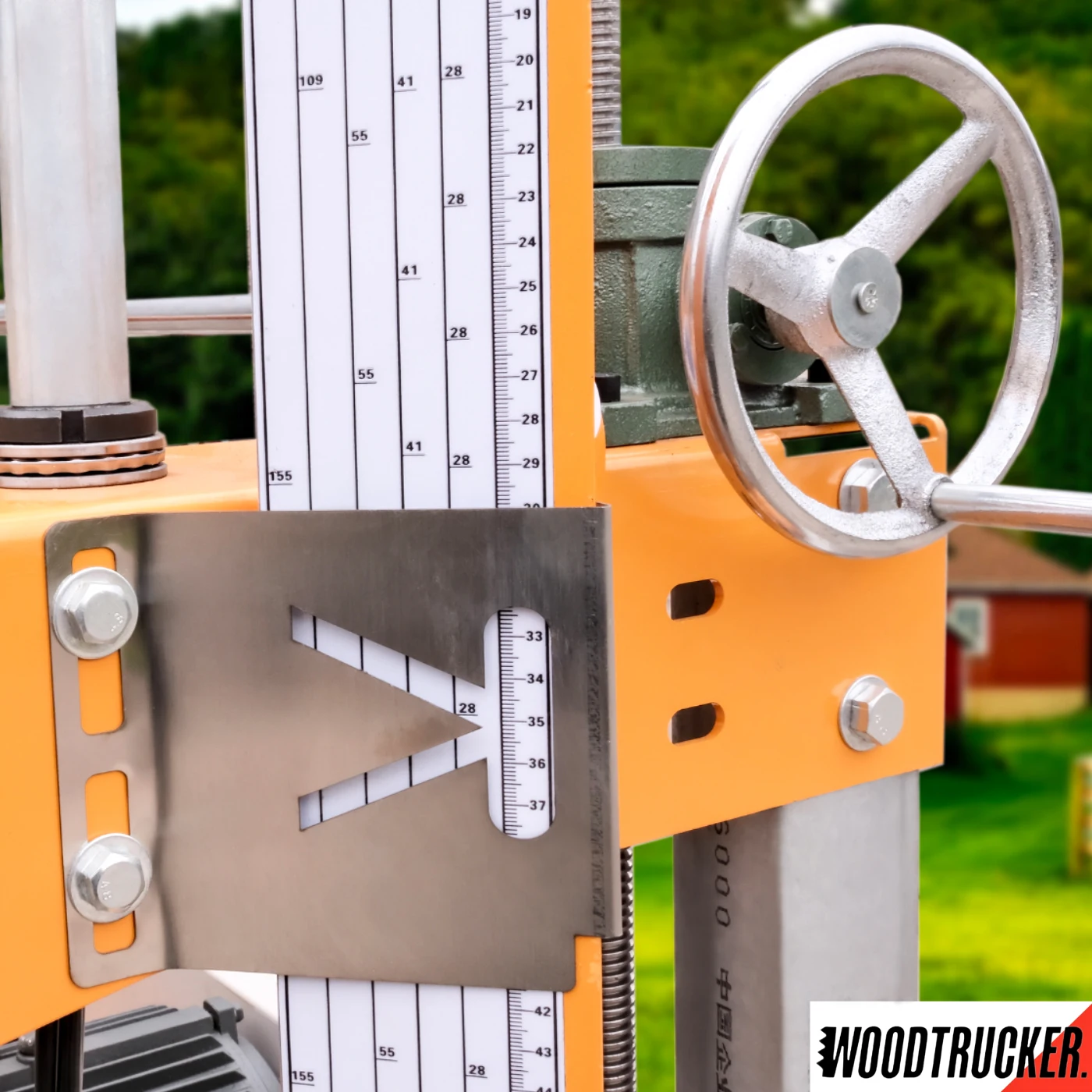

Six Scales, More Precise
In addition to the typical ruler on the right, you've gone to have your quarter scale on the left. So on your quarter scale here we have three-quarter, four-quarter, five-quarter, six-quarter, and eight-quarter. So for the fours, four-quarter here if you drop on that four each time you’re going to be dropping an inch and an eight it has the curve of your blade already calculated in it and you will get a true one-inch board.

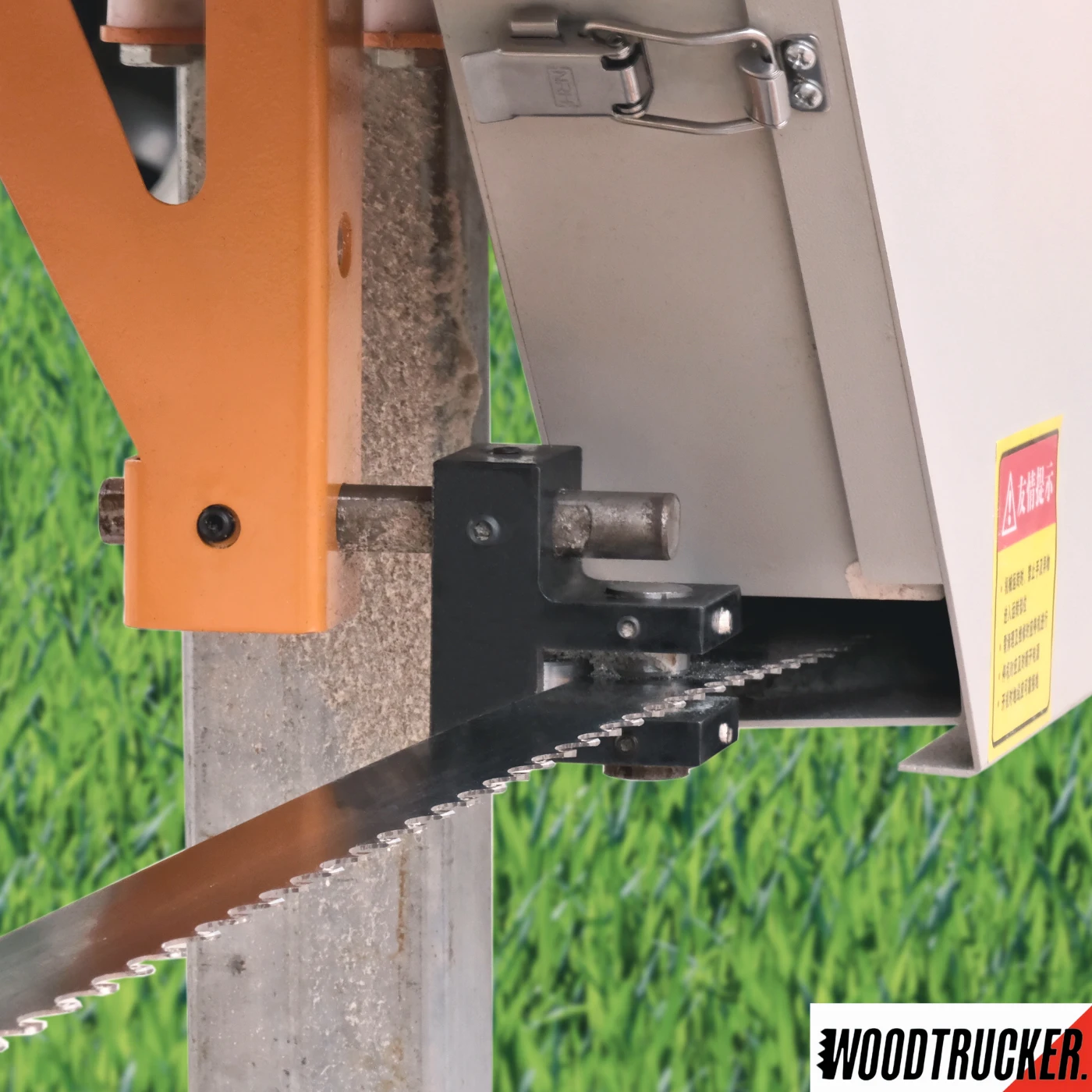

Adjustable Blade Guide Arm and Blade Engage
Reduce blade travel and support the blade when sawing narrow and wide material with the adjustable blade guide arm. Keep the blade cool and free of pitch, sap, and sawdust while sawing.

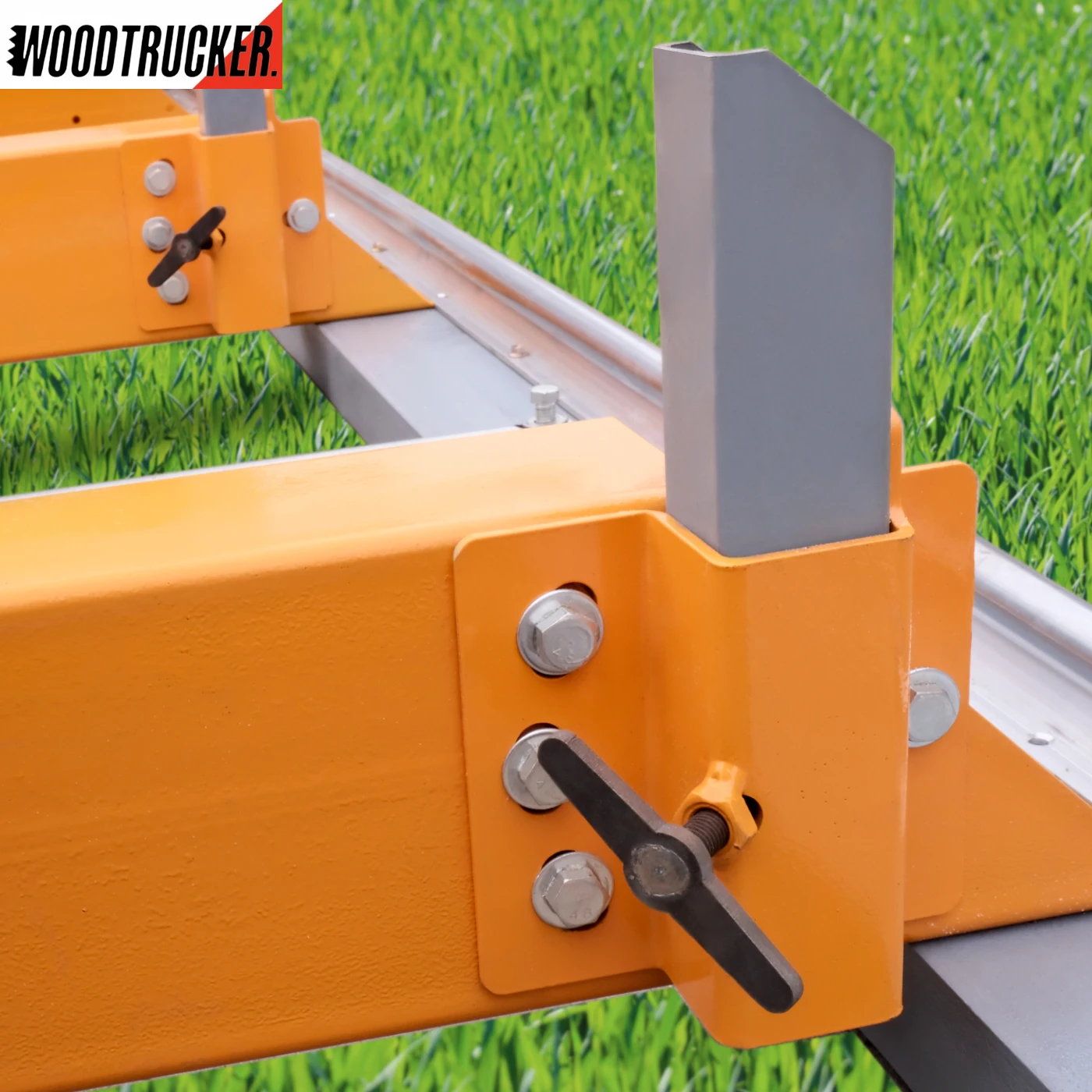

Quick-Set Side Supports
Quick-set side supports use a convenient and secure notching system for fast adjustment between cuts and when turning logs. An additional built-in bed side support on each cross section eliminates the need for quick-set side supports while sawing a squared cant and allows for final cuts within 1" of the bed.

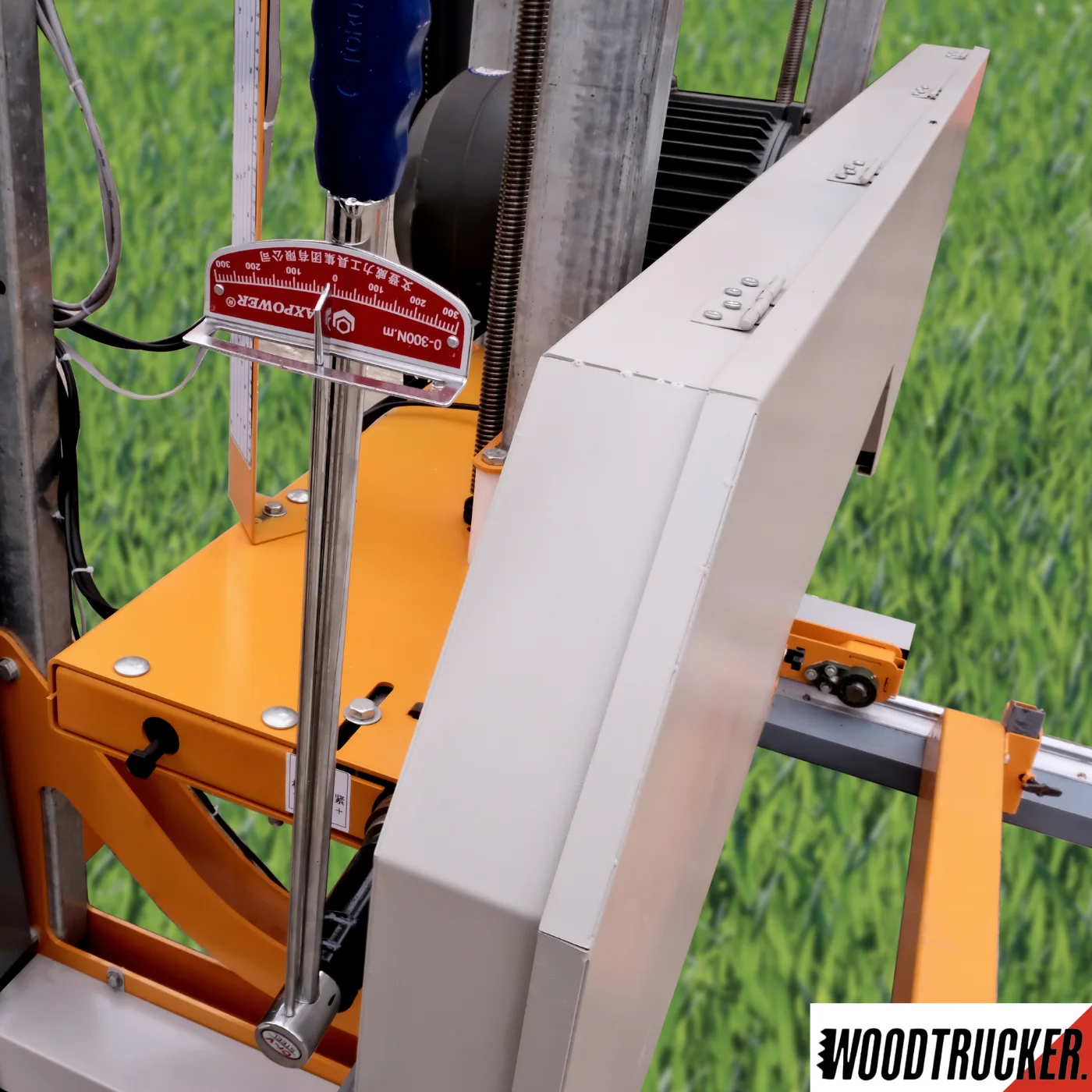

Adjust The Tightness Of Saw Blade With Saw Blade Wrench
Before cutting, use the saw blade wrench to adjust the saw blade tension to make the saw blade stable, smooth cutting, high precision and ensure the cutting effect.

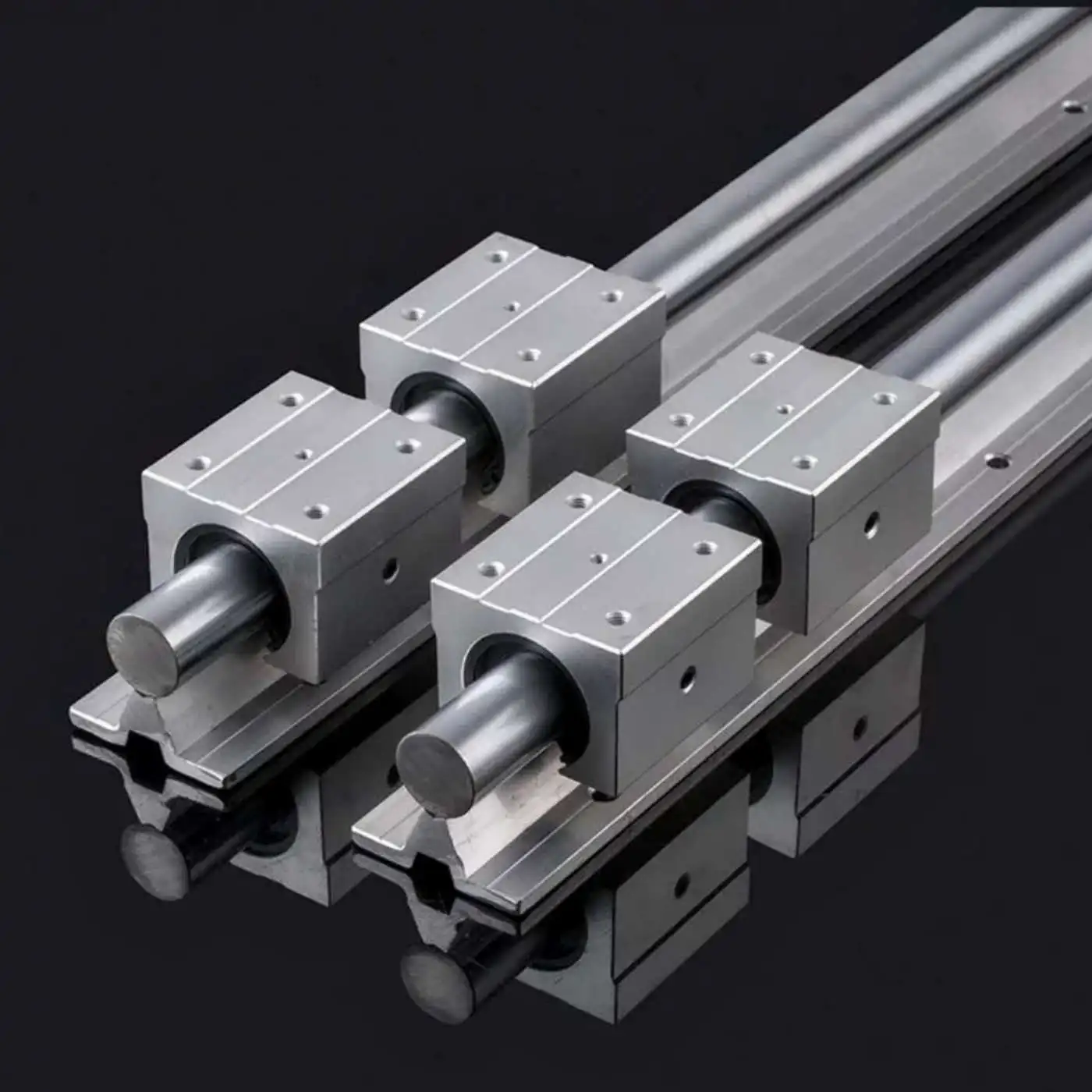

High Precision Iinear Guide
The linear cylindrical guide is a linear guide composed of high-strength aluminum alloy as the support and the cylindrical linear optical axis as the guide axis. Compared with the traditional machine tool guide rail, the friction coefficient of the rolling guide rail can be reduced to 1/50 of the original. Because the starting friction is greatly reduced, the occurrence of ineffective motion is relatively reduced, so high-precision feeding and positioning can be achieved.

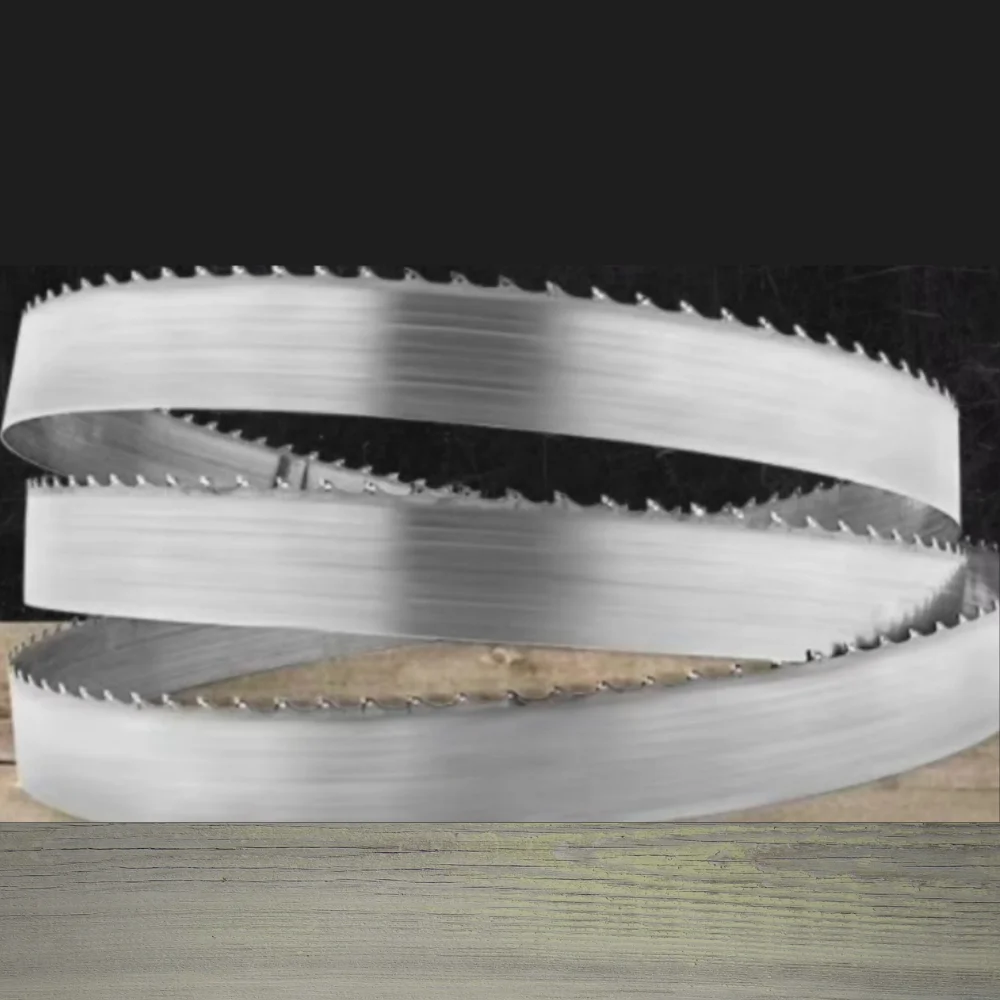

Saw Blade Imported From Germany
All sawmills of Woodtrucker's WT-SLP series are imported saw blades made of German craftsmanship. The saw surface is flat and the saw blades are durable.

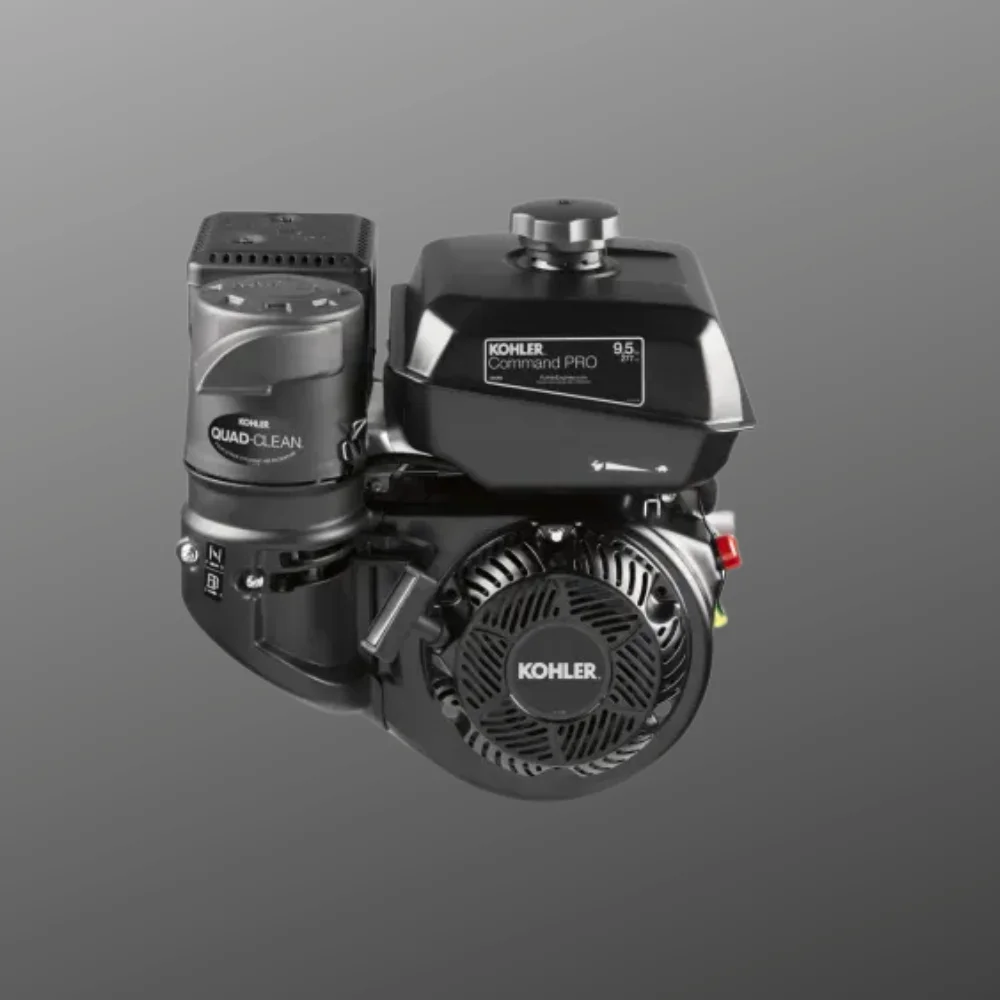

Optional Kohler Power
The powerful and dependable Kohler Command Pro 7HP or 9.5HP gas engines feature Quad-Clean™ all-season four-stage cyclonic air filter for effective engine protection even in tough and dirty sawing conditions. In addition, performance-driven features include a forged-steel crankshaft, electronic ignition and cast-iron cylinder liner for professional grade power and performance. Plus, a large-capacity fuel tank means more time sawing and less time refueling.

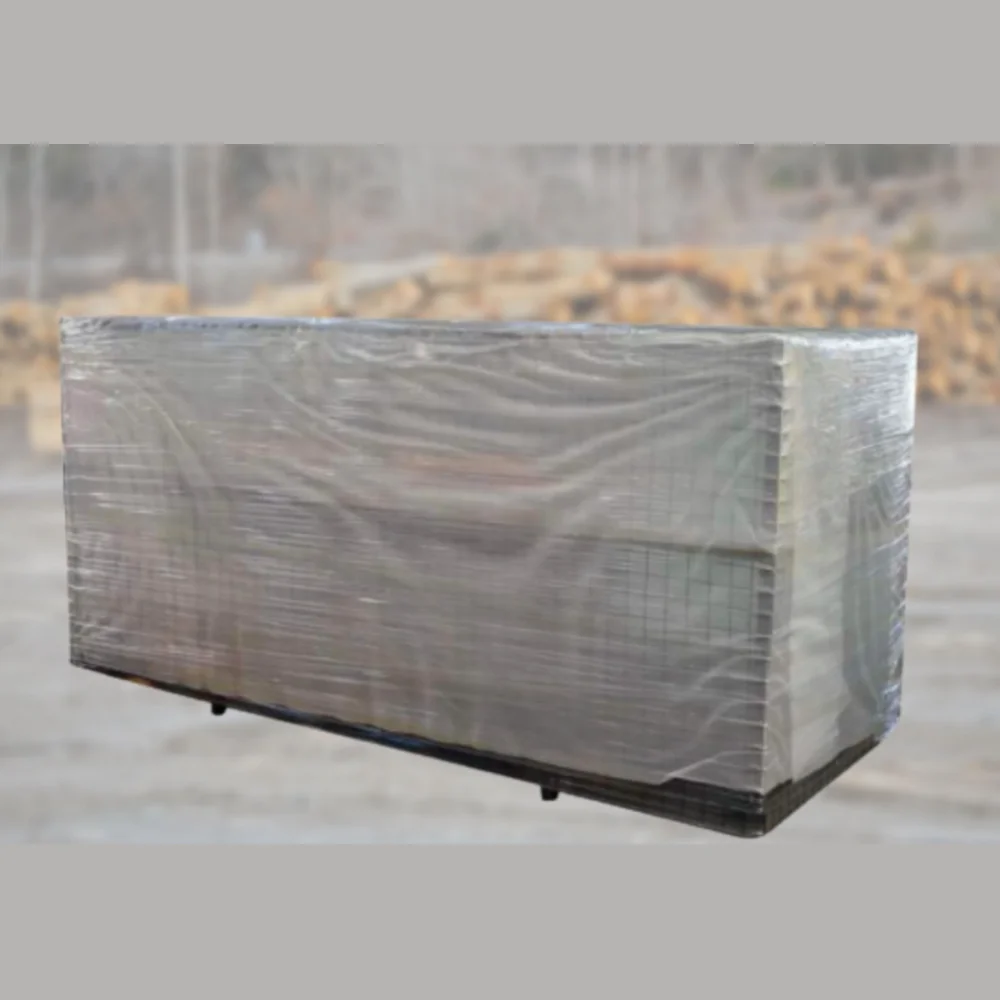

Two Packaging Methods Are Optional
Woodtrucker's wt-slp series has two packaging methods, taking wt-slp35 as an example. The first method is to unpack the band saw and the guide rail, and the size of the packing box is 2300mm * 1200mm * 1500mm. The package size is relatively large, but the installation is simple. The second way is to disassemble the band saw into multiple parts and pack them together with the guide rail. The packaging size is 230mm * 600mm * 900mm. It needs to be assembled at the time of arrival, but the packaging size changes, saving freight.

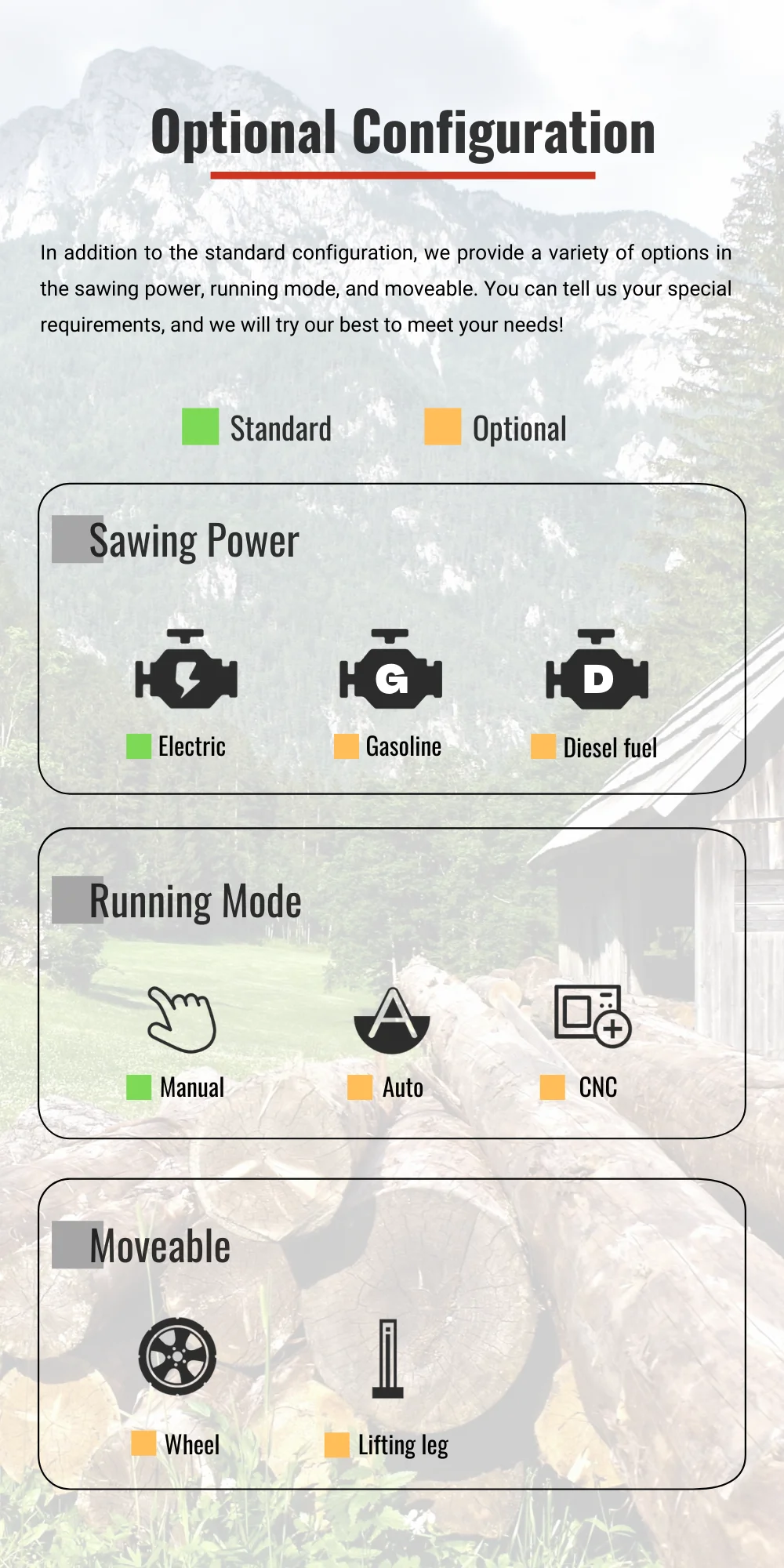

Optional Configuration
Our Services
SERVICE PERIOD: 7*24HOURS
PRE-SALE SERVICE
1,Provide users with professional guidance and technical advice on Sawmill Machine technology
2, Provide relevant procurement advice based on the user equipment usage environment and requirements
AFTER SALES SERVICE
1,After the final acceptance of the equipment, the quality assurance period of the whole machine is 12 months.
2, Technical information:
After the payment by the buyer, the supplier unit provides free of charge: machine instruction manual, basic production installation diagram, circuit diagram, gas supply drawing, power supply drawing.
3,During the warranty period, when the equipment failure occurs due to the quality of the equipment supplied by the seller, theseller will respond within 12 hours after receiving the buyer's notice, and free online troubleshooting, guidance repair orreplacement of parts.
4,After the warranty expires, the equipment enters the paid service period, and the manufacturer only charges the cost and transportation costs.
SERVICE FOR FREE
1, Free installation of video, machine and using instructional videos of software, after-sales forums (please visit Arcbro official website - Support)
2,Provide free machine instruction manual, basic production installation drawing, circuit diagram, gas supply drawing, power supply drawing
3,Free online staff training (also available directly to manufacturers); multi-language CNC trainers: support one-on-one training in English, Russian, Spanish
4,Free online technical support, technical consultation and machine diagnostics
5,Warranty period: Free replacement of any machine fault parts, free online machine diagnosis . After the warranty period, the manufacturer only charges the cost and freight.
3,Free online staff training (also available directly to manufacturers); multi-language CNC trainers: support one-on-one training in English, Russian, Spanish
4,Free online technical support, technical consultation and machine diagnostics
5,Warranty period: Free replacement of any machine fault parts, free online machine diagnosis . After the warranty period, the manufacturer only charges the cost and freight.
Thank you for your inquiry.
If you have any questions, please call or write us!
FAQ
1. Are you the manufacture?
Yes, we are. We are specializing in the sawmill machine area near 30 years. We have mature product lines. If you want to come andvisit, we absolutely welcome and we are willing to arrange the travel for you.
2. How to ensure transportation on time?
The customer can place an order in Alibaba, this is a third party and it will provide supervise and protect for buyer. If seller didn’t deliver the product in time, buyer can apply for a refund through the Ali platform to avoid losses.
3. How about payment terms?
The payment terms are optional, customer can choose at your convenience. [T/T, Alibaba Secure Payment, Western Union, Paypal, L/C]
4. How can i find a most suitable saw machine?
We have most professional sales manager to help you choose the machine, and also, our strong engineer group will back up for anytechnology problems.
5. How about after-service?
Our warranty period is 12 months. If there is a problem with your machine during this period, we can provide the parts for free tosolve the problem. And customers who have reached a friendly transaction with us can enjoy lifelong technical support. If you needit, we can help you solve the problem through online communication, video and other means.
6. Is there any benefits for becoming a dealer?
Of course. If you have the strength and willingness to become our distributor, we will not only adjust the price. Secondly, we canprovide you with customized machines according to the sales habits of the buyer's market. More importantly, technically, we willsend professional engineers to give you on-the-spot guidance, so that you become the most understanding of the machine.
