Growatt 3KW 4KW 5.5KW 7.5KW 9.2KW solar water ac pool pump inverter charge frequency controller
- Category: Solar Pump Inverter >>>
- Supplier: Eitai (Xiamen) New Energy Technology Co. Ltd.
Share on (1600366409290):
Product Overview
Description
Product Description
Growatt 3KW 4KW 5.5KW 7.5KW 9.2KW solar water ac pool pump inverter charge frequency controller
Datasheet | SPI 3000 | SPI 5500 | SPI 7500 | SPI 9200 | SPI 11000 |
Rated Output Power (W) | 3000W | 5500W | 7500W | 9200W | 11000W |
Max. Output Current (A) | 8A | 13A | 18A | 21A | 23A |
Output Frequency (Hz) | 0-50/60Hz | 0-50/60Hz | 0-50/60Hz | 0-50/60Hz | 0-50/60Hz |
Output Voltage (Vac) | 3PH 380V | 3PH 380V | 3PH 380V | 3PH 380V | 3PH 380V |
Qty. of PV Input Ports | 2 | 2 | 3 | 3 | 3 |
Recommend PV power | 3600W | 6600W | 9000W | 11000W | 13200W |
Recommend pump capacity | 2.2KW(3HP) | 3.7KW(5HP) | 5.5KW(7.5HP) | 7.5KW(10HP) | 9.2KW(12.5HP) |
Max. DC Input Voltage (Vdc) | 900V | 900V | 900V | 900V | 900V |
Recommed MPP Votage (Vdc) | 500-680V | 500-680V | 500-680V | 500-680V | 500-680V |
Ingress Protection | IP65 | IP65 | IP65 | IP65 | IP65 |
Weight (kg) | 14kg | 14kg | 15kg | 15kg | 15kg |
Demension (mm) | 478/325 /155 | 478/325 /155 | 563/346/148 | 563/346/148 | 563/346/148 |

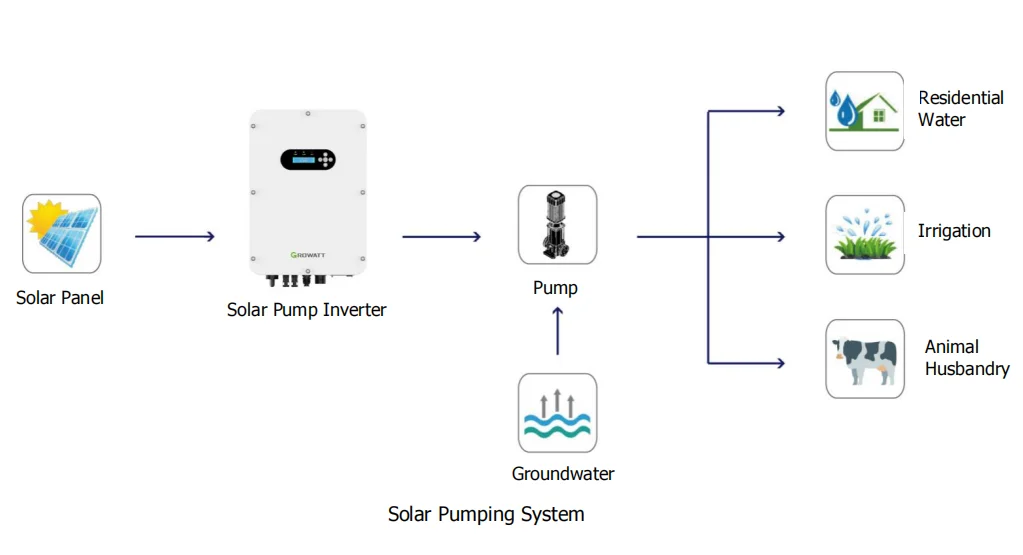

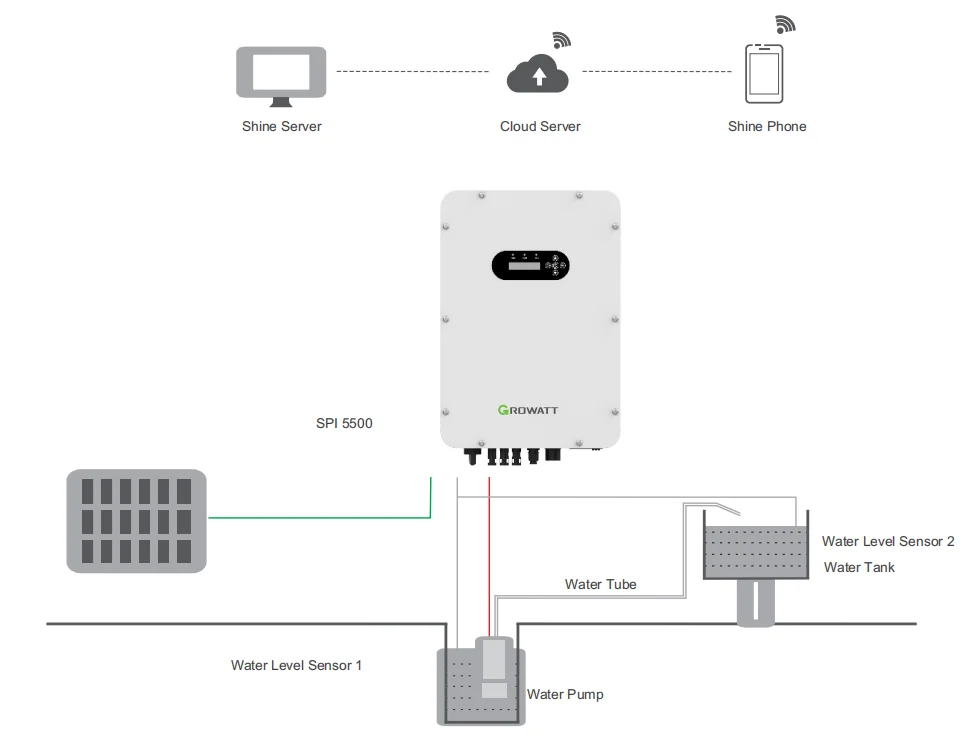

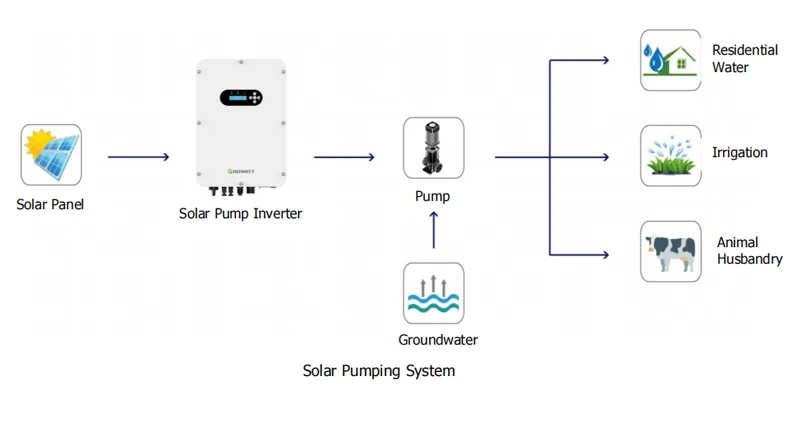

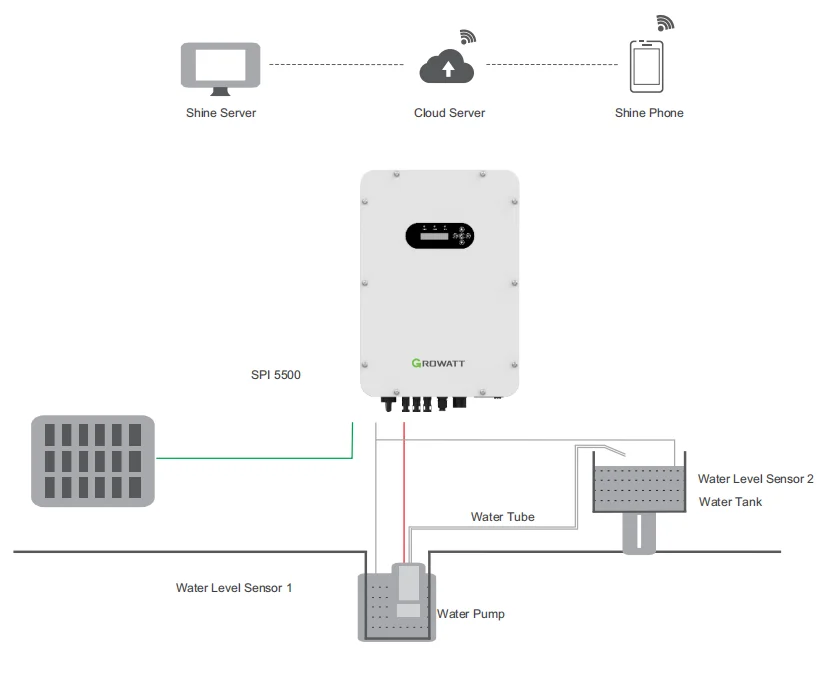

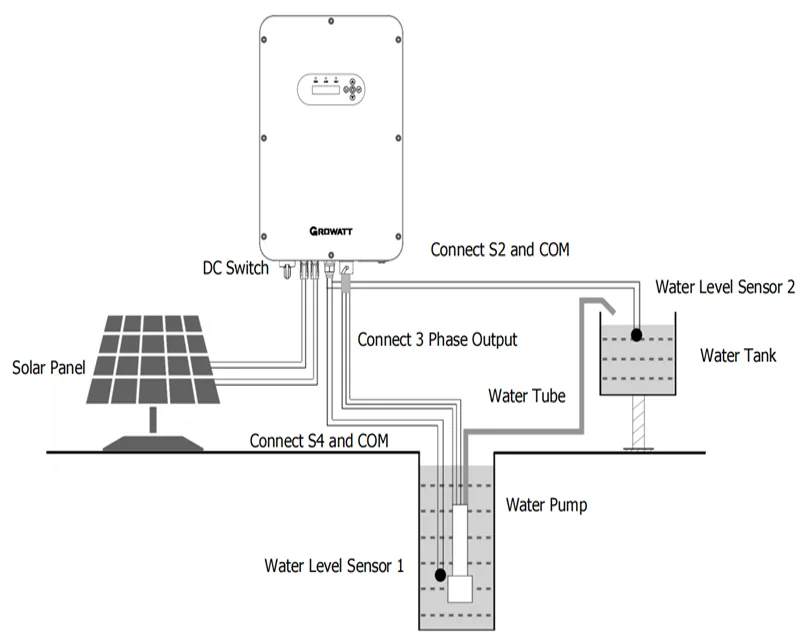

Product Application
Related Products
Certifications
Packing & Delivery
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | 30% T/T in advance, paid the balance against copy of B/L | ||||
CIF | |||||
L/C | L/C amount above 50,00 USD, we can accept L/C at sight | ||||
West Union | Amount lower than 5000USD | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
Company Profile
Eitai (XiaMen) Photovoltaic Technology Co., Ltd is a high-tech enterprise specialized in the field of new energy, especially in the product research & development, production, sales and service. Its Headquarters are located in Xiamen Special Economic Zone,and it also has branches in Japan. With support of a professional team, the company provides its clients with safe, reliable,stable and efficient solutions for the solar photovoltaic power station. It focuses on core businesses like automatic positioning piling machines, automatic solar module installation and cleaning equipment, PV mounting and related accessories, PV power plant construction business and so on.

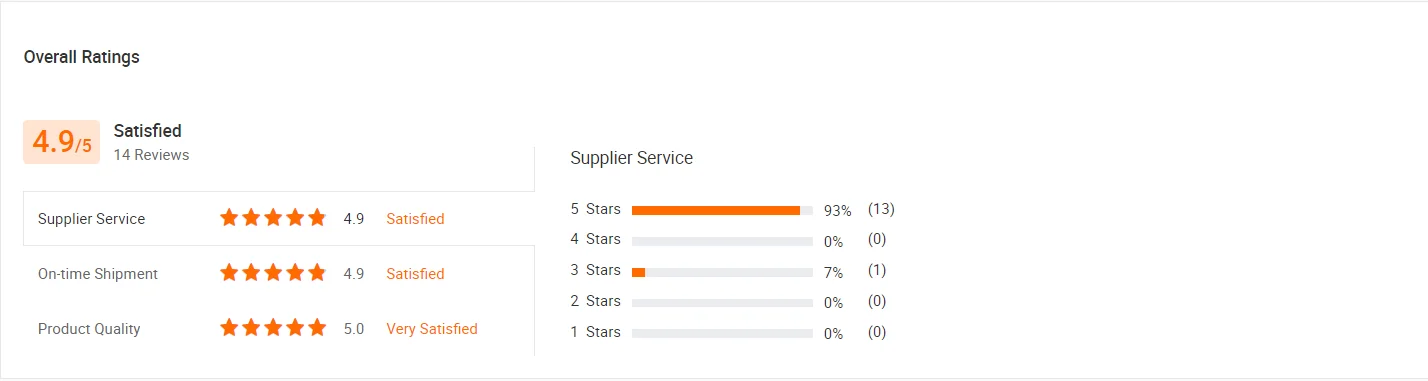

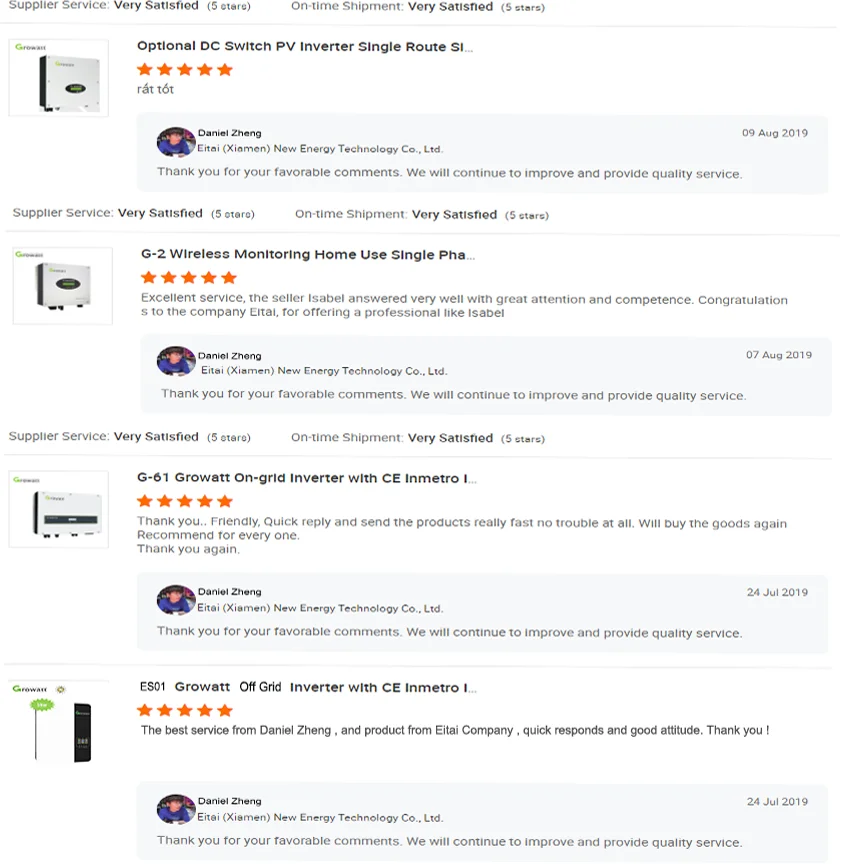

Customer Feedback
FAQ
Q1:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare
parts,however it is charged. Any problem, you can call us directly.
Q2: After we placing an order, will you arrange the installation of the machine at present?
A:All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange any technical help online
Q3:How long is the Warranty?
A: We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare
parts,however it is charged. Any problem, you can call us directly.
Q2: After we placing an order, will you arrange the installation of the machine at present?
A:All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange any technical help online
Q3:How long is the Warranty?
A:We provide 3Years warranty
