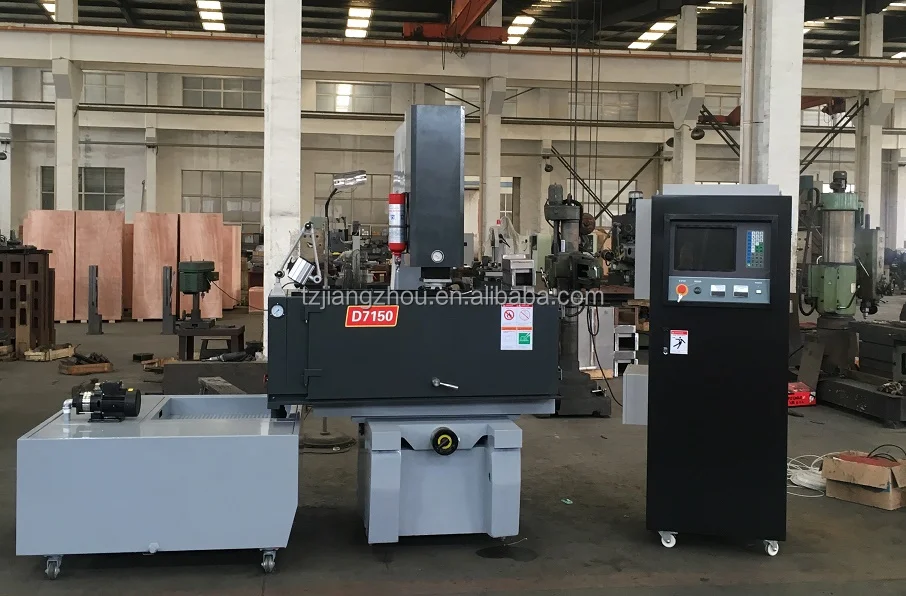

Customized D7150 D7160 ZNC650 znc edm die sinking machine for metal workpiece carving and erosion
- Category: >>>
- Supplier: TAIZHOU JIANGZHOU NUMBER-CONTROLLED MACHINE TOOL MANUFACTURE CO. LTD.
Share on (1600366424058):
Product Overview
Description

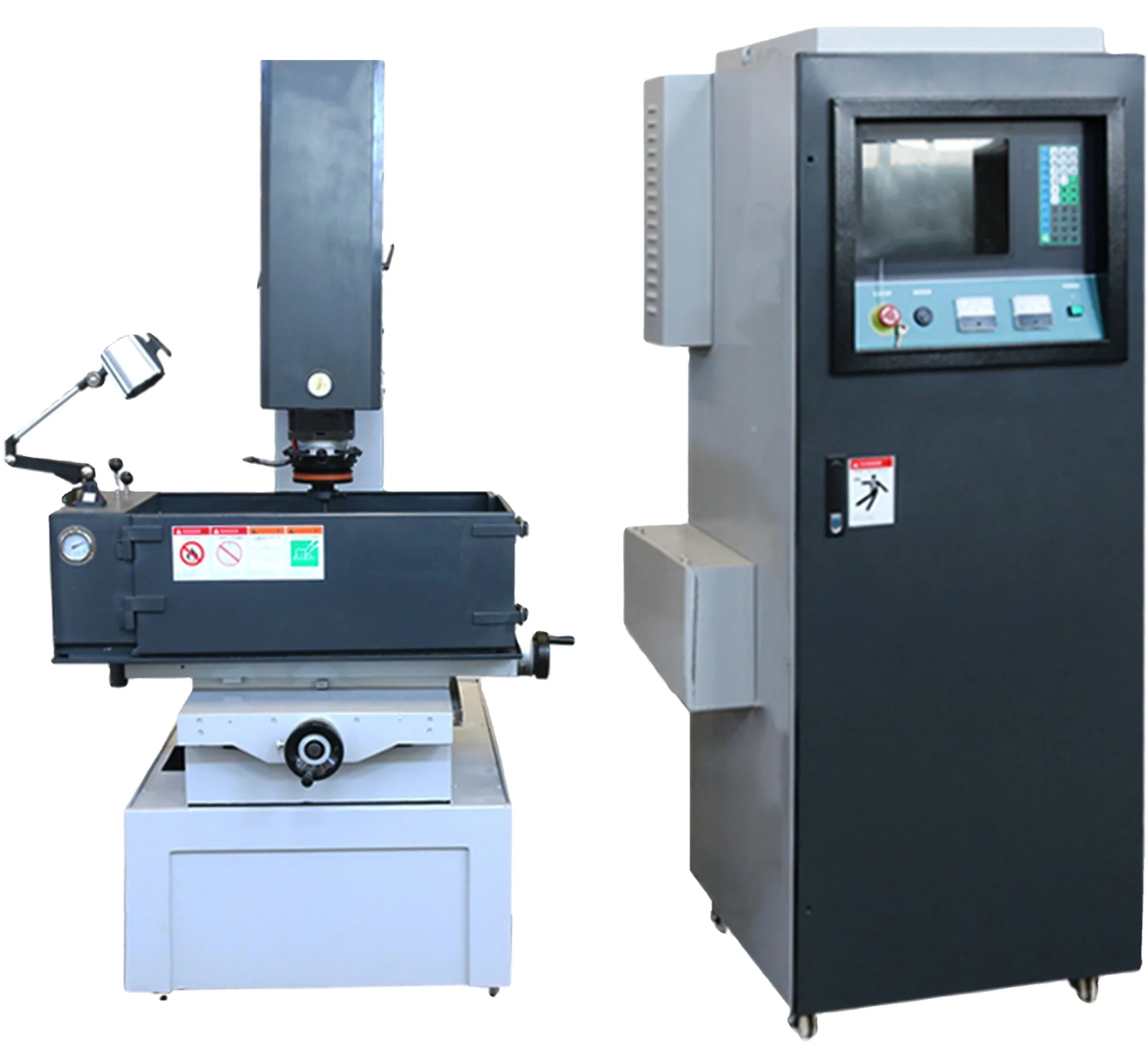

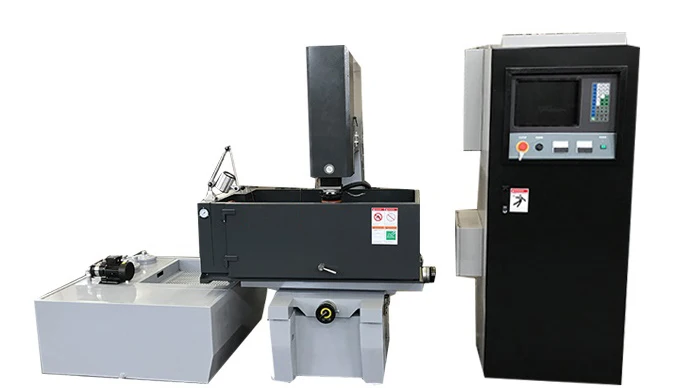

Machining D7125 Die-sinking EDM Machine
The machine tool is a precision EDM machine tool, which uses conductive materials (such as copper, graphite, steel, etc.) as tool electrodes to process workpieces (generally conductive materials). It is mainly suitable for precision punching dies, cavity molds, small holes,and irregular shape holes, etc., is an ideal processing equipment for machining workshops and mold workshops.
Product Description
| Item | Unit | D7125 | D7132 | D7140 | D7145 | D7150 | D7160 |
| Worktable size | mm | 400x250 | 500x200 | 650x400 | 720x450 | 800x500 | 1000x600 |
| Worktank size | mm | 1030x520x320 | 1030x560x320 | 1050x630x410 | 1400x710x410 | 1450x780x500 | 1680x850x580 |
| X axis travel | mm | 250 | 320 | 400 | 450 | 500 | 600 |
| Y axis travel | mm | 150 | 250 | 300 | 350 | 400 | 450 |
| Z axis travel | mm | 240 | 240+240 | 250+250 | 250+250 | 250+300 | 250+350 |
Distance between Electrode &Worktable | mm | 400 | 550 | 650 | 680 | 700 | 800 |
| Max. Workpiece Weight | kg | 250 | 550 | 750 | 800 | 800 | 1000 |
| Max. Electrode Weight | kg | 50 | 60 | 70 | 80 | 100 | 150 |
| Machine Weight | kg | 1100 | 1200 | 1800 | 2000 | 2200 | 3000 |
| Machine Dimension | mm | 1100x1200x 2040 | 1100x1400x 2120 | 1100x1200x 2040 | 1500x1500x 2250 | 1600x1500x 2300 | 1700x1600x 2400 |
| Homepage | Get back to homepage! | Price | Get the latest price here! | ||||

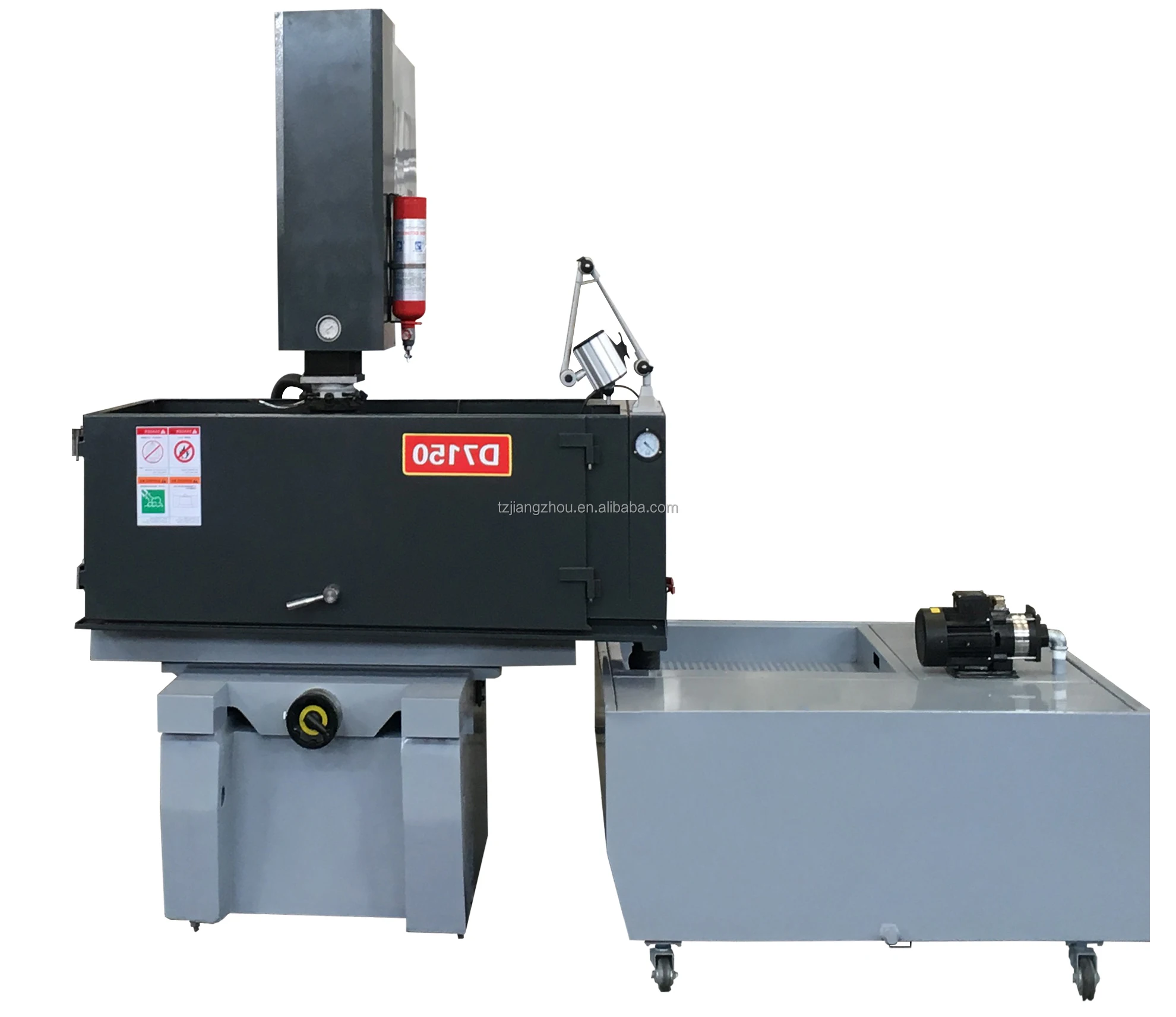

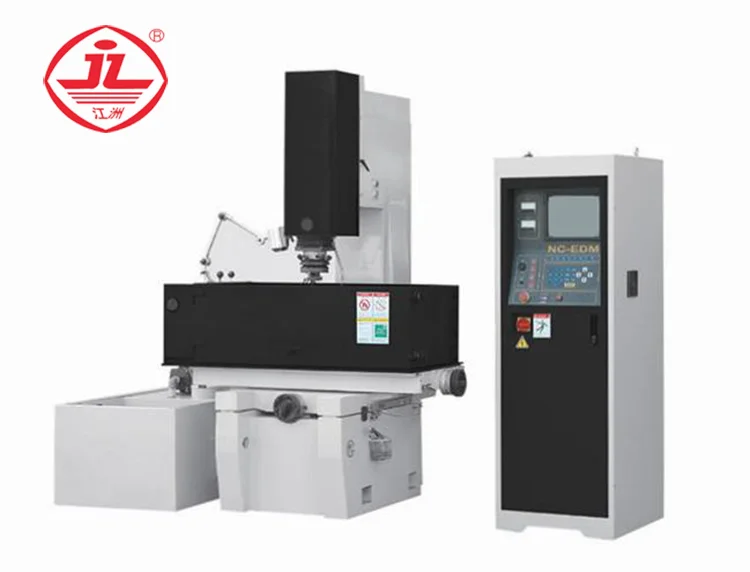

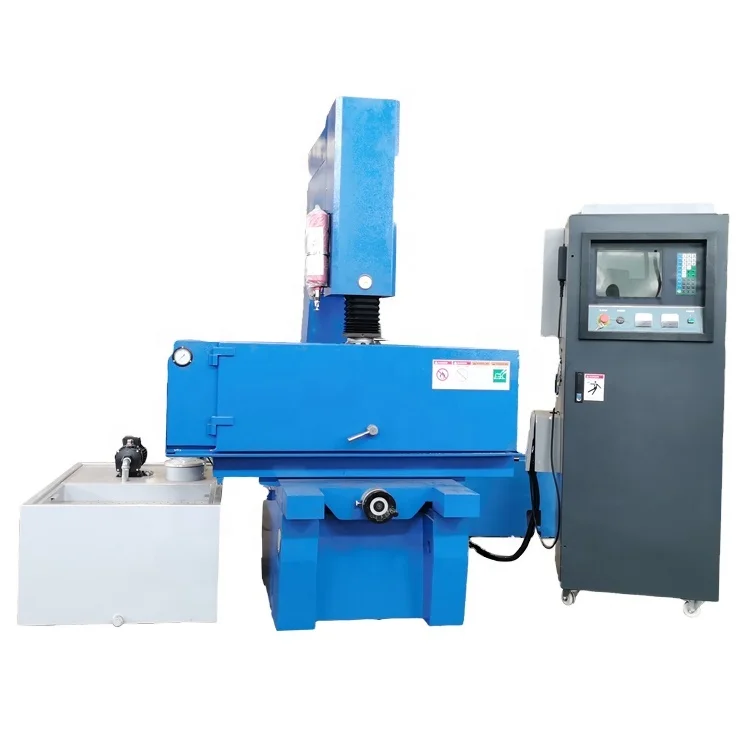

D71 SERIES DIE SINKING EDM:
This edm die sinking machine equiped with the pulse electrical cnc controlled cabinet from Taiwan. Z axis is driven by Japanese Sanyo DC servo motor from Japan.
X,Y axes adopt precise ball screw and digital read out to identify coordinate, which insure higher positioning accuracy of coordinate.
The electrical cabinet applies the most advanced industrial control board with strong function, features by high stability and easy operation for users. As long as you input a few parameters such as z-axis depth, it will takes suitable data from the rich expert database system, processing from rough machining to finish machining automatically.
Main Features
- Max machining speed 400-600mm3/min.
- Surface roughness≤Ra0.8μm.
- Japan SANYO DC servo motor in Z axis.
- X,Y axes adopts precise ball screw.
- Taiwan control system.
- Germany plastic wear resistant guide rail.
- SIEMENS,Germany AC contactor.
- OMRON relay.
- Japan high frequency power tube
- P5 level bearings

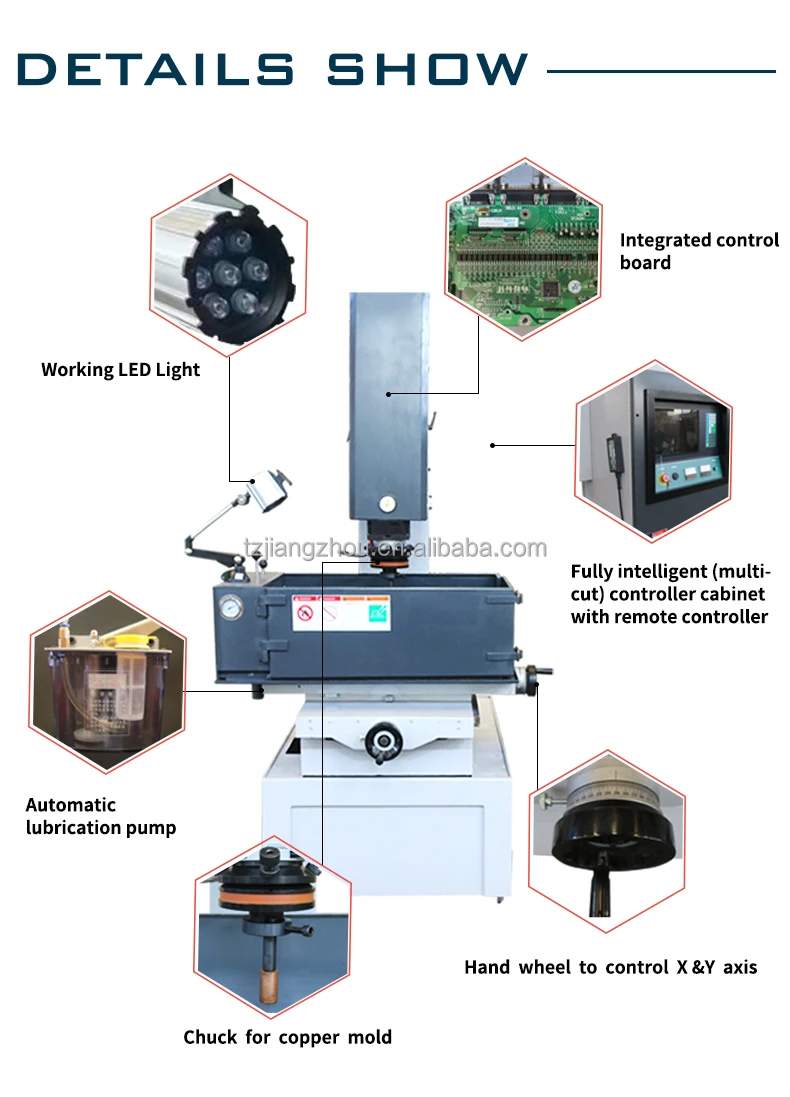

Production Details
 | Customization :
Optional Function:
|

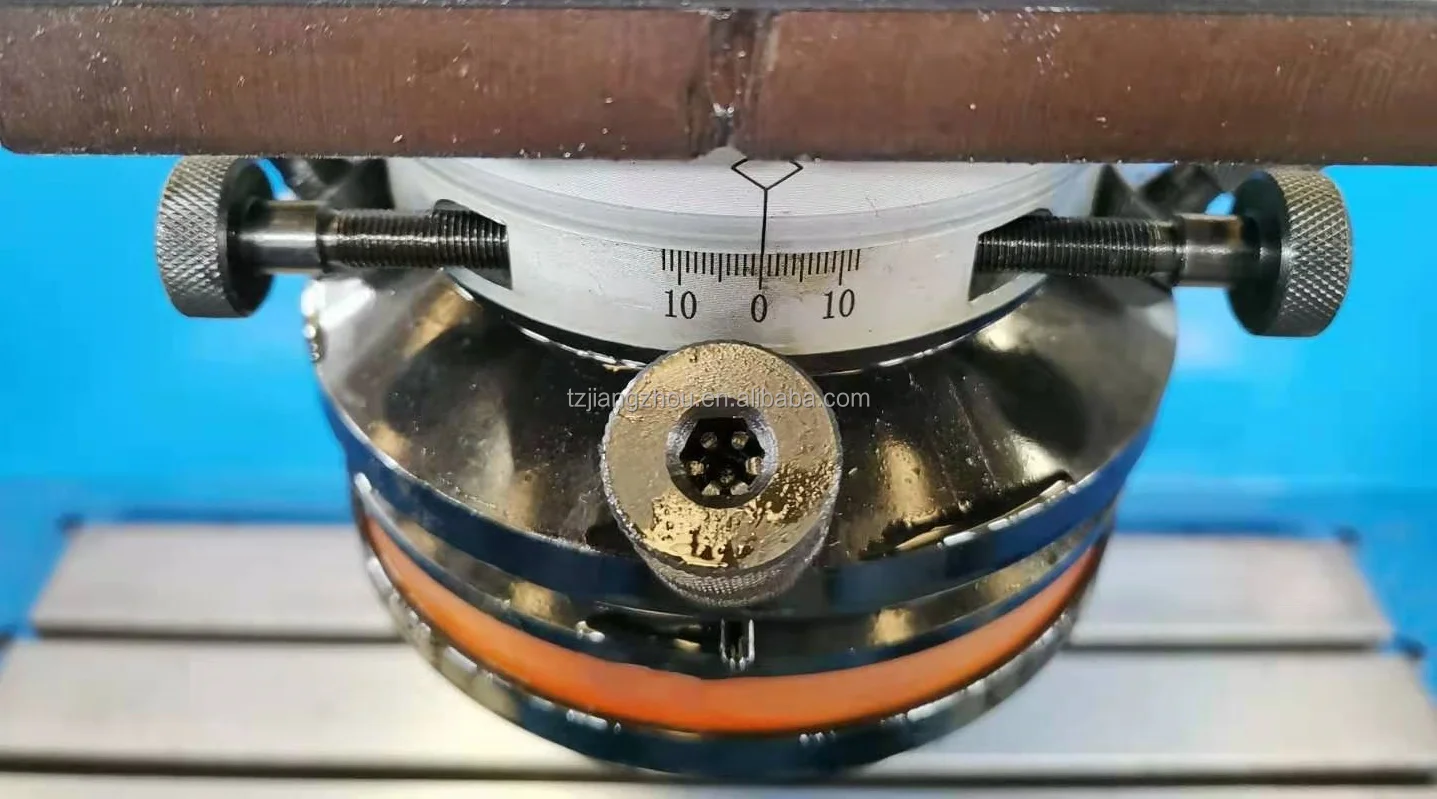

| Equiped well with precise caliberated gauge. |  |

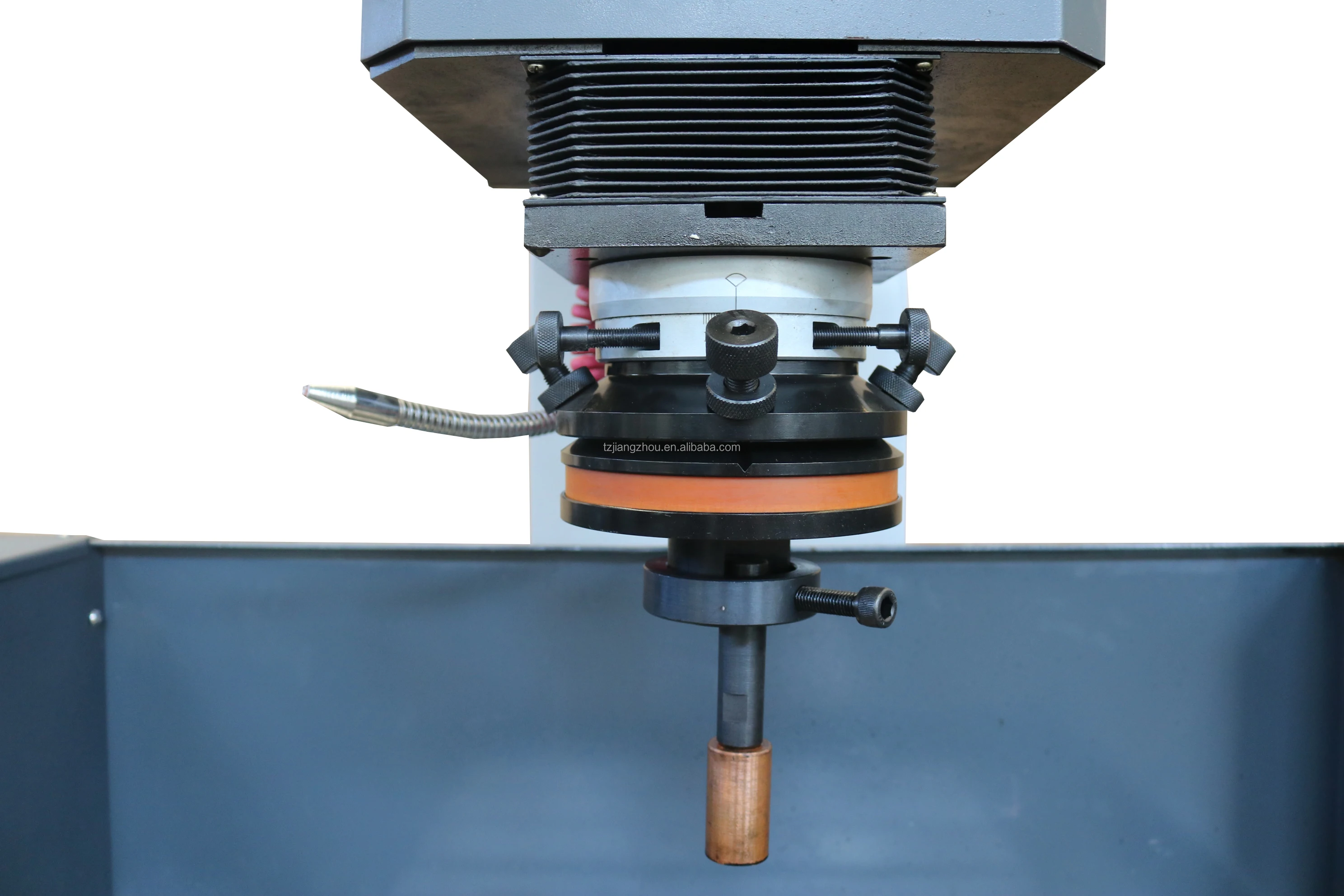

 | The movement of the main shaft is driven by a DC servo motor. The main shaft guide adopts a linear rolling guide, and the main shaft movement is realized by a pair of synchronous gears through a pair of screw drives. A dial indicator is placed under the spindle head panel to display whether the processing status is normal
After all the Z axis depth and machining parameter settings are finished, we can enter discharging mode to execute mould machining. When entering discharging mode, the function key can be used to change discharging parameter. |

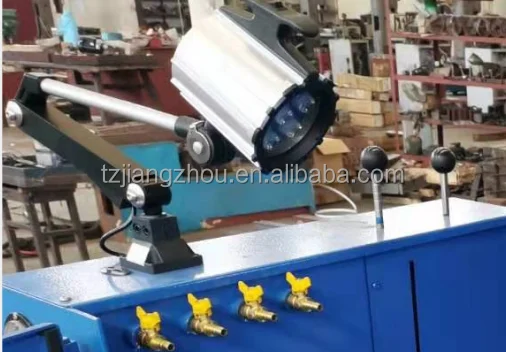

Flexable LED working lighting, for clear process checking and working. Quatliy Copper water nozzle for circulation of working liquid. |  |

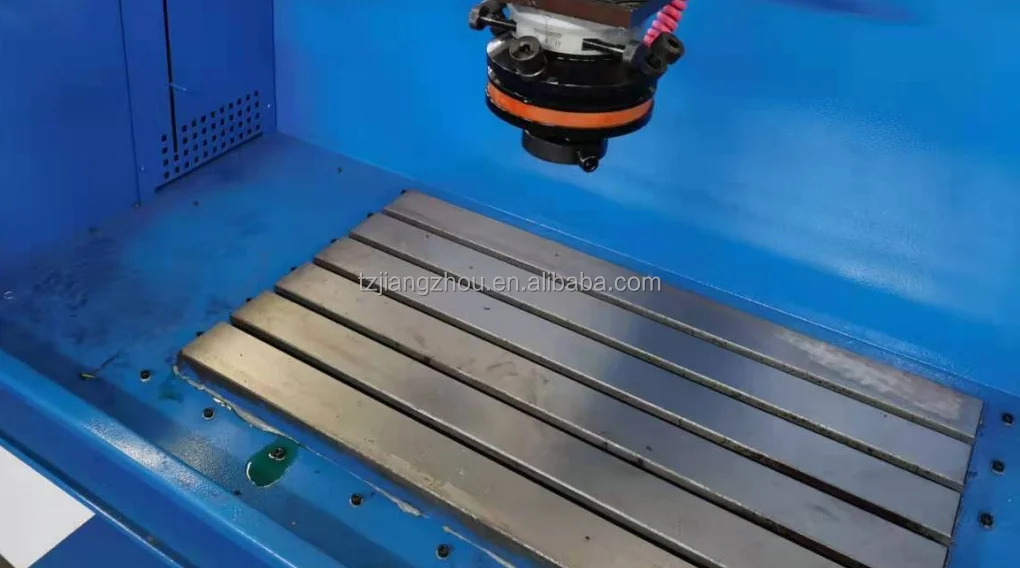

 | The vertical and horizontal moving guide rails of the worktable adopt sliding guide rails, and the surface of the guide rail adopts plastic material, which has the advantages of wear resistance and low friction coefficient. The scientific water-proof splashing cover can effectively reduce the splashing of working fluid during processing, which is safe and environmentally friendly, and is more beautiful. |

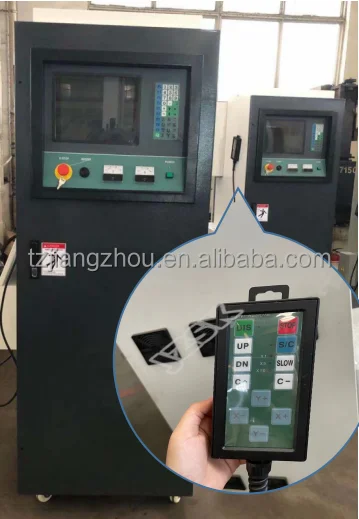

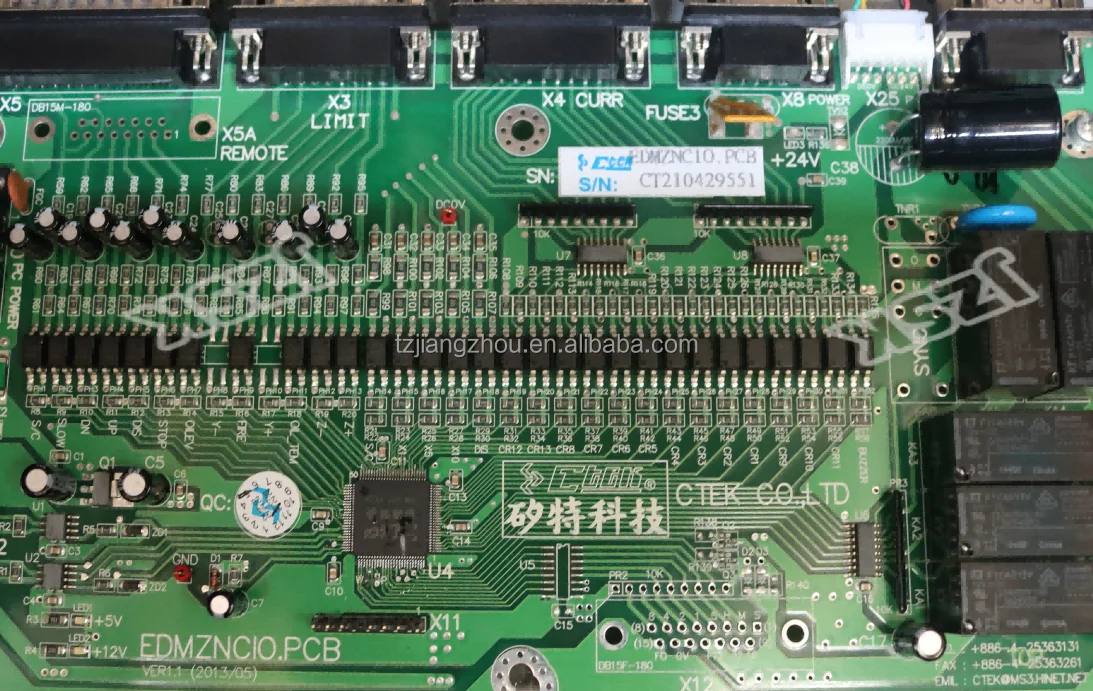

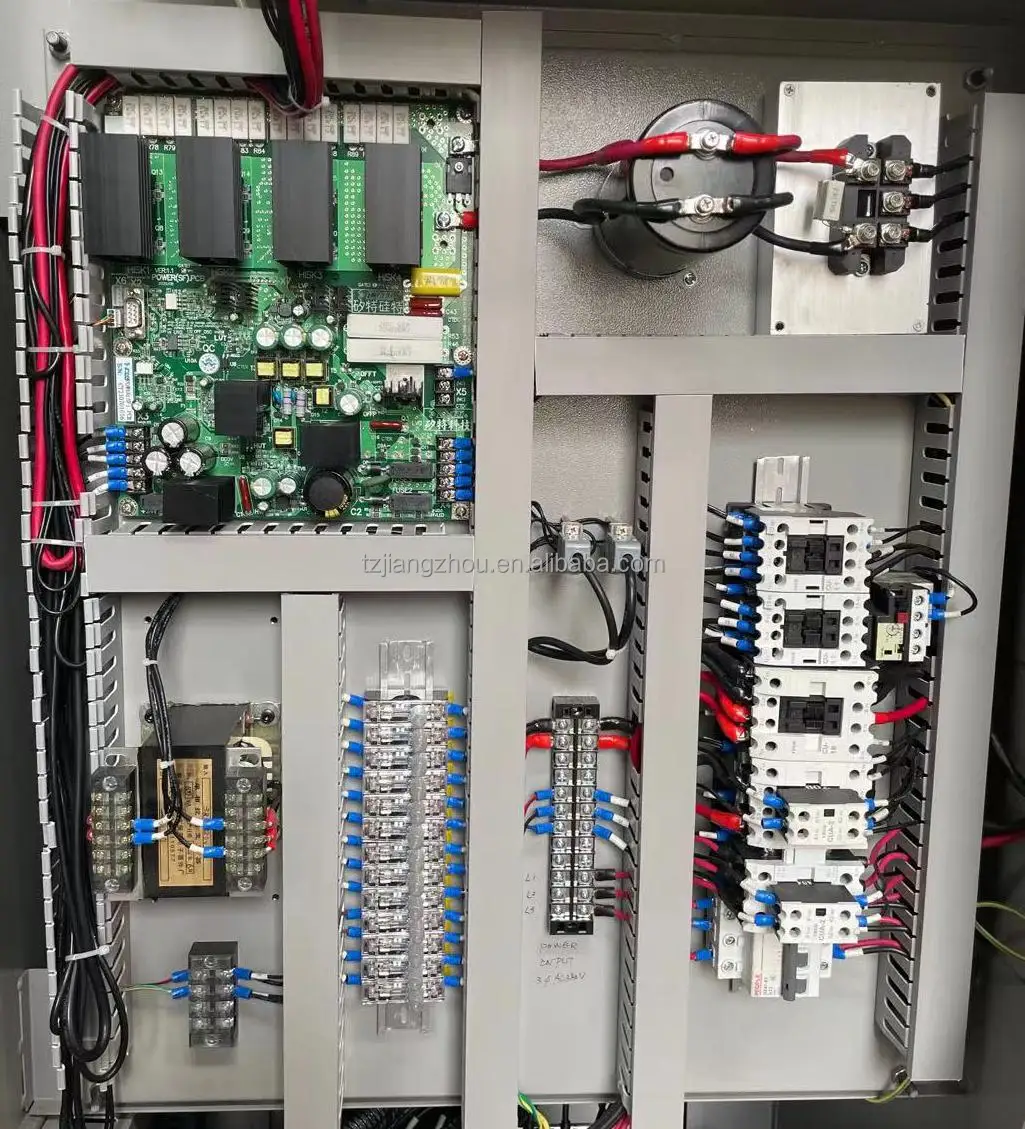

Equiped with high quality brand board from Taiwan. High integration, high stability, and the control system is loaded with the main board. |  |
| 1. Generator new design conforms to power supply box and 15’’ CRT (display) criterion of European CE Safety Specifications, which it is dustproof, waterproof, electric noise-proof and the circuit board life could also be raised. 2. Industrial class PC-BASE controller is applied and the traditional hard disk is substituted by new DOM type memory, which enables faster and more steadily speed of file reading and it is more suitable for industry application. 3. Up discharging (reverse machining) function makes special machining easier. 4. Two independent machining coordinates. The male die and female die could be parted or machined in different coordinates. 5. Two high voltage circuits could be set in partial voltage or partial current according to customer’s need. |
1. More than 20,000 units of document storage capacity are provided. Namely more than 20,000 different mold can be stored. 2. With mirror surface processing circuit, a true mirror effect can be achieved. 3. 10 segments auto editing function. 5. If unstable, discharging condition is auto adjusted by modifying discharging efficiency and working time. After that, the condition will restore automatically. And it is also adjustable at any time. 6. Auto arcing detecting function. If unsteady caused by arcing occurs, the computer will adjust machining parameters and rise jump up height, then normal condition would return. |  |
 | This system is mainly composed of working oil tank and filter oil tank. a. The working fluid tank is sealed with oil-resistant rubber, and the left side of the tank is equipped with a liquid level adjustment mechanism, an oil drain drawing plate, etc. The height of the liquid level of the drawing plate can be adjusted. When the liquid level is lower than the required height, the height of the drawing plate can be adjusted. b. Filter oil tank: oil storage tank, working fluid is special working fluid for EDM machine , oil storage capacity is about 400-500 liters, paper filter is used in the oil circuit to filter, there are two filters used in series to meet the filtering requirement. The working fluid pump is a single-stage centrifugal pump, which has the advantages of large flow. |

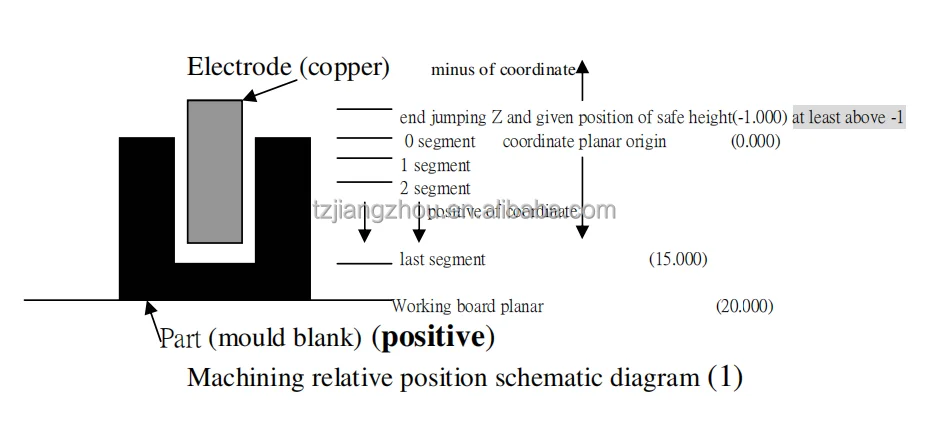

Working Principle:

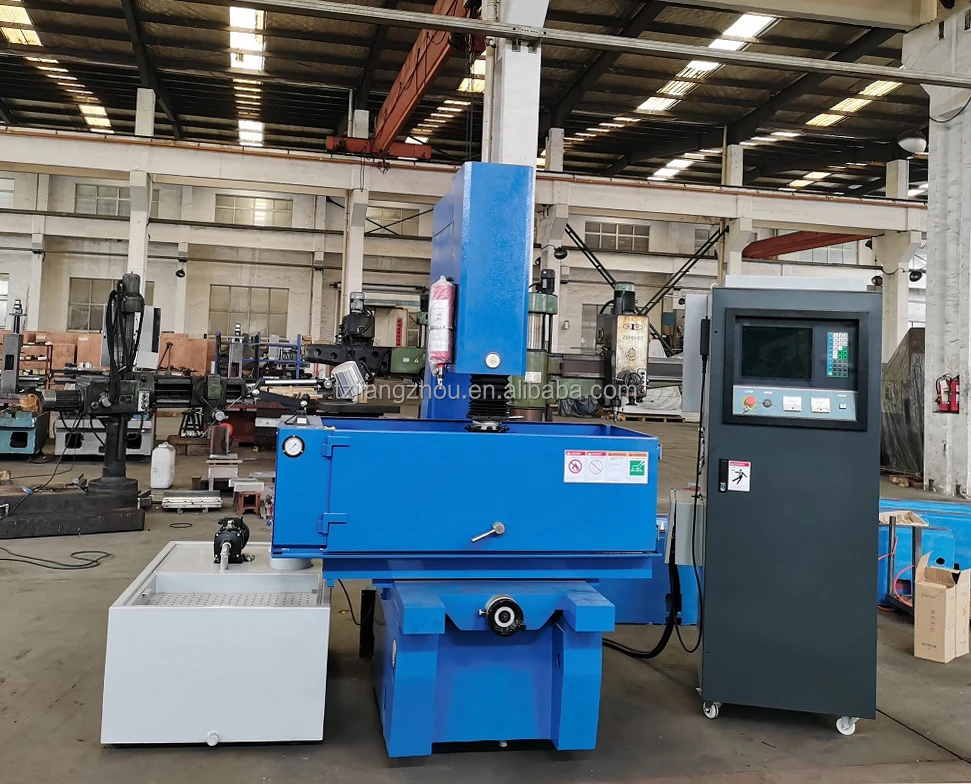

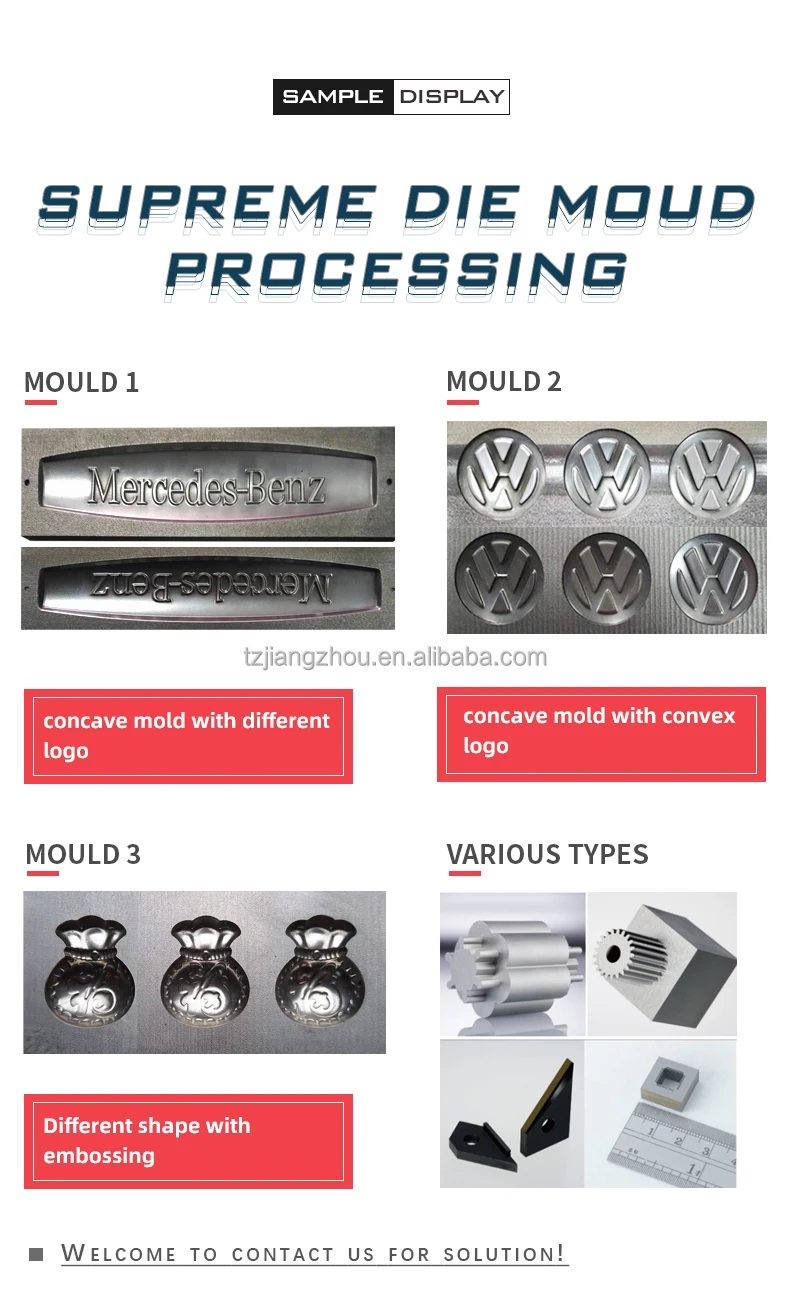

Application
Click here! Welcome to contact us for more information!
Click here! Welcome to contact us for more information!
Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem, we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
1.Technical support online service provided .
2.Technical files service provided.
3.Machine operation video provided
4.On-site training service provided.
5.Spare parts replacement and repair service provided.
6.All of the questions will be replied within 24 hours
