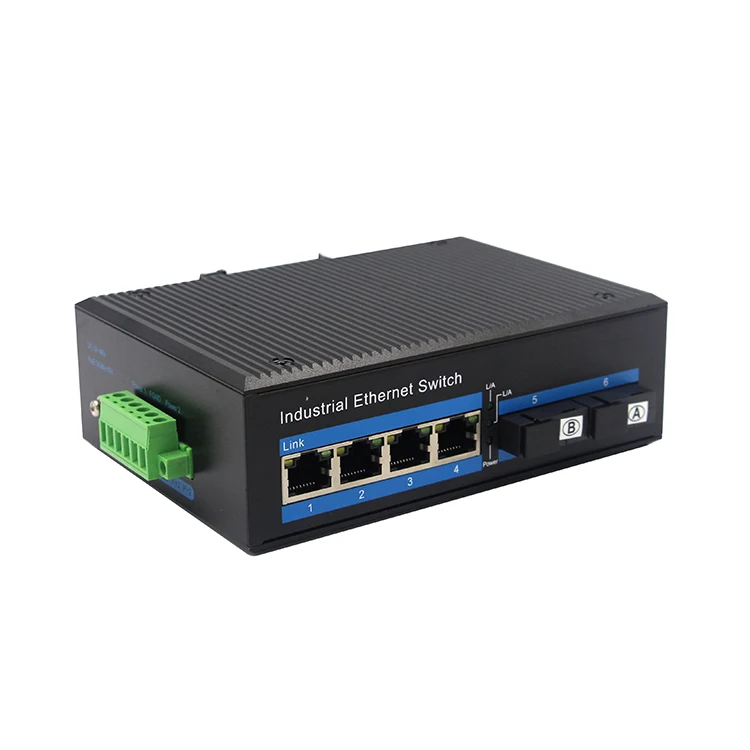

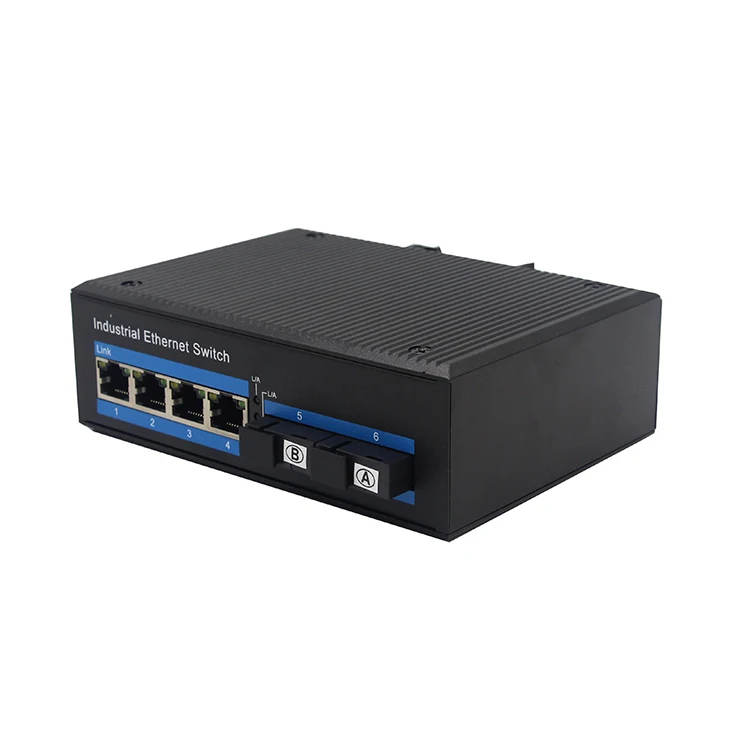

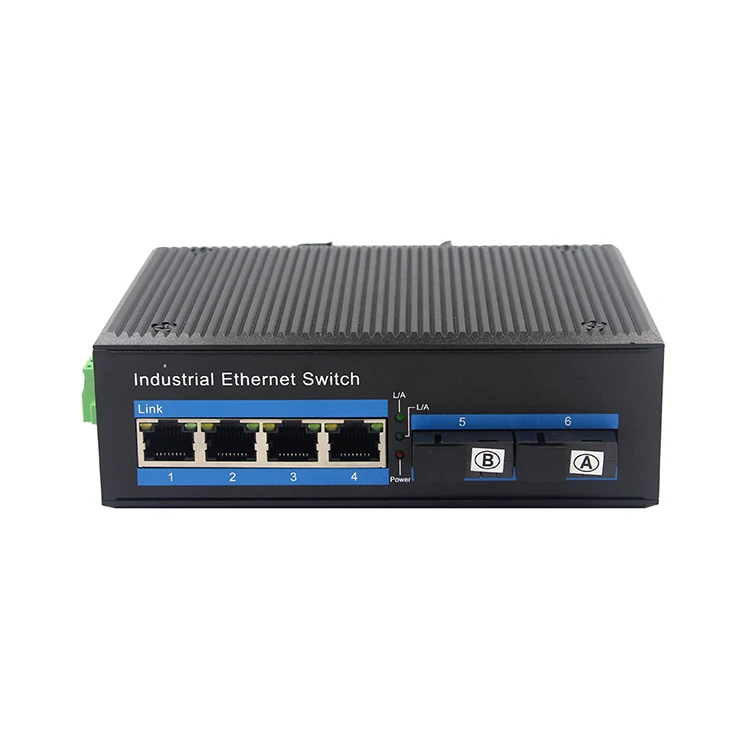

Factory 4 Port 10/100Base TX 2 Port 100Base FX Single Mode Single Fiber SC 20KM Industrial Ethernet Switch

Model No.

ZXR24F-SC2 / ZXR24F-SC20 / ZXR24F-SFP

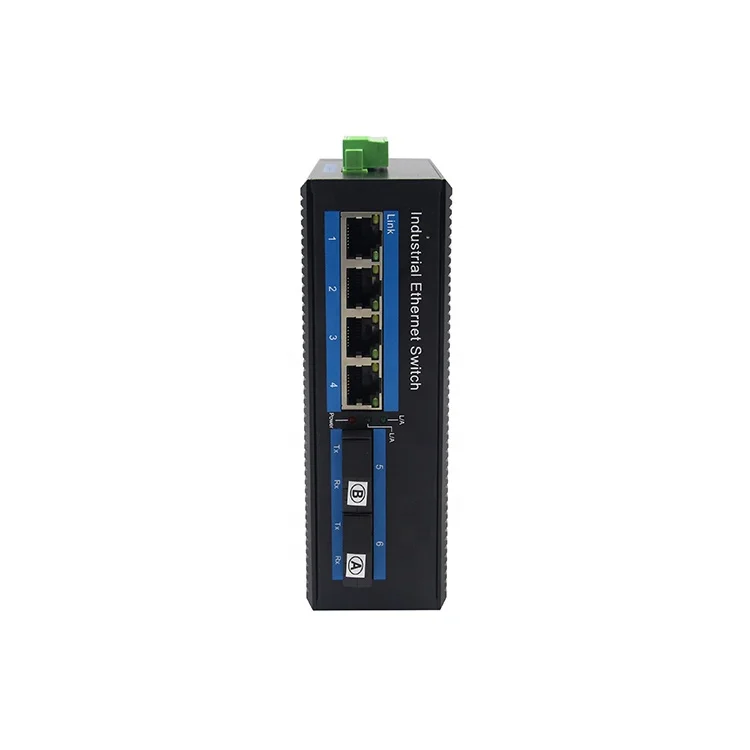

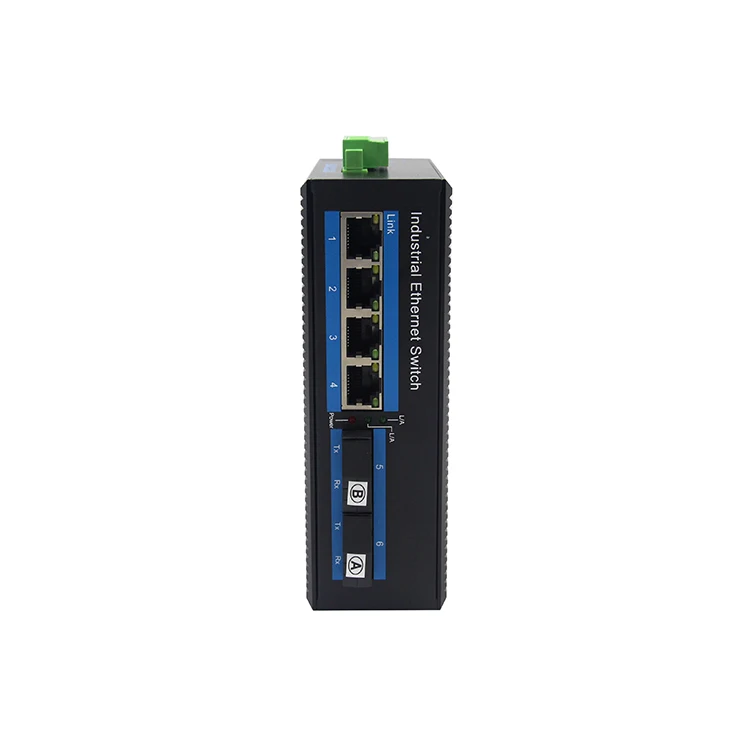

10/100Base-TX Port

4 port RJ-45 auto-MDI / MDI-X

100Base-FX Port

ZXR24F-SC2: 2 SC interface

ZXR24F-SC20: 2 SC Interface

ZXR24F-SFP: 2 SFP Slot

Fiber Port Type

ZXR24F-SC2: SC / multi-mode ,up to distance 2km ;

ZXR24F-SC20: SC / single-mode ,up to distance 20km ;

ZXR24F-SFP: Vary on module

Optical Frequency

ZXR24F-SC2: 1310nm

ZXR24F-SC20: 1310nm

ZXR24F-SFP:  Vary on module

Performance Specification

Bandwidth: 1.6Gbps
Packet Buffer Memory:1Mbit
Packet Forwarding Rate:1.2Mpps
MAC Address Table: 2K

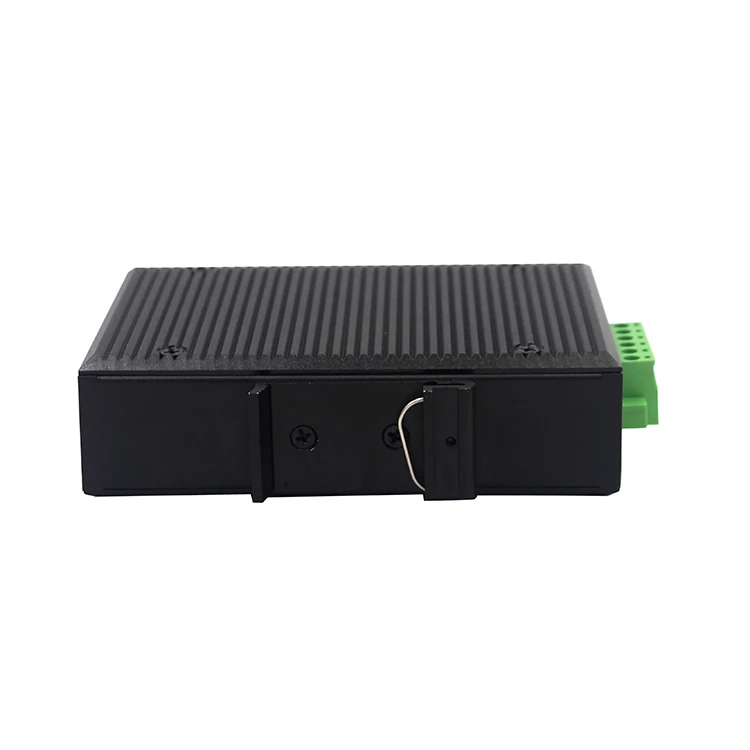

Installation

DIN rail

Maximum Frame Size

9000bytes packet size

Flow Control

Back pressure for half duplex, IEEE 802.3x pause frame for full duplex

Enclosure

IP40 aluminum housing

LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

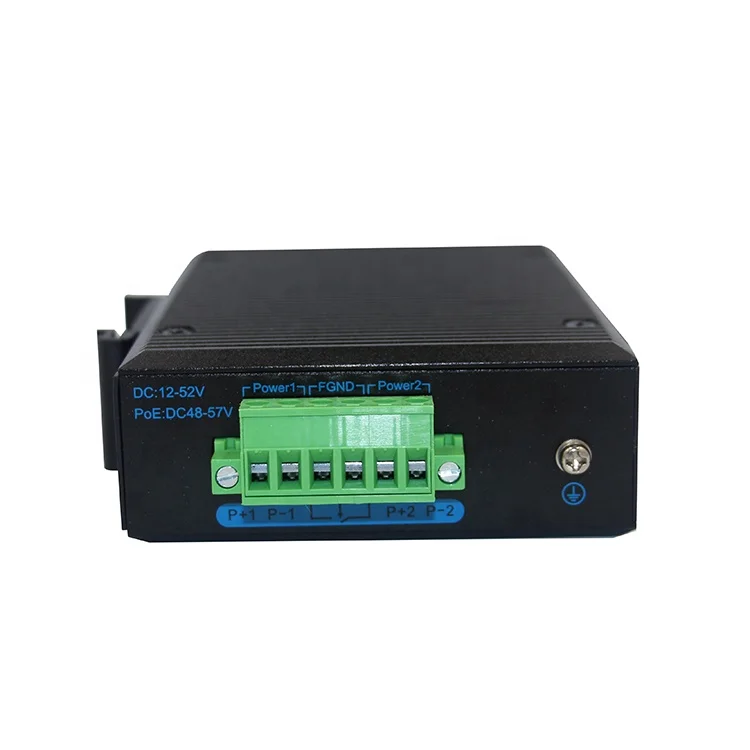

Power Input

12 to 52V DC redundant power

Power Consumption

< 3 watts

Surge protection

±4KV

Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤10meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)

Certification

CE FCC Rohs compliance

MTBF

>300,000hours

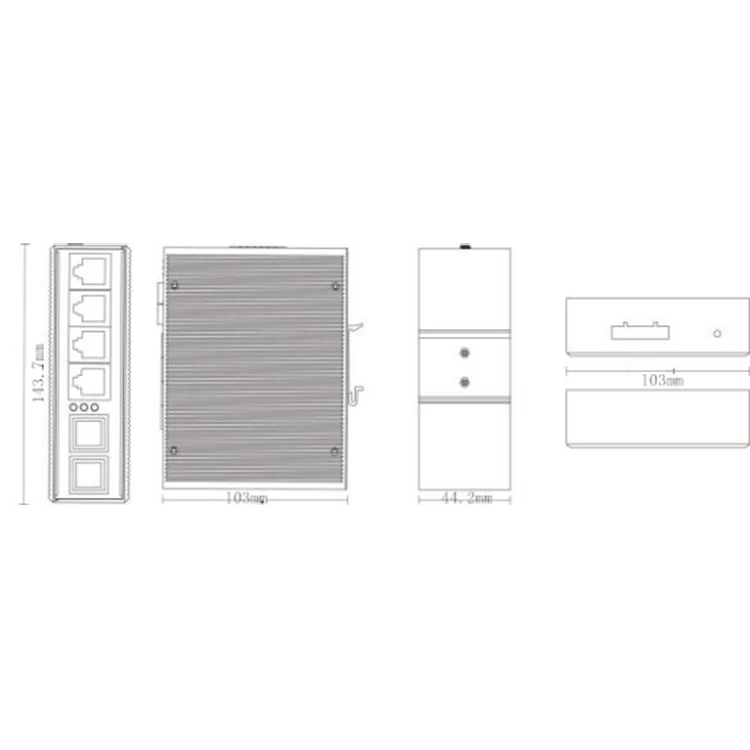

Dimensions (W x D x H)

143.7 x 103 x 44.2 mm

Weight

Product Weight: 0.56KG

Packing Weight: 0.66KG

Working Environment

Working temperature: -40~85℃ ;

Storage temperature: -40~85℃

Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.
