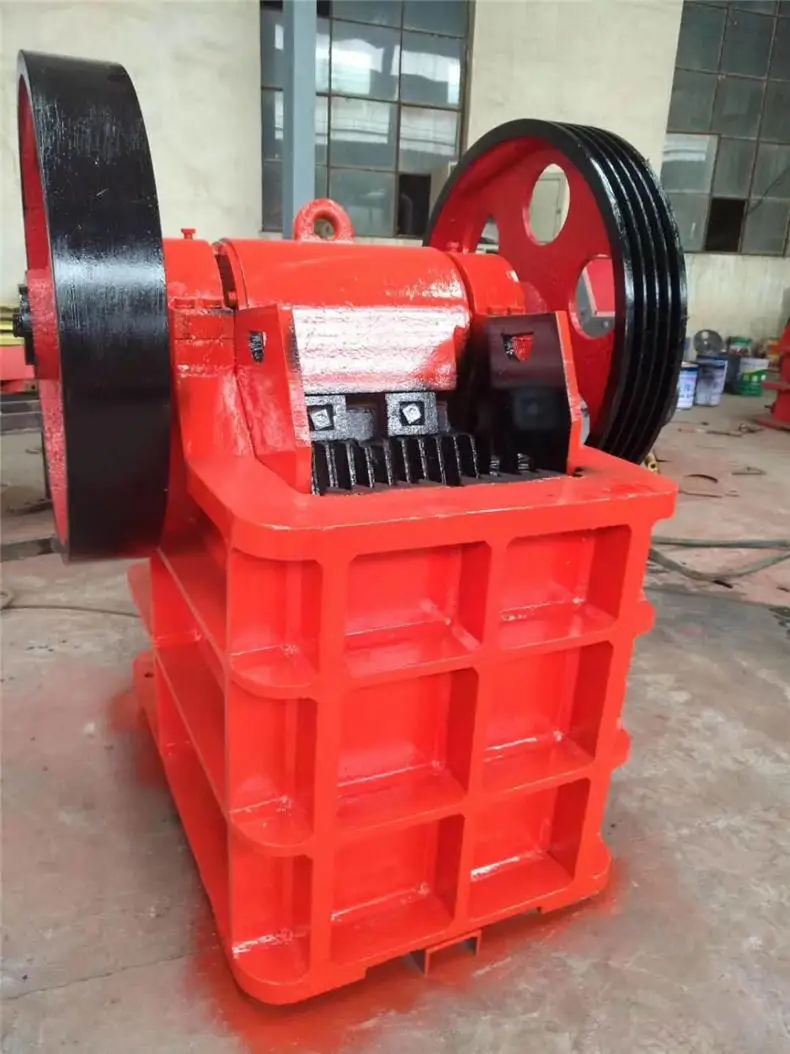

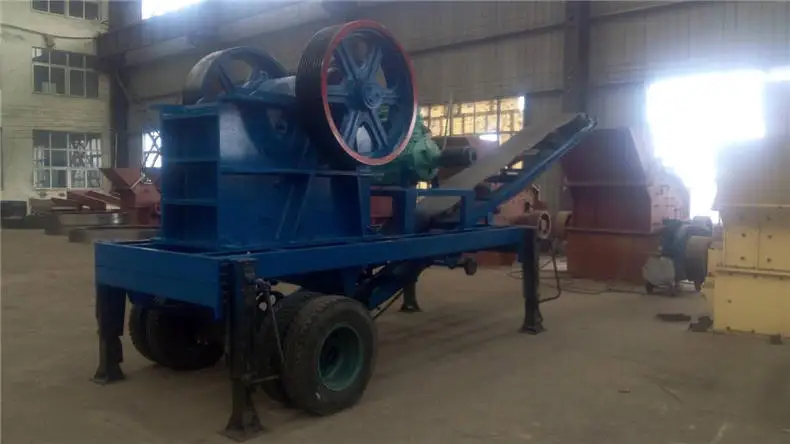

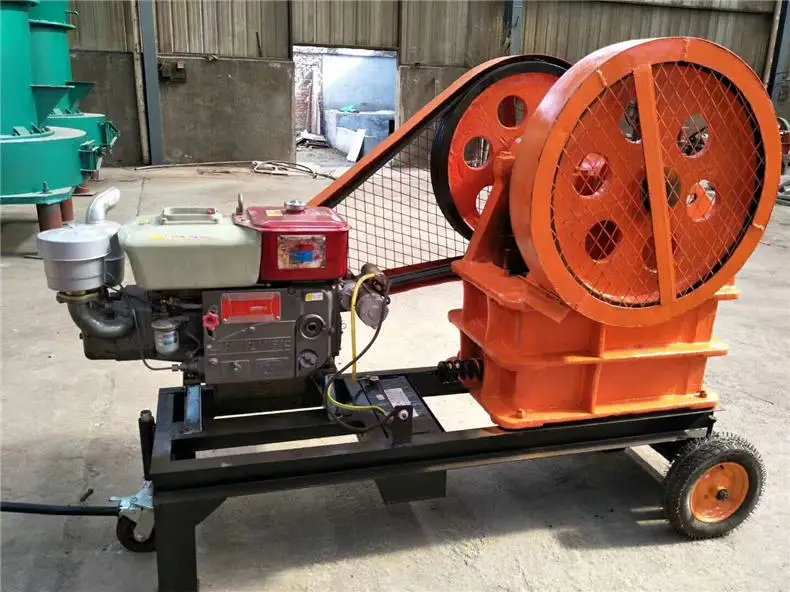

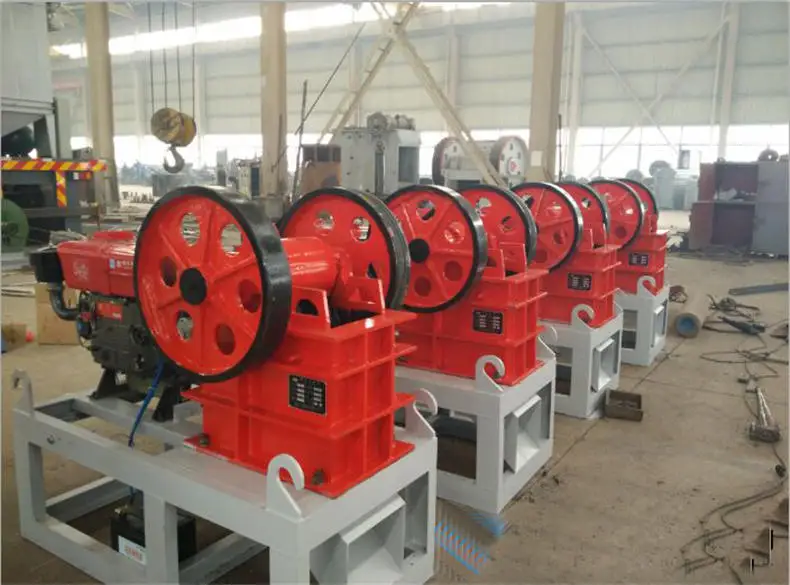

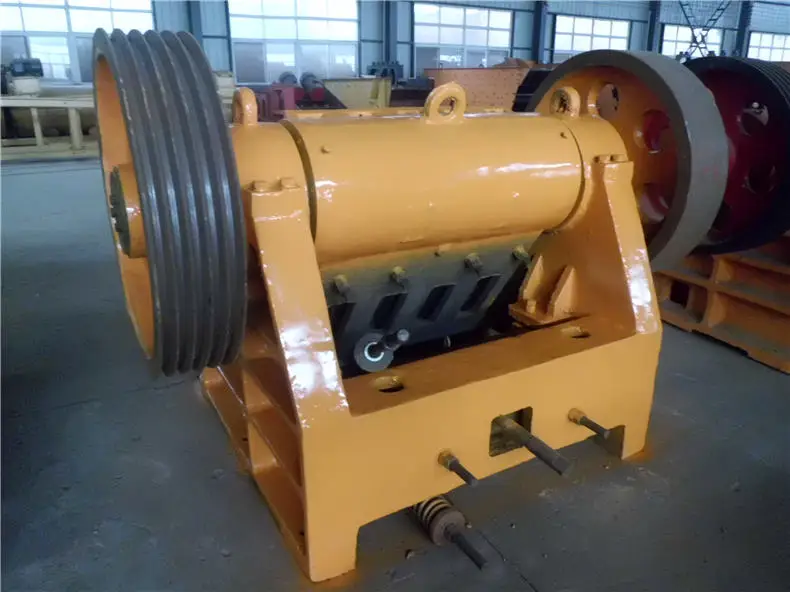

Mobile diesel engine small jaw crusher 250x400
- Category: >>>
- Supplier: Henan Yonghan Mechanical Equipment Co. Ltd.
Share on (1600366558279):
Product Overview
Description
Products Description
Our stone crusher machine, a type of jaw crusher is widely used in mining, railway construction, water conservancy project,
metallurgy, chemical, building material industries. It is mainly used to crush rock and ore, whose compression strength is less
than 320 Mpa. Jaw crusher, your preferred primary crusher, is used for coarse crushing and fine crushing.
Feeding size:≤1200 mm
Production capacity:1-1000 t/h
Application range:Widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries.
Applicable material:Granite, dolomite, river pebble, quartz stone, iron ore, calcite and other materials.
metallurgy, chemical, building material industries. It is mainly used to crush rock and ore, whose compression strength is less
than 320 Mpa. Jaw crusher, your preferred primary crusher, is used for coarse crushing and fine crushing.
Feeding size:≤1200 mm
Production capacity:1-1000 t/h
Application range:Widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries.
Applicable material:Granite, dolomite, river pebble, quartz stone, iron ore, calcite and other materials.
Product Paramenters
Model | Size of Feed Opening(mm) | Max Feed Size (mm) | Discharge Range Opening (mm) | Capacity (m3/h) | Motor Power (kw) |
PE-250×400 | 250×400 | 210 | 20-60 | 3-13 | 15 |
PE-400×600 | 400×600 | 340 | 40-100 | 10-35 | 30 |
PE-500×750 | 500×750 | 425 | 50-100 | 25-60 | 55 |
PE-600×900 | 600×900 | 500 | 65-180 | 30-85 | 55- 75 |
PE-750×1060 | 750×1060 | 630 | 80-180 | 72-150 | 110 |
PE-800×1060 | 800×1060 | 680 | 100-200 | 85-143 | 110 |
PE-870×1060 | 870×1060 | 750 | 170-270 | 145-235 | 110 |
PE-900×1060 | 900×1060 | 780 | 200-290 | 170-250 | 110 |
PE-900×1200 | 900×1200 | 780 | 95-225 | 100-240 | 110 |
PE-1000×1200 | 1000×1200 | 850 | 195-280 | 190-275 | 110 |
PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 250-500 | 160 |
PEX-150×750 | 150×750 | 120 | 18-48 | 5-16 | 15 |
PEX-250×750 | 250×750 | 210 | 25-60 | 8-22 | 22 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 10-32 | 30-37 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 13-38 | 37 |
PEX-300×1300 | 300×1300 | 250 | 20-90 | 10-65 | 75 |
Product packaging
Packaging:standard Container, Nude Packs or in Bulk.The electrical motor or spare parts will be packed by wooden case or steel
frame.Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of
the time, the equipment will be loaded to the containers in the factory. Unique workers make sure all equipment are steady and
fixed before close the door of the container, there will be no damage during transporation and shipment.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be
transported to your country by sea.
frame.Unique offers various ways of package, fumigation-free wooden cases, steel plate cases, or as the clients' request. Most of
the time, the equipment will be loaded to the containers in the factory. Unique workers make sure all equipment are steady and
fixed before close the door of the container, there will be no damage during transporation and shipment.
Shipping:we deliver the cargo to China's main sea ports,such as Qingdao,Tianjin,Shanghai etc.And then the container will be
transported to your country by sea.
FAQ
Q1.How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of crusher equipments is one year. Yes, we supply the spare parts for you at lowest cost and we have a
professional after-sale service team to promptly and thoroughly solve your problems.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3.Can you test our samples?Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow
for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had
already build many mining projects in China & Overseas.
The warranty period of crusher equipments is one year. Yes, we supply the spare parts for you at lowest cost and we have a
professional after-sale service team to promptly and thoroughly solve your problems.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3.Can you test our samples?Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow
for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had
already build many mining projects in China & Overseas.
