30kN Hydraulic Cable Puller Opgw Or Adss Optical Cable And 500kv Traction Rope In Various Land Forms

Product Overview

Description

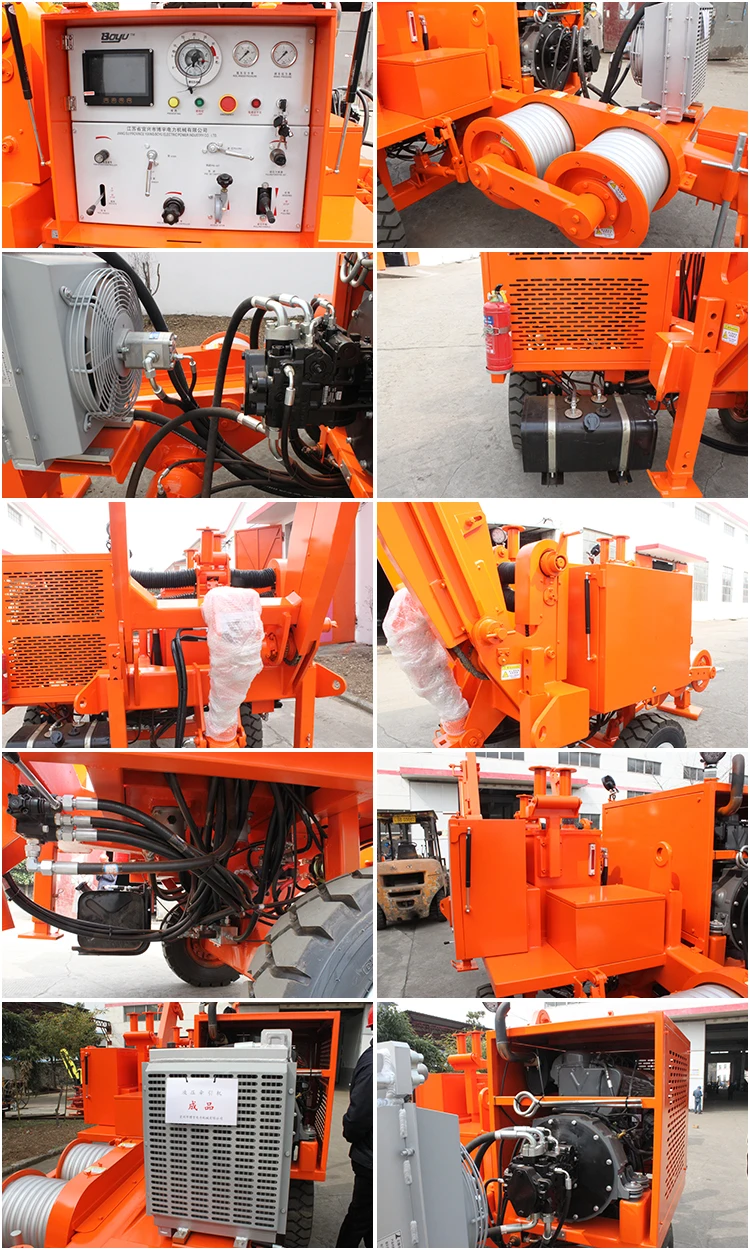

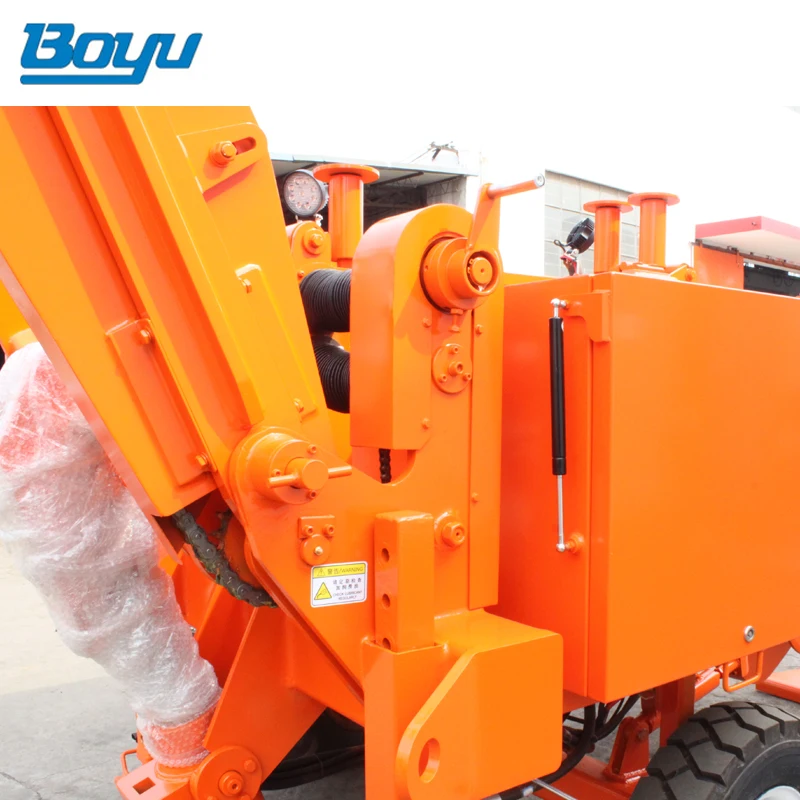

30kN Hydraulic Cable Puller Opgw Or Adss Optical Cable And 500kv Traction Rope In Various Land Forms

TY30D  Hydraulic Puller

Together with tension machine, this model allows for the tension stringing of 220kV lines in mountainous and hilly areas and can be used for the traction stringing of OPGW or ADSS cable in various terrains.



Characteristics

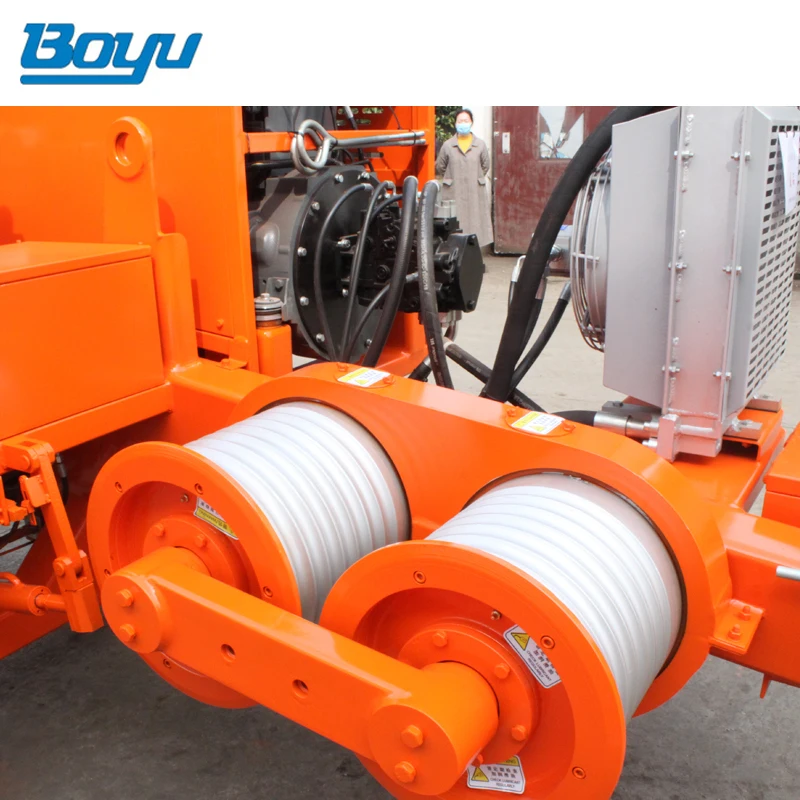

Bull-wheel diameter:300mm

Groove number: 7

Max rope diameter : 13mm

Applicable to the max connector diameter: 40mm

Max diameter of rope reel: 1400mm

Total weight: 2000kg

Overall dimension (length*width*height): 3200×1600×2000mm

Structure style: single bridge trailer



Performance

Max pull: 35kN

Rated pull: 30kN

Corresponding Pulling Speed: 2.5km/h

Max Corresponding Pulling Speed: 5km/h

Corresponding Pulling Force: 15kN



Engine

Diesel   56kw(73hp)

Cooling system   air cooled

Electrical system  24V



Main configuration

Engine: Deutz Air Cooled

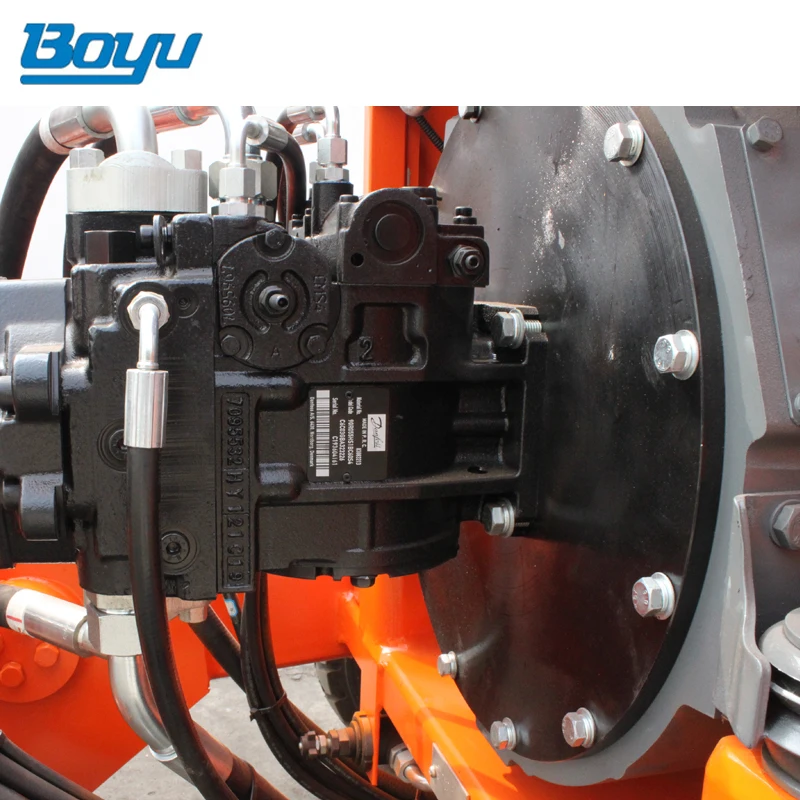

hydraulic pump: Denmark Danfoss

Hydraulic motor: French HYDROLEDUC

speed reducer: Italy BREVINI

Main hydraulic valve parts: German Rexroth/American SUN/Italy ATOS

Tail frame winch motor: Denmark Danfoss



Hydraulic Transmission

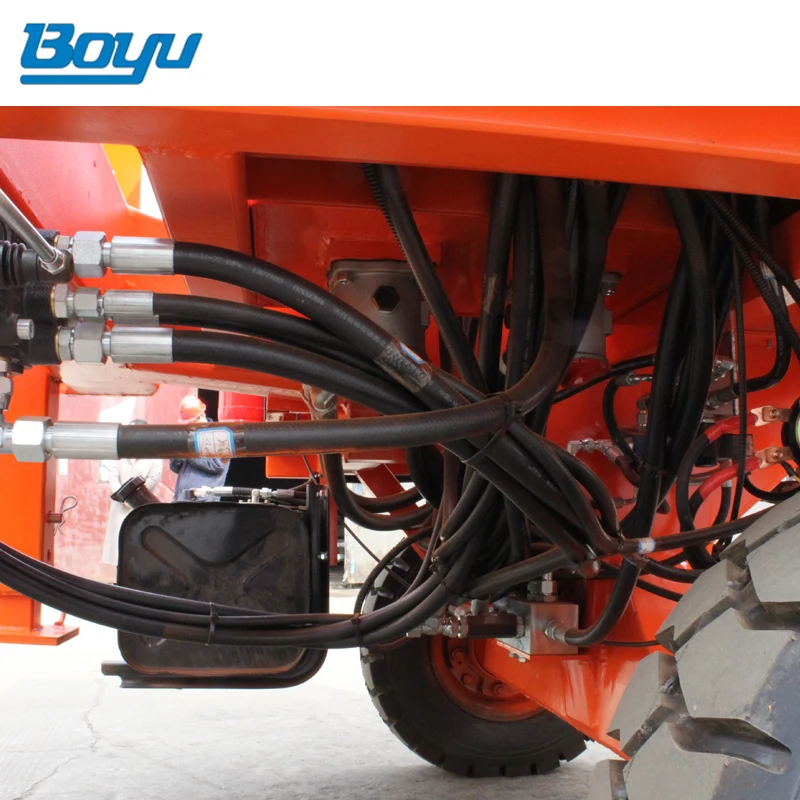

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200

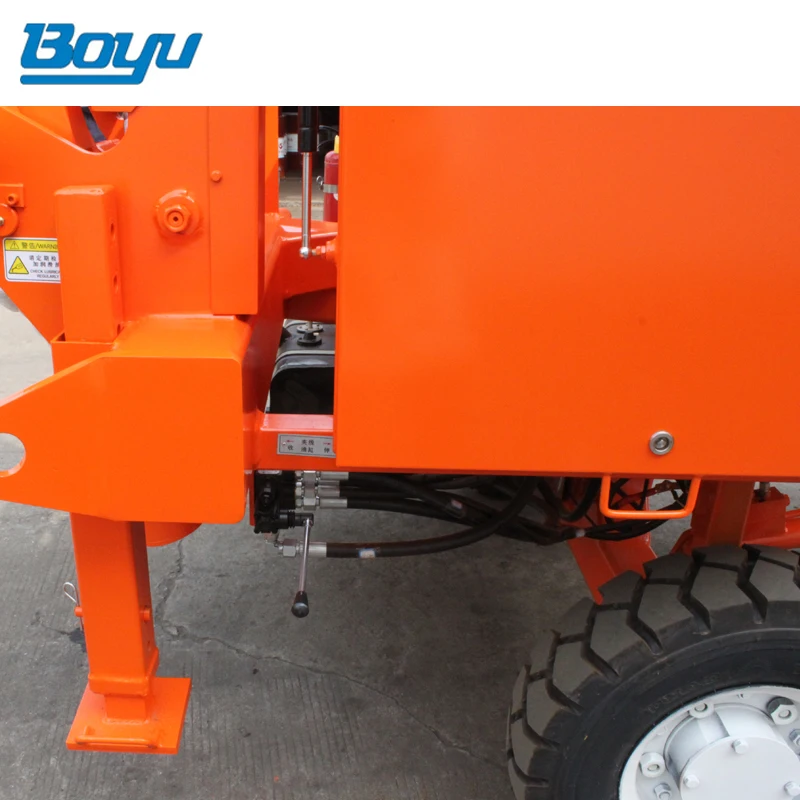

Machinery front stabilizer

Grounding connection point



Additional Devices

Lighting system for the trailer

Extra rollers for an additional pilot rope

Hydraulic rope clamp for reel change operations

Extra shaft

Electronic pull and speed recorder (extra charge)





Model		TY40	TY60	TY120	TY150	TY220	TY280	TY380
Max intermittent pull	KN	40	60	120	150	220	280	380
Max continuous pull	KN	30	50	100	120	180	250	350
Speed at max pull	km/h	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Max speed	km/h	5	5	5	5	5	5	5
Pull at max speed	KN	20	25	50	60	90	120	170
Diesel	kw(hp)	77(103)	77(103)	129(173)	129(173)	239(320)	298(400)	440(590)
Cooling system		Water	Water	Water	Water	Water	Water	Water
Electrical system	V	24	24	24	24	24	24	24
Bull-wheel diamete	mm	400	450	600	600	760	960	960
Groove number		7	7	10	10	10	11	11
Max rope diameter	mm	16	18	24	24	30	38	38
Max diameter of rope reel	mm	1200	1400	1400	1600	1600	1600	1900
Total weight	kg	3000	3500	4800	5500	6800	12800	13600
