Linear Automatic Chickpea Puree Packing Hummus Cup Filling Sealing Capping Machine Cod Liver Sauce Beef Sauce Packing Equipment
- Category: >>>
- Supplier: Wenzhou Chunlai Packing Machinery Co. Ltd.
Share on (1600366562997):
Product Overview
Description
Product Description

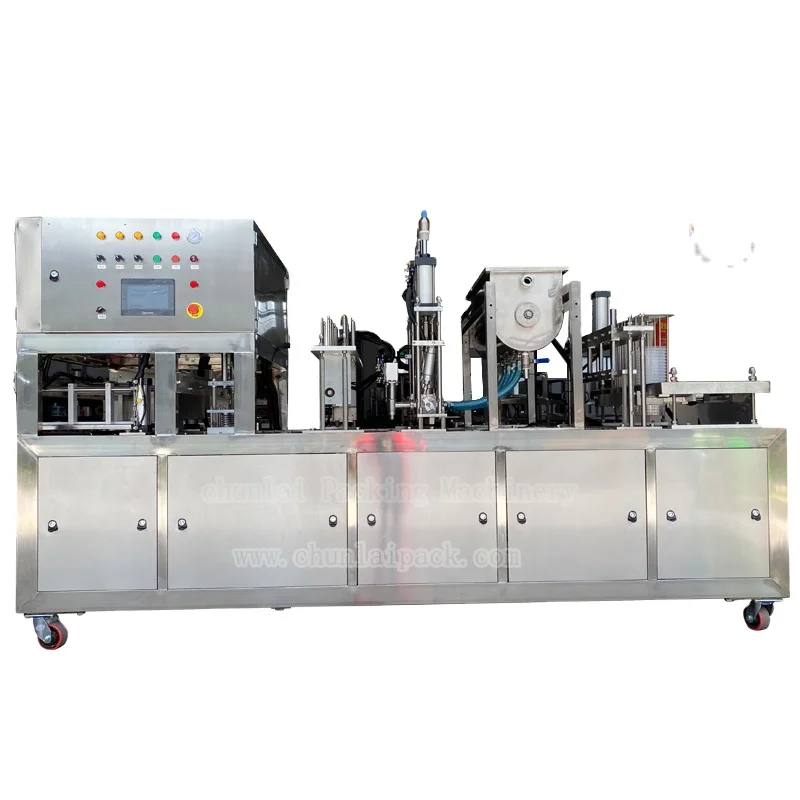

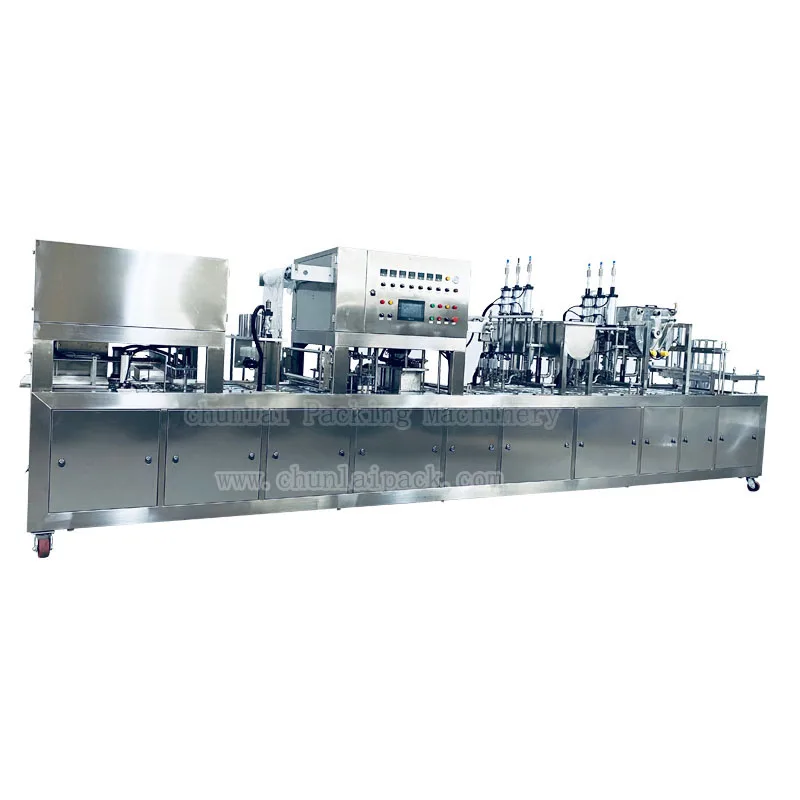

BG60A Automatic Hummus Cup Filling Sealing Capping Machine
Can be customized according to customer's demand
Cup material available: PS, PP, PE, PET, paper and so on
Sealing film: roll film or pre-cut foil
Filling: liquid, paste, powder, granule
FeaturesBG60A In-line Hummus Cup Flling and Sealing Machine offers the best solution for multi-component products. It's suitable for packaging a wide range of liquid, paste, granulated and powdered products into pre-formed containers of various size and shapes. This packaging machine can be used for hummus, dip, dairy products, salads, dressings, desserts, dry soups, frozen dishes, cosmetics and much more.
Depending on the output required, the BG60 series Linear Type Cup Flling and Sealing Machine can be designed for 2 cups, 4 cups, 6 cups, 8 cups, 10 cups per time or more. The flling units which can be combined different type fllers on a same machine.
Machine basic function include cup dispenser, flling, heat sealing, automatic out-feed.

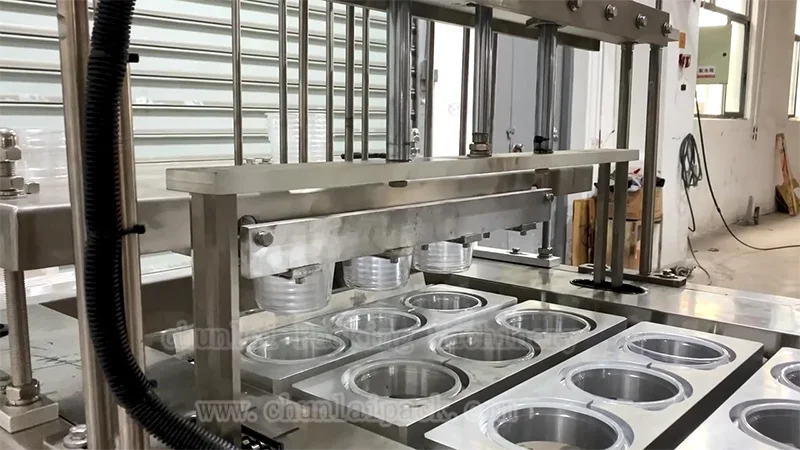

Empty cup dispensing function: it can separate cups accurately, the technology which can avoid the cup damage and deforming.

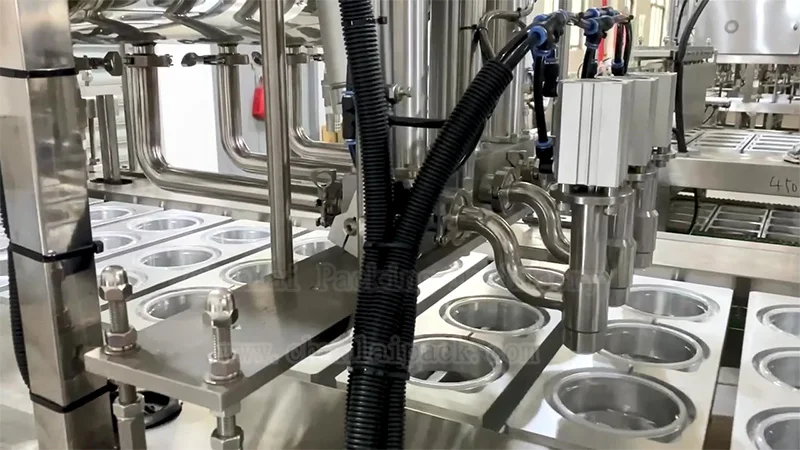

Flling function: the flling system could be designed based on your product feature.
Liquid: gravity fling, easy for clean
Paste: piston fling, anti-drip, no splash and leakage, the flig system tool free disassemble design.
Granule: measuring cup, weighing
Powder: screw
Pre-die cut lids sealing system (aluminum or other material) or membrane cut from the roll is selectable.

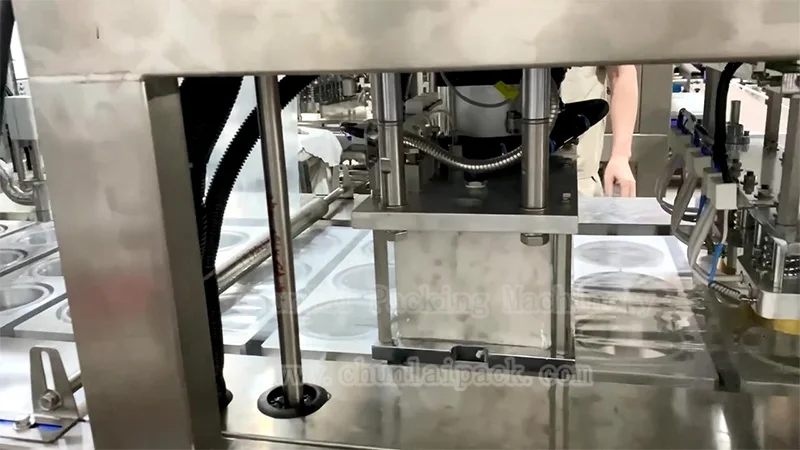

Sealing function: the sealing temperature can be 0-300 degree adjustment. Independent temperature controller for each sealing head.
Automatic outfeed system: it made up by cup lifting and pushing system, fast and stable.
Vacuum inflation
Technical Parameter
Model | BG60A-2C | BG60A-4C | BG60A-6C | BG60A-8C | BG60A-10C | ||||
Production Capacity | 1600-2000 cups/hour | 3200-4000 cups/hour | 4800-6000 cups/hour | 6400-8000 cups/hour | 8000-10000 cups/hour | ||||
Filling Range | can be customized | ||||||||
Voltage | 3 phase 380V 50/60Hz single phase 220V, 50/60Hz | ||||||||
Air Consumption | 0.8 m3 /min | 0.8 m3 /min | 0.8 m3 /min | 1 m3 /min | 1.2 m3 /min | ||||
Size | 3000mm x 600mm x 1750mm | 3000mm x 700mm x 1750mm | 3000mm x 800mm x 1750mm | 3000mm x 900mm x 1750mm | 3000mm x 1000mm x 1750mm | ||||
Weight | 500KG | 700KG | 800KG | 900 KG | 1000KG | ||||
Main Function
Automatic cup drop
Automatic filling
Vacuum Inflation
Automatic sealing
Automatic suction cap
Automatic capping
Automatic cup out
Sample

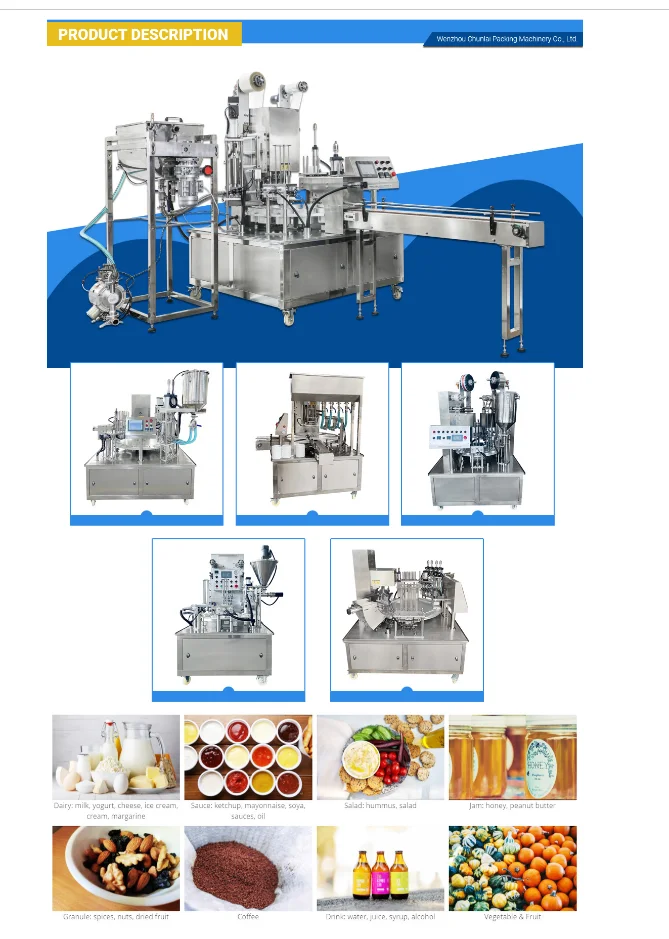

Optional Machine Configuration
Round table
Conveyor belt
Company Information
Office and Workshop
Exhibition
Certificate
Packaging & Shipping
FAQ
Q: First time import, how can I believe that you would send product ?
A: We are verified company by Alibaba ,to make transaction success, we support and recommend LC or with visit our factory.
Q: How to ensure that I received the machine undamaged?
A: First , we package is standard for shipping,then send you the photo when give the product to the freight forwarder. before pick up , please confirm product undamage, if damage, The ship company will take the responsibility.
Q: What aftersales service or any question about products?
A: This machine enjoys 1 years warranty , any problem , I am on line from 9 am to 5 pm, or you can send me mail , will reply you within 12 hours, I'll give you detail instruction.
A: We are verified company by Alibaba ,to make transaction success, we support and recommend LC or with visit our factory.
Q: How to ensure that I received the machine undamaged?
A: First , we package is standard for shipping,then send you the photo when give the product to the freight forwarder. before pick up , please confirm product undamage, if damage, The ship company will take the responsibility.
Q: What aftersales service or any question about products?
A: This machine enjoys 1 years warranty , any problem , I am on line from 9 am to 5 pm, or you can send me mail , will reply you within 12 hours, I'll give you detail instruction.
Scope Of Application
Filling for liquid ,paste,granule,powder,and so on. Sealing for cup,bottle,bowl,tray,can,jar,bucket etc... | ||||
Yogurt /Milk/Chocolate Filling Sealing Machine | Water Filling Sealing Machine | Juice Filling Sealing Machine | ||
Jelly/Pudding Filling Sealing Machine | Jam Filling Sealing Machine | Sauce Filling Sealing Machine | ||
Instant Noodles Sealing Machine | Tofu/Beancurd Sealing Machine | CoffeeFilling Sealing Machine | ||
Lunch box Sealing Machine | Frozen Food/MAP Packaging Machine | Potato Chips Canister Sealing Machine | ||
Porridge Filling Sealing Machine | Plastic Jar Sealing Machine | Plastic Bucket Sealing Machine | ||
Wet Wipe Can Sealing Machine | Dehumidifier Box Filling Sealing Machine | Cosmetic/Detergent Filling Sealing Machine | ||
