Screw Extrusion Sigma Blade Kneader Mixer Used in Clay/Soap Kneading Machine Laboratory
- Category: >>>
- Supplier: Permix Tec Co. Ltd.
Share on (1600366575498):
Product Overview
Description
Products Description
PerMix Advantages & Services: | ||||||||
● PerMix machines are designed and manufactured as “tailor-made” ones to meet our customers’ individual requirement. | ||||||||
● Since 1954, PerMix has been building our know-how in mixing and processing with our design team located in both Israel and China. | ||||||||
● PerMix has been setting up a global network of agents and representatives to serve our worldwide customers locally and on time. | ||||||||
● PerMix has a lot of experience to sub-contract mixers for well-known equipment suppliers in Europe and USA, and we build the machines to fulfil the highest standard. | ||||||||
● PerMix has its workshop located in Shanghai area, China; where there is a complete and endless production capability at a reasonable price. | ||||||||
● PerMix mixers price is competitive compared with the quality of the same level. | ||||||||
● PerMix offers a comprehensive range of industrial mixing equipment in the market. | ||||||||
● Applications of PerMix industrial mixers cover wherever there is a need for mixing, including but not limited to chemicals, food, cosmetics, rubber, plastics, pharmaceuticals. | ||||||||
INTRODUCTION:

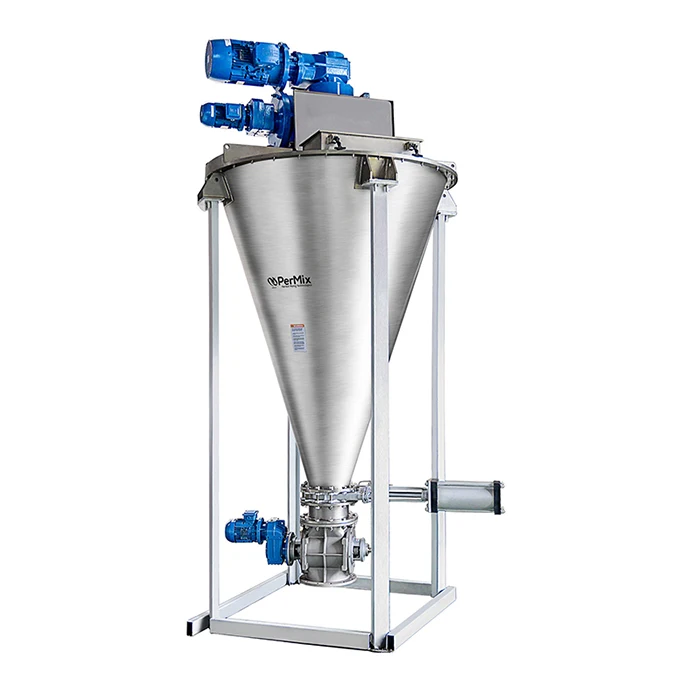

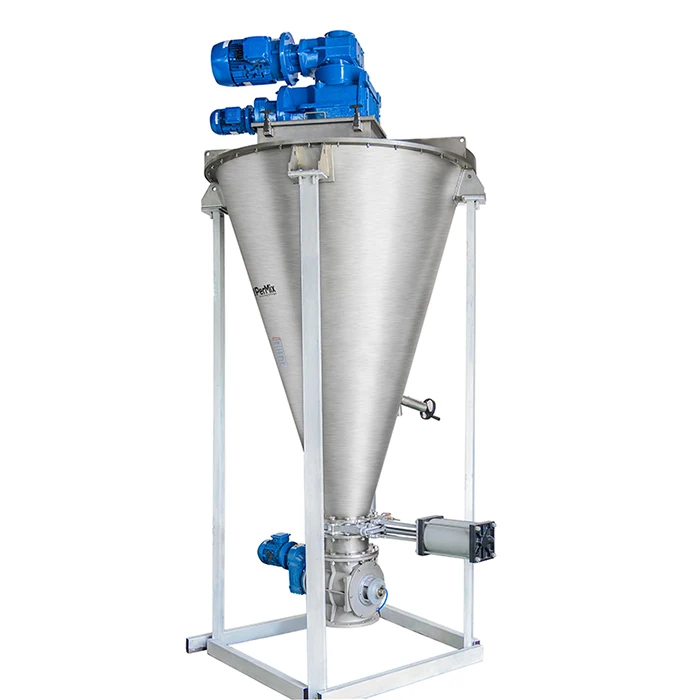

The PerMix PNA series Vertical Powder Blender (Conical Screw Mixer) is a batch mixing equipment used widely in applications that require gentle mixing and minimal heat generation without any product distortion. Because no seals or bearings are exposed in product zone, there is no risk of lubricant contamination. The PerMix PNA series Vertical Powder Blender (Conical Screw Mixer) is featured by its very low energy consumption, low maintenance cost, but high performance of mixing.
WORKING PRINCIPLES:

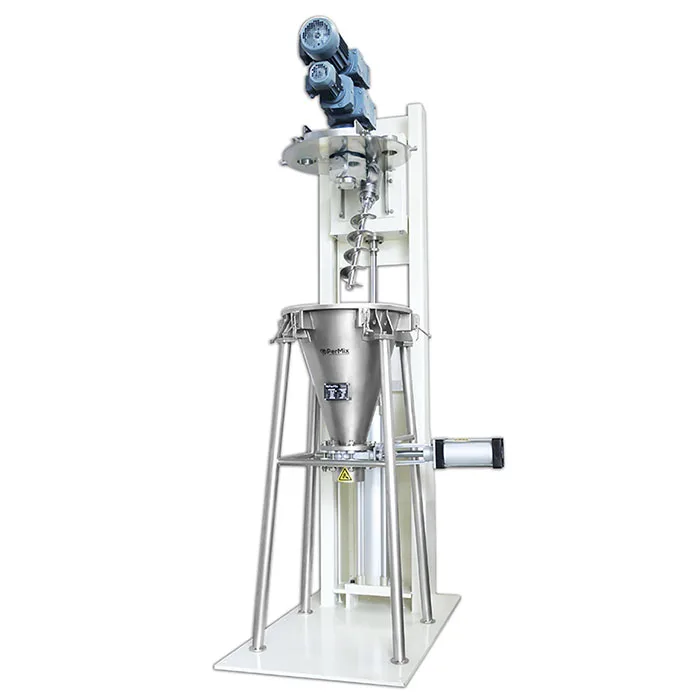

A spiral screw (or two, three screws according to specified application) inside of a PerMix PNA series Conical Screw Mixer rotates by its own axle parallel and near the wall of the cone vessel. It lifts the powders around it from bottom to the top, and then the powder falls down due to the gravity. At the same time, the spiral screw rotates around the center of the cone like a planetary, so that the powders in every corner of the cone can be mixed by the screw.
INSTALLATION AND SET-UP:
a.Screw Type
We offer single screw, double screw and triple screw to give different mixing intensity.
b.Drive system
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
c.Construction Material and Finish
We are able to offer our PVR Mixers with contact part to be built in Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Finish of internal and external finish can be dull polished, 180 grit polished (food grade), or mirror polished. For abrasive materials we offer hardened steel as the contact part.
d.Heating/Cooling jacket
Jacketed trough for heating/cooling operation
e.Vacuum drying & deaerating
The PNA mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
f.Spray nozzle
Liquid can be added into the powder by spray nozzles on the top.ods for the PS series Bottom Entry Mixers. It can be lifted up by a lifting stand (hydraulic or electric), or it can be installed with flange on the top of a tank, or from its side, or at its bottom. For the vacuum or pressurized tank, the mixer must be equipped with a mechanical shaft sealing.
We offer single screw, double screw and triple screw to give different mixing intensity.
b.Drive system
Drive system by geared motor, cycloidal reducer, worm reducer, belt or chain transmission, etc.
c.Construction Material and Finish
We are able to offer our PVR Mixers with contact part to be built in Carbon steel, SS304, SS316/316L, Titanium, Duplex stainless steel, Hastelloy, etc. Finish of internal and external finish can be dull polished, 180 grit polished (food grade), or mirror polished. For abrasive materials we offer hardened steel as the contact part.
d.Heating/Cooling jacket
Jacketed trough for heating/cooling operation
e.Vacuum drying & deaerating
The PNA mixer can be designed for vacuum drying & deaerating or for inner pressure working for special applications.
f.Spray nozzle
Liquid can be added into the powder by spray nozzles on the top.ods for the PS series Bottom Entry Mixers. It can be lifted up by a lifting stand (hydraulic or electric), or it can be installed with flange on the top of a tank, or from its side, or at its bottom. For the vacuum or pressurized tank, the mixer must be equipped with a mechanical shaft sealing.
SPECIFICATION:
Model | Total capacity (liter) | Working capacity (liter) | Power (*) (kW) | Diameter (mm) | H, total height (**) (mm) | Inlet (***) (mm) | Outlet (****) (mm) | Weight (kg) |
PNA-200 | 200 | 120 | 2.2+0.37 | 888 | 1557 | 140 | 230 | 500 |
PNA-300 | 300 | 180 | 2.2+0.37 | 990 | 1722 | 180 | 230 | 550 |
PNA-500 | 500 | 300 | 3+0.55 | 1156 | 1991 | 200 | 230 | 600 |
PNA-800 | 800 | 480 | 4+0.55 | 1492 | 2256 | 250 | 300 | 950 |
PNA-1000 | 1000 | 600 | 4+0.55 | 1600 | 2432 | 300 | 300 | 1200 |
PNA-1500 | 1500 | 900 | 5.5+0.75 | 1780 | 2725 | 300 | 300 | 1350 |
PNA-2000 | 2000 | 1200 | 5.5+0.75 | 1948 | 3001 | 350 | 350 | 1500 |
PNA-2500 | 2500 | 1500 | 7.5+1.5 | 2062 | 3024 | 350 | 350 | 1800 |
PNA-3000 | 3000 | 1800 | 7.5+1.5 | 2175 | 3207 | 350 | 350 | 2100 |
PNA-4000 | 4000 | 2400 | 11+2.2 | 2435 | 4010 | 400 | 400 | 2500 |
PNA-5000 | 5000 | 3000 | 15+2.2 | 2578 | 4260 | 400 | 400 | 3000 |
PNA-6000 | 6000 | 3600 | 18.5+3 | 2715 | 4470 | 400 | 400 | 3500 |
PNA-8000 | 8000 | 4800 | 22+3 | 2792 | 5000 | 400 | 450 | 3800 |
PNA-10000 | 10000 | 6000 | 30+4 | 3000 | 5240 | 500 | 450 | 4300 |
1. (*) (**) (***) (****): Changes are available according to the customer’s request.
2. Customized sizes available as per request
3. All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.
4. PerMix reserves the right to modify the design without notice.
2. Customized sizes available as per request
3. All specifications and illustrations are as accurate as is reasonably possible, but they are not binding.
4. PerMix reserves the right to modify the design without notice.
FEATURES & ADVANTAGES:
1.No minimum volume required
2.Complete discharge of materials
3.Easy cleaning of the machine
4.Gentle mixing for fragile and friction sensitive materials
5.Free of cross contamination with shaft sealing above the product
2.Complete discharge of materials
3.Easy cleaning of the machine
4.Gentle mixing for fragile and friction sensitive materials
5.Free of cross contamination with shaft sealing above the product
Product Details
More Products
Our Advantage
Company Information
Our Customers
Packaging & Shipping
FAQ
Q: What is your price level compared with European suppliers and local Chinese suppliers?
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines.
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc.We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment.
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment,we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
