Win-Win started from the production of single waterjet brand parts, and gradually developed and expanded the
production line. Now Win-Win has become a comprehensive professional waterjet manufacturer integrating design, research and development, customization, production, sales and after-sales service. Win-Win currently has Liaoning Shenyang head office and Chongqing branch in China, and Shanghai branch is in preparation. There are also offices in many foreign countries.
Win-Win adheres to the original intention: quality first, customer first, and win-win cooperation. We are always on the way forward.
Win-Win's products include various well-known brands of waterjet parts, foaming machine s, a variety of water jet intensifier pumps, 2D waterjet cutting machines and 3D waterjet cutting robot integration, etc.
Win-Win has also made great achievements in the field of waterjet. Our equipment has been sold to many countries in the world, such as Russia, the United States, Brazil, South Africa, and many countries in Southeast Asia, and has received unanimous praise from customers. And it has signed long-term cooperation with many well-known international automobile brand interior manufacturers, such as BMW, Mercedes-Benz, Audi and so on.
Win-Win adheres to the original intention: quality first, customer first, and win-win cooperation. We are always on the way forward.
Products Description

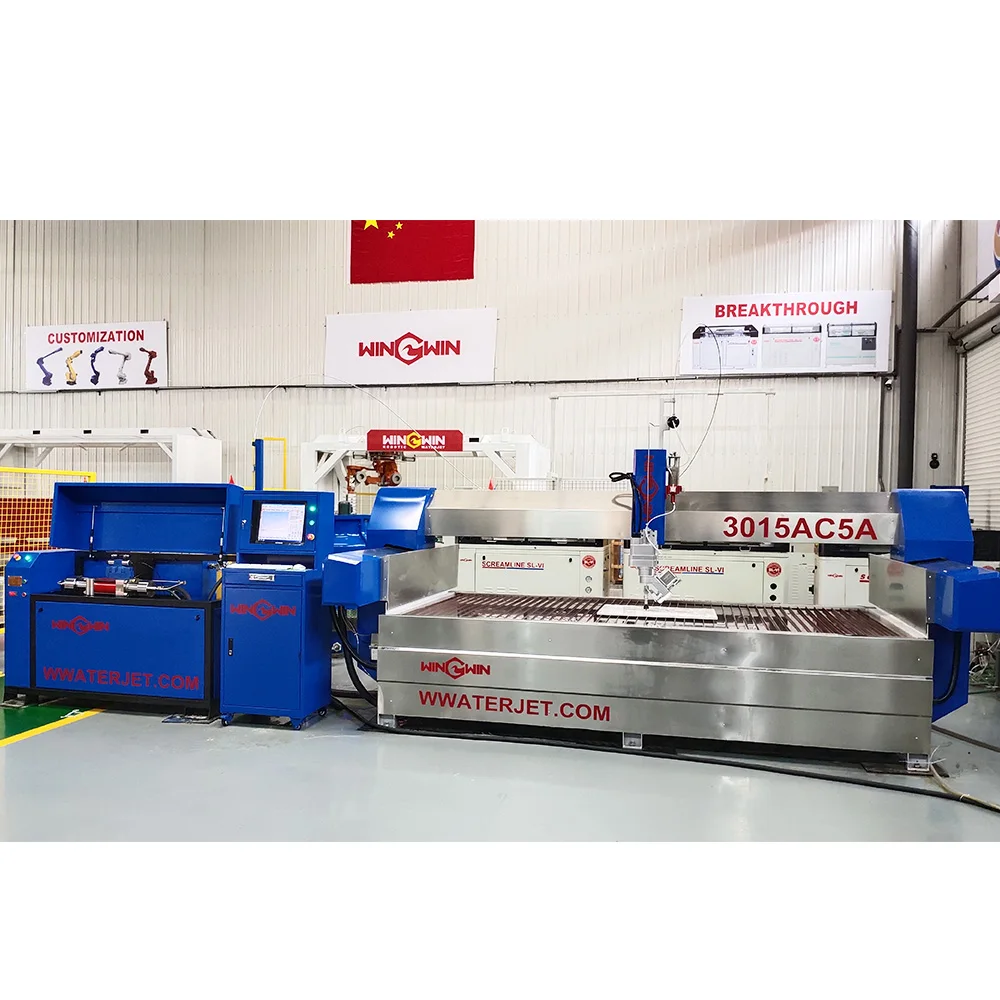

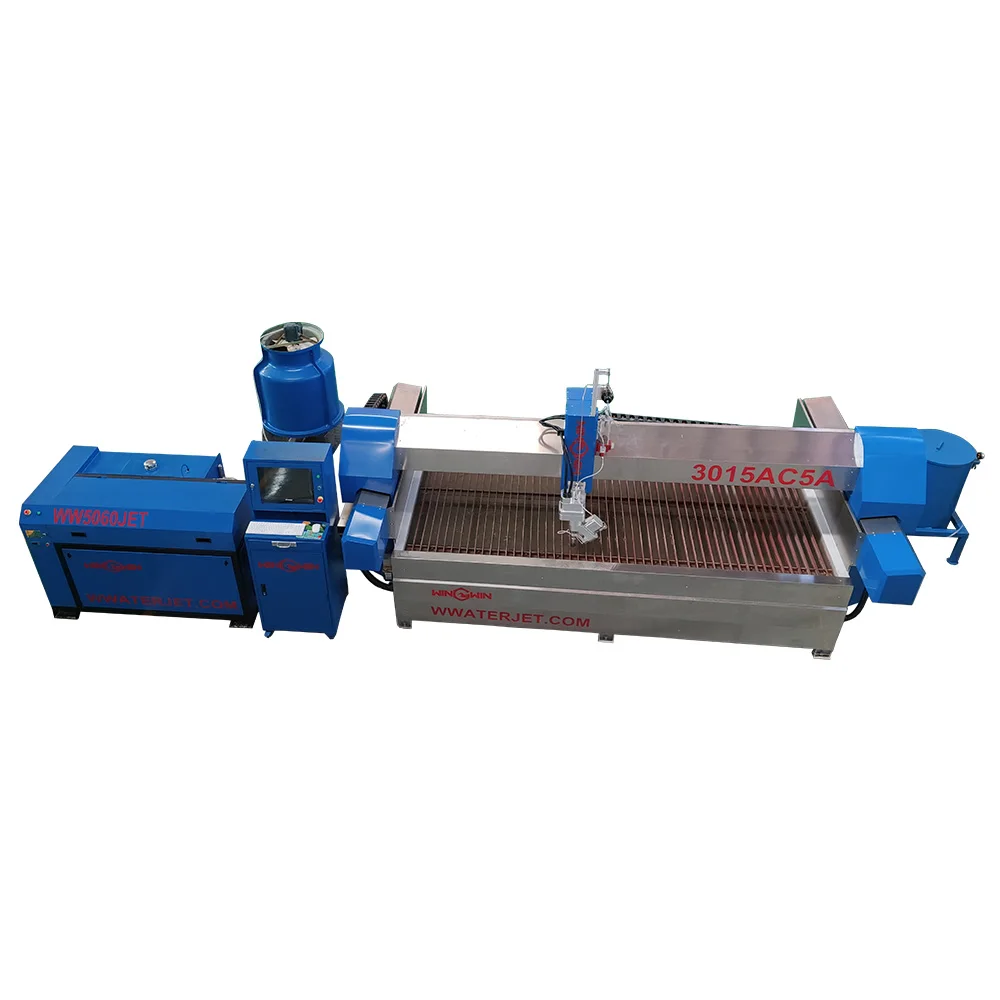

A set of Win-Win waterjet cutting machine usually contains the above 5 components: water jet cutting table, waterjet intensifier pump, CNC control system, abrasive feeder tank, and cooling system.
We can customize the color, style, size, design and manufacturing according to your requirements.
Product details
Waterjet Cutting Table
Series | AC5Axis-2015 Waterjet | Type | Gantry Table | ||
Cutting Angle | ±68 Degrees | Swing Angle Accuracy | ±0.01 Degree | ||
Table Size | 2000mmx1500mmx200mm | Travel Of Z Axis | 200mm | ||
Cutting Precision | ±0.1mm | RE-Positioning Accuracy | ±0.025mm/min | ||
Cutting Speed | 11000mm/min | Certificate | CE ISO | ||
Motor | 30kw / 40HP | After-sales Service | Field Installation Online Service | ||
MAX.Cutting Range | 3000mmx1500mmx200mm | Material | Stainless steel | ||

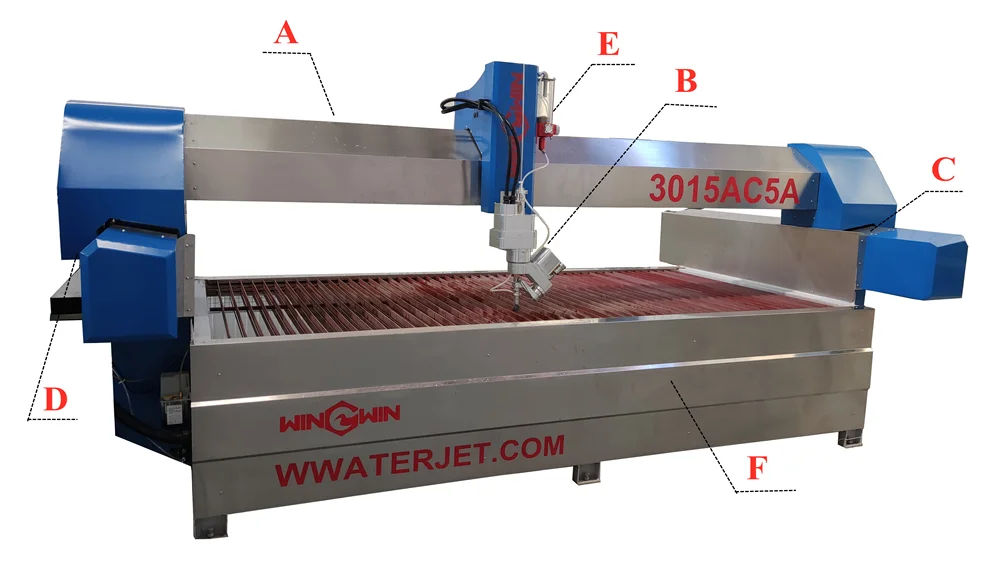

A. The overall gantry structure, both ends of the cutting arm are supported, and it is not easy to tilt, even
if it is used for a long time, it is not easy to cause cutting errors, and the cutting is more stable. Moreover,
with this structure, multiple cutting heads can be added to realize simultaneous cutting and use of multiple
cutting heads.
if it is used for a long time, it is not easy to cause cutting errors, and the cutting is more stable. Moreover,
with this structure, multiple cutting heads can be added to realize simultaneous cutting and use of multiple
cutting heads.

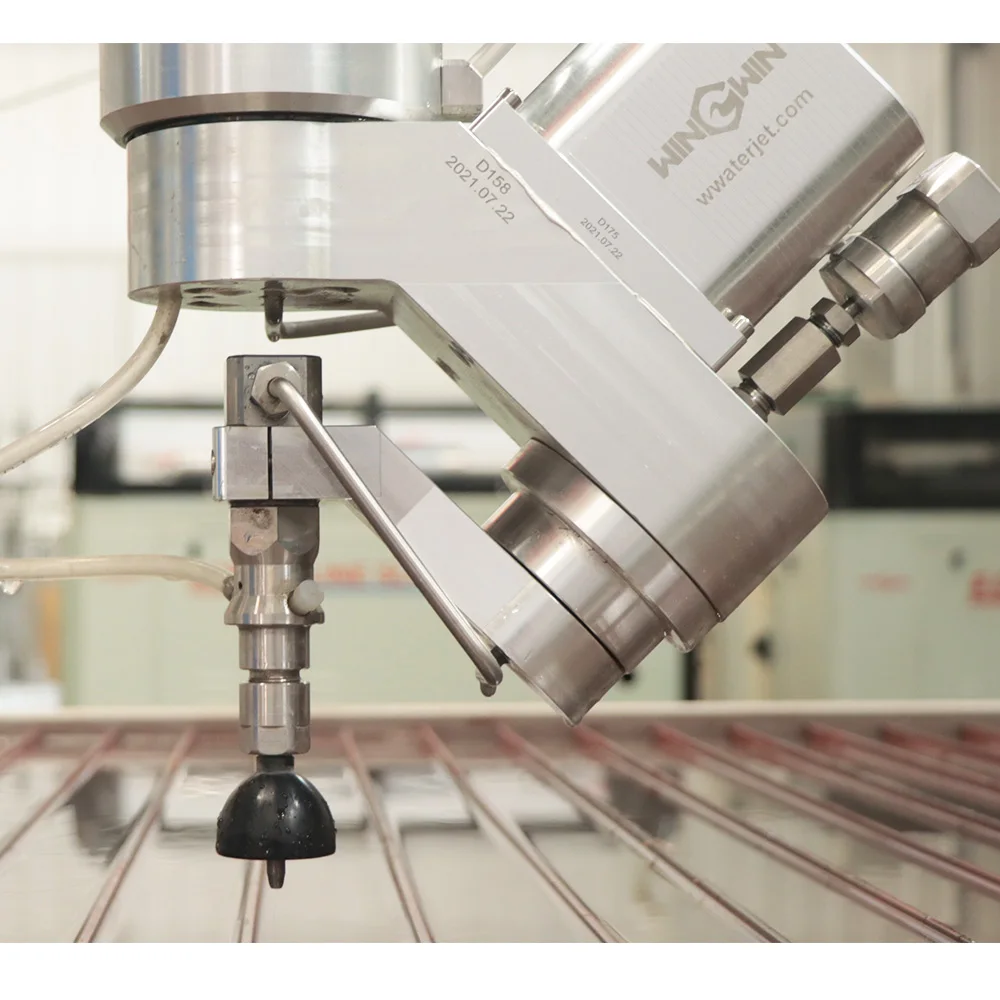

B. Lightweight aluminum AC-5aixs waterjet
cutting head, light weight, high hardness, ligh-
ten gantry running load, relatively fast walking
speed, higher cutting efficiency.
ten gantry running load, relatively fast walking
speed, higher cutting efficiency.
C. The thick screw and large slide block are all made of
well-known Taiwanese brands, and the X, Y axis adopts the self-made oil-immersed screw guide rail lubrication method, which is better than the traditional timing lubrication effect, better dust-proof effect, and service life Longer.
D. And our table cancels the traditional dustproof folding cloth, and adopts a new integrated steel structure, which greatly improves the dustproof and waterproof effect, and eliminates the trouble of replacing the dustproof.
E. Unique abrasive control valve design, simple structure, smooth discharge abrasive, no wearing parts, maintenance-free, and anti-reflow function.
F. The table is made of all 304 stainless steel, anti-rust,
anti-corrosion, bright as new for 10 years.

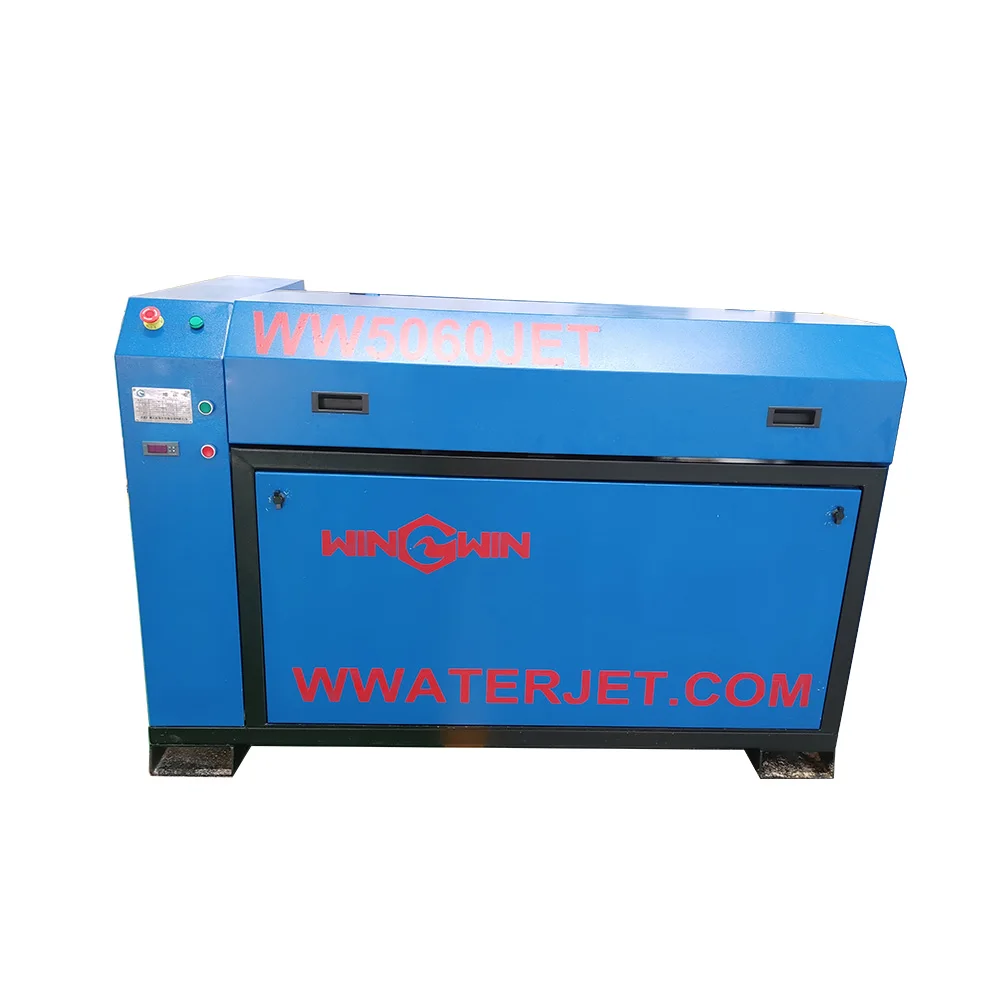

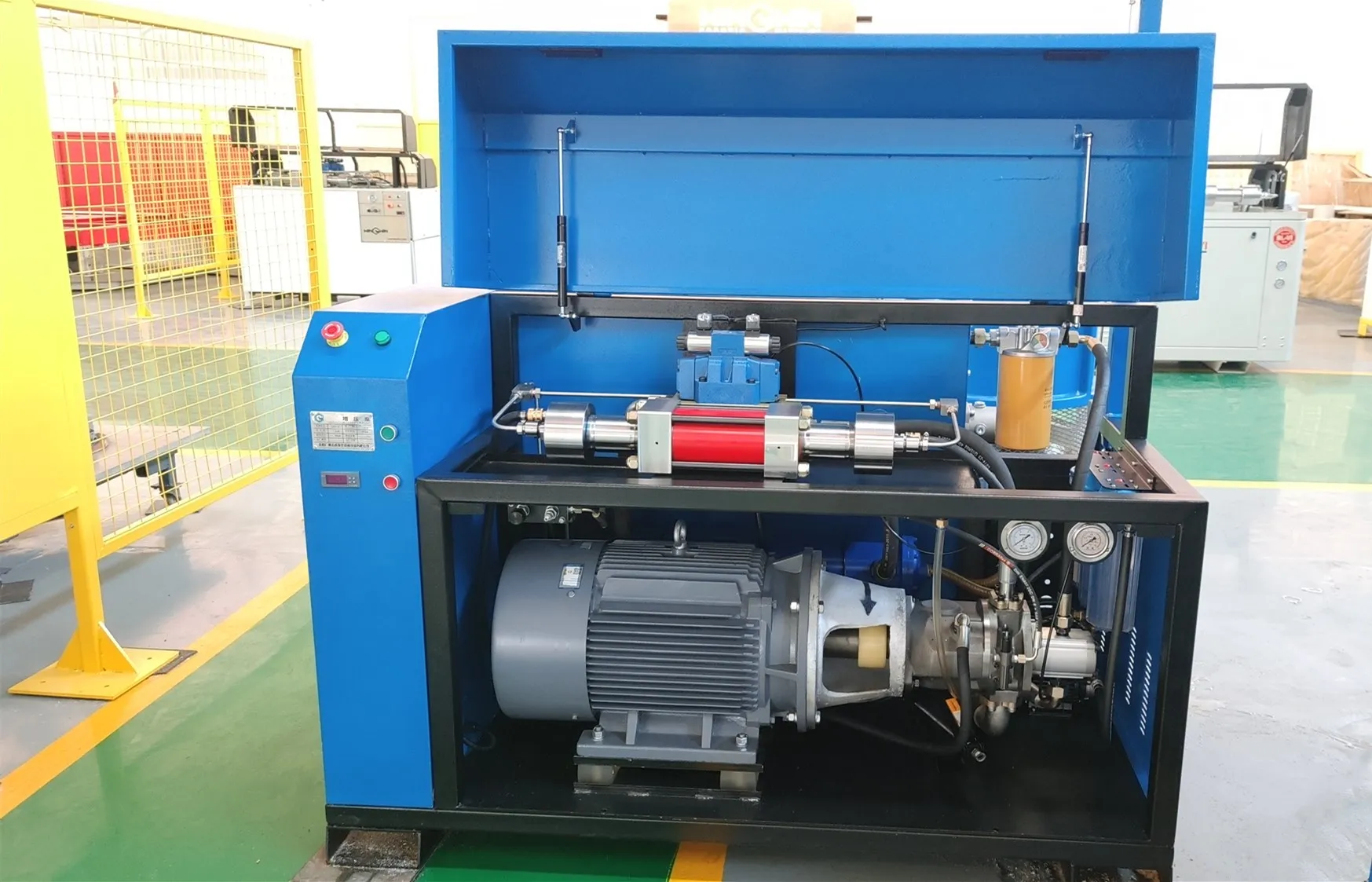

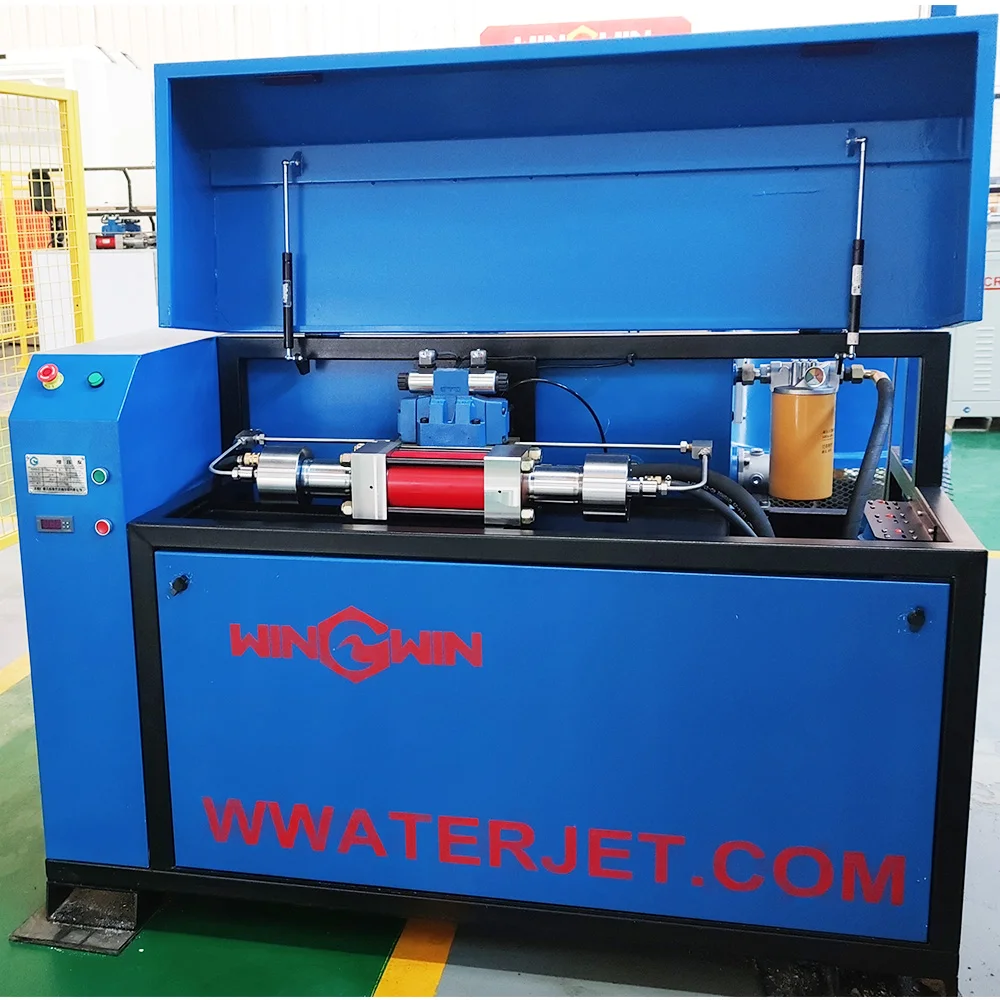

Waterjet Intensifier Pump
Versatile intensifier
Automatic variable pump
Omron PLC
1.International high standard. universal intensifier, imported spare parts.
2.420MPa ultra-high pressure. excellent cutting efficiency.
3.1.2L large capacity accumulator. eliminate the fluctuation of the cutting. integral forging. no rubber seals. maintenance-free
4, Automatic variable pump, energy-saving and reduce heating, extend the life of hydraulic components.
5.Independent circulating filtration system. ensure the optimization of oil quality.
6.Optional cooling system: fan-oil cooling system, fan-water cooling system, refrigerator cooling system, strictly control oil
temperature in reasonable range, suitable for 24 hours work .
7.The automatic protection system shutdown when water shortage or overheating, could work continuously and safely.
2.420MPa ultra-high pressure. excellent cutting efficiency.
3.1.2L large capacity accumulator. eliminate the fluctuation of the cutting. integral forging. no rubber seals. maintenance-free
4, Automatic variable pump, energy-saving and reduce heating, extend the life of hydraulic components.
5.Independent circulating filtration system. ensure the optimization of oil quality.
6.Optional cooling system: fan-oil cooling system, fan-water cooling system, refrigerator cooling system, strictly control oil
temperature in reasonable range, suitable for 24 hours work .
7.The automatic protection system shutdown when water shortage or overheating, could work continuously and safely.
Discription | Unit | Parameter |
Motor Power Rate | KW/HP | 30/40 |
Max. Discharge | L/min | 3.8 |
Pressure Enhancement Factor | 20.21 | |
Max. Reversing Rate | Times/min | 60 |
Capacity of Accumulator | L | 1.2 |
Inlet Water Pressure | psi | 35-100 |
Inlet Water Filter | μ m abs | 10 |
Voltage | V | 380 |
Intensifier Quantity | Piece | 1 |
Oil Tank Volume | L | 150 |
Temp. Control Method | Sensor | |
Reversing Control Method | Sensor | |
Cooling Method | Cold-Heat Exchanger | |
Environment Temperature | 5-40°C | |
Motor Drive Mode | Sevro/Standard Oil | |
Hydraulic Oil | Type 45 Hydraulic Oil | |
Orifice Diameter | mm | 0.33 |
L*W*H | m | 1.8*1.1*1.3 |

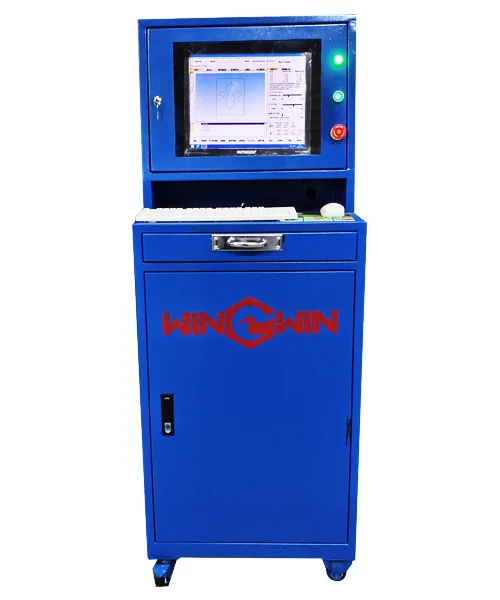

CNC Control System
Brand | WEIHONG |
Display | Industry-grade display |
Lauguage | English/ Chinese/ Others |
System version | Win 10 |
Format | CAD/ G/ DXF/PLT/ENG ,etc |
System function | AC 5 AXIS |
DIMENSION(L*W*H) | 600mm*550mm*1200mm |
WEIGHT | 200kG |
POWER SUPPLY | 220V 50/60Hz |
PROFESSIONAL WATER JET SOFTWARE | NC Studio |
Desription of
WEIHONG CNC Control System
A. Industrial-grade display, waterjet special software, easy to operate.
B. Absolute encoder system, memory function after power failure.
C. Simulation operation, pause and start at any time, continue to cut from any position and point.

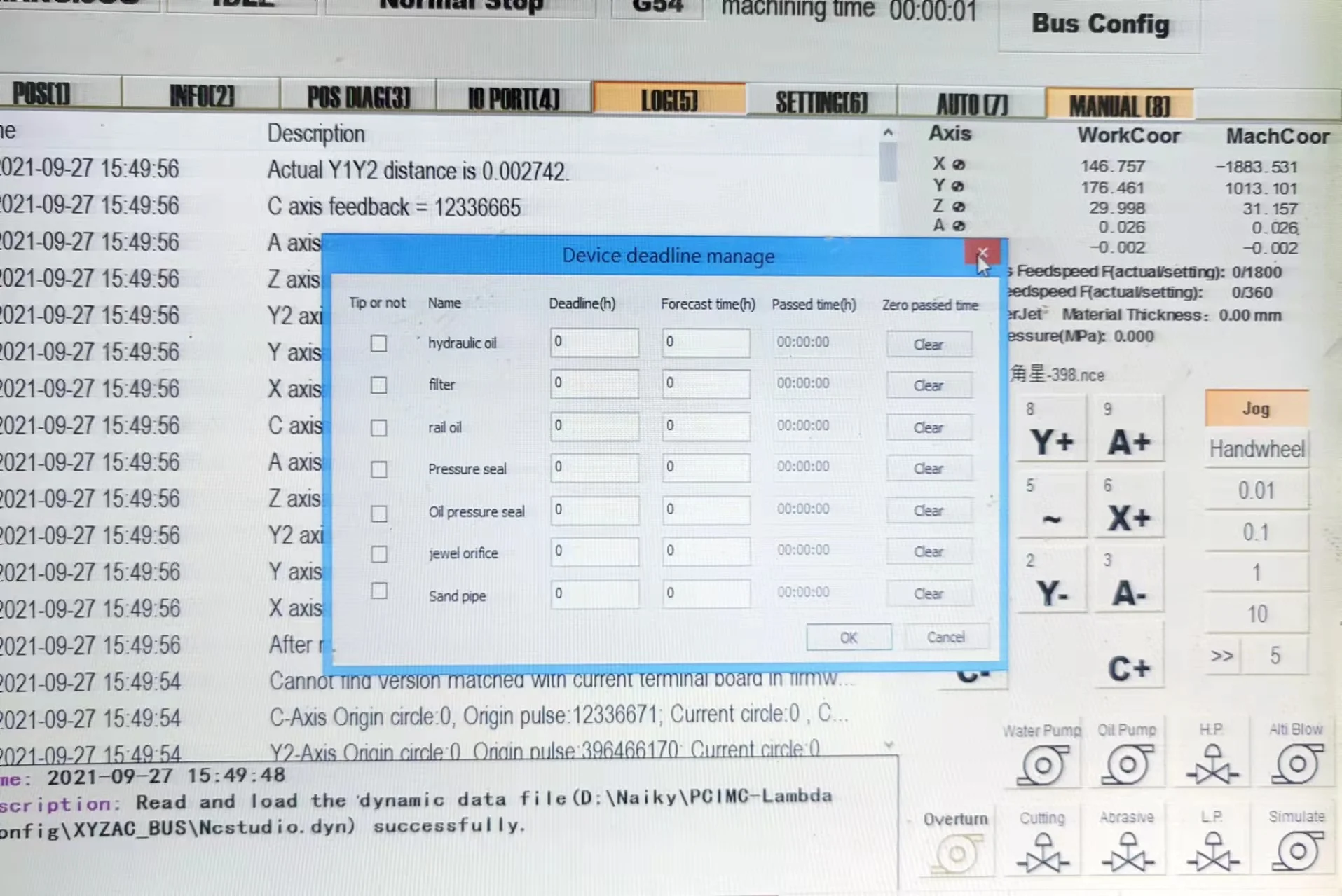

D. A more user-friendly and intelligent function has been added, which is the setting and reminder function
of the replacement cycle of consumable parts, so that you can use it without any worries.(See the figure below for details)
of the replacement cycle of consumable parts, so that you can use it without any worries.(See the figure below for details)

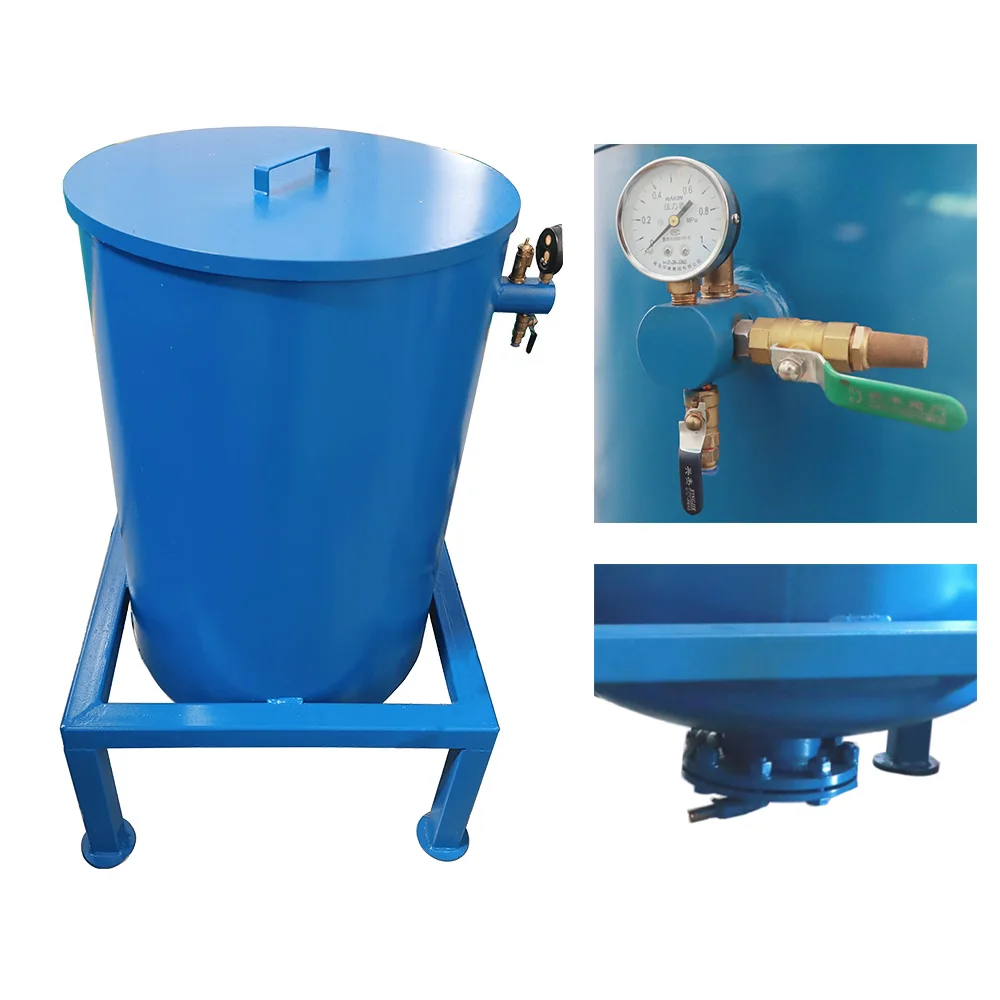

Abrasive Feeder Tank
Wall thickness | 4.5mm |
Air pressure | (explosion-proof) 0.2mpa-1mpa |
Max capacity | 200kg |
1, The auto abrasive delivery system, continuously supplies abrasive to the abrasive regulator tank on the cutter head, by the large abrasive tank.
2, Reasonable design, make this large-capacity abrasive tank cut 8-10 hours without interruption.
3, WIthout any electrical components, it is free of maintenance, zero defects.
4, Large diameter flange at the bottom, easy to remove debris.
Cooling System

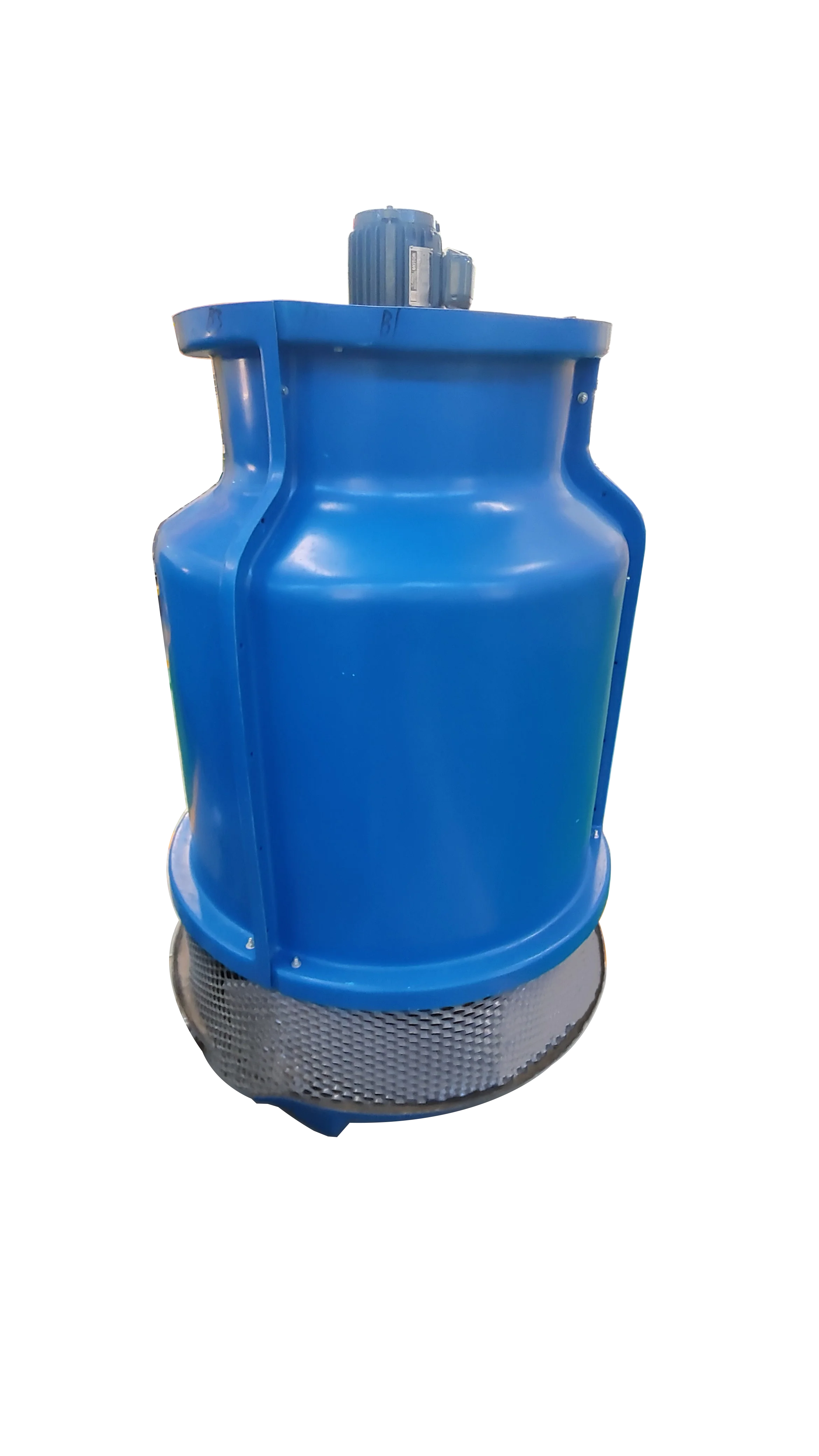

Water Cooling Tower
Water cooling tower can ensure the basic requiements of water cutting equipment cooling, simple and practical, inexpensive.

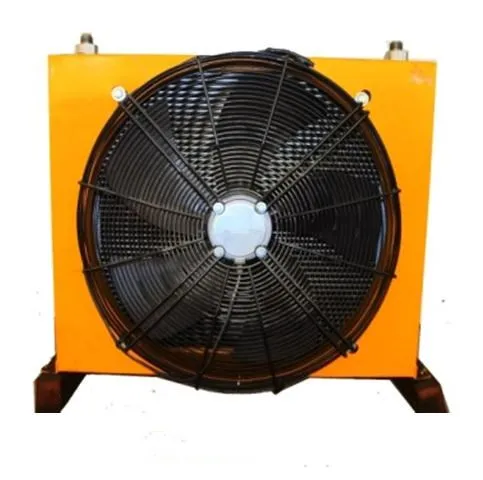

Fan Cooler
Air cooler can improve the surrounding environment while ensuring the basic requirements of water jet cutting.

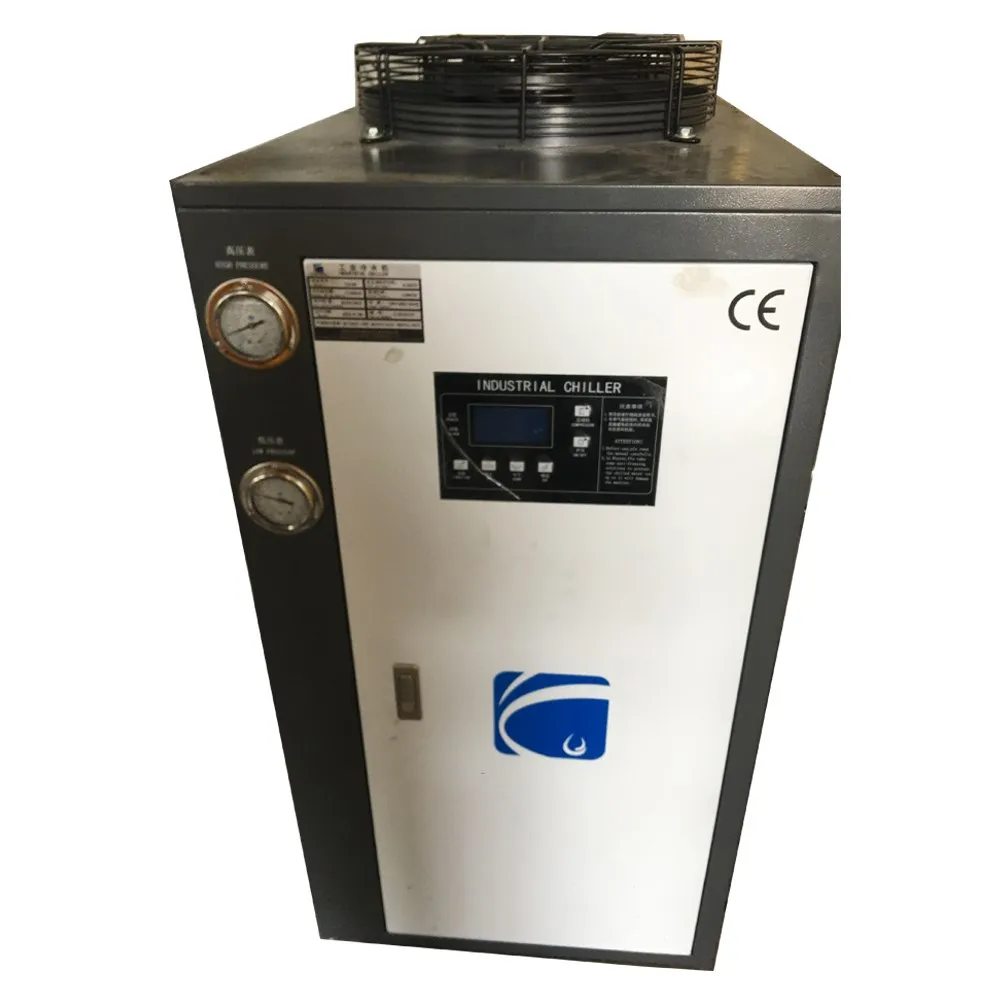

Refeigerator Cooler/Chiller
Refrigerator with super cooling effect, internal closed circulation system, more reliable, and long time continuous work.
You May Need Such a Configuration and Machine?

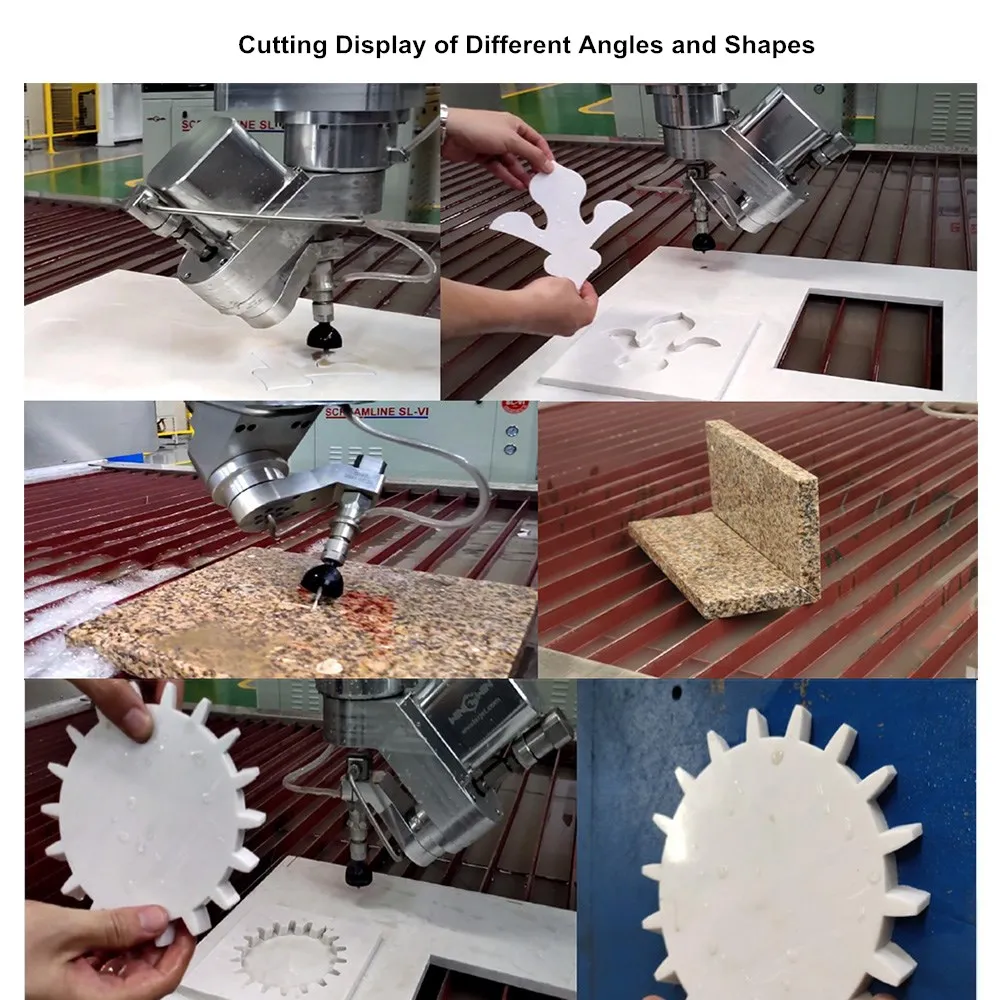

3AIXS Waterjet Cutting Machine
Vertical cutting, economical price, simple and practical operation, and can also cut different materials.
AB-5AXIS Waterjet Cutting Machine
Cutting with an angle of ±10 degrees is especially suitable for tile mosaics, and the cutting operation of the large AB5 shaft head is more stable.
AC-5AXIS Waterjet Cutting Machine
It can cut at a large angle of 0-68 degrees, which is suitable for cutting various materials, especially the 45-degree diagonal splicing required by the marble industry.
Water Filtration System
Filter various impurities in the machine water, soften the water quality, remove calcium and magnesium ions in the water, and prolong the service life of the machine.
Rollover Table
If the material you need to cut is very large and heavy, you can use this reversible table to save time and effort for loading and unloading materials.
Infrared Positioning
Infrared positioning and height measurement function make cutting more accurate and more efficient.
Application

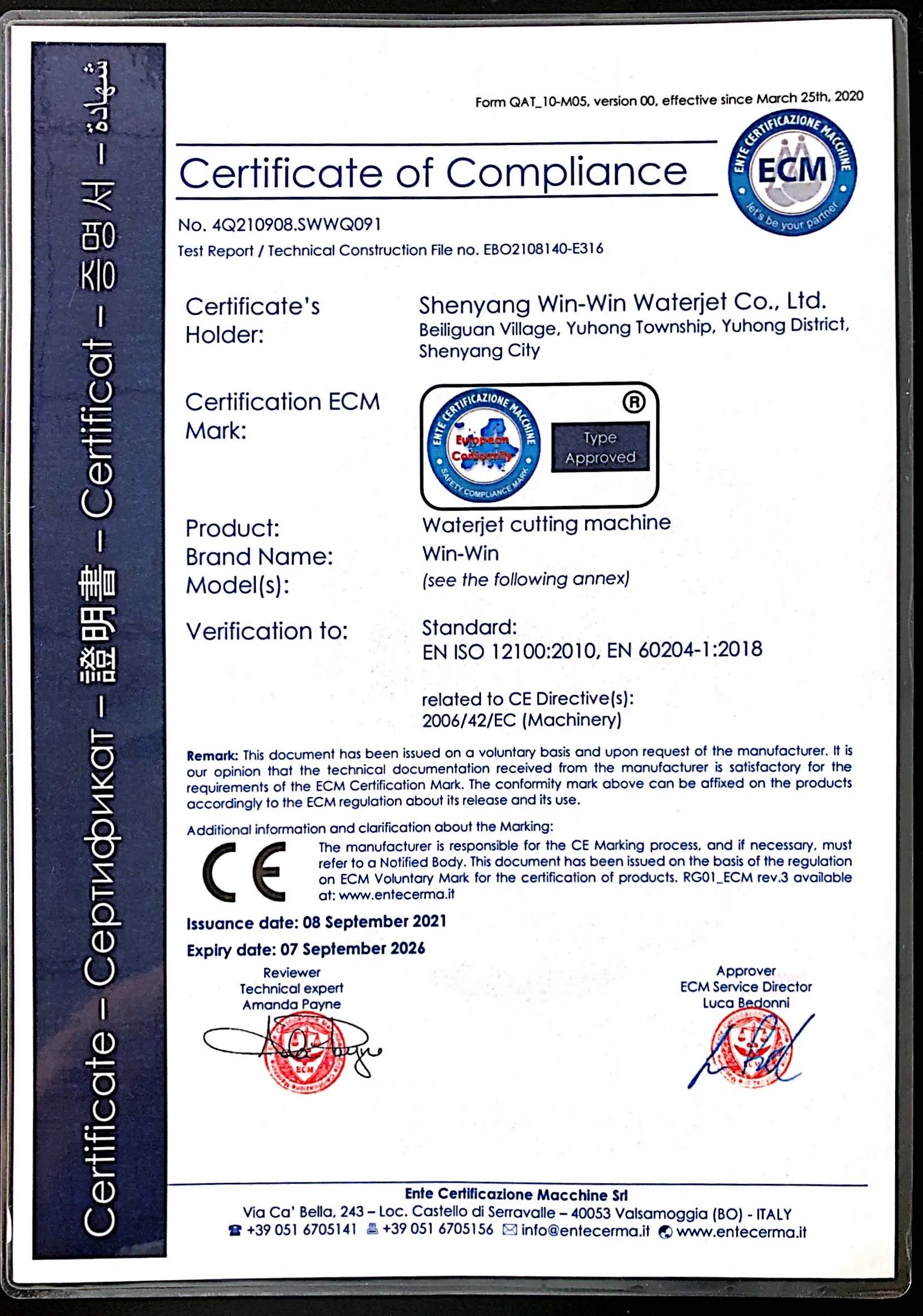

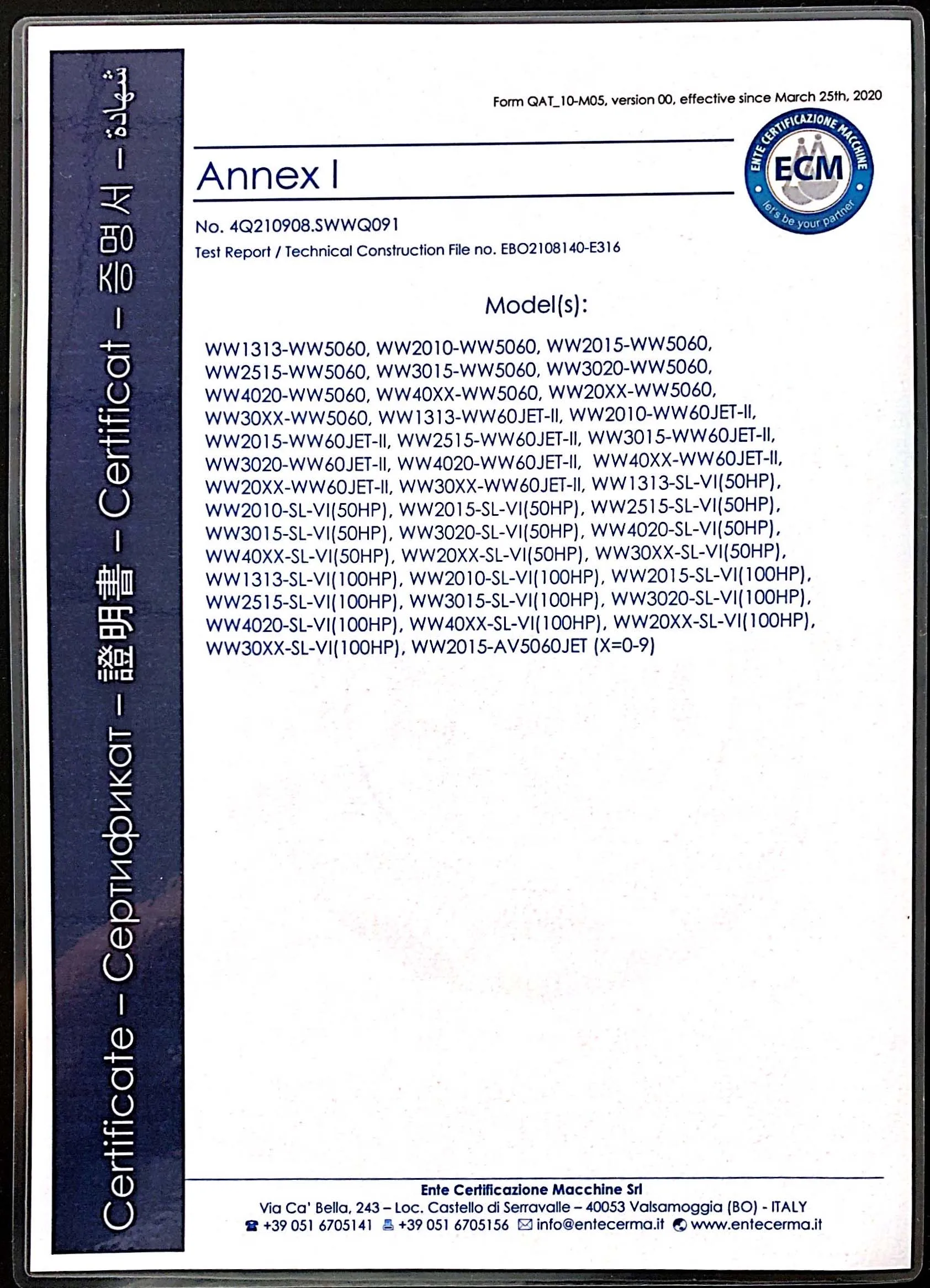

Cerfication
