CE big garlic onion blueberry mango yam sauce colloid milling machine mini commercial machinery to make peanut butter powder
CE big garlic onion blueberry mango yam sauce colloid milling machine mini commercial machinery to make peanut butter powder
CE big garlic onion blueberry mango yam sauce colloid milling machine mini commercial machinery to make peanut butter powder
CE big garlic onion blueberry mango yam sauce colloid milling machine mini commercial machinery to make peanut butter powder
CE big garlic onion blueberry mango yam sauce colloid milling machine mini commercial machinery to make peanut butter powder
CE big garlic onion blueberry mango yam sauce colloid milling machine mini commercial machinery to make peanut butter powder
CE big garlic onion blueberry mango yam sauce colloid milling machine mini commercial machinery to make peanut butter powder

CE big garlic onion blueberry mango yam sauce colloid milling machine mini commercial machinery to make peanut butter powder

Share on (1600366681532):


Price:$1,800.00

Quantity:


Product Overview

Description



Products Description




JM series colloid mill is a new type of wet ultrafine processing equipment, which is suitable for homogenization, emulsification, mixing and crushing of various semi-fluids, fluids and emulsions.

The working principle of colloid mill is shearing, grinding and high-speed stirring. Grinding relies on the relative movement of two tooth-shaped surfaces, one of which rotates at high speed and the other is stationary, so that the material passing between the tooth surfaces is subjected to great shear and friction forces, and at the same time, it is vibrated at high frequency, high-speed vortex, etc. Under the action of complex forces, the materials can be effectively dispersed, emulsified, crushed and homogenized.


Model
Fineness
(um)
Capacity
(kg/h)
Motor
(KW)
Dimension
(L*W*H, mm)
Weight
（kg）
JM-50




2-50
5-30
1.1
520*250*555
70
JM-80
70-500
4
685*335*928
210
JM-130
500-2000
11
975*456*1054
400
JM-180
1000-6000
18.5/22
981*476*1124
420
JM-240
4000-10000
37/45
1319*500*1276
1000
JM-300
6000-20000
55
1600*622*1428
1600
JM-450
8000-25000
160/200
2140*730*1920
3500


Application


Peanut Butter

Sesame Sauce
Nut Butter


Chili Sauce

Mustard Sauce

Ginger Sauce


Fruit Suce

Tomato Sauce
Vegetable Juice


Soy Milk
Cocoa Butter
Honey


Details Images

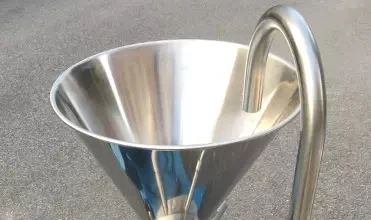

Hopper
304,316L stainless steel material
sanitary and long life，widely used in industry，food，medicine and other industries.
Customized size.


Teeth
High precision stainless steel mill,
tight gear structure,
3000 r/min speed grinding material in a moment.

Adjusting disk
Adjust fineness according to demand,
about 2-70 um，
easy to operate.


Outlet 1
Easy to install and remove, convenient for cleaning,
for example, fruit juice
Choose different outlet according to different materials.

Outlet 2
Large outlet, fast speed, customizable,
for example, peanut butter

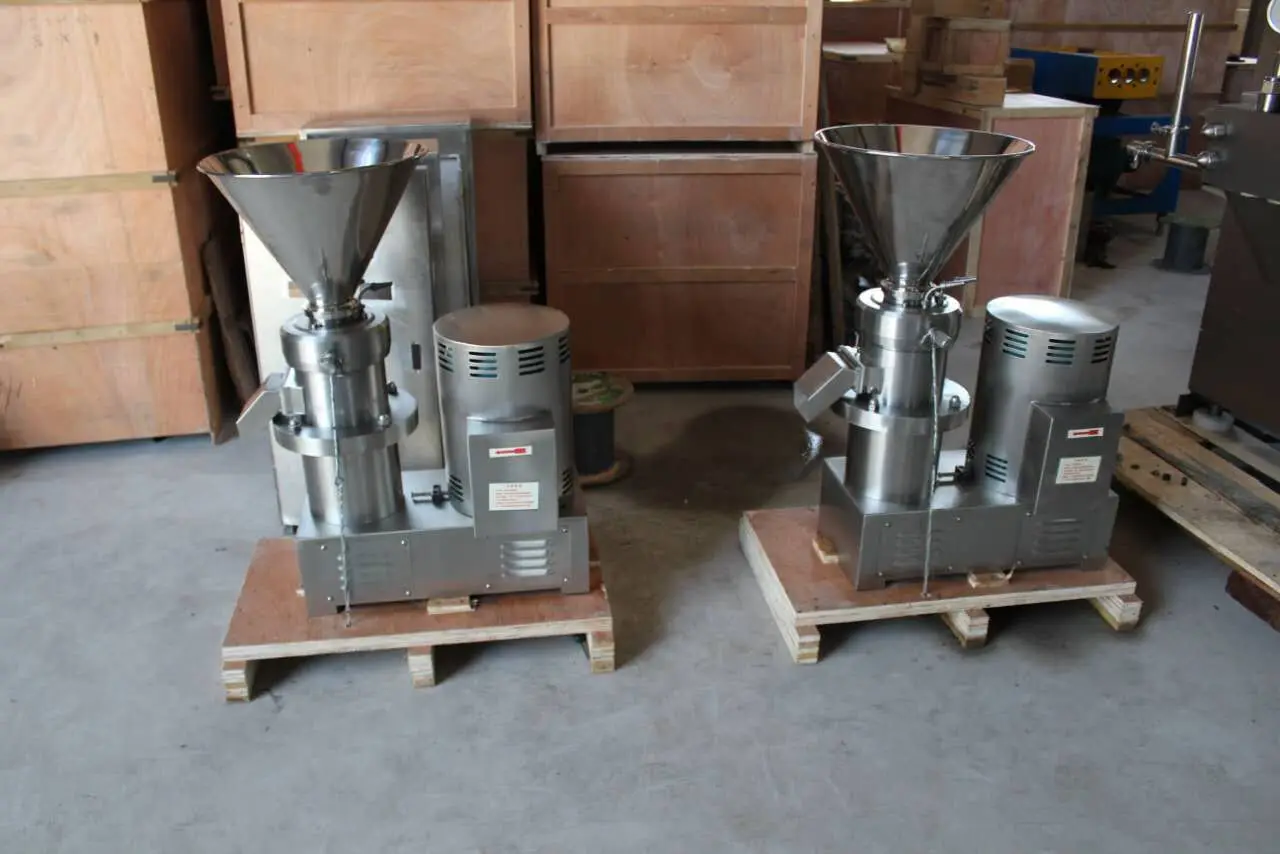

Packing & Delivery
