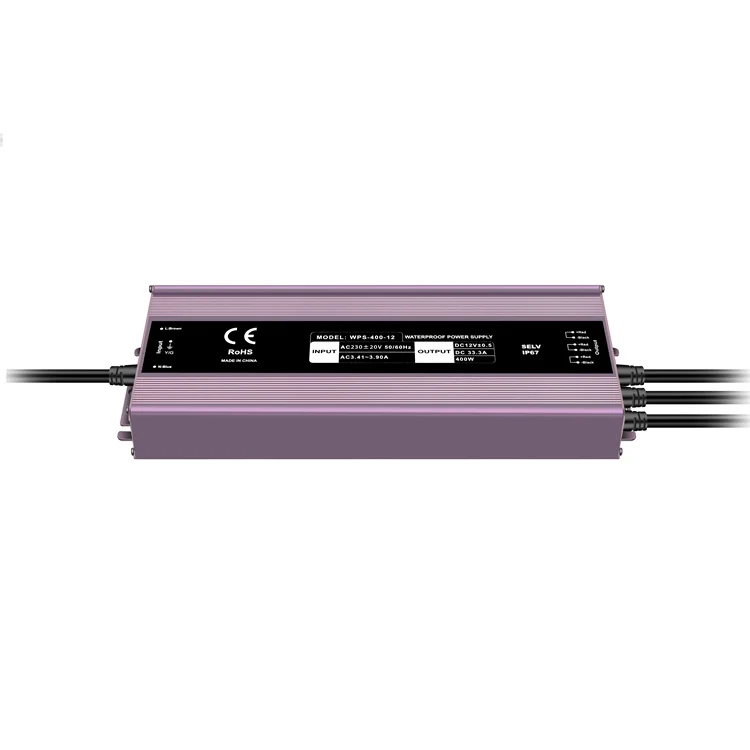

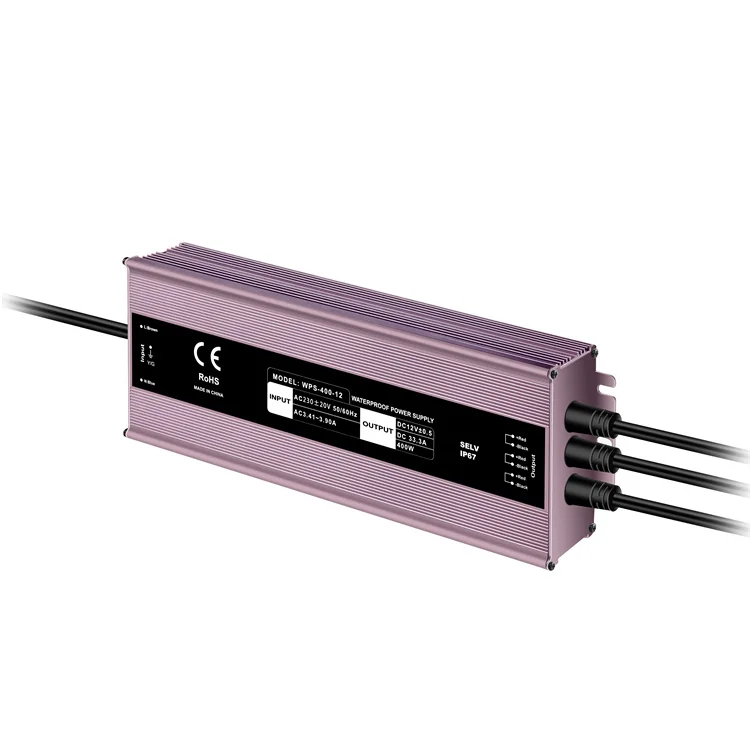

12V Fully Encapsulated 400W 16.67A LED Driver IP67 CCTV Camera Waterproof switching Power Supply
- Category: >>>
- Supplier: Shenzhen Xingzhiyou Technology Co. Ltd.
Share on (1600366735974):
Product Overview
Description
Product Description
Features
* Constant voltage style power supply
* Universal AC input/Full range(12W~120W); European AC input range(150W~300W)
* Cooling by free air convection
* Fully encapsulated with IP67 level
* 100% full load burn-in test
* 12W~60W Slim Type Small volume, low weight and high efficiency
* Protections: short circuit, over load, over voltage and over temperature
* CE& RoHS certifications.
* 3 years warranty
* Constant voltage style power supply
* Universal AC input/Full range(12W~120W); European AC input range(150W~300W)
* Cooling by free air convection
* Fully encapsulated with IP67 level
* 100% full load burn-in test
* 12W~60W Slim Type Small volume, low weight and high efficiency
* Protections: short circuit, over load, over voltage and over temperature
* CE& RoHS certifications.
* 3 years warranty
Specification
Product No. | WP-150-12 | WP-150-24 | |||
Output | DC voltage | 12V | 24V | ||
Rated Current | 12.5A | 6.25A | |||
Current Range | 0-12.5A | 0-6.25A | |||
Rated Power | 150W | 150W | |||
Ripple and Noise(Max)Note.2 | 300mVp-p | 350mVp-p | |||
Voltage adjustment | 11.6-12.4v | 23.3-24.4V | |||
Voltage Accuracy Note3 | ±3% | ±3% | |||
Linear Adjustment Note4 | ±0.5% | ±0.5% | |||
Load Adjustment Note5 | ±2% | 1.50% | |||
Start and rise time | 1000ms,30ms/230VAC 1000ms,30ms/176V | ||||
Hold time（Typ） | 50ms/230VAC 10ms/176AC | ||||
Input | Voltage range | 176-264VAC | |||
Frequency range | 47-63HZ | ||||
Efficiency（Typ） | 80% | 84% | |||
AC current （Typ） | 1.76A/90V 1.35A/220V | ||||
Surge current (Typ) | Cold Start：65A/230VAC | ||||
Current leak | <2mA/240VAC | ||||
Protection | Overload | Larger than 105% of capacity | |||
restoration after abnormity removed | |||||
Overheat | Overheat protection starts when temperature in transistor over 140℃ | ||||
Automatic restoration when temperature is back normal | |||||
Environment | Working temp. | -20～+60℃(Refer to the tenuation curve) | |||
Working humidity | 20～90% RH, without condense | ||||
Storage temp & hmdty | -40～+80℃ | ||||
Temp. coefficient | ±0.03%/℃ （0～50℃） | ||||
Vibration proof | 10～500HZ,5G 10min / cycle，X、Y、Z axes 60 min each | ||||
Safety reg. & EMC (Note.6） | Safety regulation | GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD) | |||
Voltage proof | I/P-O:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | ||||
insulation resistance | I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/70% RH | ||||
EMC irradiation | EN 55015:2006;EN61000-3-2:1995+A2:2005 | ||||
EMC disturbance proof | EN 61000-3-2:2006; | ||||
Dimensions | 230*65*30(L*W*H) | ||||
Packing | 1.22Kg | ||||
Notes: | 1. Unless specially indicated, all data are taken under 230VAC input, rated load and 25℃ environment temp. | ||||
2.Ripple and noise: measured with a 12” double ripple cord connected in parallel with a 0.1μF and a 47 μF capacitor on 20MHz bandwidth. | |||||
3.Accuracy: including preset errors, linear adjustment rate and load adjustment rate. | |||||
4.Linear adjustment: taken under rated load from low voltage to high voltage. | |||||
5.Load adjustment: taken under 0~100% of rated load. | |||||
6. Power supply is taken as part of the whole system, and needs to be confirmed with terminal instruments for EMC. | |||||
Packing & Delivery
Packing:
White/brown or customized color box +Carton(double wall corrugated board); Wood case if necenarry.
Shipping:
1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;
2. By Air freight or by Sea for large quantity, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
White/brown or customized color box +Carton(double wall corrugated board); Wood case if necenarry.
Shipping:
1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;
2. By Air freight or by Sea for large quantity, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
Recommend Products
Company Profile
OUR COMPANY
TOP DRIVER POWER SUPPLY - www.top-driver.com
Shenzhen Xingzhiyou Technology Co.ltd devote ourselves to R&D, manufacturing and exporting 5V,12V and 24V DC single output constant voltage switching mode power supplies(power adapters,led drivers) for LED module, LED strip lighting and CCTV camera monitoring etc...we have more than 15 years experience. OEM/ODM order are highly welcomed!
Shenzhen Xingzhiyou Technology Co.ltd devote ourselves to R&D, manufacturing and exporting 5V,12V and 24V DC single output constant voltage switching mode power supplies(power adapters,led drivers) for LED module, LED strip lighting and CCTV camera monitoring etc...we have more than 15 years experience. OEM/ODM order are highly welcomed!
OUR Production Line
Top Driver have 6 Production line and can proceed 400,000pcs LED power supply a Month.
Our Exhibition
Top Driver in exhibitions every year, including: Hong Kong Global Resources Exhibition(Spring and Autumn edition）,Hong Kong Electronics Fair(Spring and Autumn edition），Hong Kong Lighting Exhibition, Canton Fair(Spring and Autumn edition）, Productronica Munich in Germany, Lighting Fair and security Exhibition...
Why Choose Us
Quality is our culture
We have a very strict quality control system. with Top Driver,Your bussiness in safe
FAQ
Q1:Are you factory or trading company?
A1:We are a professional manufacturer of power adapters and switching power supplies for more than 15 years in
ShenZhen,Guangdong,China.
Q2:Do you offer samples for testing?
A2:Yes, we can offer free samples for testing, samples time are 1-3 days. Freight cost offered by customers.
Q3:Do you have any certificates?
A3:Yes,of course, we have UL, CE, ROHS, ERP, BIS for India.
Q4:What is the MOQ?
A4: >1 for neutral package product, >500 for designed label, >1000 for designed color box.
OEM&ODM are accept.
Q5: What is your payment terms ?
A5:T/T, L/C, Western Union,Paypal payments and Trade Assurance on Alibaba.com.
30% deposit +70% balance before shipment(first order).
Q6:What is the Lead time?
A6:1-3days for samples, 15 working days for order<500pcs, 30 working days for order>500pcs.
Q7: what is your warranty?
A7: 1 year, 2 years and 3 years for different series.
Kindly pls send more questions on line or send me email. Thanks a lot.
A1:We are a professional manufacturer of power adapters and switching power supplies for more than 15 years in
ShenZhen,Guangdong,China.
Q2:Do you offer samples for testing?
A2:Yes, we can offer free samples for testing, samples time are 1-3 days. Freight cost offered by customers.
Q3:Do you have any certificates?
A3:Yes,of course, we have UL, CE, ROHS, ERP, BIS for India.
Q4:What is the MOQ?
A4: >1 for neutral package product, >500 for designed label, >1000 for designed color box.
OEM&ODM are accept.
Q5: What is your payment terms ?
A5:T/T, L/C, Western Union,Paypal payments and Trade Assurance on Alibaba.com.
30% deposit +70% balance before shipment(first order).
Q6:What is the Lead time?
A6:1-3days for samples, 15 working days for order<500pcs, 30 working days for order>500pcs.
Q7: what is your warranty?
A7: 1 year, 2 years and 3 years for different series.
Kindly pls send more questions on line or send me email. Thanks a lot.
