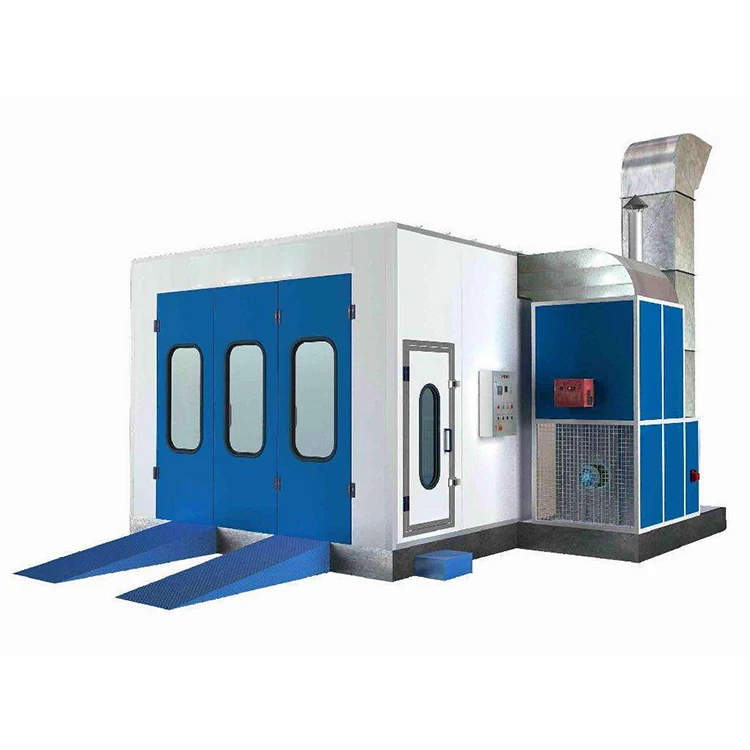

Spray booth provides a closed environment for vehicles painting with pressure controlling.
As we know that dust free, appropriate temperature and wind speed are necessary for painting.
Then this spray booth can provide a relatively ideal painting environment; this can be controlled by several groups of
ventilation, heating system and filtering system etc. Heated air produced by the burner can help the spray booth to hold a
suitable temperature, air flow and illumination.

We can provide rock wool wallboard, EPS wallboard, electric heating, diesel heating, natural gas heating, all kinds of filtration systems. We can also design a suitable spary booth for you according to your actual site.Contact us and you'll be pleasantly surprised.

All types can be customized, welcome to contact us!










MAGE COMPANY is a specialists manufacturer and supplier of spray booths and associated equipment.
Our position as clear market dealers is highlighted by expertise that spans a wide range of applications, from high volume conveyorised production, car body repair and large scale special projects.

As well as being powerful force in workshop and bodyshop productivity, we have produced spray booths that meet and exceed the highly specific demands of the aviation industries and the relentless demands of industry and manufacturers.

Our spray booths are in operation throughout the world, creating the ultimate clean-air environments for spraying and ensuring fast drying times for fast, energy-efficient production. Also we can customize for customer based on the detailed request.

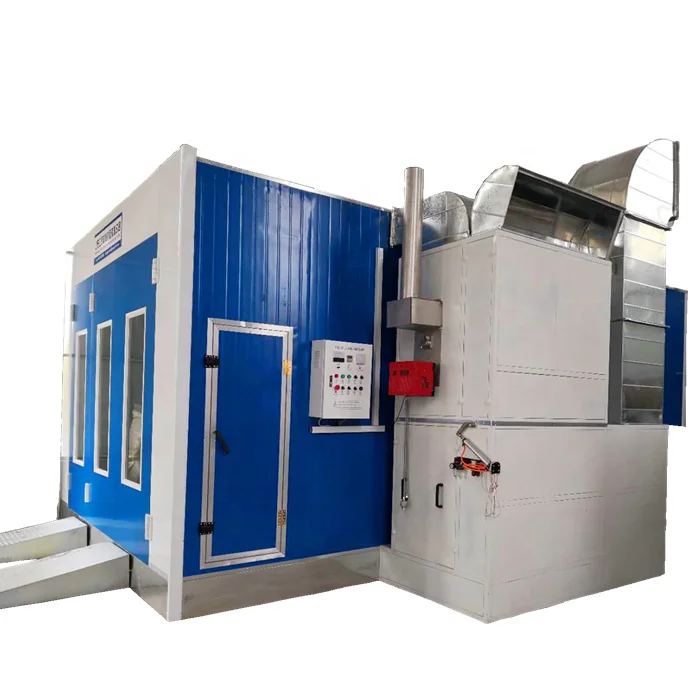

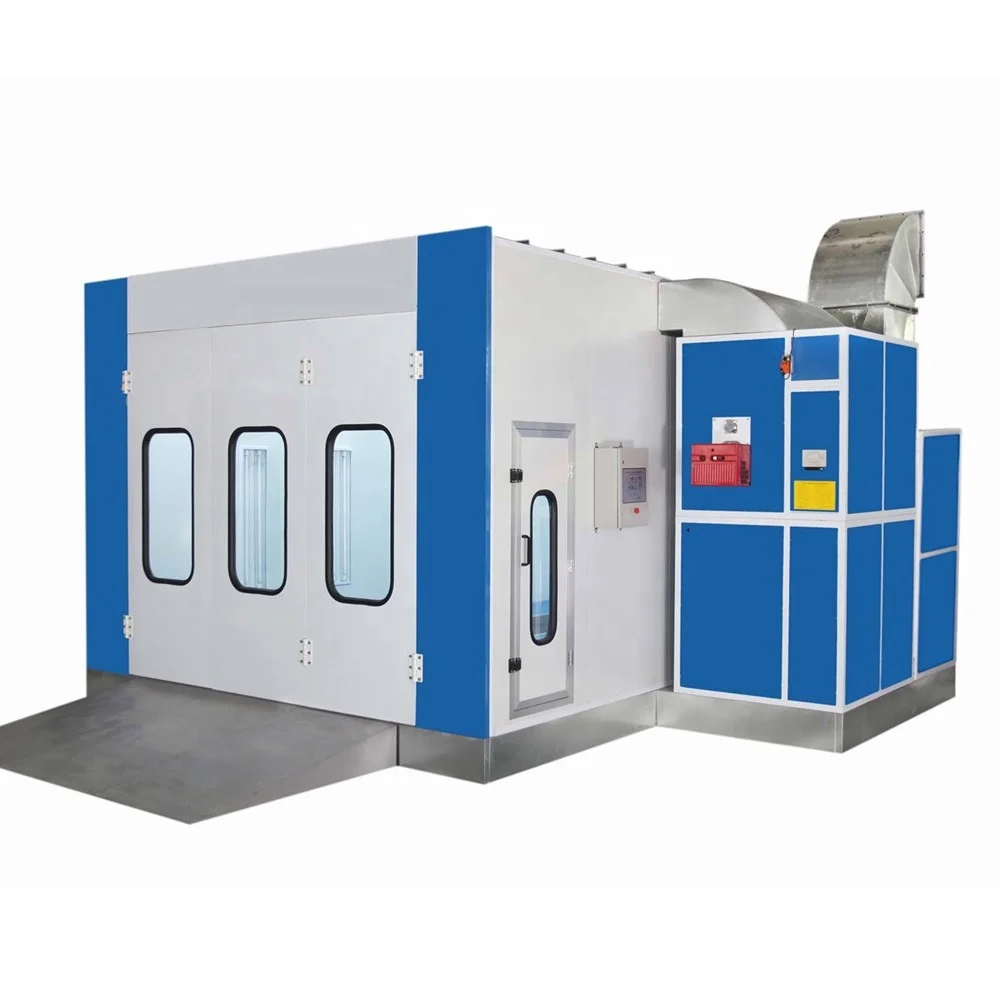

SPECIFICATIONS OF STANDARD SIZE CAR SPRAY BOOTH
Outer size (mm)
7000*5150*3250mm
Inner size (mm)
6900*3900*2600mm
Gate (mm)
2900*2570mm (W*H)
Personal door (mm)
700*1800mm
Power
35.5kw/11kw
Voltage
380v/3ph/50hz or customized








Cabinet system


Wall panel
EPS colorful steel skin panel, 50mm thick, steel 0.426mm thick, tongue & groove style,compound construction, galvanized steel roof
panel.


Basement
The basement made by high quality galvanized C-shaped steel design and square tubes assembling.2 rows of grills made by flat bar and round steel,30*4mm; 3 rows of diamond plates, galvanized.

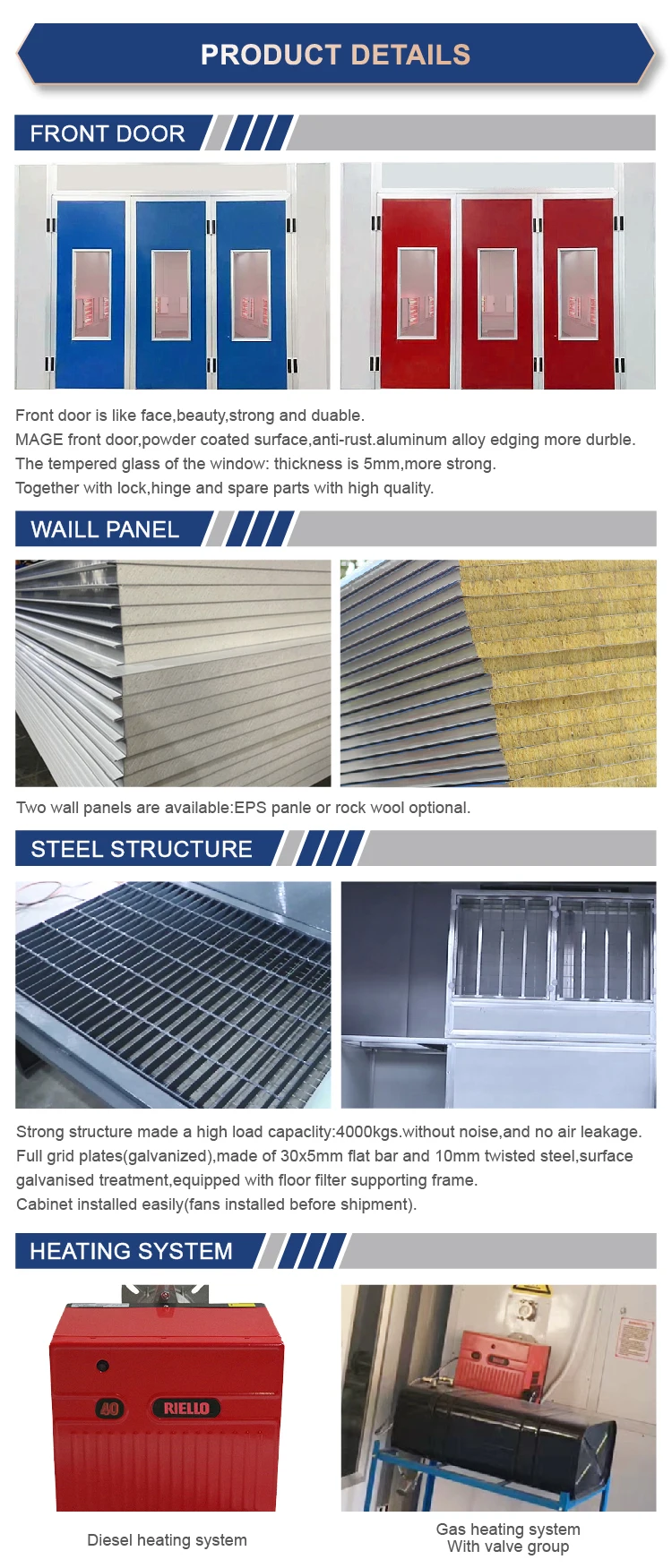

Entry door
Folding door, 3pcs, size 2900mm(W)*2470mm(H), with 5mm thick tempered glass window.


Personal door
Size 650mm(W)*1700mm(H), with 5mm thick tempered glass window. （There is a pressure lock on the door, which will automatically
open when the indoor air pressure is too large.）
Ramp
One pair of galvanized ramps, size 1800*650mm.



Air circulation system
Intake fan
Two sets of 3KW Double-intake centrifugal fan, air capacity 20000m³/h in total.
Exhaust fan
One set of 4KW exhaust fan, air capacity 12500m³/h in total.
Fan cabinet
Fan cabinet made by painted sections and powder-coated steel plate;the ex- haust duct made by high-quality galvanized steel, and
professional flange.
Roof system
Beam
Made by 40*60 galvanized square pipe, with supporting; and also 40*40mm angle iron connected by rivet.


2-layer structure
The plenum made by galvanized steel, powder-coated on the surface. The roof filter support frame made by 25*25 and 15*15
galvanized square tubes, powder-coated on the surface.

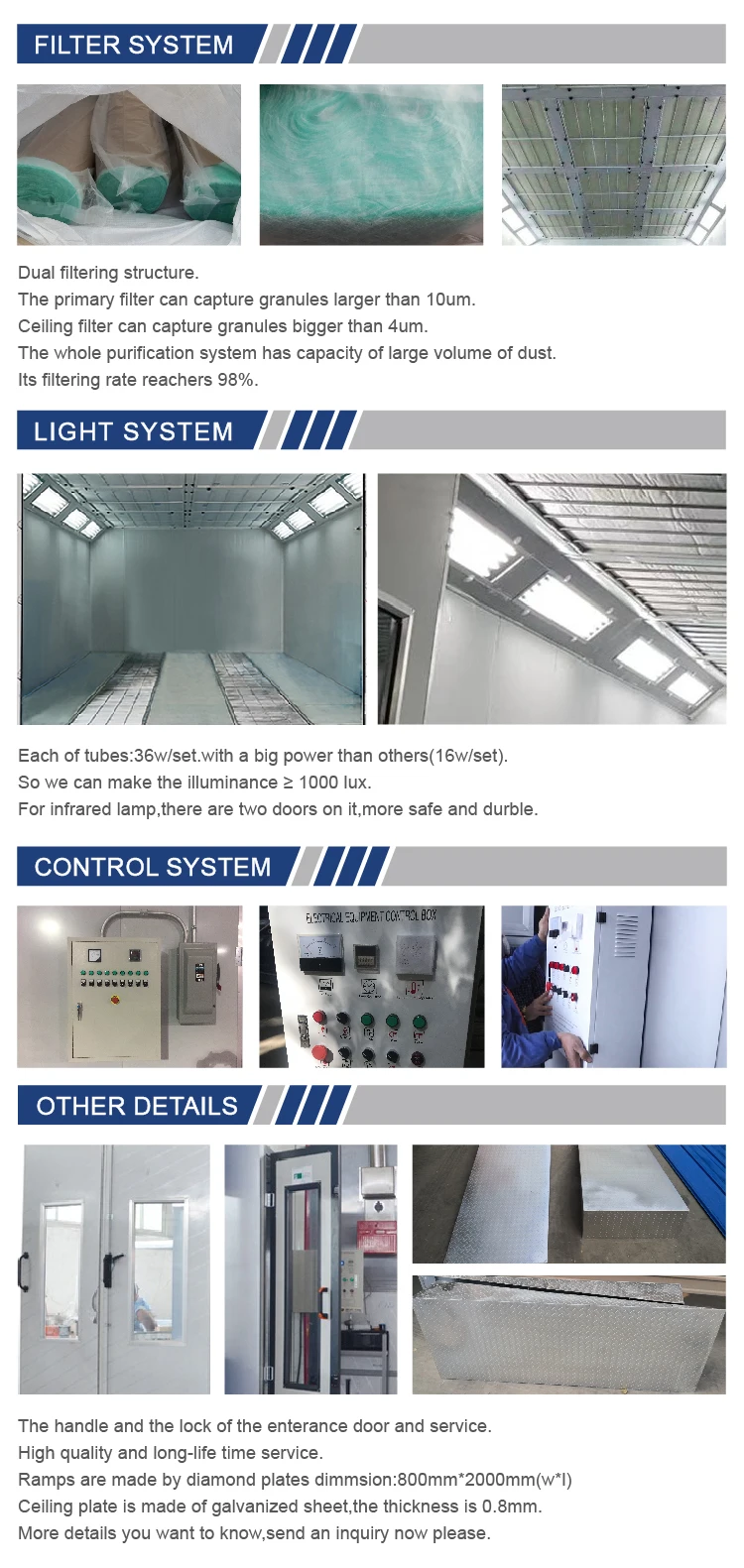

Purfication system


Intake filter
Intake filter is high quality imported filter, could capture the articles larger than 10μm.


Celling filter
High efficiency filters made in Italy, could capture the articles larger than 5μm.
Floor filter
The floor filter is fiberglass filter, TSP≤14mg/m³.

Heating system


Gas heating


RIELLO FS10 diesel system
Lighting system
Ceiling light
LED lights. 10*4pcs, 36w, powder-coated luxury light box


Control system

Control system
Microcomputer controlling system, which can program all the functions in each phase of every cycle work. Including adjusting the
parameters of the time, temperature, and main circuit has multiprotection, to control the light, time, spraying, temperature,
baking, failure indicator, and emergency stopand so on.
Reasonbale structure and stable performance.

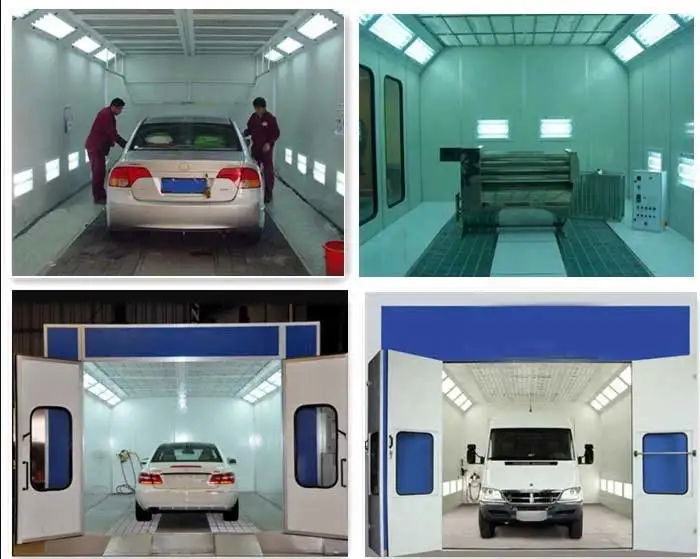

Details Images








Company Profile




Packing & Shipping




Certifications




FAQ


Q. How do you control your quality?
A. Our factory is ISO/ CE certified. We have our own QA and QC team. They will check on site and finished products to ensure all details to meet our highest standard and the customer’s requirements.

Q: May I know the Lead time?
A:The lead time of our machine is 7-15 days. When you order more, we need to check the production schedule.

Q: What is the regular color? May I order a special color I like?
A: The regular color is Blue, Orange, White, Red. Also we can do customize one for you.

Q: Can you supply OEM service?
A: Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.

Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
