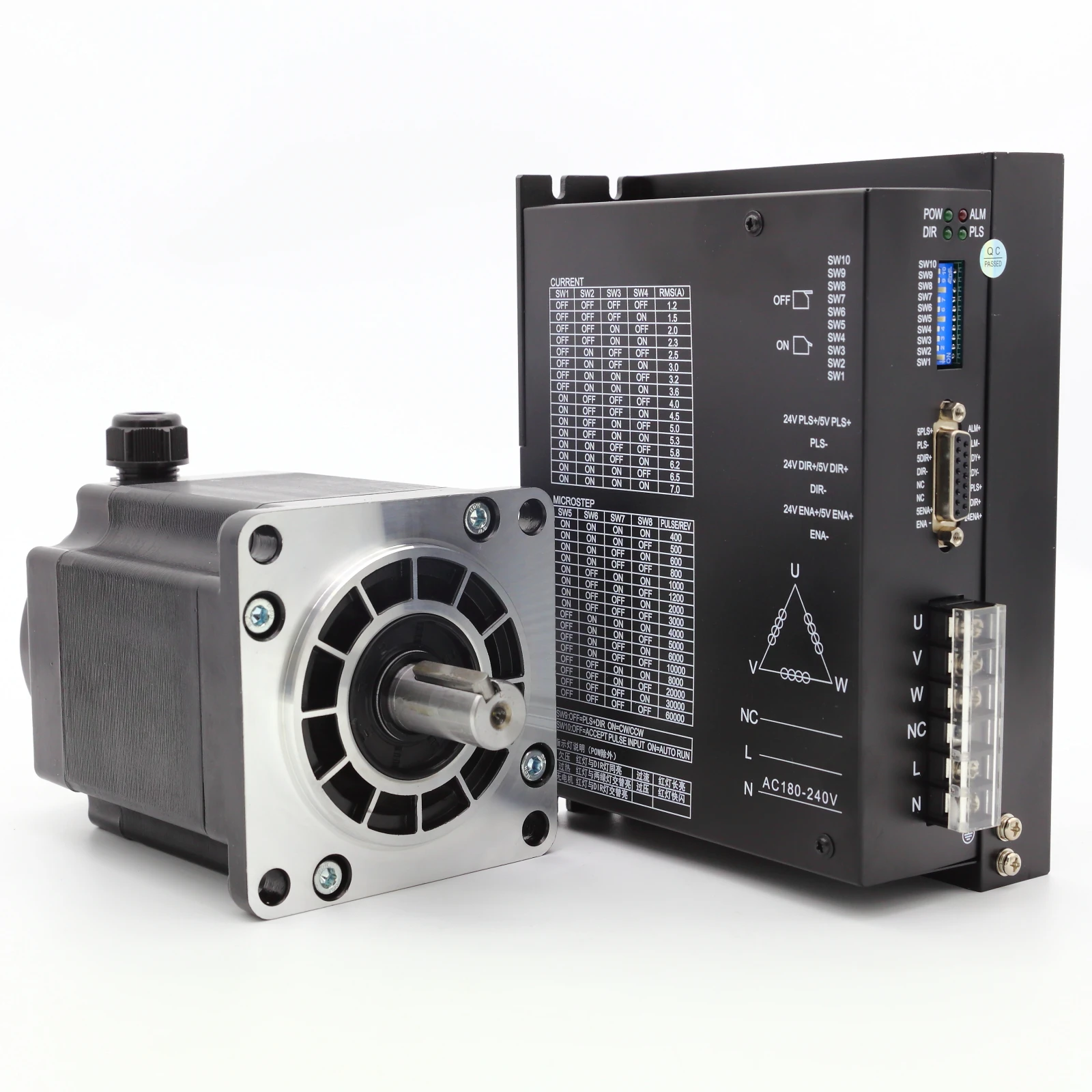

Stepper motor driver controller china stepper motor stepper motor controller for height sensor
- Category: >>>
- Supplier: Beijing Haijie Jiachuang Technology Co. Ltd.
Share on (1600366754226):
Product Overview
Description

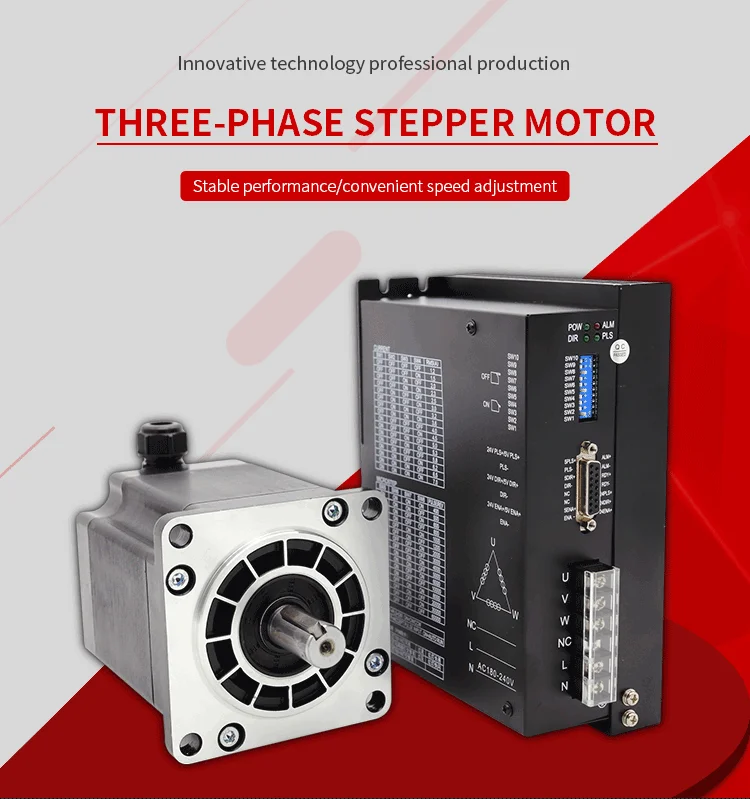

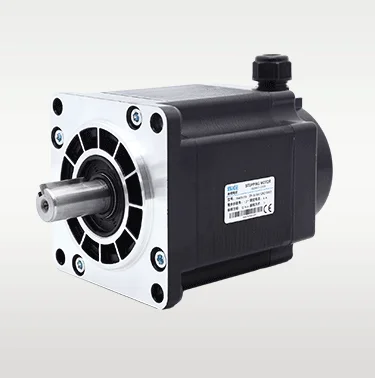

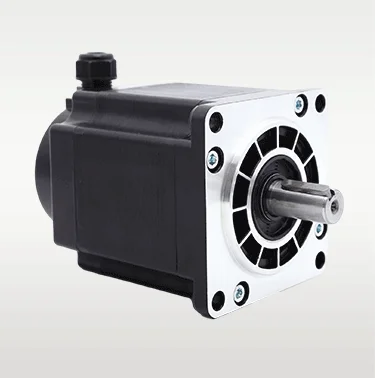

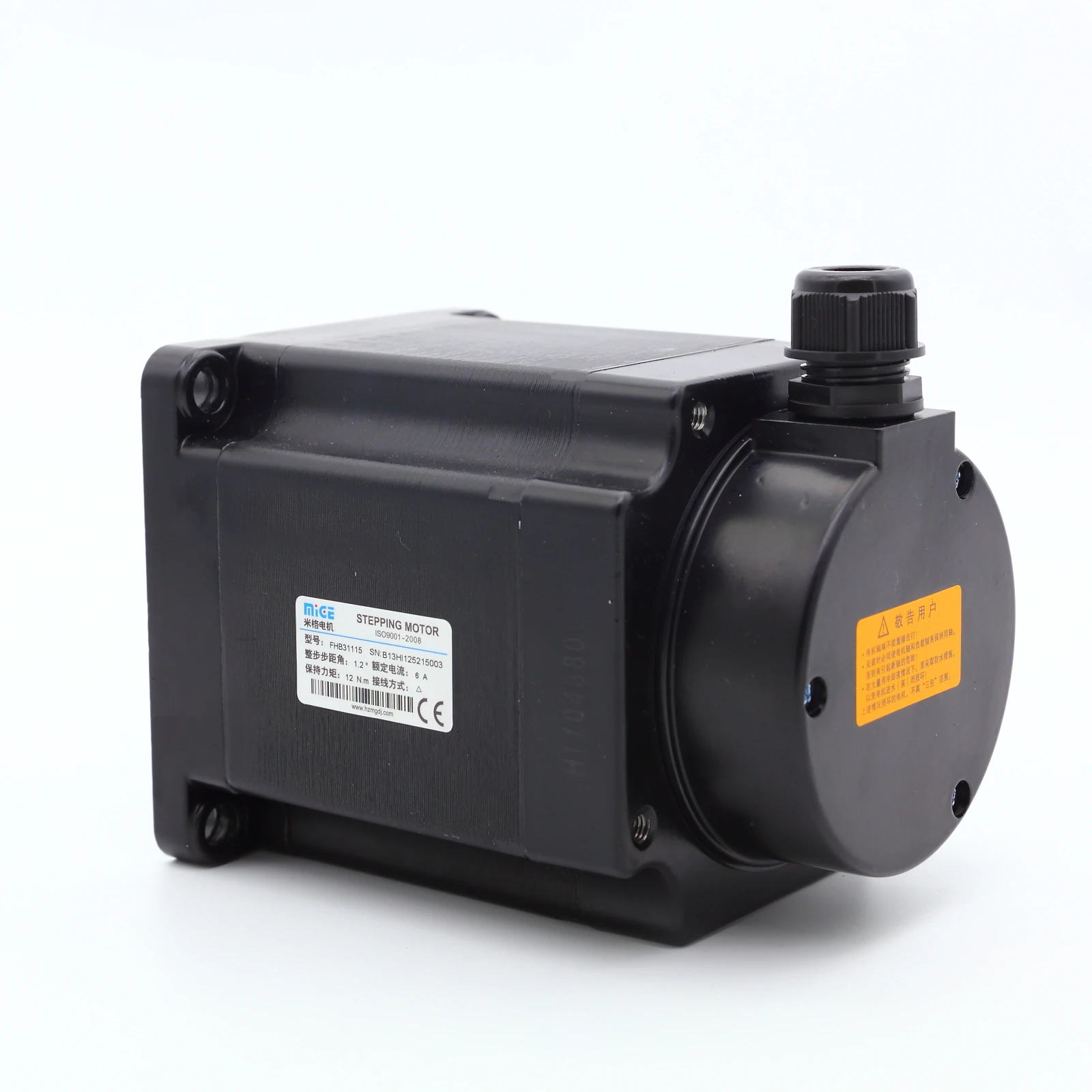

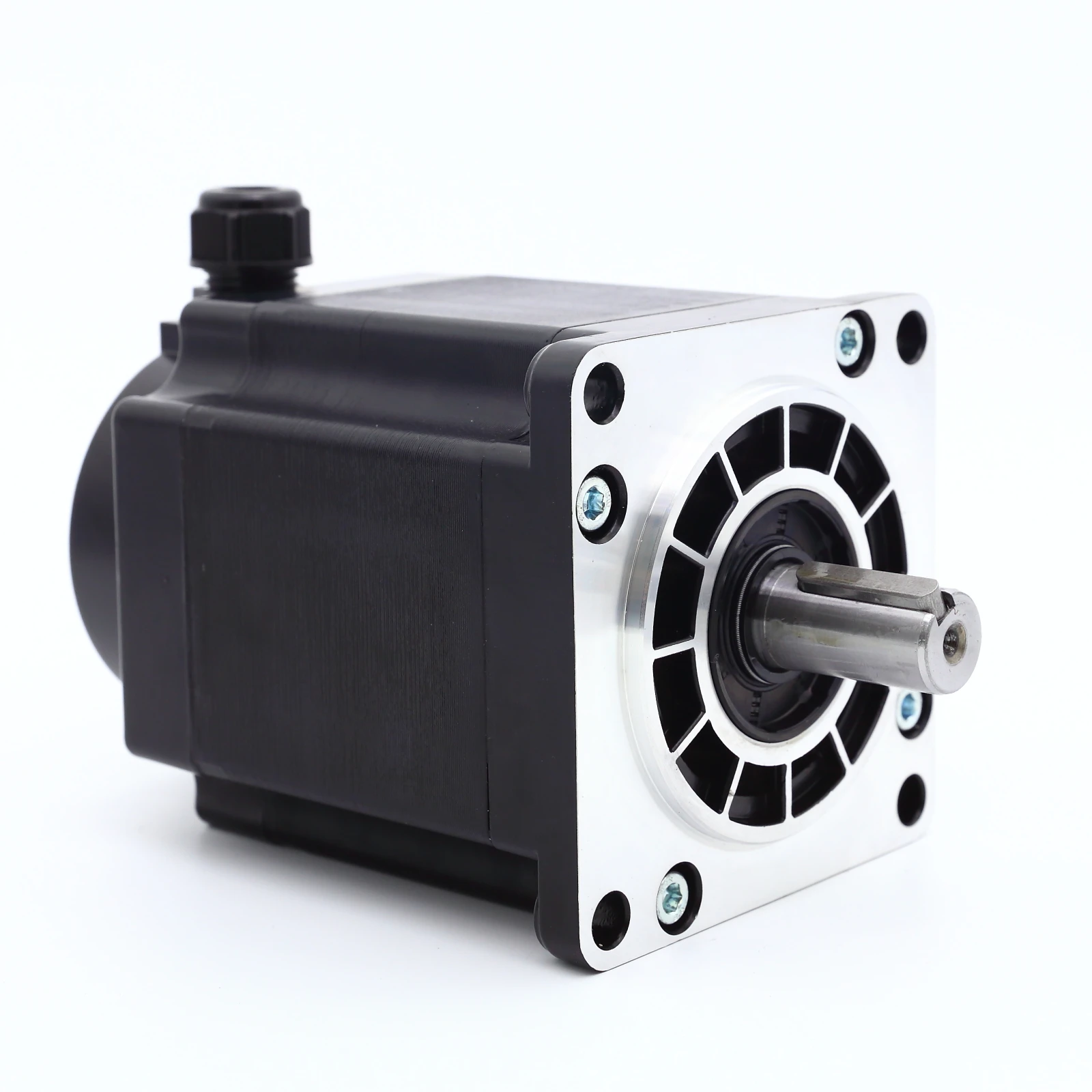

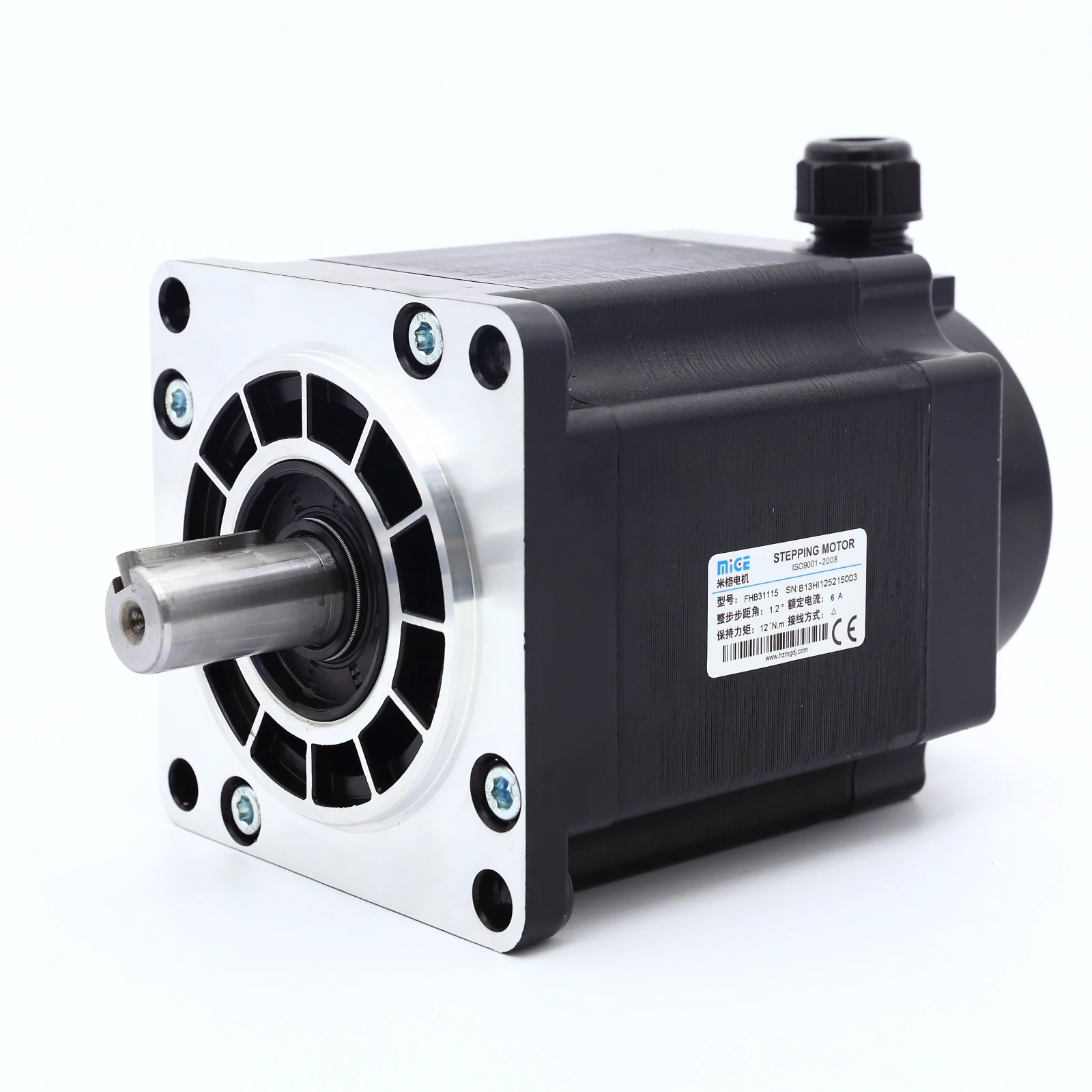

Authenticity guarantee 110BYG High torque 20Nm Nema43 3 phase stepper motor CNCstep motor MiGE stepper motor
Product Paramenters
Products Description
Step Angle Accuracy | Temperature Rise | Ambient Temperature | Insulation Resistance | Dielectric Srength | Shaft Radial Play | Shaft Axial Play |
5% | 80℃ Max | -20℃-+50℃ | 100MΩ Min (500VDC) | 500V AC 1 minute | 最大0.06mm (450g负载) | 最大0.08mm (450g负载) |

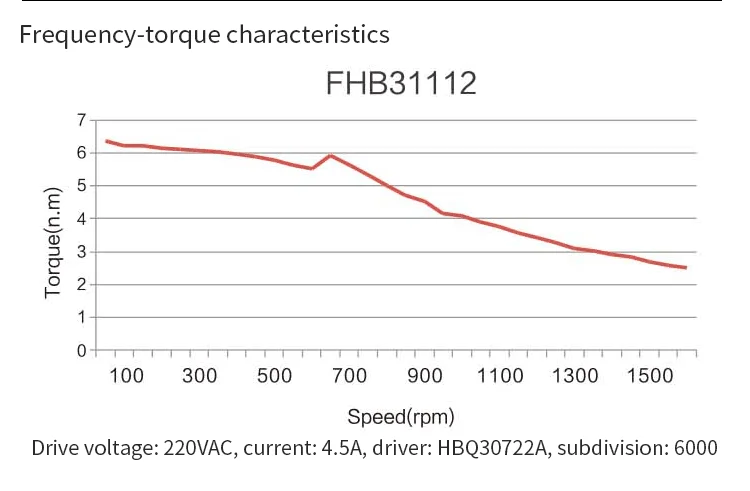

Model | FHB31112 | FHB31115 | FHB31118 | FHB31122 |
Step Angle(°) | 1.2 | 1.2 | 1.2 | 1.2 |

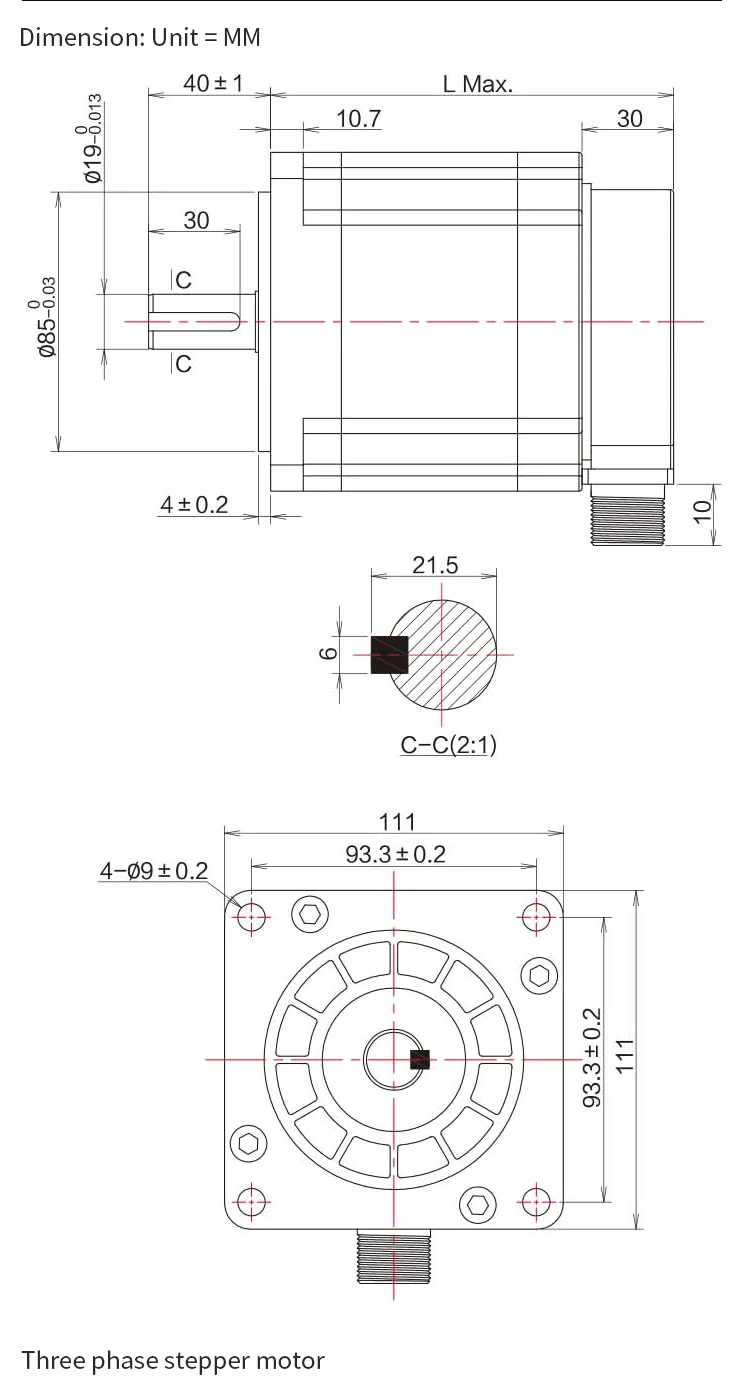

Length L(mm) | 127 | 151 | 185 | 219 |
Holding Torque (N.m) | 8.0 | 12 | 16 | 20 |
Current(A/phase) | 4.3 | 6.0 | 6.4 | 6.9 |
Rotor Inertia(g.cm²) | 6000 | 9720 | 13560 | 17400 |
Weight(kg) | 5.0 | 6.3 | 8.5 | 10.7 |
Matcheddriver | HBQ30722A | HBQ30722A | HBQ30722A | HBQ30722A |
Shaft Diameter(mm) | 19 | 19 | 19 | 19 |
Axis Stretch(mm) | Flat key6×30 | Flat key6×30 | Flat key6×30 | Flat key6×30 |
Resistance(Ω) | 1.04 | 0.6 | 0.7 | 0.57 |
Inductance(mH) | 4.3 | 2.67 | 2.96 | 2.46 |
Wiring Diagram | F | F | F | F |
The rotor 01
It is forged with imported materials, and each rotor is finely ground and polished to ensure that each tooth groove is smooth.Make the motor run stably, with lower noise, longer life, and no jamming.
It is forged with imported materials, and each rotor is finely ground and polished to ensure that each tooth groove is smooth.
Make the motor run stably, with ower noise, longer life, and no jamming.
the motor run stably, with lower noise, longer life, and no jamming.
Precise control

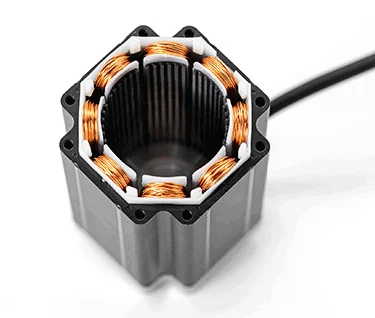

winding specifications can be made according to requirements
Recommend Products

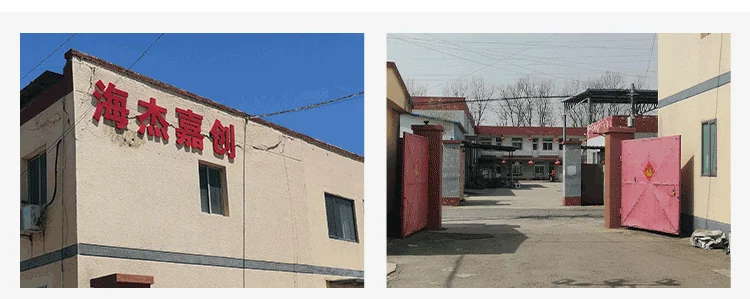

Company Profile
Beijing Haijie Jiechuang Technology Co., Ltd. is a professional supplier of CNC automation products.The company founder team members are all engineers，with more than 10 years of industry technical experienceWe provide cost-effective automation products， but also to provide quality pre-sale and after-sales service， linear module products to provide 1-year free，warranty，servo，step，brushless DC system to provide 2-year free warranty.

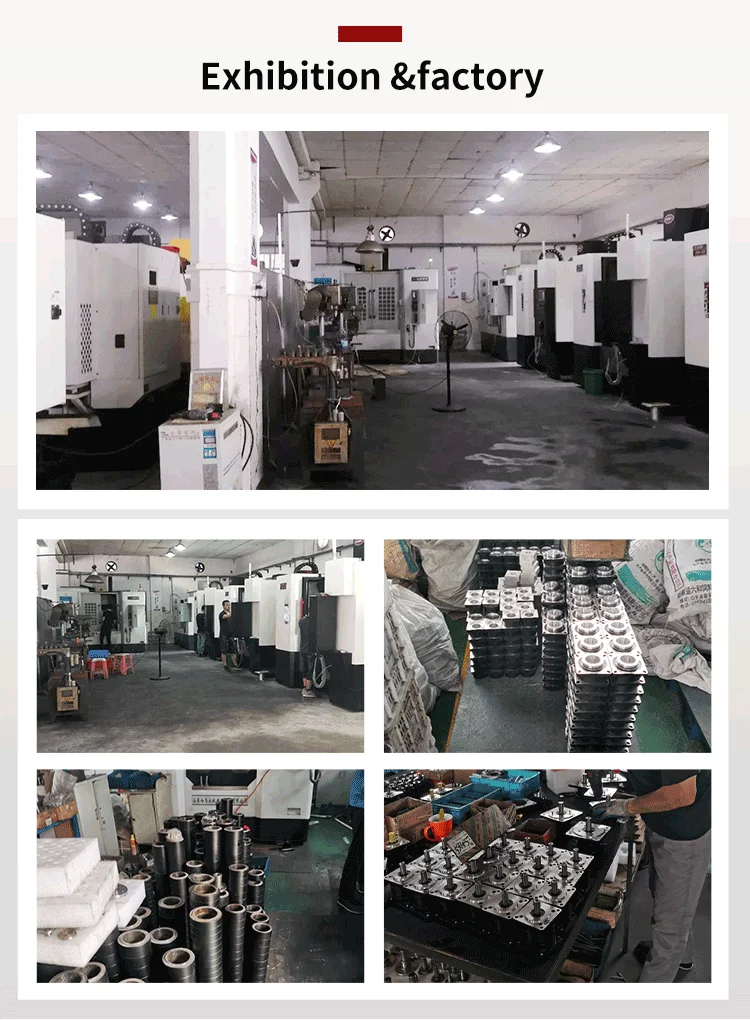

Our factory is located in Jiangsu Province, one of the four major motor industry bases in China, with dozens of CNC machiningcenters, and a number of automatic production line factories can achieve servo system monthly production capacity of 12,000 sets,stepper and DC brushless system monthly productior capacity of 27,000 sets, linear module sliding table monthly production
capacity of 9,000 sets.
capacity of 9,000 sets.
Exhibition
Certifications
Product packaging
FAQ
1.What's the order process?
1）Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial
quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and
the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
Sample usually takes about 10-20days depending on product type. Bulk order usually takes about 35 days.
5.How would I get a price list for a wholesaler ?
Please e-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
1）Inquiry---provide us all clear requirements (total qty and package details).
2)Quotation---officaial
quotation from with all clear specifications from our professional team.
3)Marking Sample --- confirm all quotation details and
the final sample.
4)Production---mass production.
5)Shipping---by sea or by air.
2.What terms of payment you use?
As for the payment terms,it depends on the total amount.
3.How do you ship the products?
By Sea ,By Air ,By courier, TNT , DHL, Fedex, UPS Etc. It is up to you .
4.What is the average delivery time?
Sample usually takes about 10-20days depending on product type. Bulk order usually takes about 35 days.
5.How would I get a price list for a wholesaler ?
Please e-mail us, and tell us about your market with MOQ for each order. We would send the competitive price list to you ASAP.
