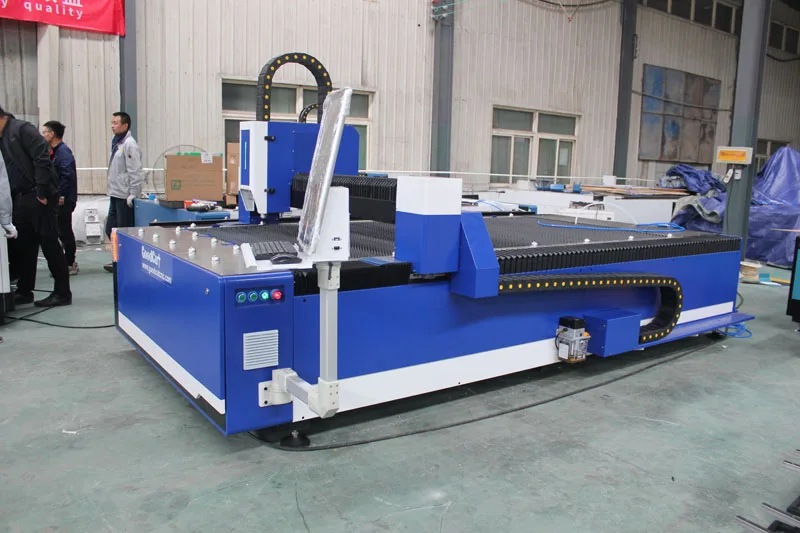

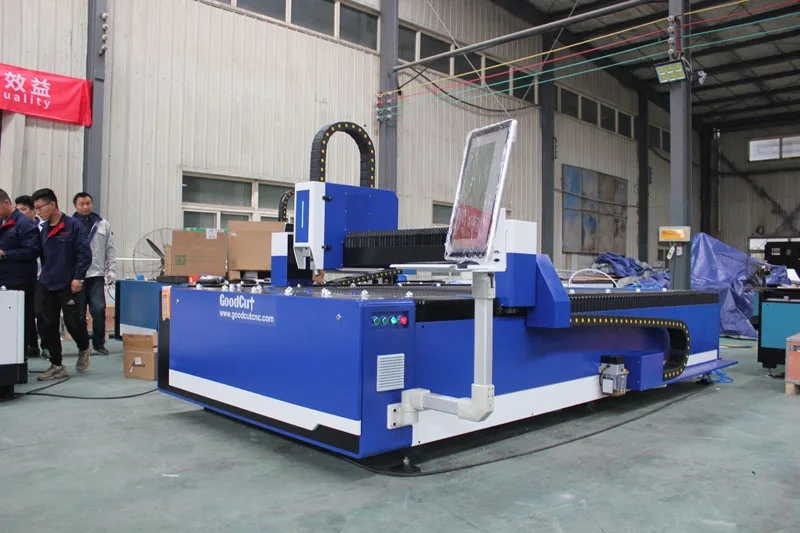

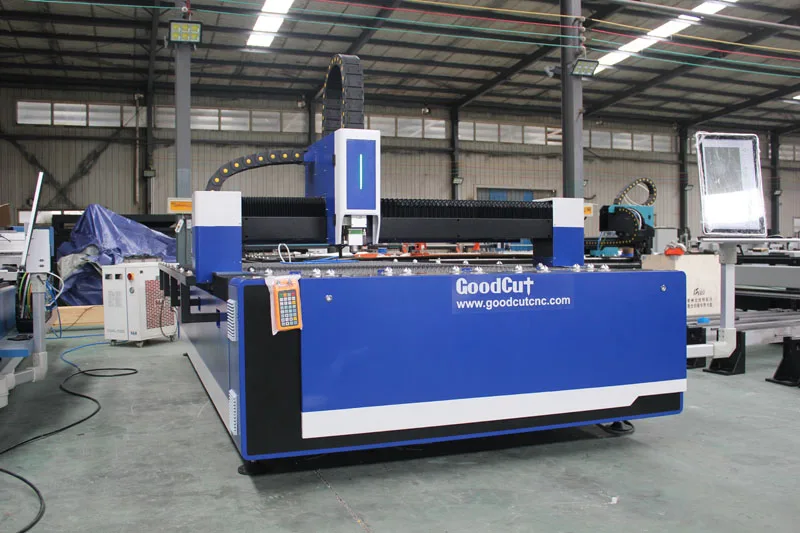

Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
Factory directly supply 1500w fiber laser cutting machine korea for Sheet Metal
- Category: >>>
- Supplier: Jinan GoodCut CNC Machinery Co. Ltd.Jinan Ltd.
Share on (1600366968295):
Product Overview
Description

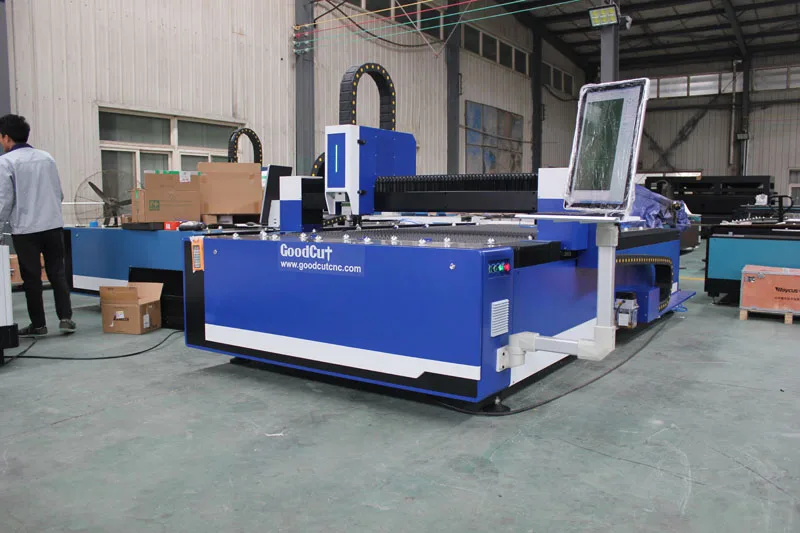

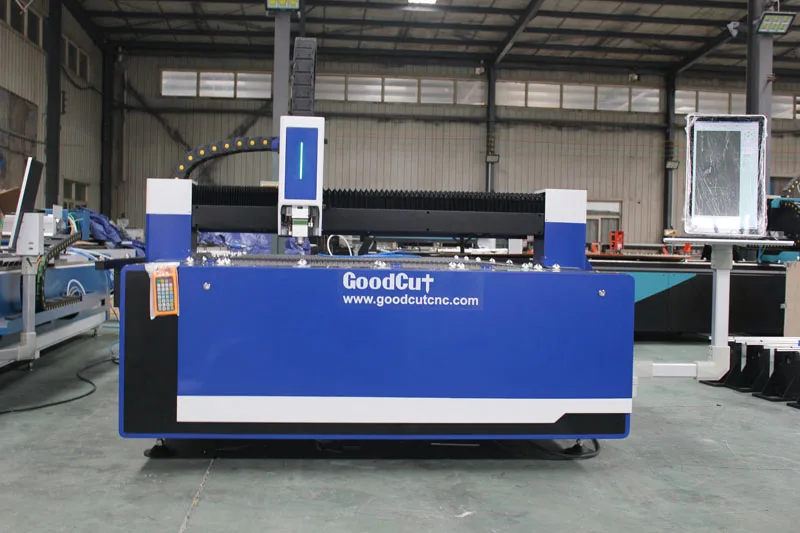

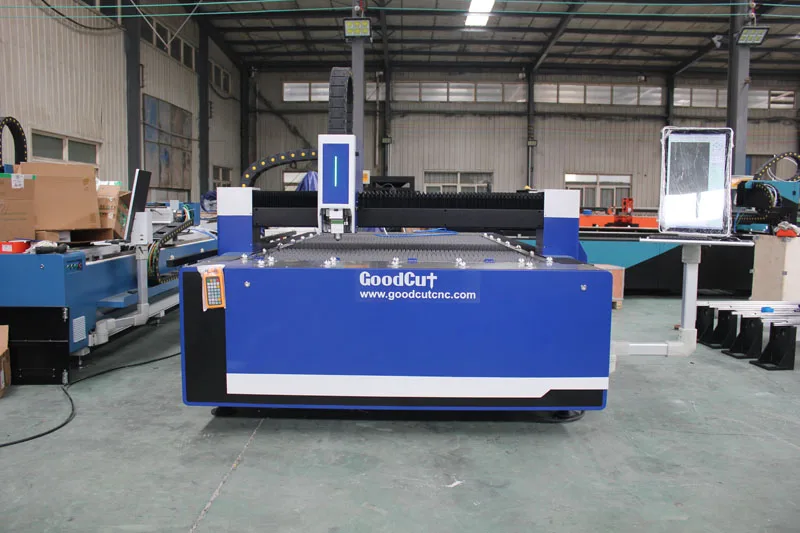

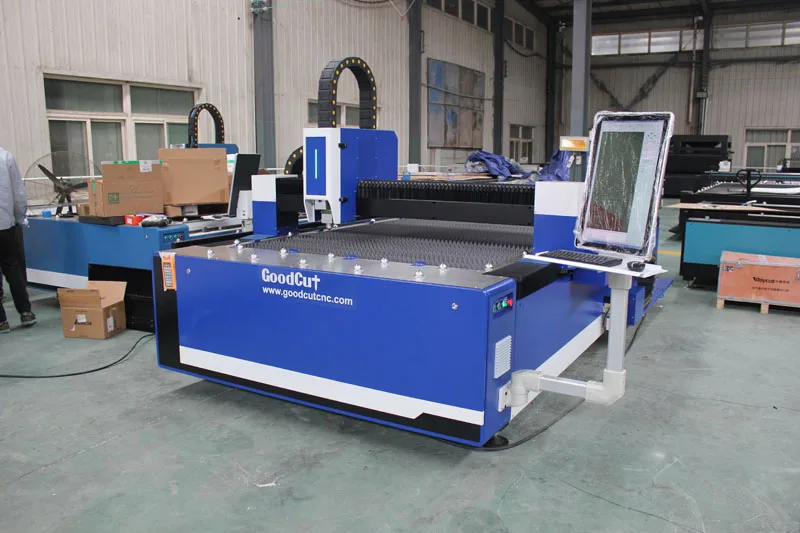

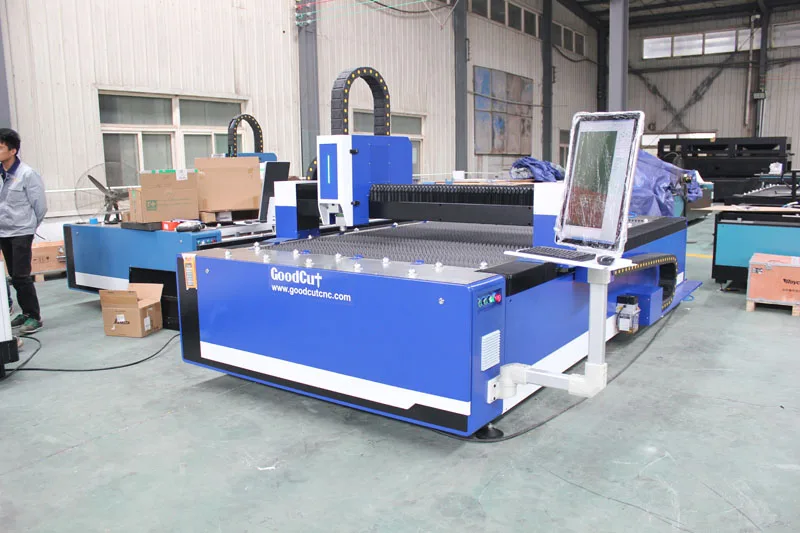

Factory directly supply 1500w fiber laser cutting machine korea for Sheet Metal
1.Swiss brand Raytools laser cutting head ,Germany brand Precitec laser cutting head as optional
2.Japan Yaskawa servo motor and drivers
3.Germany Atlanta Gear and Rack
4.French Motoreducer ,Germany Neugart Reducer as optional
5.IPG Laser source or Raycus laser source
6.LF3015GCR equipped with exchange table and control cabinet
7.Taiwan Hiwin linear guide rail and cypcut operating system
Product Paramenters
Product Paramenters of Factory directly supply 1500w fiber laser cutting machine korea for Sheet Metal
MODEL NO. | GC-1530 |
Processing area | 1500mm*3000mm |
Fiber power | 1000W/1500W/2000W/3000W/6000W/8000W |
Cooling mode | Water cooling and protection system |
Resetting positioning accuracy | ±0.01mm |
Max acceleration | 1G |
Compatible Software | CorelDraw/AutoCAD/Photoshop/AI … |
Whole machine size | 4500*2200*1500mm |
Max traveling speed | 110m/min |
Driver system power | Y=750W; X=750W; Z=400W |
Support graphic format | LXD/.DXF/.PLT/.AI/.Gerber/.DWG …. |
Gross power | 17KW |
Transmit system | Dual Rack & Pinion type |
Operating temperature | 0-45℃ |
Operating humidity: | 5-95% |
Gross weight | 3200KG |
Option: | Rotary attachment for column materials |
Specification of Factory directly supply 1500w fiber laser cutting machine korea for Sheet Metal:

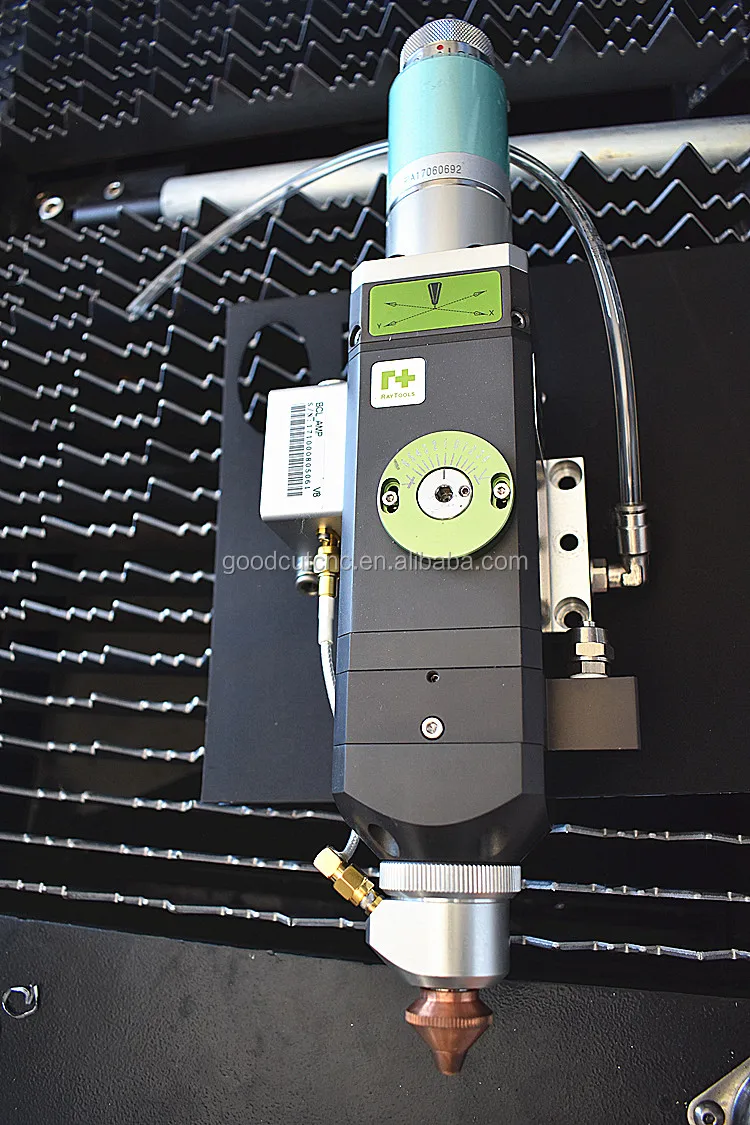

Switzerland Raytools Laser Head
Switzerland Brand , Good quality .Raytools is most popular as NO.1 on the world. Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses. protective lens can carefully protect key components.

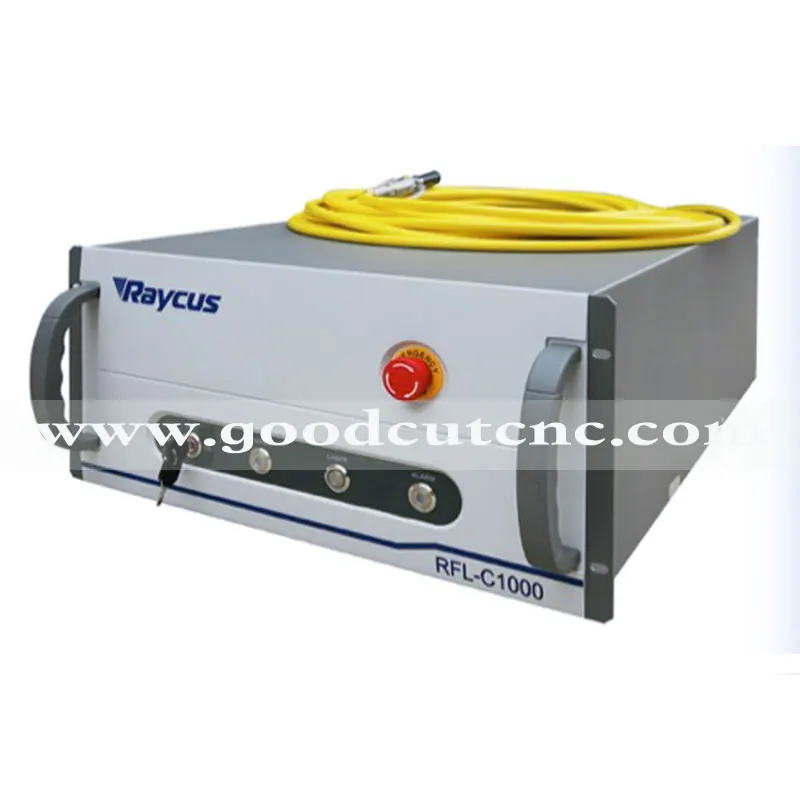

Raycus Laser Source
Raycus is largest manufacturer of laser source in China , can cut carbon steel , stainless steel and aluminium etc . Good quality and long life . Suitablef for 24 hours continuous working .

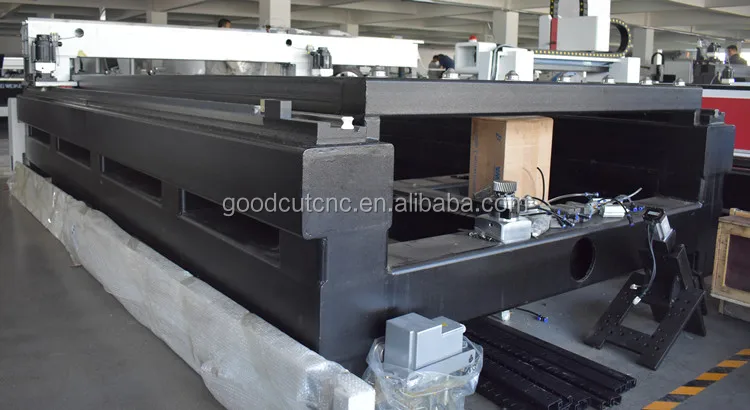

Strong Welding Machine Body
High compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.

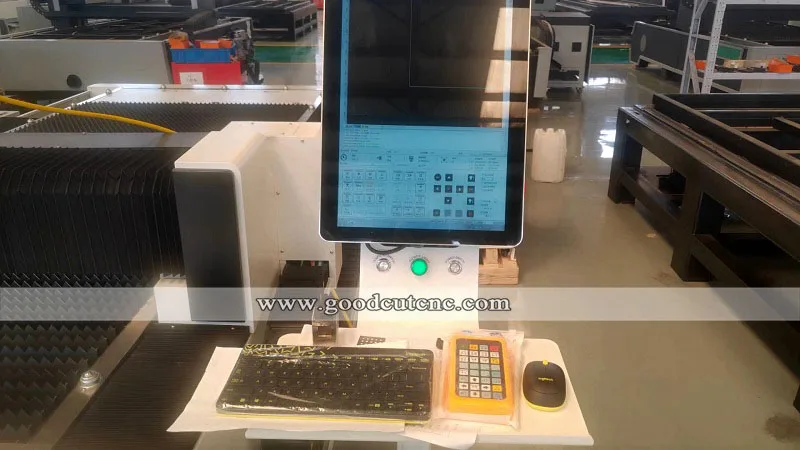

Cypcut Control System
The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhances the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.

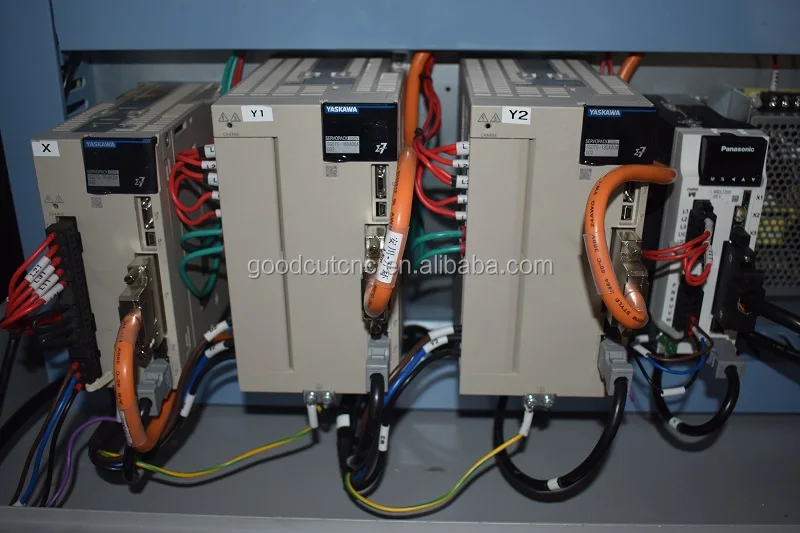

Japan FUJI/ Yaskawa Servo Driver
1. Adopting Japan Yaskawa serco motor, adopting closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.
Automatic Oil Lubrication System
The automatic oil lubrication system automatically lubricates the guide rail, slider, rack and gear. It can be set by the time and travelled distance. All running parts with oil, prolong their working life, effectively prolongs the life of the machine and reduces wear.

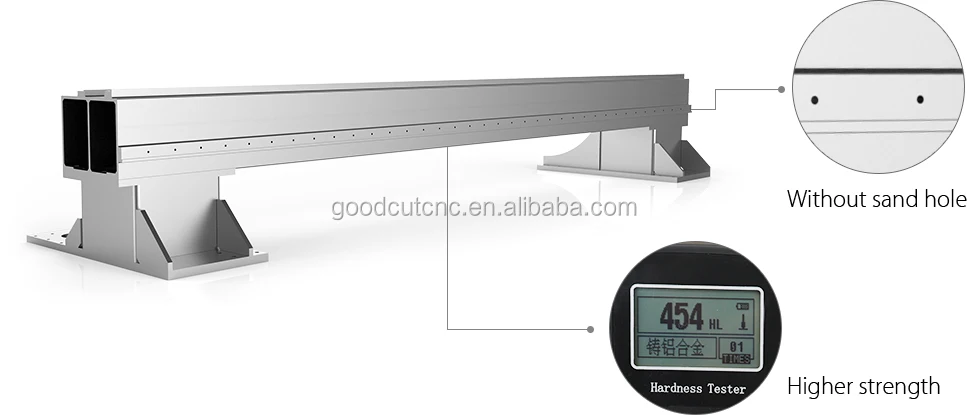

Cast Aluminum Integrated Beam
The whole structure is made of steel die casting, which is finished after artificial aging and solid solution treatment, so that the beam rigidity, surface quality, integrity and other performance are all excellent. At the same time, it has the characteristics of high flexibility, which can achieve high-speed cutting of all kinds of graphics under the condition of satisfying the precision.

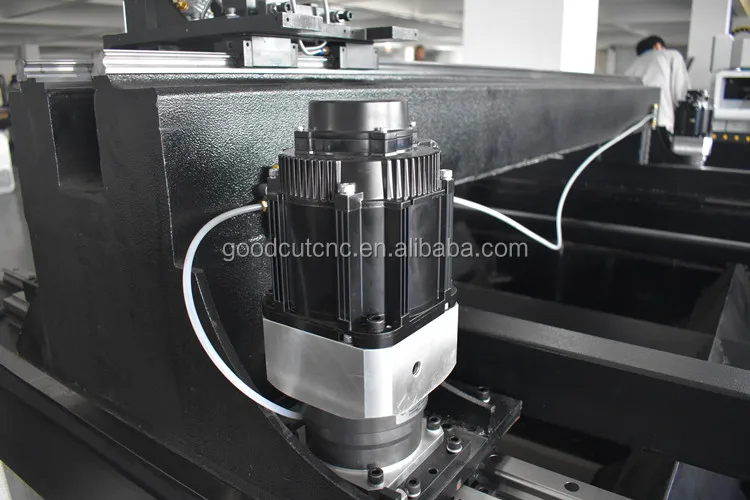

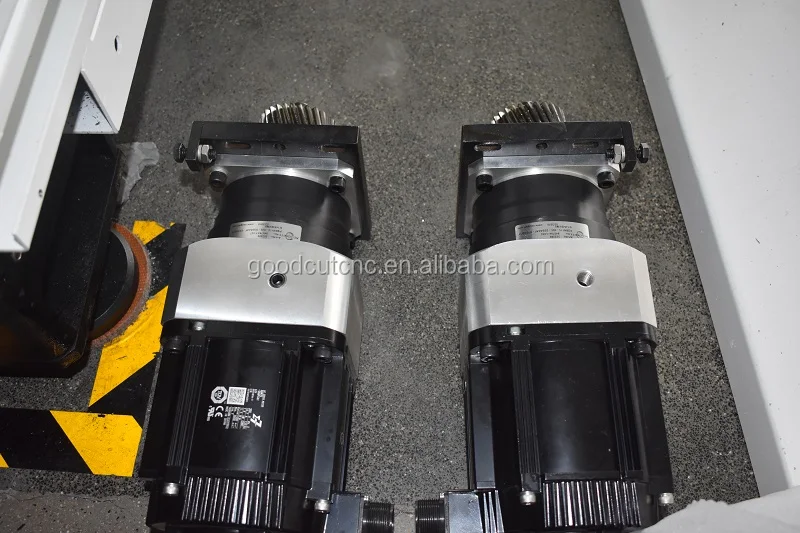

Japan Shimpo Servo Reducer :
Long use lifetime and accurate route moving Japan Shimpo Servo Reducer: Our fiber laser machine adopts the Shimpo Servo Reducer from Japan with low noise when the machine is processing the metal materials, After many refinements,it has small size in installation but high precision function.

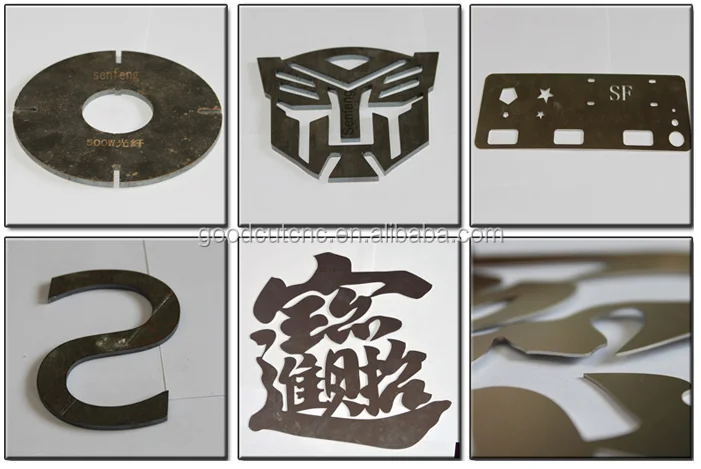

Product Application

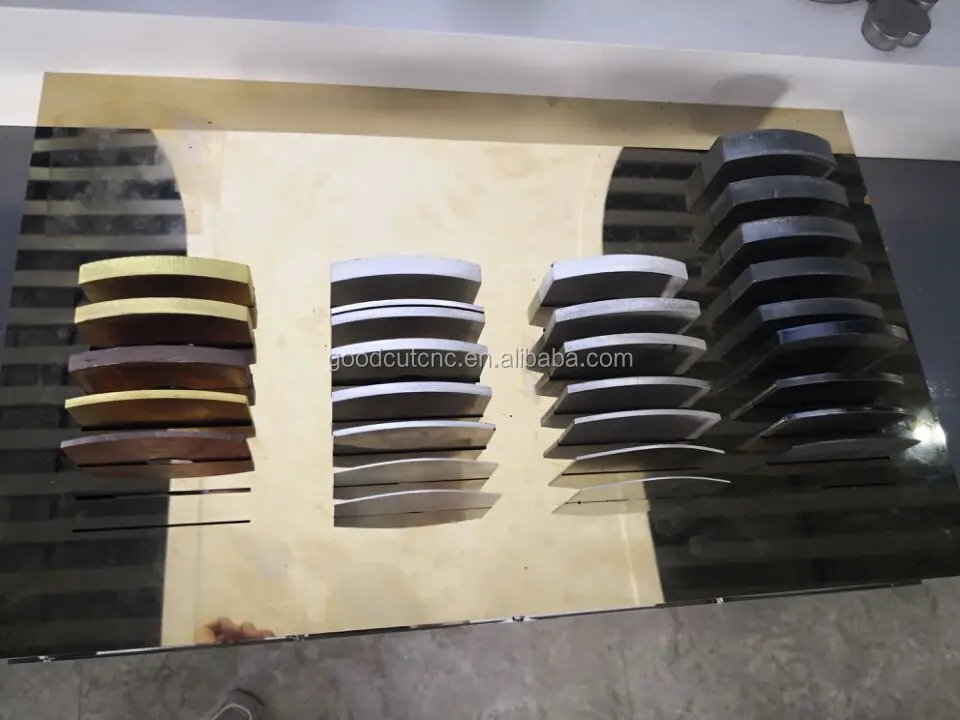

Advertising words cutting, sheet metal cutting and metal cabinet cutting, stainless steel and carbon and other kinds of metal sheet high precision cutting.
suitable for cut Stainless steel,carbon steel,alloy steel copper,brass,silicon steel,Galvanized steel sheet,Nicket Titanium alloy,inconel,Titanium alloy metal material,etc
Jinan GoodCut CNC
Jinan GoodCut CNC Machinery Co.,Ltd.
GoodCut has Purchasing department, The design department, The production department, Quality inspection department, packaging and transportation department, The sales department, After sales service department.
We can offer highest quality machine, and competitive price.
Mainly manufacture and sale cnc router, laser engraving, marking, cutting machine,
wood lathe machine, fiber cutting machine, plasma cutting machine, 3D scanner etc.
Jinan GoodCut CNC Machinery Co., Ltd.
The meaning of “GoodCut” brand: Good Quality, Good Price, Good Service
Good Quality
1. 15 engineers with more than 10 years rich working experience, manufacture high precision machines;
2. Three-day 72-hour testing machine inspection, after confirming that the machine has no quality problems, then it will be shipped;
3. 4 QC staffs do strict evaluations on in-coming inspections, in-process inspections and final inspections.
Good Price
1. GoodCut manufactures about 50 sets of machines per month, with a large sales volume. We have long-term cooperation with parts suppliers, can get advantageous prices of parts, so that the price of machine is very competitive;
2. GoodCut aims to develop long-term cooperation with new and regular customers, and to give customers the best prices with the most sincere attitude.
Good Service
1. English manual and video for machine using and maintaining, explaining the operation steps in detail;
2. Professional after-sales service staffs, providing 24-hour online service;
3. Provide free technical training and factory field operation teaching to eliminate customer worries.
fiber cutter maching
 |  |  |

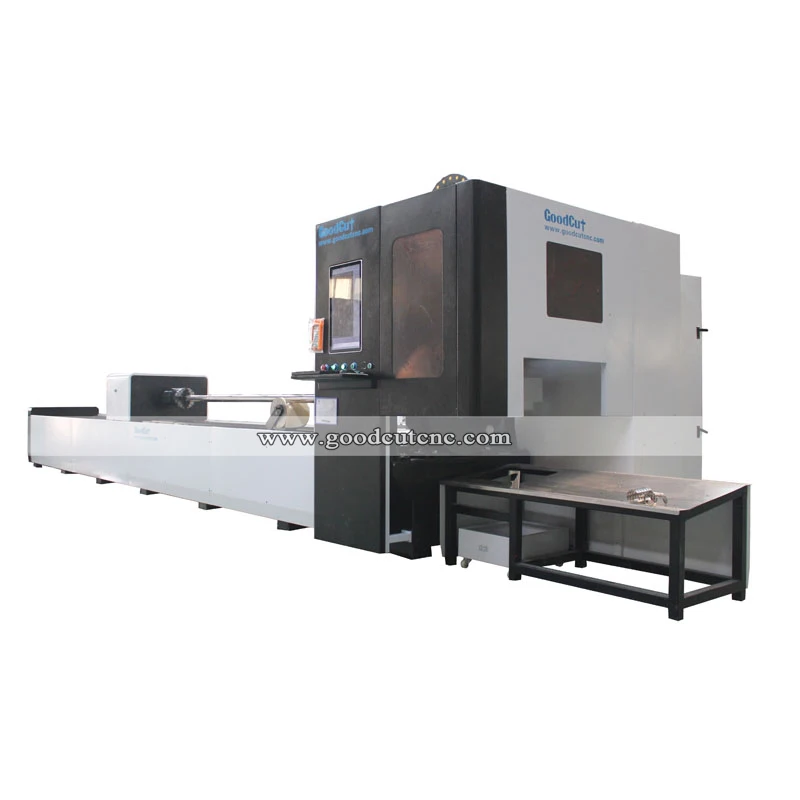

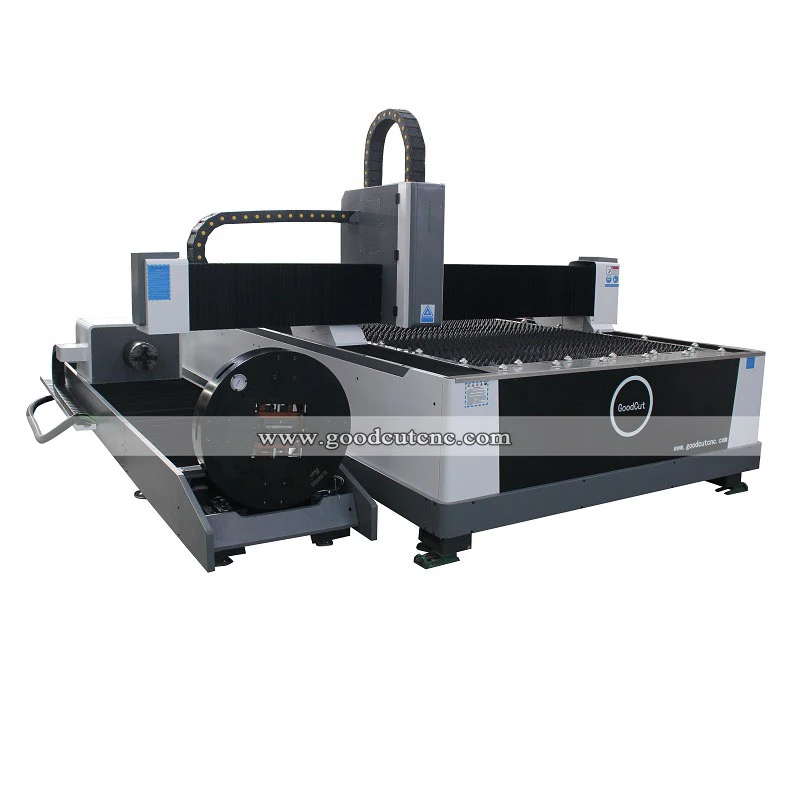

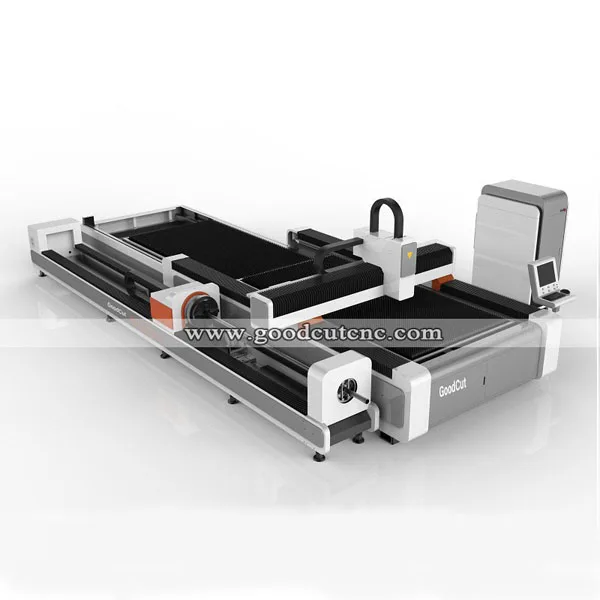

| Jinan flatbed pipe fiber laser cutting machine for metal | exchange platform metal fiber laser cutting machine with rotary axis | GC2060 round and square tube 6000w fiber optic laser cutting machine |
