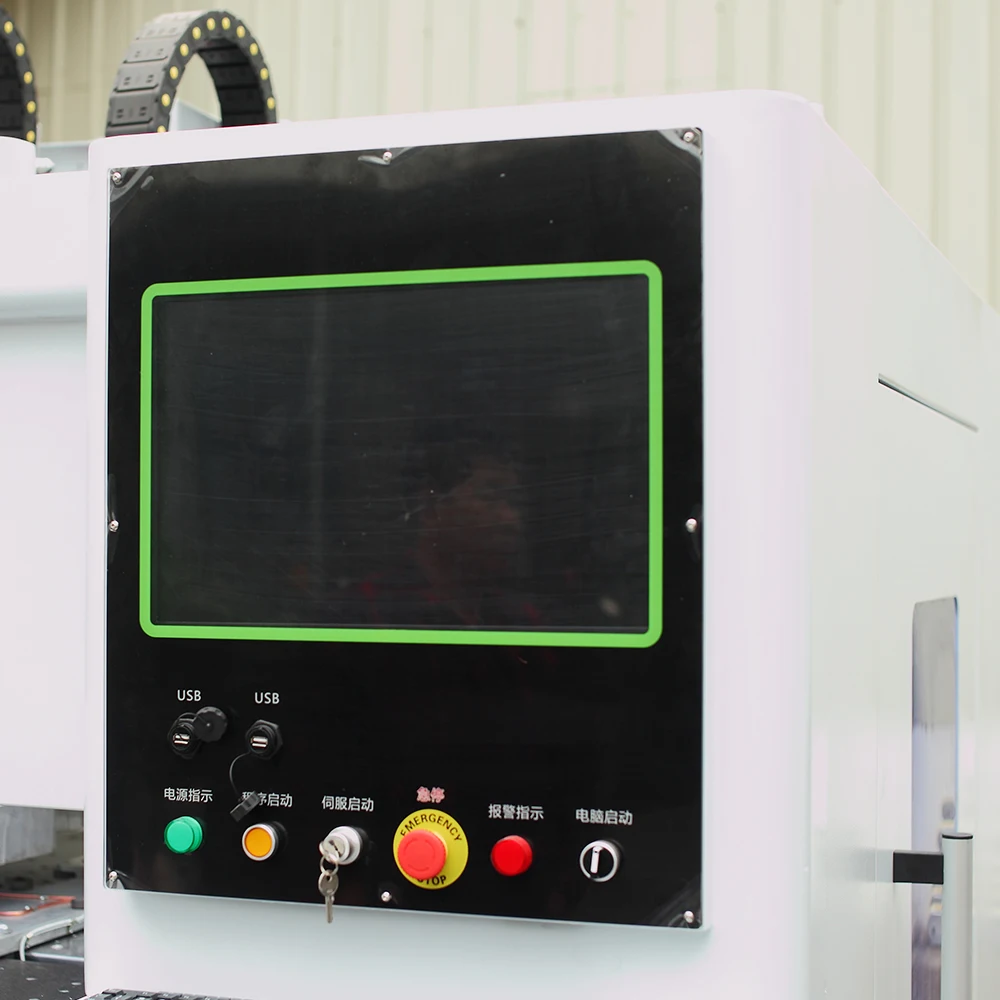

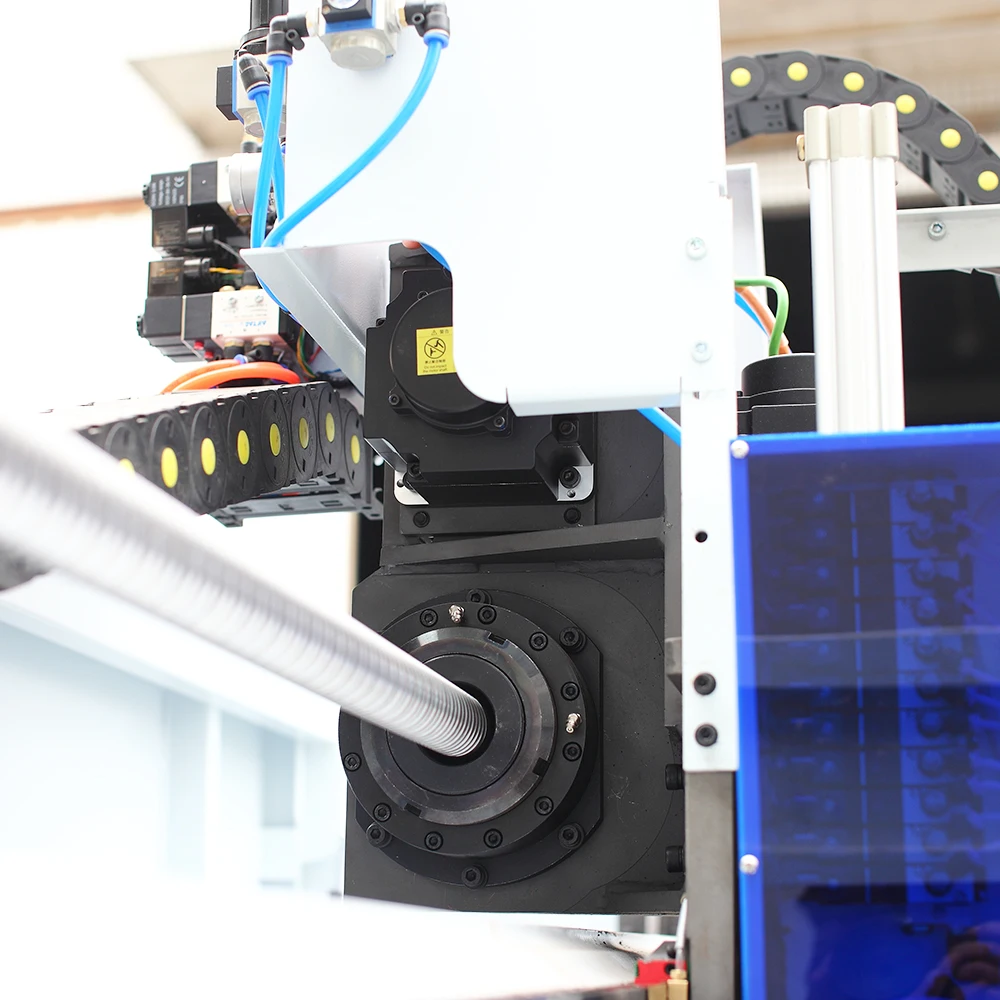

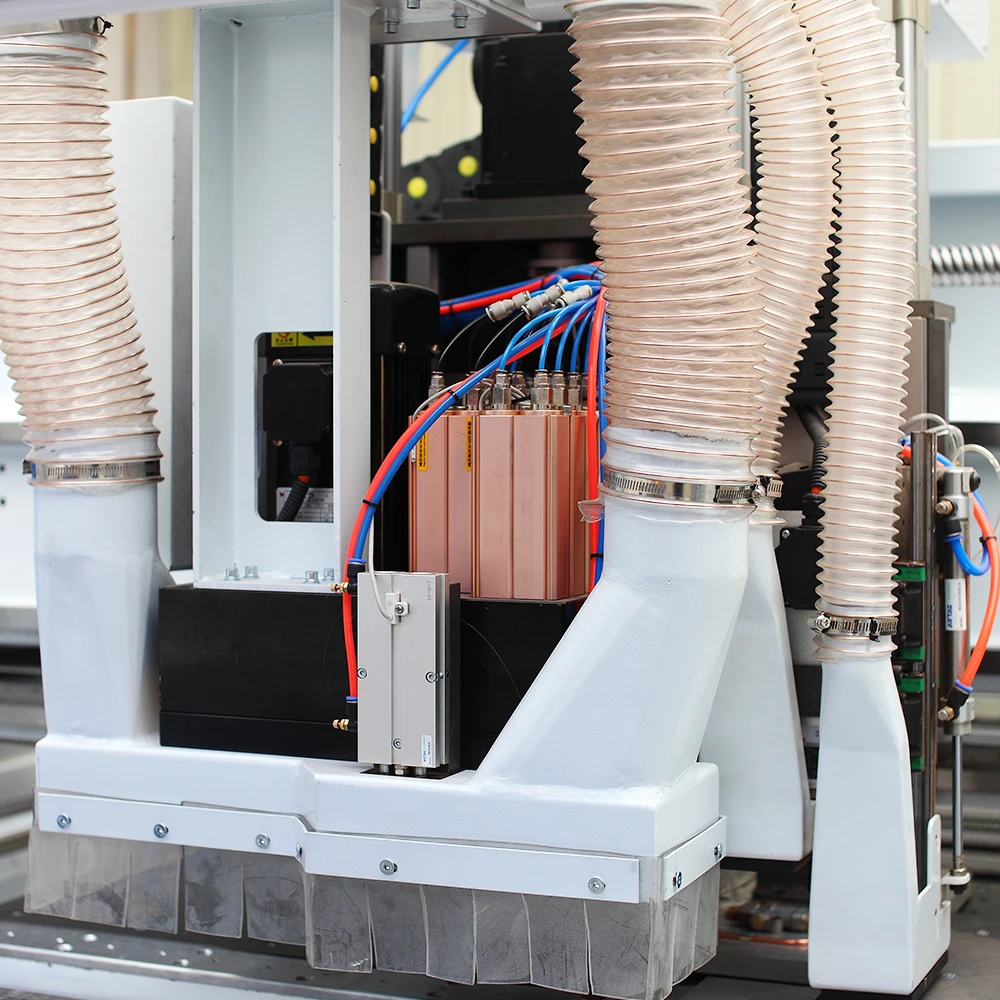

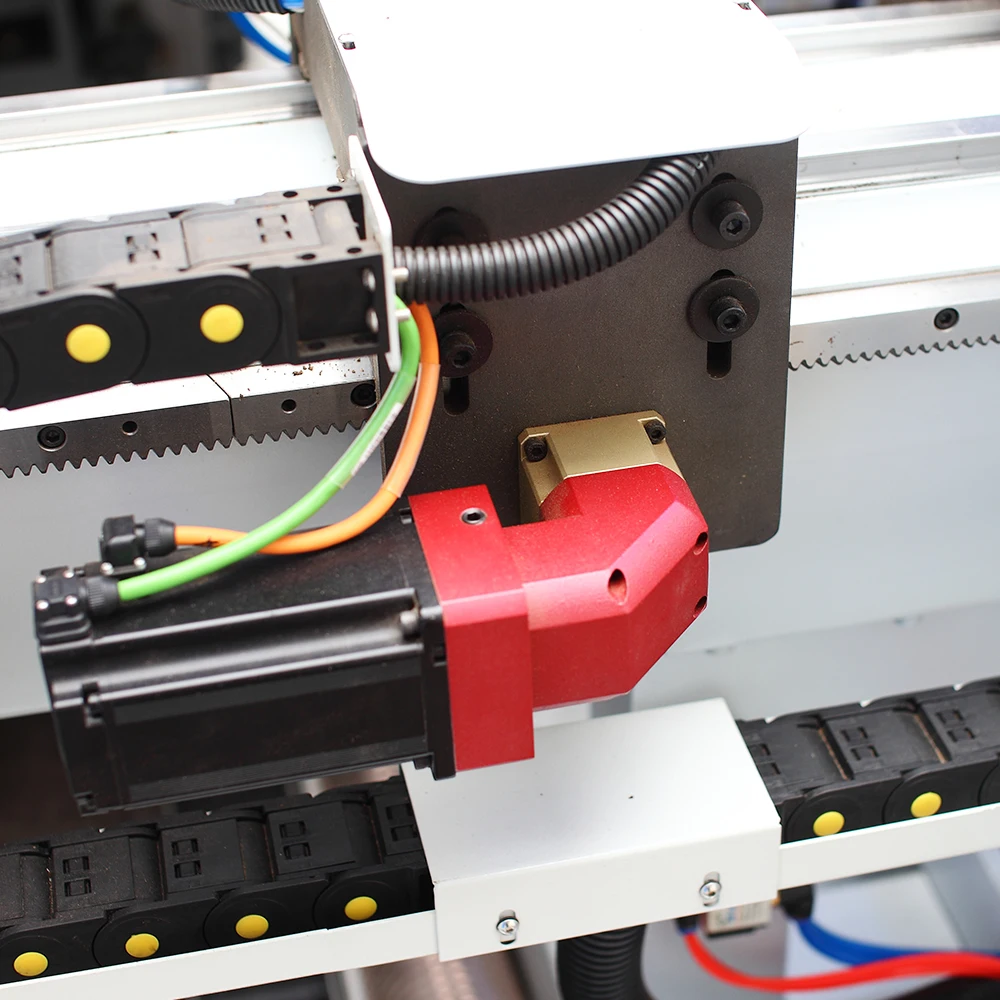

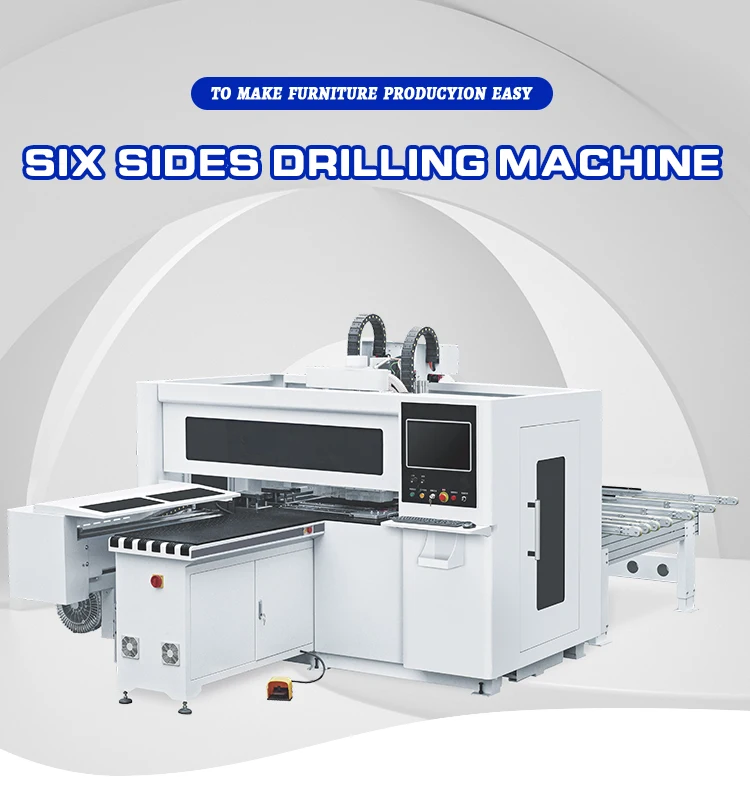

SKI 612 Best quality Six Sides Drilling Machine Furniture Wood working making machine
- Category: Wood Boring Machines >>>
- Supplier: Qingdao Weichang Industry And Trade Co. Ltd.
Share on (1600366972019):
Product Overview
Description
Processing maximum length | 4250mm |
Processing minimum length | 200mm |
Processing maximum width | 1250mm |
Processing minimum width | 30mm |
Processing maximum thickness | 50mm |
Processing minimum thickness | 10mm |
Fastest processing speed | 60m/min |
Number of Motion axis | 7 |
Processing surface | 6 |
Number of drill bags | Upper: 1 Lower: 1 |
Upper vertical drill bit | 12 pcs |
Upper horizontal drill bit | 8 pcs |
Lower vertical drill bit | 9 pcs |
Upper spindle | 1 |
Lower spindle | 1 |
Spindle power & speed | 3.5kw & 2400rpm |
X axis | 3800mm & 130m/min |
Y axis | 2500mm & 90m/min |
Z axis | 150mm & 60m/min |
A axis | 3800mm & 90m/min |
U axis | 1500mm & 60m/min |
V axis | 1250mm & 90m/min |
W axis | 1250mm & 90m/min |
Total power | 22.8kw |
Tool diameter | 5-20mm (optional) |
Working pressure | 0.6-0.8Mpa |
Weight | 4300kg |
Overall size | 4600*2650*2100mm |
Greatly improve the processing capacity and production efficiency by shortening the auxiliary working time. In addition, it
reduces the number of traditional machine tools, saves the number of operators and reduces the floor area of the workshop.
1. Improve processing capacity and production efficiency.
2. Improve wood yield.
3. Improve product quality and processing precision.
4. Expand the technological range and increase the product variety.
reduces the number of traditional machine tools, saves the number of operators and reduces the floor area of the workshop.
1. Improve processing capacity and production efficiency.
2. Improve wood yield.
3. Improve product quality and processing precision.
4. Expand the technological range and increase the product variety.

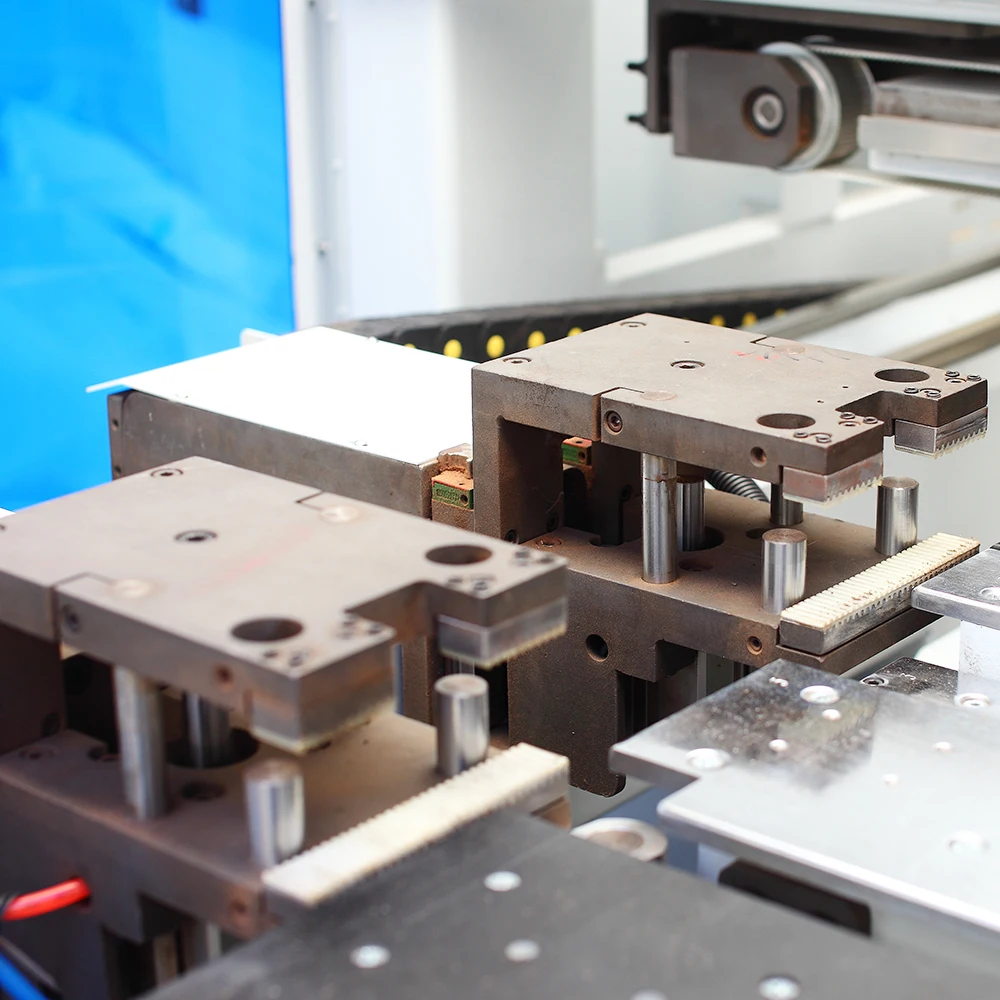

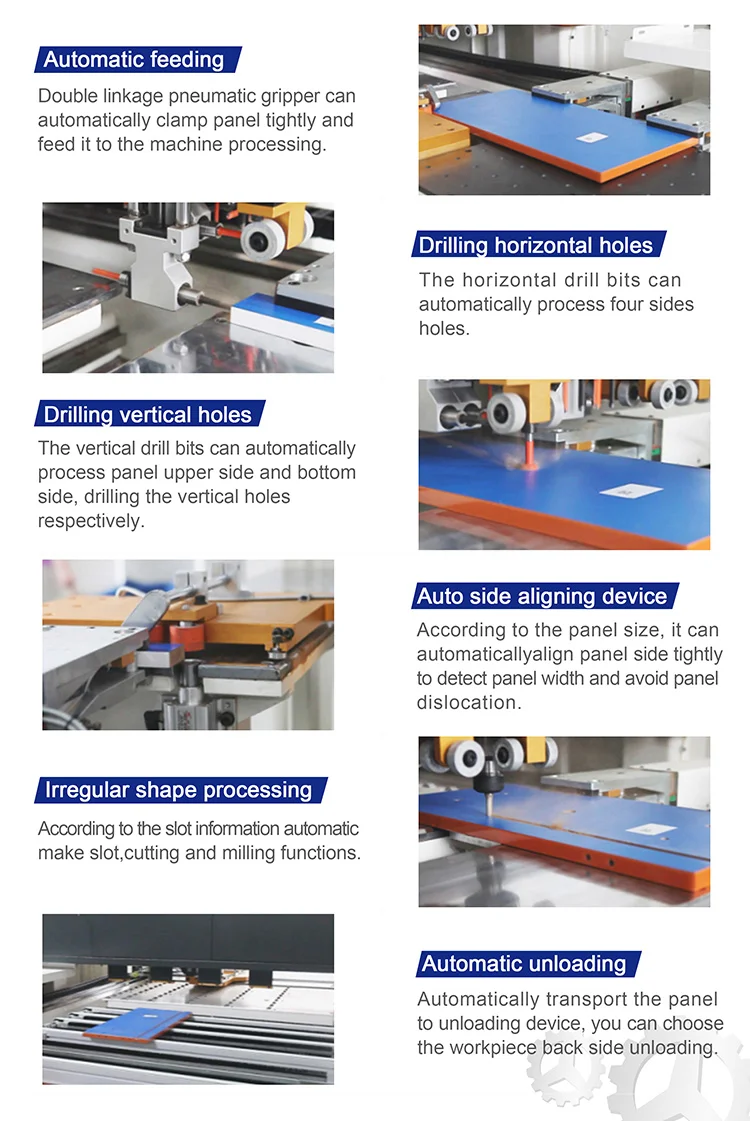

1. Double linkage pneumatic gripper can automatically clamp panel tightly and feed it to the machine processing.
2. The horizontal drill bits can automatically process four sides holes.
3. The vertical drill bits can automatically process panel upper side and bottom side, drilling the vertical holes respectively.
4. According to the panel size, it can automatically align panel side tightly to detect panel width and avoid panel dislocation.
5. According to the slot information automatic make slot,cutting and milling functions.
2. The horizontal drill bits can automatically process four sides holes.
3. The vertical drill bits can automatically process panel upper side and bottom side, drilling the vertical holes respectively.
4. According to the panel size, it can automatically align panel side tightly to detect panel width and avoid panel dislocation.
5. According to the slot information automatic make slot,cutting and milling functions.
6. Automatically transport the panel to unloading device, you can choose the workpiece back side unloading.
