Seven roll spiral profile tube coiling machine Heat exchanger tube rounding machine One time forming tube bending machine
- Category: >>>
- Supplier: Shanghai Honghuai Machinery Co. Ltd.
Share on (1600366991844):
Product Overview
Description
Product Overview

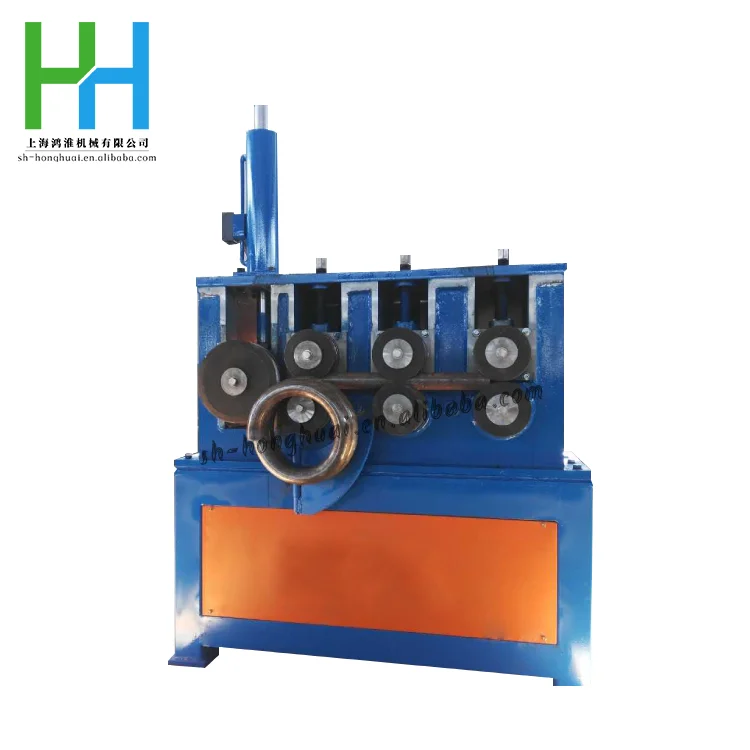

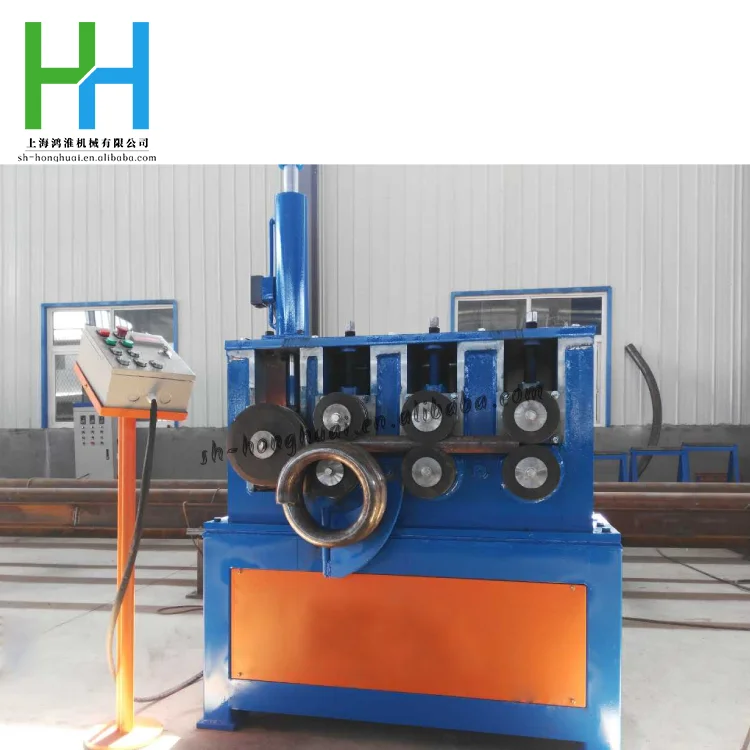

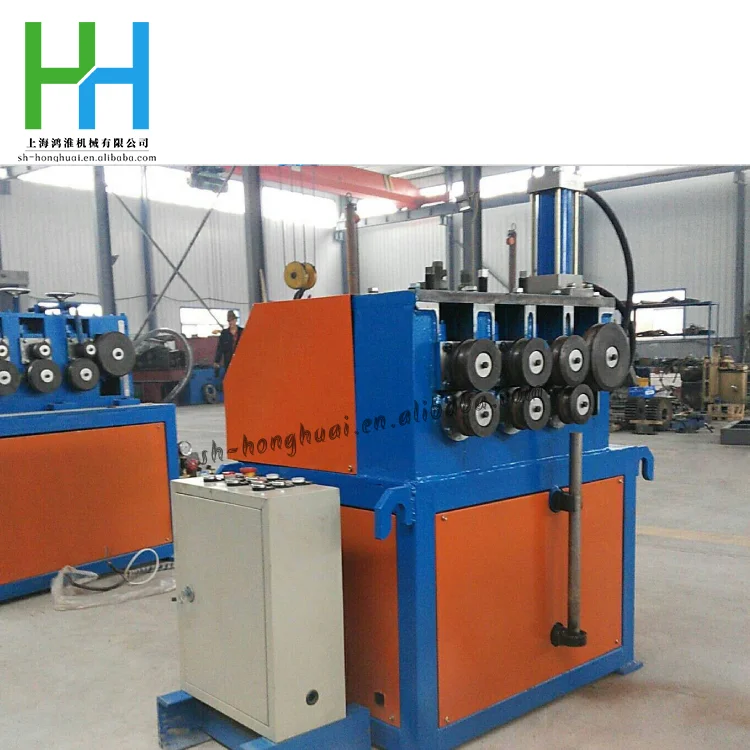

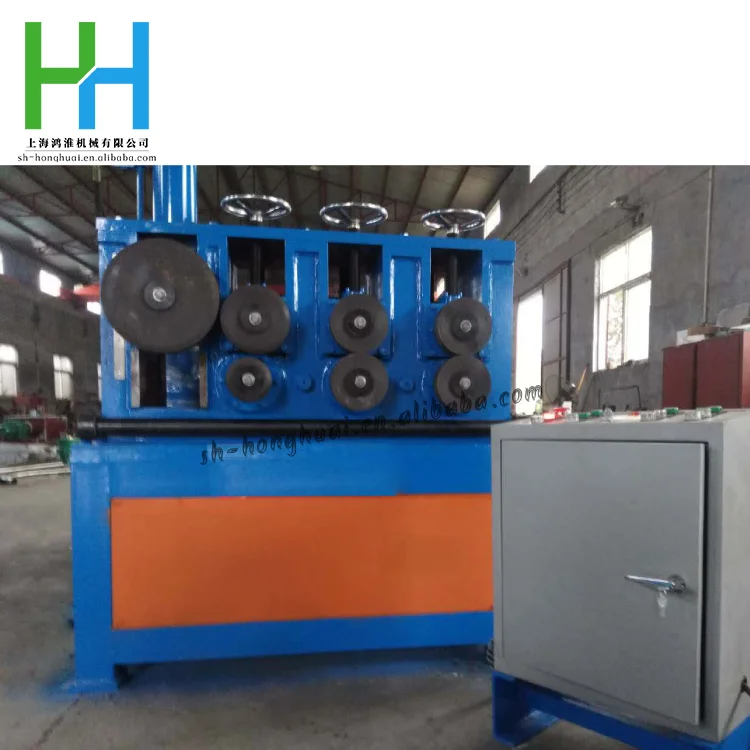

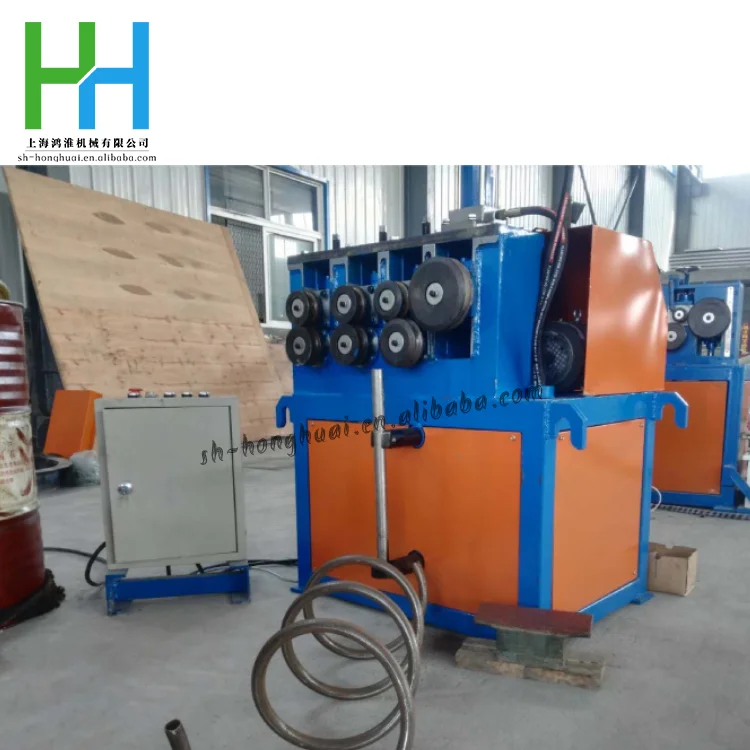

Seven-roll spiral profile tube coiling machine Heat exchanger tube rounding machine One-time forming tube bending machine
Seven-roll spiral profile tube coiling machine Heat exchanger tube rounding machine One-time forming tube bending machine .7-axis coil machine is a kind of equipment used for bending and forming coils such as evaporator and heat exchanger. It can bend metal pipes into small-diameter simple, arc or spiral workpieces without changing the section characteristics. It is widely used in evaporator, heat exchanger, petroleum, chemical industry, hydropower, metal structure, machinery manufacturing and other industries.
PRODUCT SPECIFICATIONS
Name | 7-axis metal profile coiling machine |
Application | pipes processing |
model | 25 |
Maximum bending section modulus of profile | 1cm³ |
Bending speed | 5.6r/min |
Yield limit of profile | 345MPa |
Cylinder thrust | Manual |
Maximum section model of round steel | 18 |
Minimum bending radius of round steel | 30mm |
Flat steel flat bending maximum section model | 5x30 |
Minimum bending radius of flat steel | 90mm |
Maximum section model of round pipe | Ø25×2 |
Minimum bending radius of circular pipe | 65mm |
Minimum section model of round pipe | Ø8×1.5 |
Minimum bending radius of circular pipe | 30mm |
Maximum section model of square tube | 25×25×2.5 |
Minimum bending radius of square tube | 150mm |
Minimum section model of square tube | 10×2 |
Minimum bending radius of square tube | 40mm |

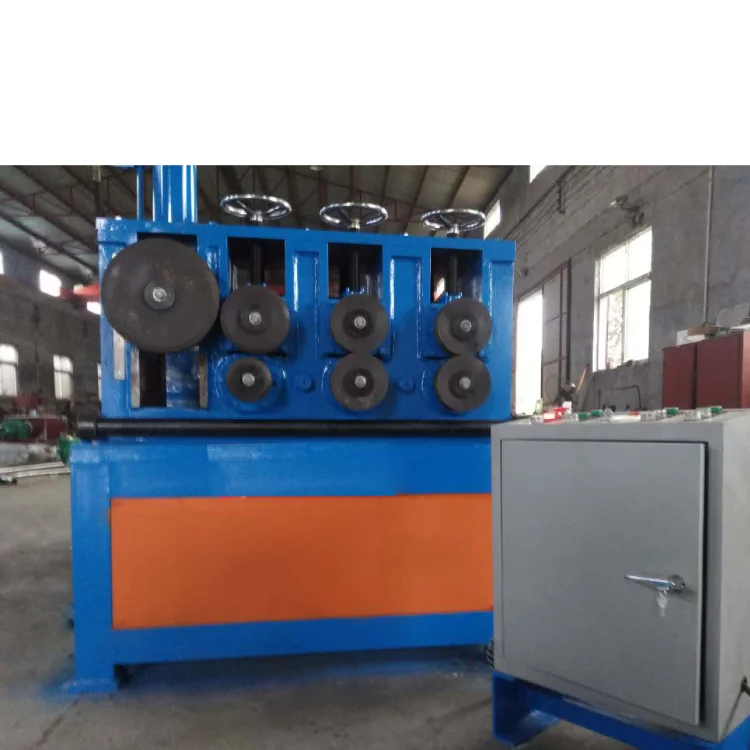

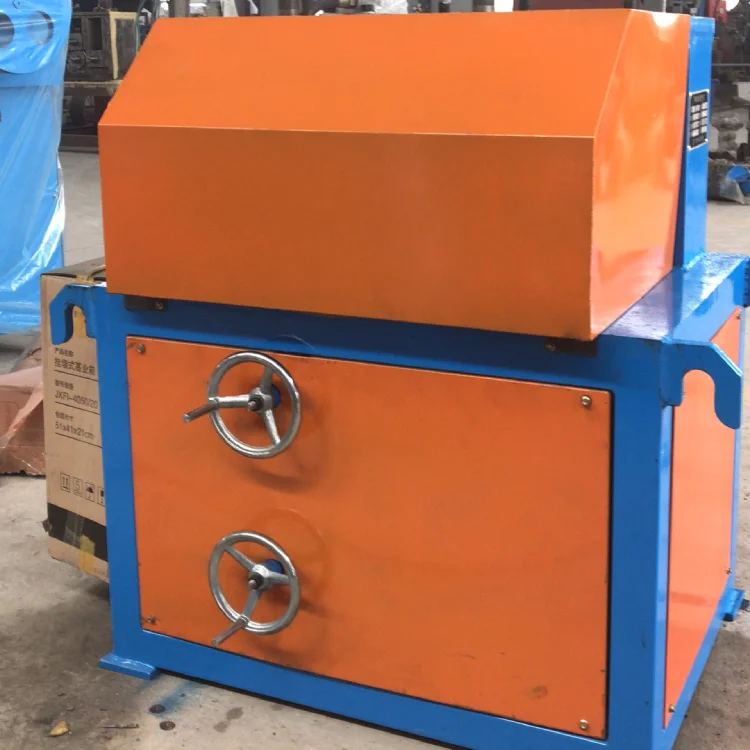

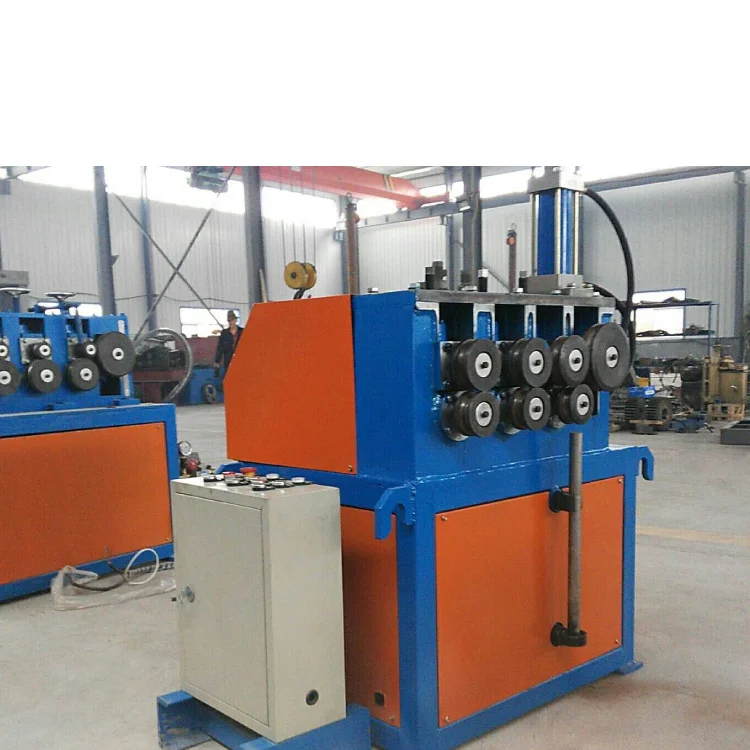

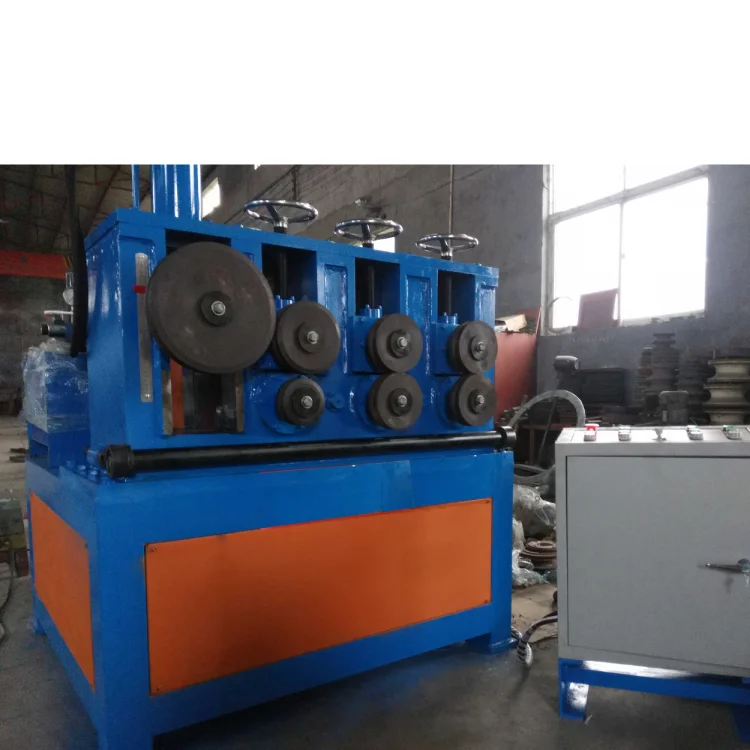

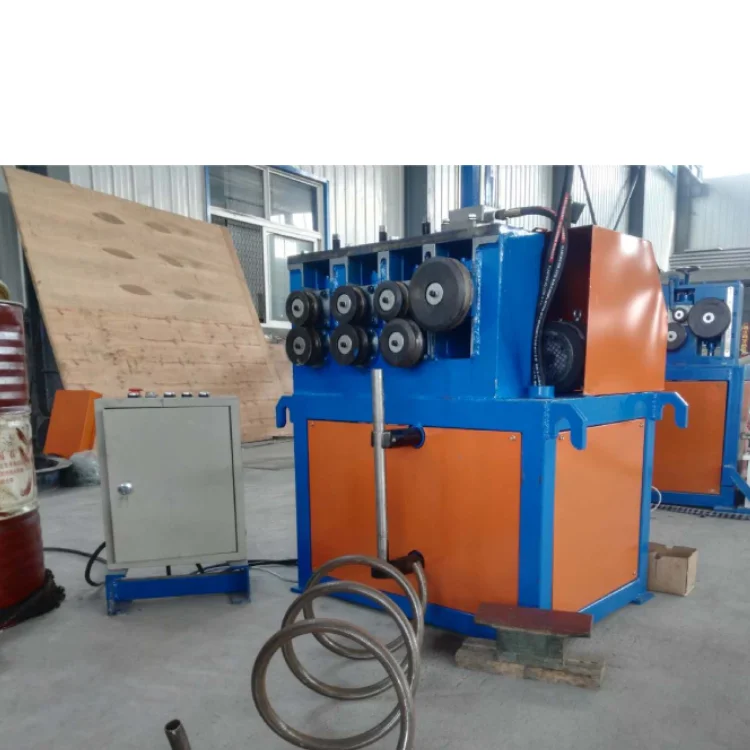

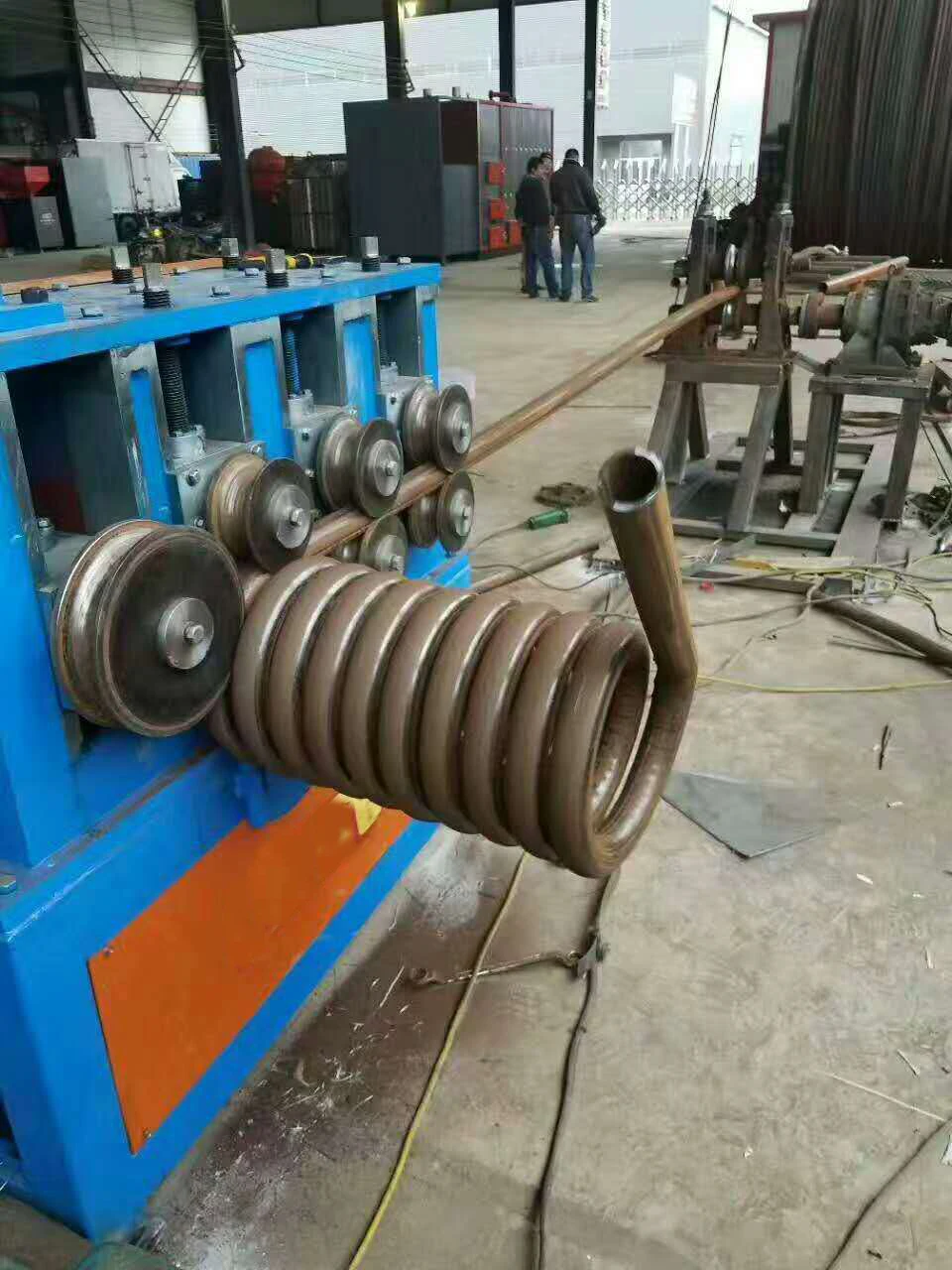

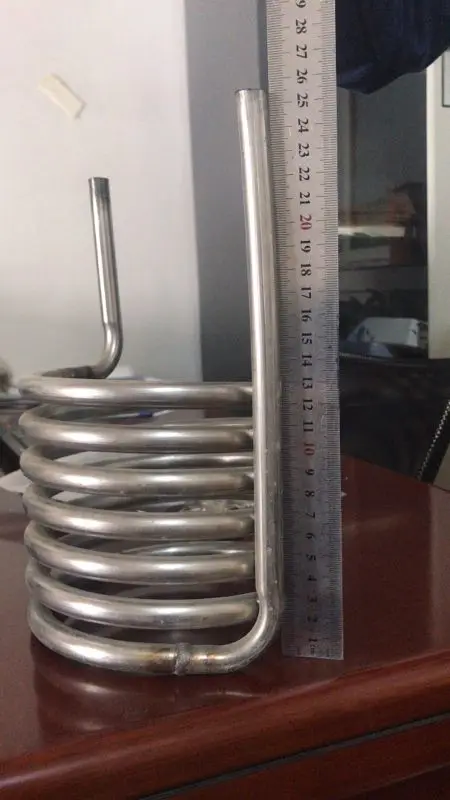

Products real shot
Packaging
FAQ
1)How can I place order?
A: You can contact us by email about your order details, or place order on line.
3) What's the order procedure?
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4） Where is your ADVANTAGE?
A:1. In good faith-based, professiona skills,excellent quality.
2 We have been committed to the development of new products, equipment canbe customized according to
needs.
3. Strict management system and perfect after-sales service .
A:1. In good faith-based, professiona skills,excellent quality.
2 We have been committed to the development of new products, equipment canbe customized according to
needs.
3. Strict management system and perfect after-sales service .
Company introduction
Honghuai Machinery Co., Ltd. adheres to the principle of honesty, the principle of credibility, and the new and old customers to meet the needs of our customers. Honghuai Machinery Co., Ltd. is mainly engaged in a variety of building materials machinery, industrial machinery, garden machinery, agricultural machinery, metal and metallurgical machinery, mining equipment, road equipment, instruments, material handling equipment, fire equipment and environmental equipment. Our service is intimate, manufactured, sincere, and make customers feel at ease. Customers can choose customization to meet customer needs of each industry.
