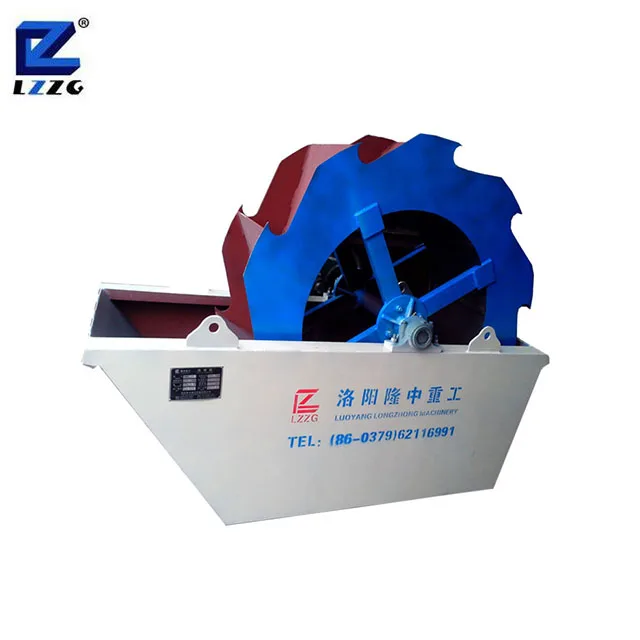

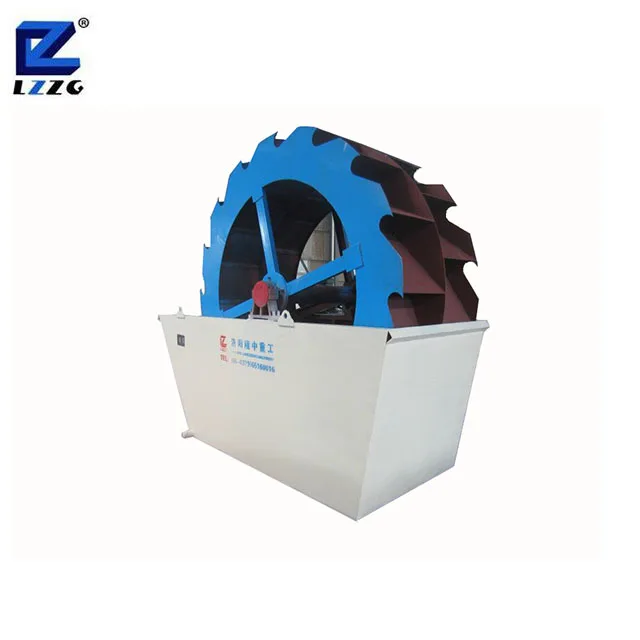

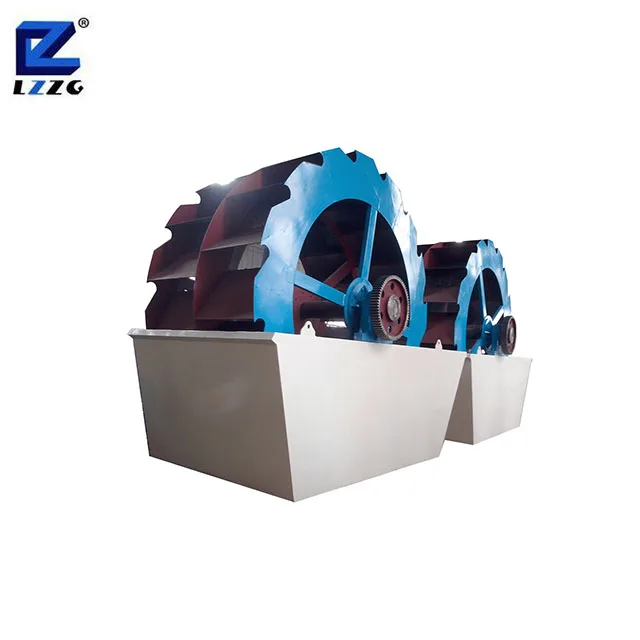

silica sand glass production most reliable wheel sand washing machine
- Category: >>>
- Supplier: Luoyang Longzhong Heavy Machinery Co. Ltd.
Share on (1600367173765):
Product Overview
Description
Product Application
LZZG wheel sand washer, adopting advanced technology and taking the stone sand industry’s practical condition into consideration, is applied for washing, grading and dehydrating in sandstone factory, construction site, hydroelectric station dam, glass manufacturing and oil well development.

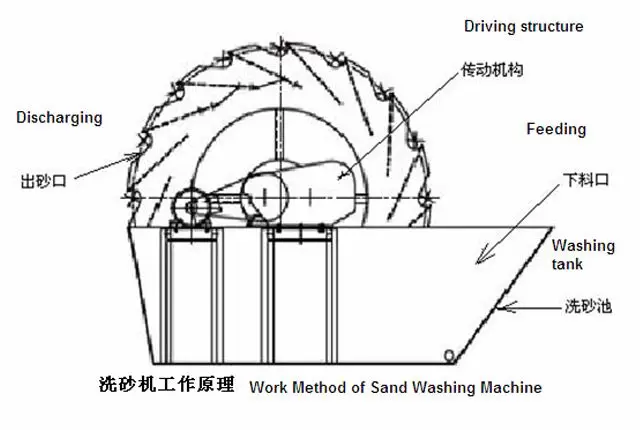

Working principle
The electric motor drives a gear unit that turns the bucket wheel at a design speed in a clockworks direction. The sand and stone flow into washing launder from feeding launder, rolling with the bucket wheel, and grinding rubbing with each other together with a strong water flow. The impurity covering (on) the sand is washed away. Adding more water at the same time, the strong water flow will takes away waste and allows the sand and stone to stratify according its specific gravity. To complete the whole washing process.
Technical Parameters
Model | Feed Size (mm) | Capacity (t/h) | Impeller Size (mm) | Power (kw) | Weight (kg) | Overall Size (mm) |
XSD1808 | ≤10 | 20-40 | 1800*800 | 3 | 2400 | 3000*2400*1900 |
XSD2612 | ≤10 | 30-80 | 2600*1200 | 4 | 3600 | 3900*2900*2700 |
XSD3016 | ≤10 | 60-120 | 3000*1600 | 5.5 | 4900 | 4400*3300*3100 |
XSD3620 | ≤10 | 80-160 | 3600*2400 | 7.5 | 7500 | 5100*3750*3700 |
XSD3624 | ≤10 | 100-200 | 3600*2400 | 11 | 7950 | 5100*4100*3700 |
XSD4230 | ≤10 | 160-250 | 4200*3000 | 15 | 11800 | 6000*4800*4300 |
Main Features
1. Reasonable Structure: The bucket wheel drive bearings is isolated from water and materials buried in washer, which greatly avoid the bearing damaged because of soaking in water, sand and other pollutants.
2. Compared with the screw sand washing machine, the loss of medium and fine sand and powder is minimized, the grade and fineness can meet the required standard.
3. High output and low power consumption.
4. Longer service life and convenient maintenance.
2. Compared with the screw sand washing machine, the loss of medium and fine sand and powder is minimized, the grade and fineness can meet the required standard.
3. High output and low power consumption.
4. Longer service life and convenient maintenance.

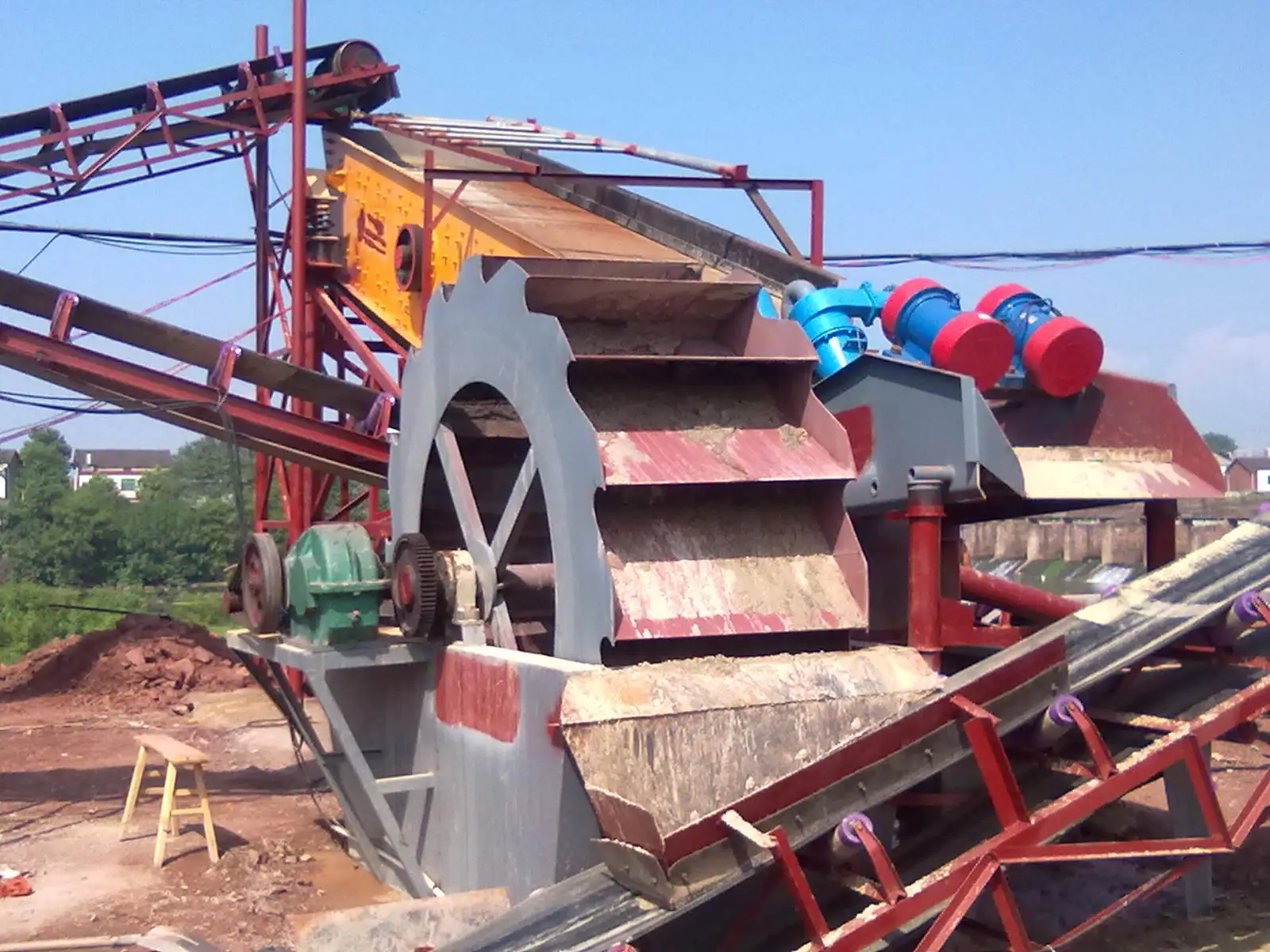

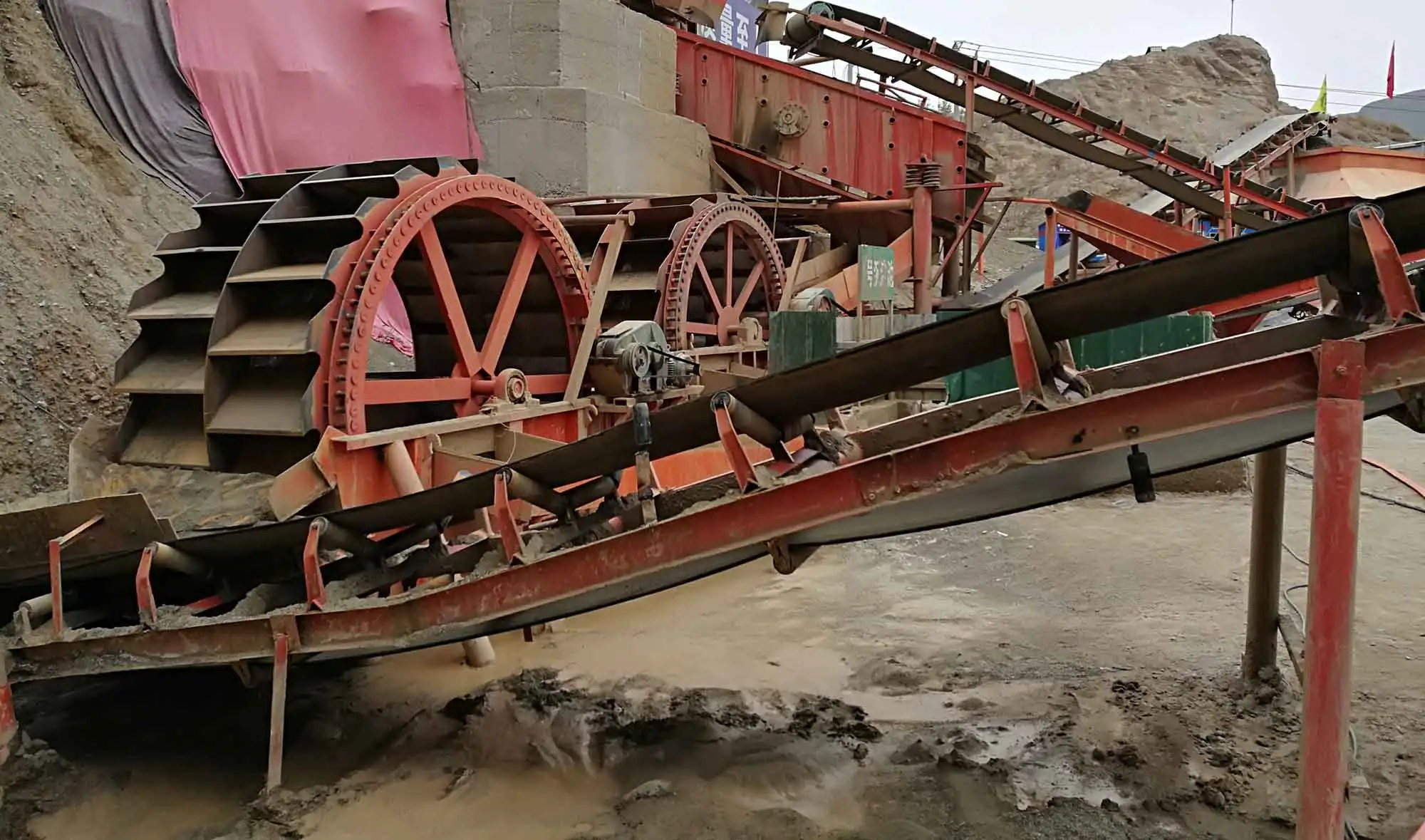

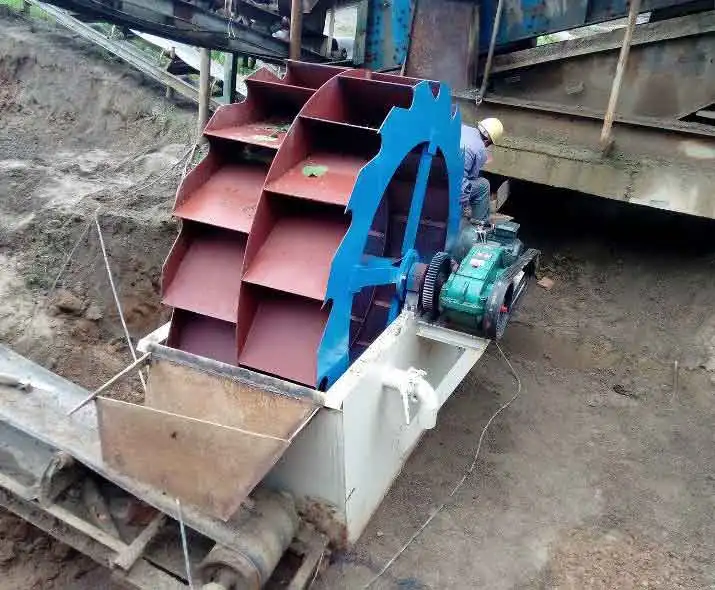

Working Site

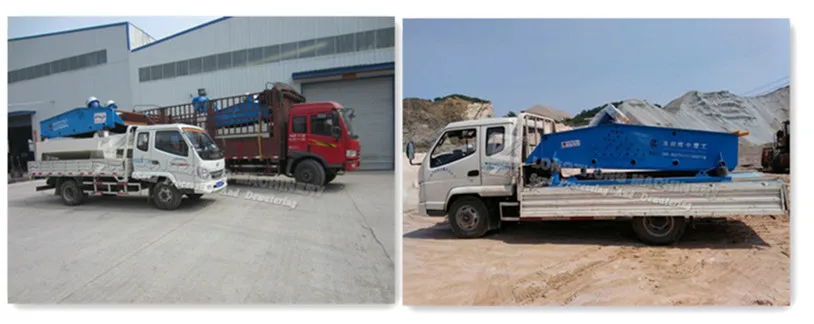

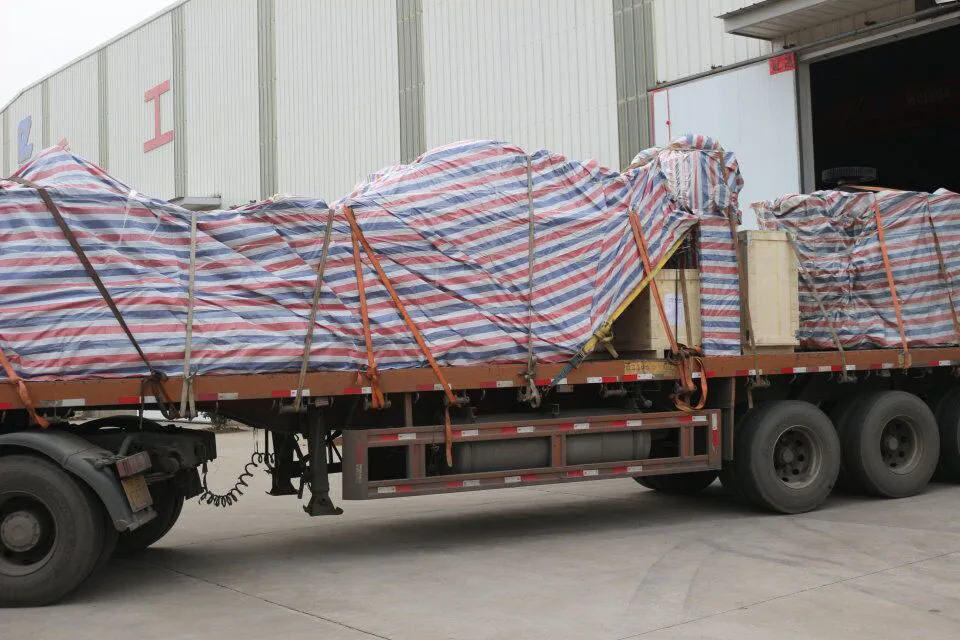

Packing & Delivery
Our Service
Pre-sale Service:
1. Choice of model.
2. Designing and manufacturing product according to customer's special requirement.
3. Company will arrange engineer to customer's site,designing site and discussing project.
On service:
1. Product inspection.
2. Help customer to formulate the construction plan.
After-sale Service:
1. Assign special after sale service team to site guiding customer to install and adjust machines.
2. Training operator on site.
1. Choice of model.
2. Designing and manufacturing product according to customer's special requirement.
3. Company will arrange engineer to customer's site,designing site and discussing project.
On service:
1. Product inspection.
2. Help customer to formulate the construction plan.
After-sale Service:
1. Assign special after sale service team to site guiding customer to install and adjust machines.
2. Training operator on site.
Company Profile
Factory of LZZG
LZZG has a proud history of serving the sandstone and aggregates equipment industries since 2010. We provide a wide range of rugged and reliable washing, screening, dewatering, recycling & waste management equipments along with all kinds of mobile, fixed, and compact sand plants.
Certifications
Exhibition
Our Team
FAQ
Q1. Does your product in stock?
A1. Yes,once you place the order,the delivery will be done within one week.
Q2. Can the machine parts be replaced?
A2. Yes,You can get them directly from us in a low price, and we make sure the easy maintainence and replacement .
Q3. How is the quality of your products?
A3. Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
Q4. Guaranteed?
A4. Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
Q5. How about price?
Q5. Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
A1. Yes,once you place the order,the delivery will be done within one week.
Q2. Can the machine parts be replaced?
A2. Yes,You can get them directly from us in a low price, and we make sure the easy maintainence and replacement .
Q3. How is the quality of your products?
A3. Our products are manufactured strictly according to national and international standard, and we take a test on every product before delivery.Please check our working site. If our quality is not good, i don't think we can sell so well.
Q4. Guaranteed?
A4. Yes. If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
Q5. How about price?
Q5. Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity".
