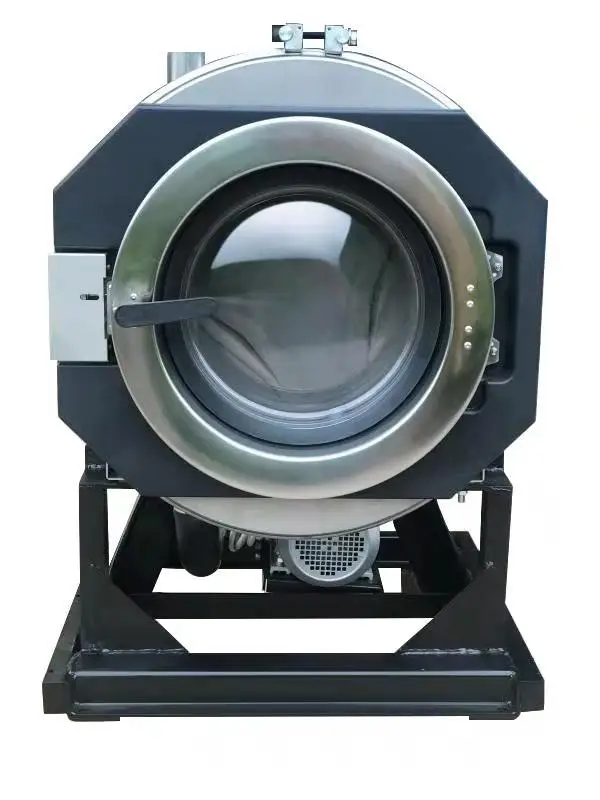

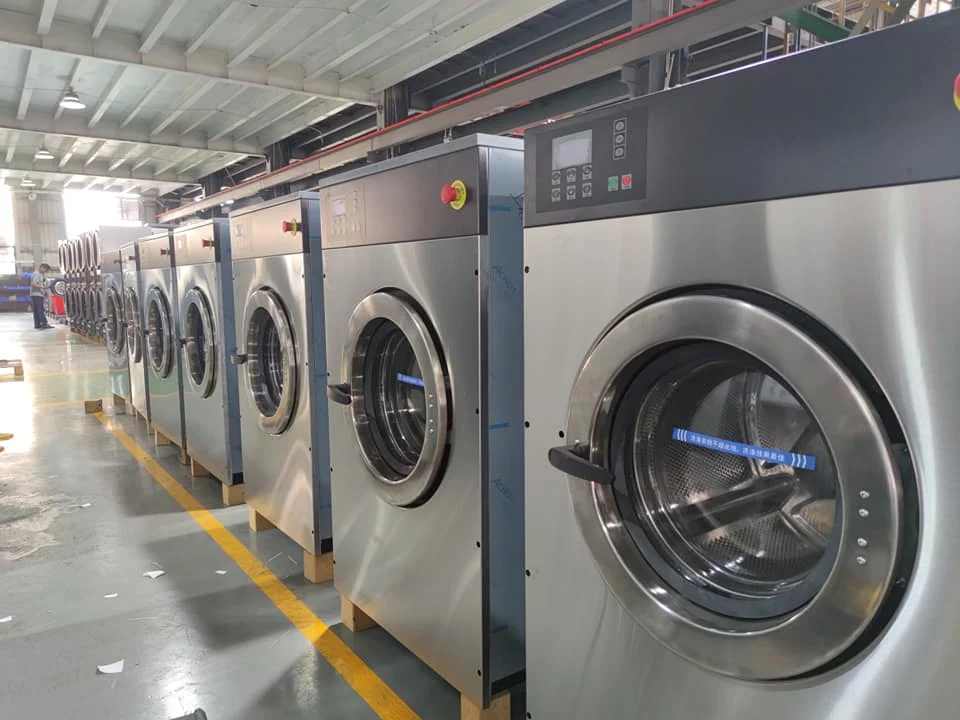

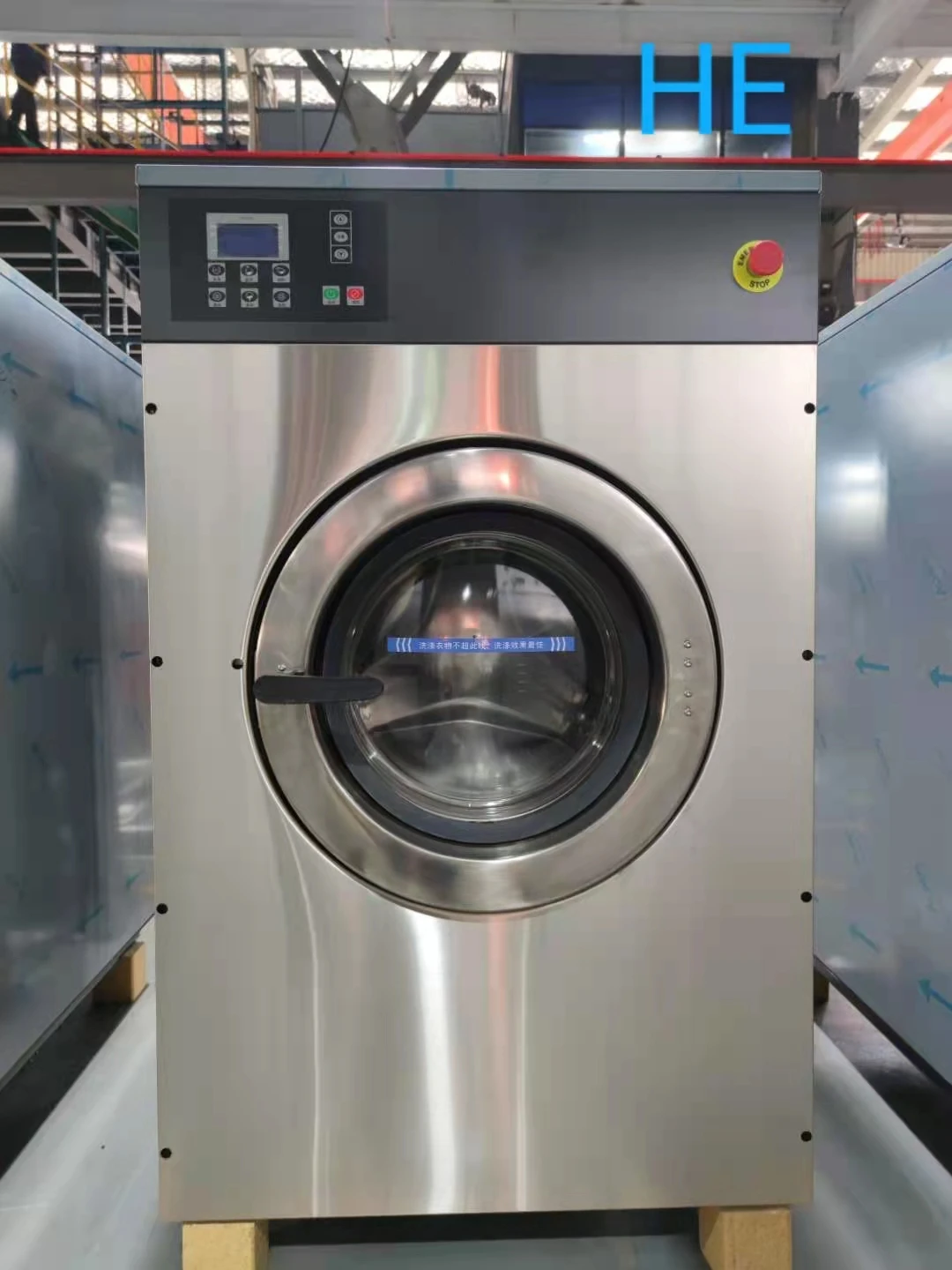

High Quality 20 kg Washer Coin Operated Washing Machines Washing Machine Automatic Fully
- Category: >>>
- Supplier: Zhejiang Blue Whale Intelligent Equipment Manufacturing Co. Ltd.
Share on (1600367233833):
Product Overview
Description
Model | HE—12 | HE—15 | HE—20 | |
Capacity | Cylinder Capacity（kg） | 12 | 15 | 20 |
Clinder Volume（L） | 120 | 150 | 183 | |
Speed | Washing Speed（r/min） | 40 | 40 | 40 |
High-extraction Speed（r/min） | 550 | 550 | 550 | |
Dehydrating factor（G） | 113 | 113 | 113 | |

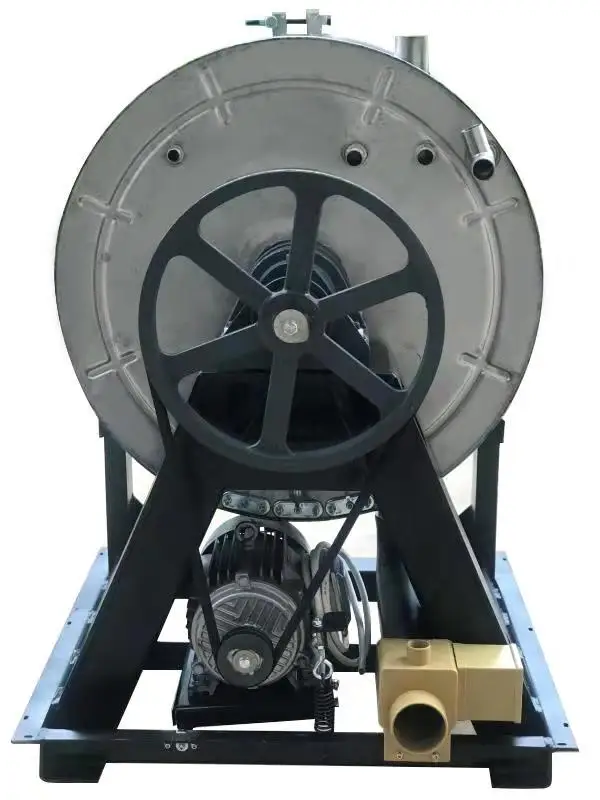

Electric | Motor Size（KW） | 1.5 | 1.5 | 2.2 |
Inverter Power（KW） | 1.5 | 1.5 | 2.2 | |
Electric Heating Power（KW） | 11.4 | 11.4 | 11.4 | |
Electric Voltage/Phase/Frequence（V/P/HZ) | 380/3/50 | 380/3/50 | 380/3/50 | |
220/2/50 | 220/2/50 | 220/2/50 | ||
Dimensions | Cylinder Diameter(mm) | 670 | 670 | 670 |
Clinder Depth(mm) | 340 | 426 | 520 | |
Door Diameter (mm) | 405 | 405 | 405 | |
Distance of from central of door to ground(mm) | 650 | 650 | 680 | |
Cabinet Width(mm) | 790 | 790 | 810 | |
Cabinet Depth(mm) | 804 | 890 | 980 | |
Cabinet Hight(mm) | 1250 | 1250 | 1270 | |

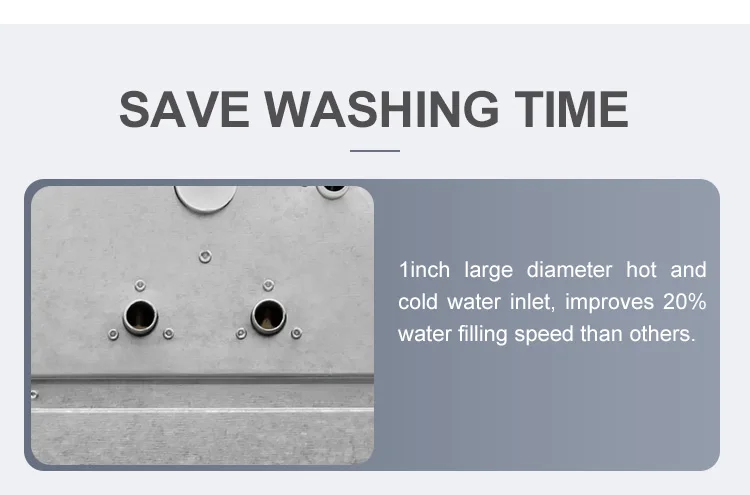

Cold Waster Pipe Size/Qty（DN/N) | 20/2 | 20/2 | 20/2 | |
Hot Waster Pipe Size（DN） | 20 | 20 | 20 | |
Steam Pipe Size （DN) | / | / | / | |
Drain Pipe Size（mm） | 76 | 76 | 76 | |
Water Working Pressure（Mpa） | 0.2~0.4 | 0.2~0.4 | 0.2~0.4 | |
Steam Pressure（Mpa） | / | / | / | |
Compressed Air Pressure （Mpa） | / | / | / | |
Weight | Net Weight （kg） | 260 | 280 | 300 |
