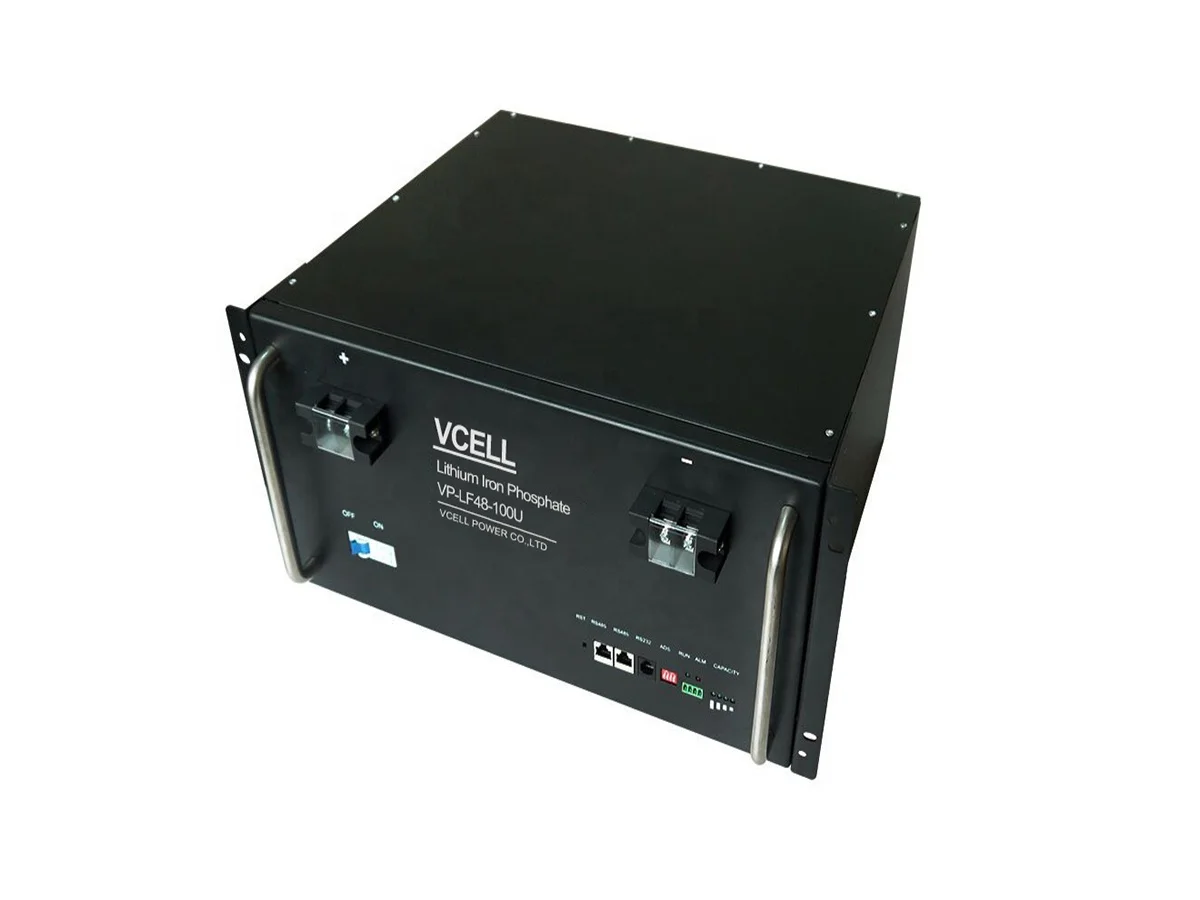

Deep Cycle 48V 100AH 200Ah Rechargeable LiFePo4 Battery Pack with BMS For Solar Energy Storage System
- Category: >>>
- Supplier: Shenzhen Vcell Power Technology Company Limited
Share on (1600367283896):
Product Overview
Description
Products Description
Battery Type | Lithium Iron Phosphate Battery Pack | ||||||
Nominal Voltage | 51.2V | ||||||
Nominal Capacity | 100Ah | ||||||
Charge Cut-Off Voltgae | 58.4V | ||||||
Discharge Cut-Off Voltage | 40.0V | ||||||
Standard Charge Current | 0.5C | ||||||
Max Charge Current | 1.0C | ||||||
Max Continuous Discharge Current | 150.0A | ||||||
Peak Discharge Current | 300.0A(<3S) | ||||||
Discharge Temperature | -20~80℃ | ||||||
Charge Temperature | 0~45℃ | ||||||
Store Temperature | -10~45℃ | ||||||
Cycle Life | >3000 @80% DOD, 0.5C | ||||||
Dimension | 483*385*222mm/Customize | ||||||
Weight | About 51.8kg | ||||||
Communication | RS232/485 | ||||||
PCM | Protection of over charge/discharge, over current, short circuit etc...... | ||||||

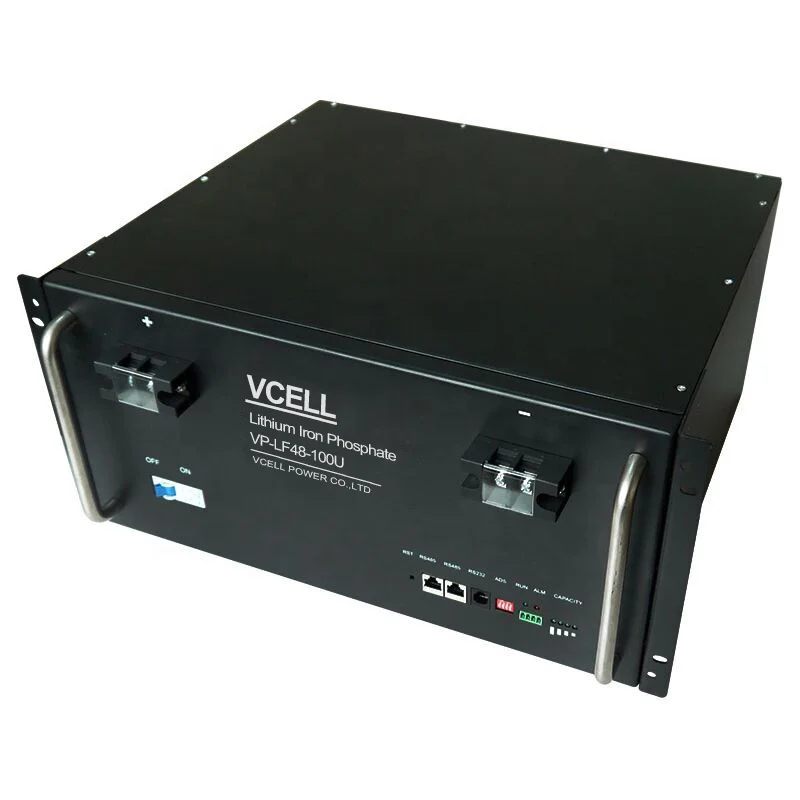

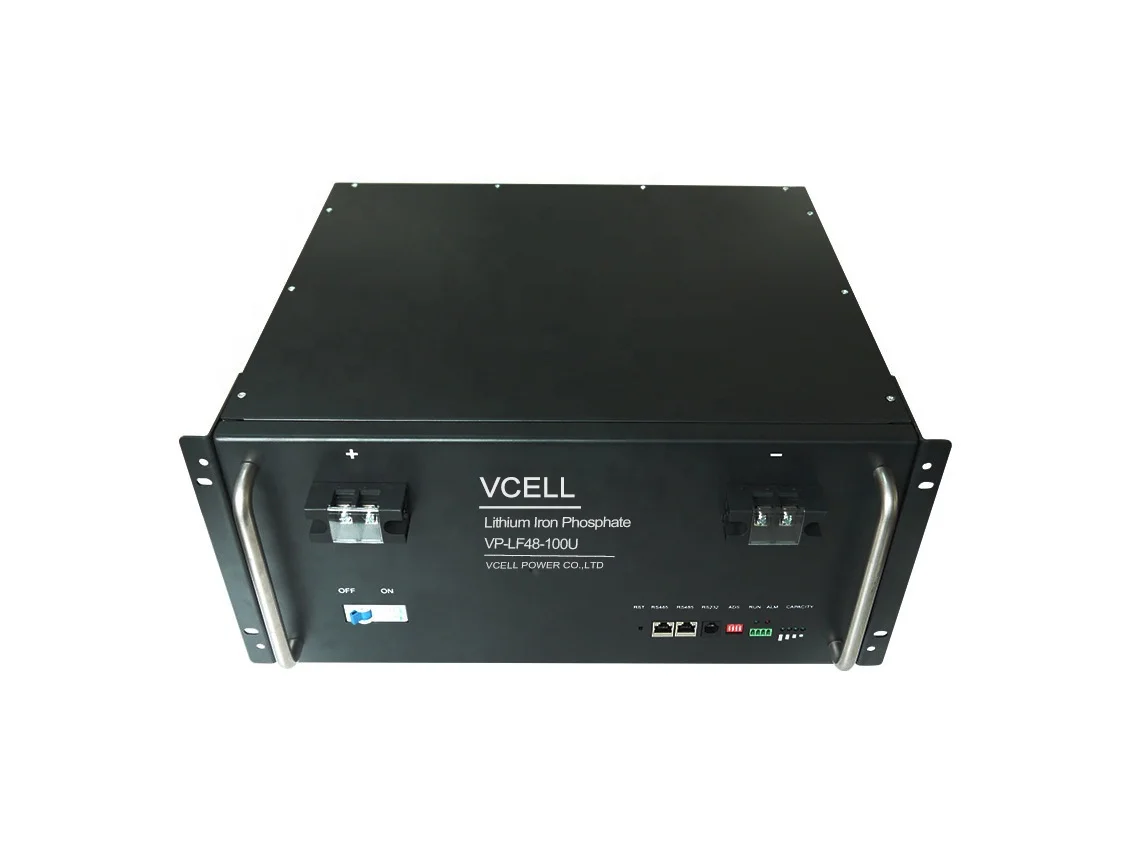

Product Picture
PCM/BMS
All Battery Pack Made By ShenZhen Vcell Power Technology Co.,Ltd Are With BMS/PCM Build Inside, which Has Over Current, Over Charge/Discharge Protection, Short Circuit Protection..... Some Also With Over Temperature Protection And Cell Balance Function Etc...... Communication Function Like RS232/485, SMBUS, I2C, Bluetooth Is Available.
Product packaging
1. Each Battery is well isulated protected with white box
2. Each carton box not more than 10Kg
3. Carton box to pallet
Our Factory
Material Mixing
Coating
Rolling Press
Sheet Cutting
Rolling
Sealling
Baking
Aging
Safety Testing Center
Automated OCV Testing
Pack Assembling
Workshop
Certifications
FAQ
1. Where is your factory located?
>> DongGuan, China.
2. Can you support samples for testing?
>>Yes, sample time is about 7-15 days.
3. Whats your regular leadtime?
>> 25-30 Days.
4. Whats your payment term?
30% advance, 70% before shippment.
5. Whats your delivery way?
>> We can ship both air and by sea.
6. Do you have MOQ requirement?
>> Yes, we have, but, we can support small order to start.
