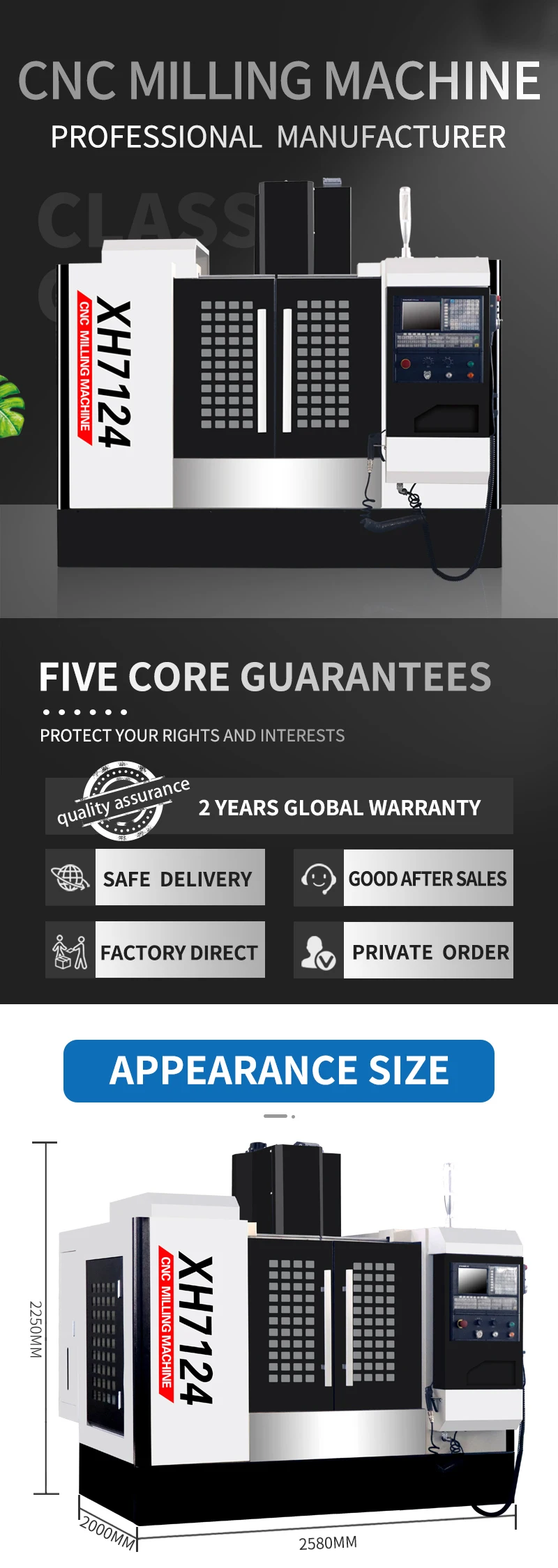

Made in china superior quality popular product 3 axis 4 axis mini cnc milling machine
- Category: >>>
- Supplier: Shandong Classic Machine Tool Co. Ltd.
Share on (1600367308411):
Product Overview
Description
Product Application
This series adopted wide guide rail, make machine have good wear-resistant capacity.
Made of resin sand that dealt with electric furnace smelting ,which bestows the machine with a high rigidity.
The adoption of ball screws with bearing at both end has ensured the machine a stable accuracy.
This series adopted wide guide rail, make machine have good wear-resistant capacity.
Made of resin sand that dealt with electric furnace smelting ,which bestows the machine with a high rigidity.
The adoption of ball screws with bearing at both end has ensured the machine a stable accuracy.

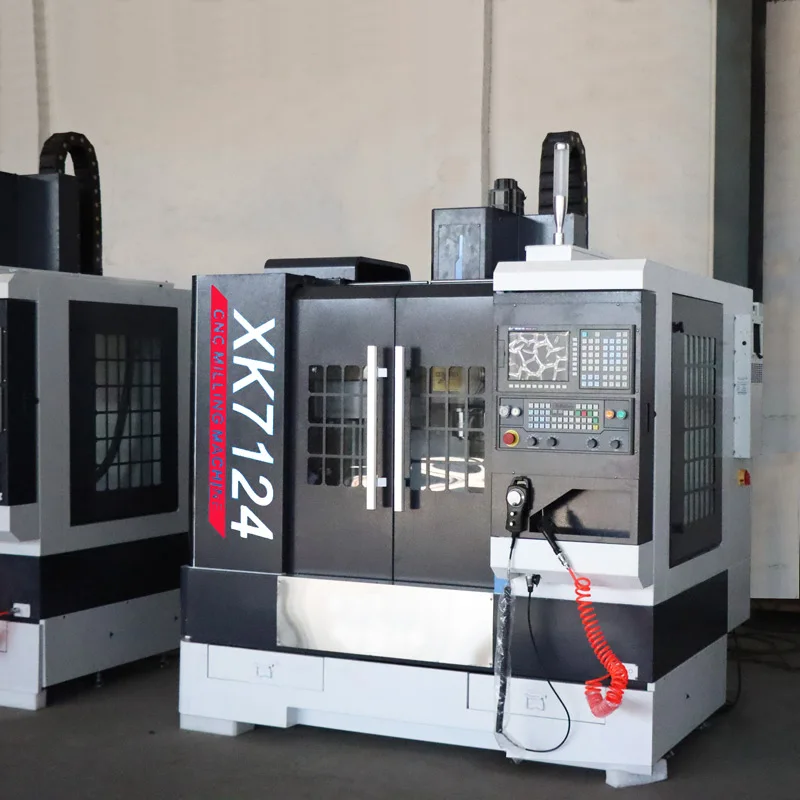

ITEM | XK7124 |
Size of worktable(length×width) | 900mm×250mm |
T slot (width x qty x spaces) | 16mm×3×60mm |
Max loading weight on worktable | 60Kg |
X-Axis travel | 400mm |
Y-Axis travel | 320mm |
Z-Axis travel | 400mm |
Distance between spindle nose and table | 105-500mm |
Distance between spindle center and column | 297mm |
Spindle taper | BT30 |
Max. spindle speed | 4500r/min |
Spindle motor power | 2.2/3.7Kw |
Feeding Motor power: X Axis | 1Kw |
Y Axis | 1Kw |
Z Axis | 1Kw |
Rapid feeding speed: X,Y,Z axis | 6m/min |
Feeding speed | 0-2000mm/min |
Min. set unit | 0.001mm |
Max. size of tool | φ60×175mm |
Loosing and clamping way for tool | Clamp by disc spring |
Loose manually | |
Clamp by disc spring. | |
Loose pneumatically | |
Max. loading weight of Tool | 3.5Kg |
N.W (include machine stand) | 900Kg |
Packing size( L X W X H) | 1220×1380×1650mm |
Machine tool basic configuration:

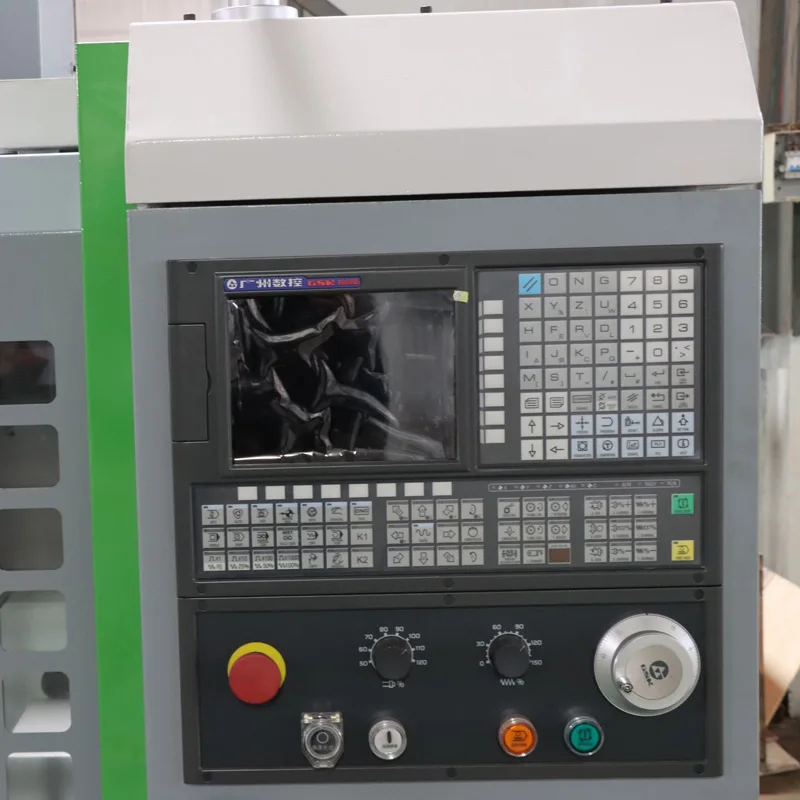

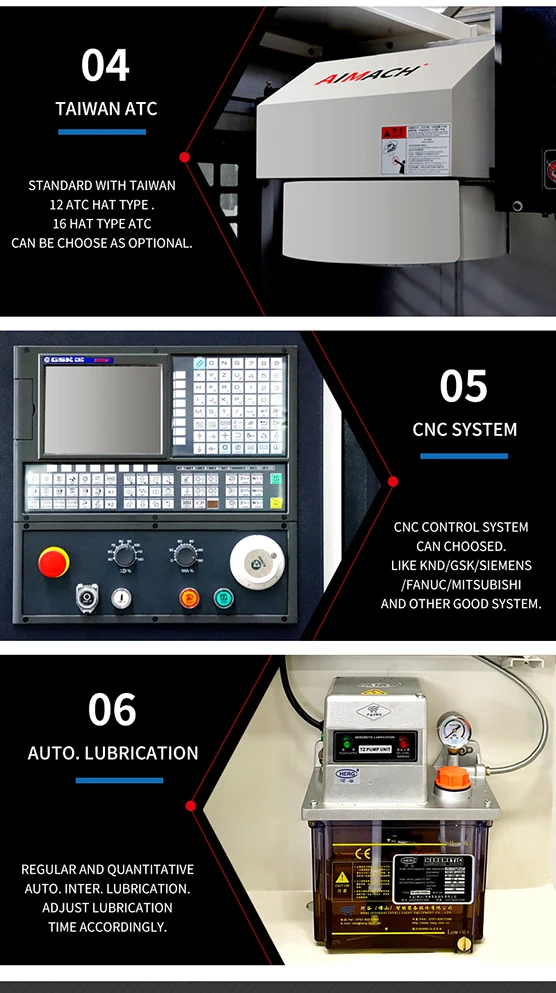

1.CNC System Siemens
2.Spindle motor:3.7KW(Servo)

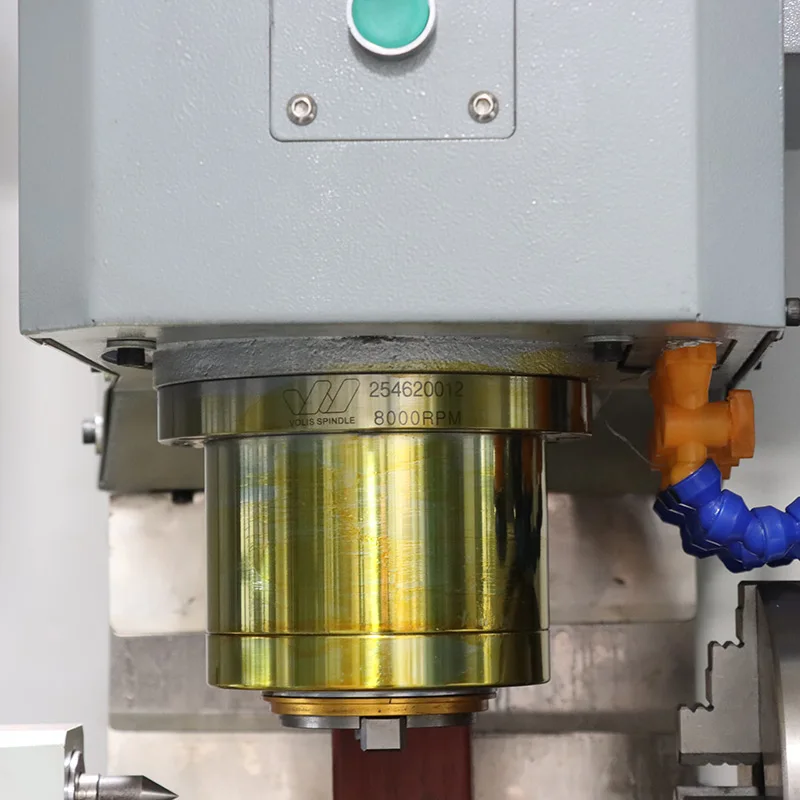

3.Spindle :BT30 spindle unit (taiwan brand )
4,.Air power drawbar

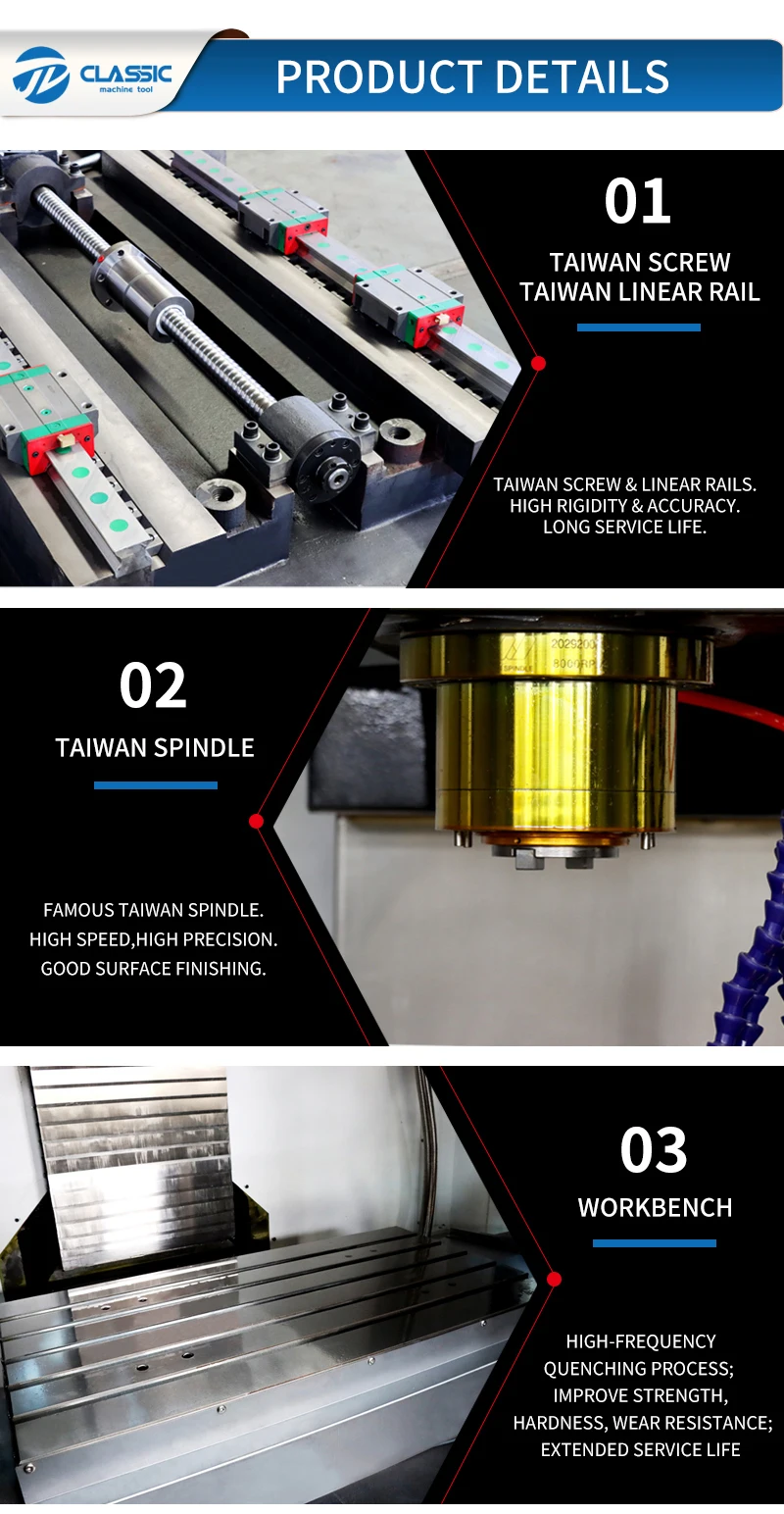

5.lead screw:Taiwan TBI
6.Bearing:HBB
7.Electronic parts :Siemens
8.Simple Protective cover
1.CNC System Siemens
2.Spindle motor:3.7KW(Servo)
3.Spindle :BT30 spindle unit (taiwan brand )
4,.Air power drawbar
5.lead screw:Taiwan TBI
6.Bearing:HBB
7.Electronic parts :Siemens
8.Simple Protective cover
Recommend Products
Details Display
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
