High Pressure discontinuous pir/pu polyurethane panel machine
- Category: >>>
- Supplier: Jinan Jinxiang Machinery Co. Ltd.
Share on (1600367334235):
Product Overview
Description
Product Overview
Discontinuous PU Sandwich Panel Line(3+3)
Equipment Instructions:
JXLC3+3 discontinuous PU sandwich panel line has two parts:

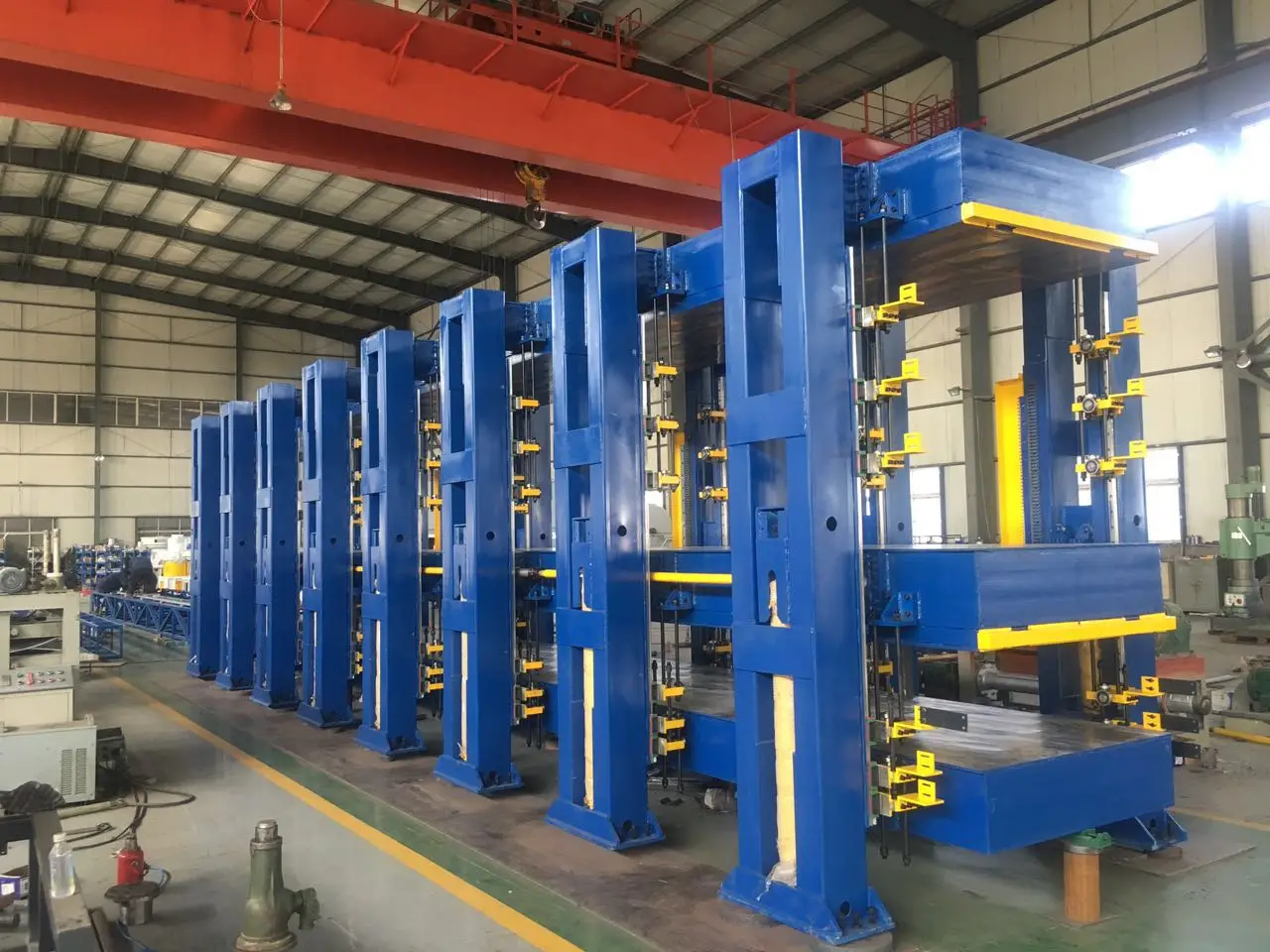

One part is press machine which has up and down two pressure maintaining work areas. Three mould templates are placed in each workspace. When the upper work area is pressurized, the lower working area is opened, and the mould templates can be placed or taken out by the manipulator in open work area. The upper and lower work areas are alternately used.
The other part is automatic lifting platform which it's workflow
- Remove the finished mould template from the open work area,
-Then drop to the height of the work;
-The insulation board will be taken out by manipulator or manual work, process paving work and feeding the mould template into the
pressure machine;
- Take out the next template until the three panels are finished.
JXLC3+3 discontinuous PU sandwich panel line has two parts:
One part is press machine which has up and down two pressure maintaining work areas. Three mould templates are placed in each workspace. When the upper work area is pressurized, the lower working area is opened, and the mould templates can be placed or taken out by the manipulator in open work area. The upper and lower work areas are alternately used.
The other part is automatic lifting platform which it's workflow
- Remove the finished mould template from the open work area,
-Then drop to the height of the work;
-The insulation board will be taken out by manipulator or manual work, process paving work and feeding the mould template into the
pressure machine;
- Take out the next template until the three panels are finished.
PRODUCT SPECIFICATIONS
Model | JXLC-3+3-12500*1450 | ||||||
Max processing dimension | 12000mm*1200mm(3~14m is optional) | ||||||
Number of Pallets | 6 pieces | ||||||
Processing thickness | 50~200mm | ||||||
Working pressure | 16MP | ||||||
Clamping force of mold | 300T | ||||||
Hydro-cylinder | 125mm*16 units | ||||||
Clamping speed | 1m/minute | ||||||
Hydraulic power | 15KW | ||||||
Lifting of platform lifting | Hydraulic lifting or wire rod lifting can be selected according to the user's site and the situation with auxiliary | ||||||
Lifting speed | 1.5m/minute | ||||||
Template translation | The template translation is controlled by the stepping motor with a speed of 12m / min | ||||||
Company Profile
Certifications
Packaging & Shipping
CUSTOMER VISIT
After Sales Service
All parts are under one Year Warranty with defects from manufacturer. Any other defect caused by human error, mishandling,wear-and tear & any foreseeable conditions will not be covered by this warranty. All electronic parts and component can be guaranteed by original part's manufacturer or our company.
