Haiwei YT1 H.265 H.264 4K 30FPS Mpeg Transcoder 1U IPTV Transcoder IP to IP Streaming Media Transcoder
- Category: >>>
- Supplier: Shenzhen Haiwei Vision Technology Co. Ltd.
Share on (1600367367104):
Product Overview
Description
Model | YT1 Streaming Media transcoder | ||||||
Input | 1 IP input (Support B frame stream) | ||||||
Output | 1 channel IP output | ||||||
Video Input Encoding format | MPEG4/H264/H265/MPEG2/VP9/VPP | ||||||
Video Coding standard | H.265/H.264 | ||||||
Video Coding level | H.265 MAIN PROFILE H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE | ||||||
Video Encoded size | 640*480~3840*2160 | ||||||
Video frame rate | 30 fps | ||||||
Audio coding | AAC/MP3/MP2/G.711 | ||||||
Audio bit rate | 64Kb/s~256Kb/s | ||||||
Sampling rate | 32000、44100 etc | ||||||
IP output | 4 RJ 100M / 1000M adaptive Ethernet port, dual-bitrate( H.265/264 TS stream) | ||||||
Network protocol | SRT/RTSP/RTMP/HTTP/RTP/UDP/multicast/Unicast | ||||||
Configuration management | WEB | ||||||
Power supply | 12V~2A | ||||||
power consumption | 5W | ||||||
Size | 100mm * 118mm * 40mm(length*width*height) | ||||||
Operating temperature | -20℃+ 60℃ | ||||||
Working humidity | <90%，Non-condensing | ||||||
Product Details
Haiwei is leading video streaming solutions provider in China
YT1 H.265/H.264 transcoder is a new type equipment, which supports 1-way network IP flow for protocol, format, resolution transcoding
(supports B frame ).The latest H.264 and H.265 Image processing architecture was technically adopted,supporting IP input and
output.Support 4-way IP flow input, and synthesize 4-screen transcoding into 1-way IP output.
Features
* After transcoding, the video stream is concurrently accessed by 20 users.
* Support MPEG4/H264/H265/MPEG2/VP9/VP8 decoding
* Support MP3/AAC/G.711/MP2/AC3 audio decoding
* Support ES/MPTS/SPTS package format
* Support H.264/H.265 encoding
* Support OSD,image superposition, logo inserting etc.
* Support HTTP/RTSP/RTP/RTMP UDP Unicast and Multicast( support adding user and password for RTMP), Support DHCP.
* IE web review play.
* Support ip input 3840*2160/2560*1440/2048*1152/1920x1080p/1920x1080i /1280x720p/720*576i/720*576p/640*480

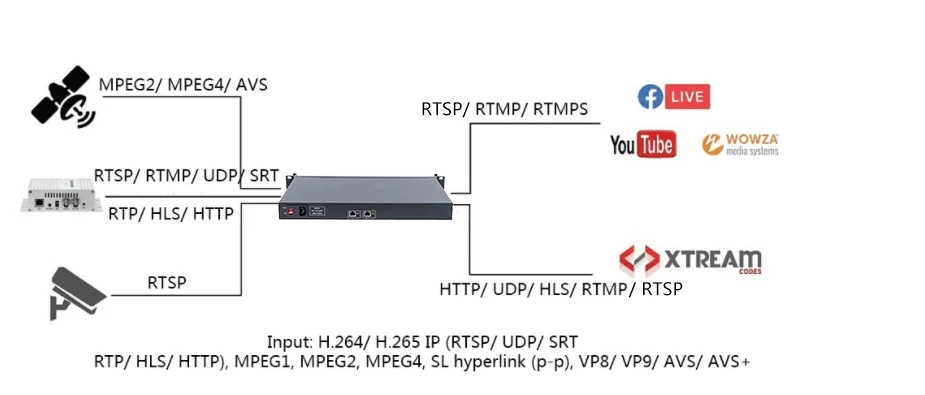

Support Transcoding Function
IP input, IP output, protocol, format, resolution, etc.

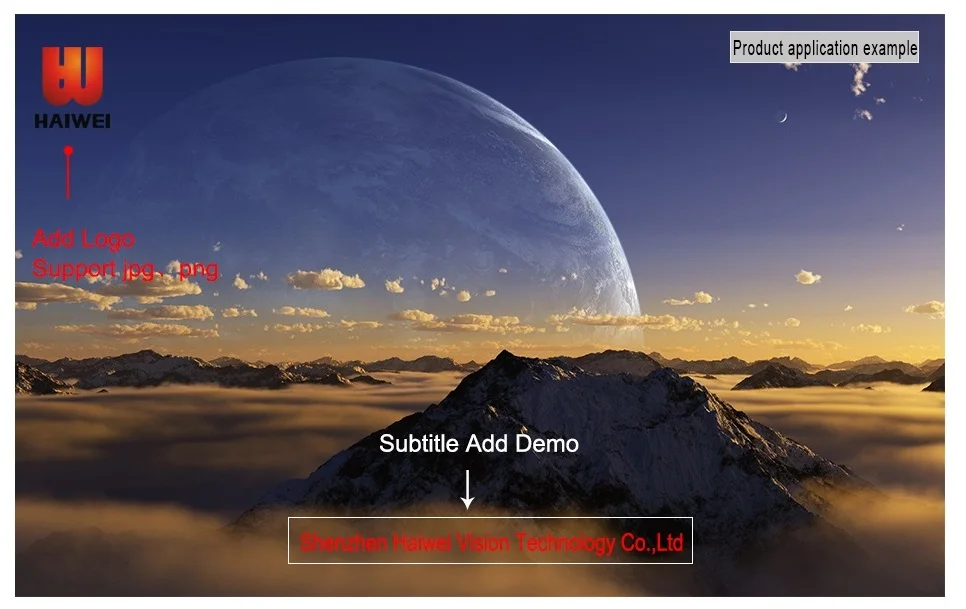

OSD（On-Screen Display）
About Haiwei
Haiwei is leading video streaming solutions provider in China, mainly for broadcast, webcaster, Multimedia platform, sports, IPTV operator, IPTV project for Hotel/ enterprises, military project, and city's construction. Haiwei provide SDK for integration project, can be tailored to each customer's unique market needs, and developed "IP finder", "Multi devices manager", "APP for smartphone" for different use.
