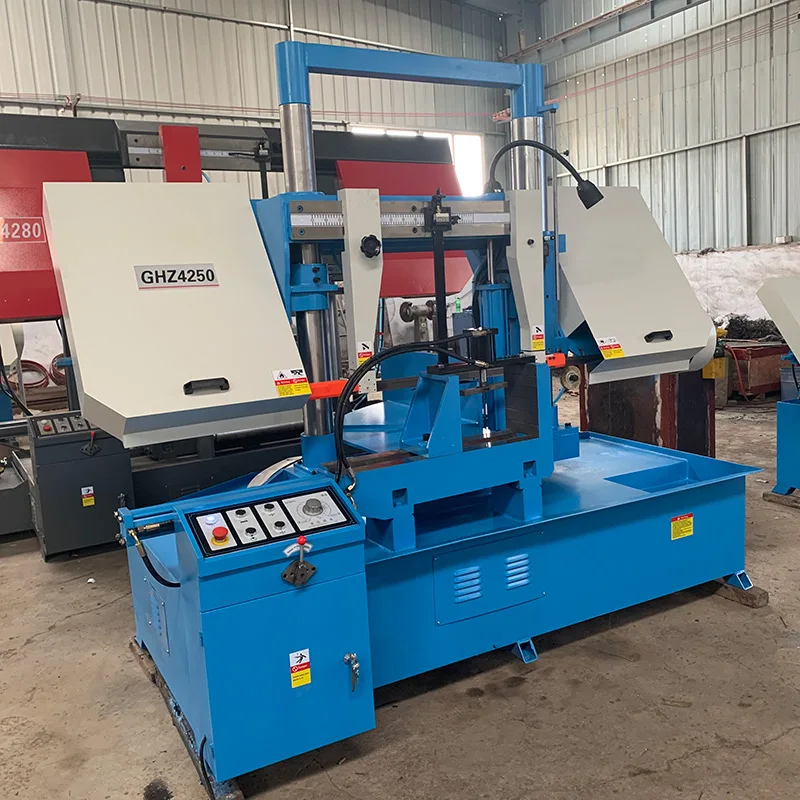

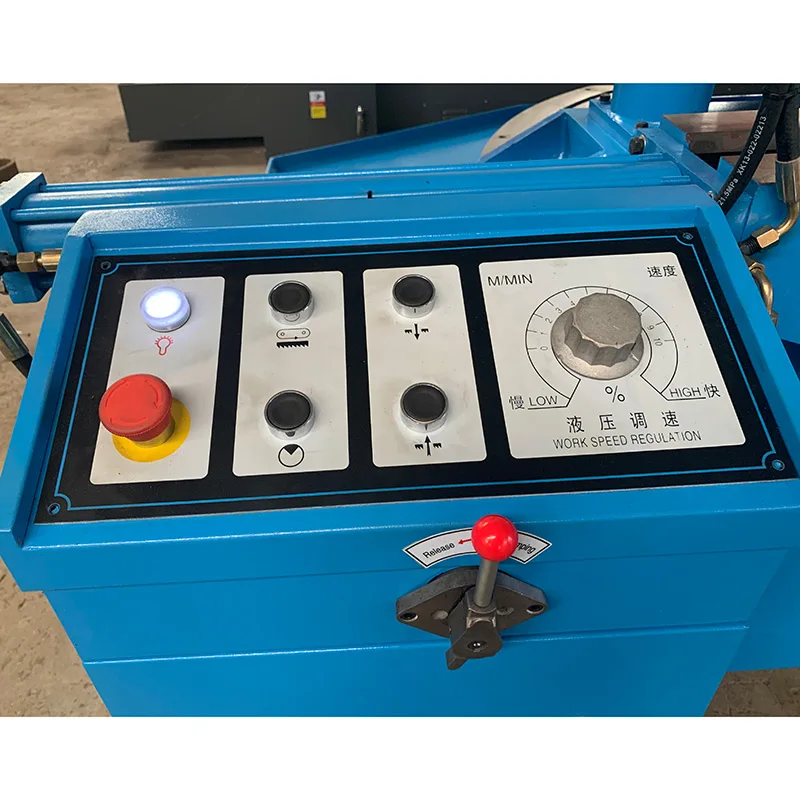

Best price superior quality automatic horizontal metal cutting cnc band saw machine
- Category: >>>
- Supplier: Shandong Classic Machine Tool Co. Ltd.
Share on (1600367375581):
Product Overview
Description
Products Description
The main performance characteristics:

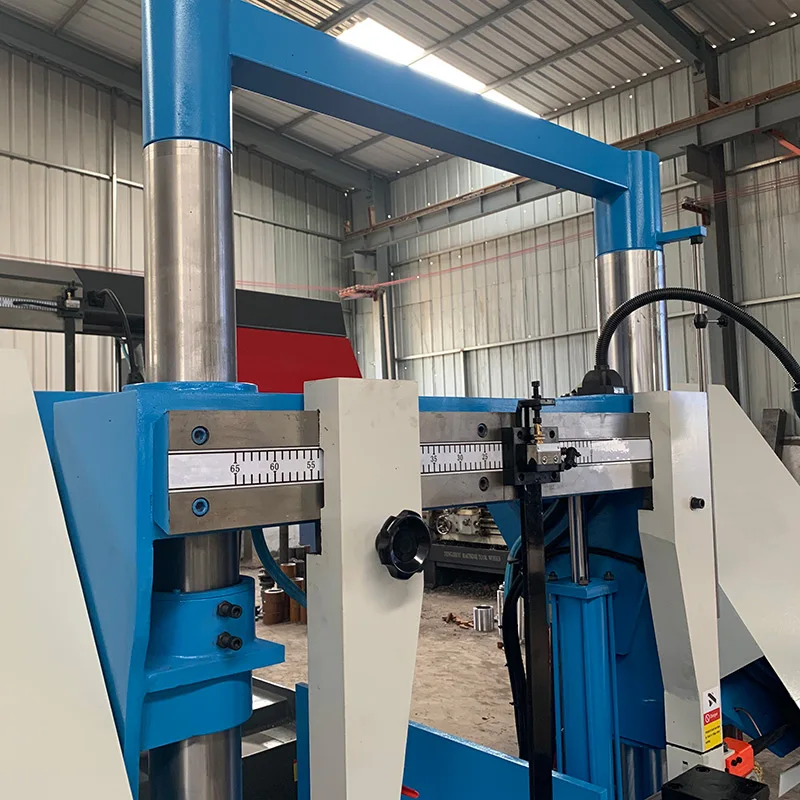

Extremely rigid dual-column cast-iron construction.
PlC control for a fully automated sawing process.
Easy to use touch sreen monitor for easy and quick recording of saw parameters.
The feed unit's linear measuring system ensure long term maximum accuracy.

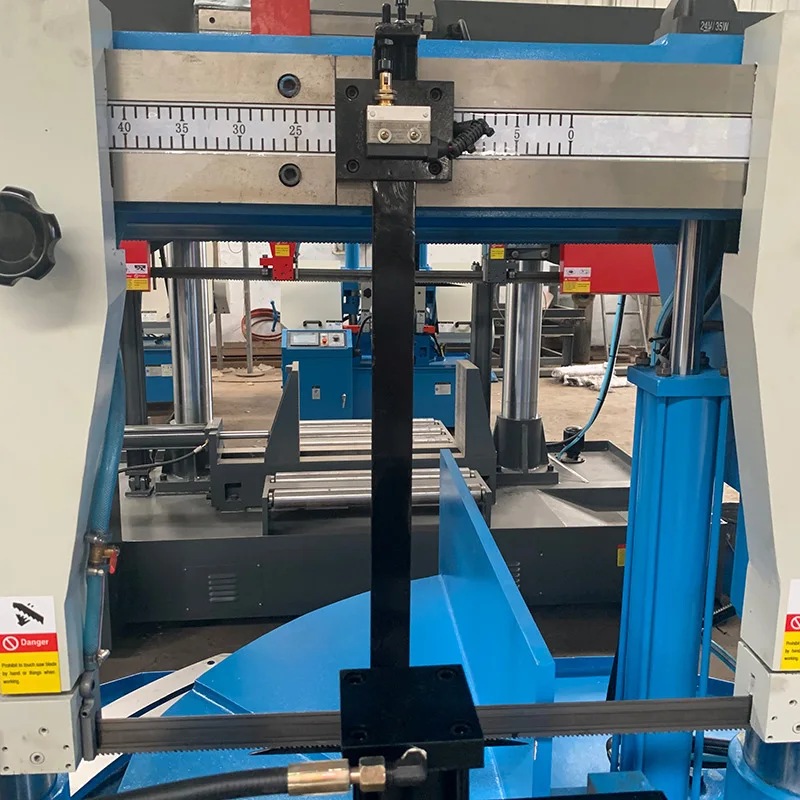

Feed of the saw frame is infinitely variable via a hydraulic throttle valve extra rigid ,adjustable saw blade guide.
Hydraulic workpiece clamping with clamping pressure control and bundle vise are included in the standard equipment.
Extremely rigid dual-column cast-iron construction.
PlC control for a fully automated sawing process.
Easy to use touch sreen monitor for easy and quick recording of saw parameters.
The feed unit's linear measuring system ensure long term maximum accuracy.
Feed of the saw frame is infinitely variable via a hydraulic throttle valve extra rigid ,adjustable saw blade guide.
Hydraulic workpiece clamping with clamping pressure control and bundle vise are included in the standard equipment.
Product main technical specifications:
SPECIFICATIONS | Units | GHS4240 | GHS4250 |
Cutting circular | mm | 400 | 500 |
Cutting rectangular | mm | 400*400 | 500*500 |
Blade speed | m/min | 27,45,69 | 27,45,69 |
Blade size | mm | 5000*41*1.3 | 5800*41*1.3 |
Main motor power | kw | 5.5 | 5.5 |
Hydraulic motor power | kw | 0.75 | 1.5 |
Coolant motor power | kw | 0.09 | 0.09 |
Machine weight | kg | 2100 | 2500 |
Overall dimension | mm | 2460*2320*2000 | 2960*2320*2200 |
Standard equipment :
PlC control
1 saw blade belt
Hydraulic workpiece clamping
Bundle vise
Material support stand
Coolant system

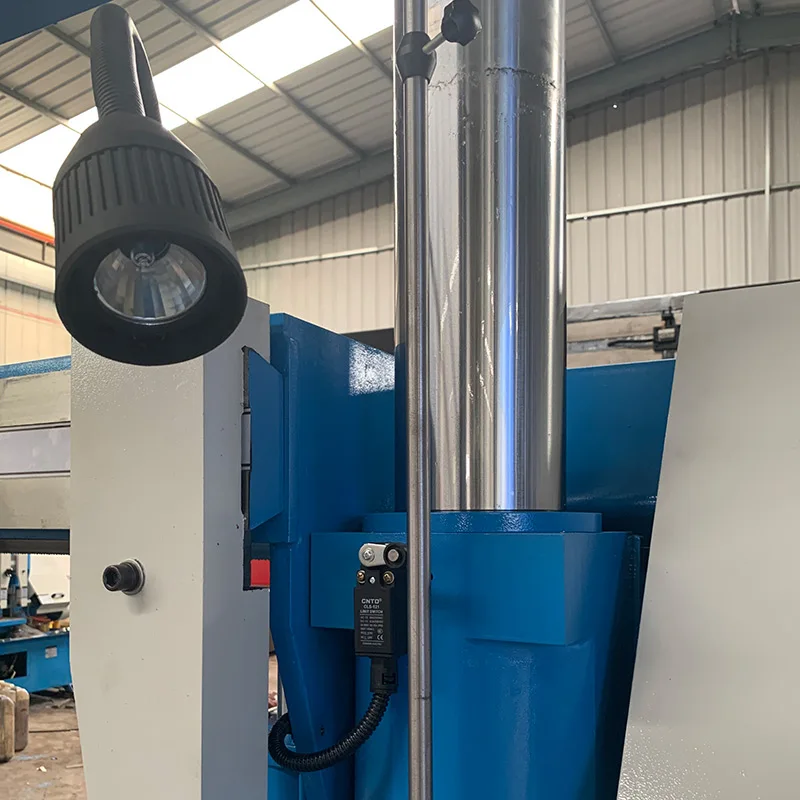

Work lamp
Operation manual
Optional equipment:
automatic blade breakage control
Fast drop protection devise
Hydraulic blade tension
automatic chip removal device
Various blade linear speed
Blade protection covers
Wheel cover opening protection
Ce standard electrical equipment
PlC control
1 saw blade belt
Hydraulic workpiece clamping
Bundle vise
Material support stand
Coolant system
Work lamp
Operation manual
Optional equipment:
automatic blade breakage control
Fast drop protection devise
Hydraulic blade tension
automatic chip removal device
Various blade linear speed
Blade protection covers
Wheel cover opening protection
Ce standard electrical equipment
Recommend Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
