Lichuan motor stepper high quality 3 Phase 18 50VDC 7A nema 23 Servo closed loop stepper motor driver LCDA357H LC57H355
- Category: >>>
- Supplier: Shenzhen Xinlichuan Electric Co. Ltd.
Share on (1600367451148):
Product Overview
Description
Packing List

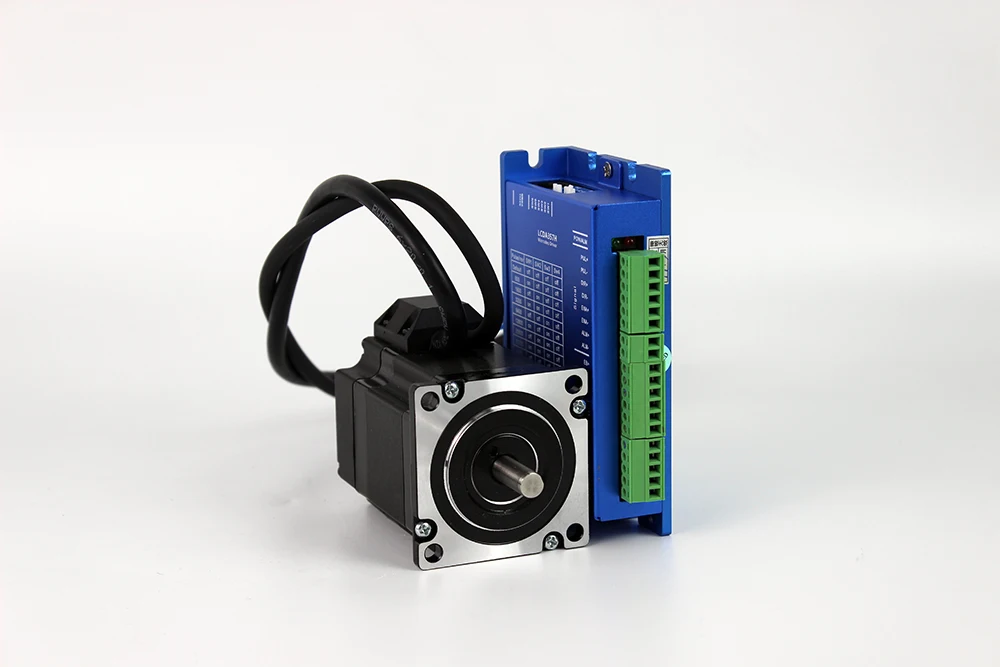

NO. | Product Name | Model / Description | Quantity |
1 | 3 phase Nema23 Closed-loop stepper motor | LC57H355 | 1 |
2 | 3 phase closed loop stepper motor driver | LCDA357H | 1 |
3 | Encoder cable | 3M Encoder cable | 1 |
Products Description

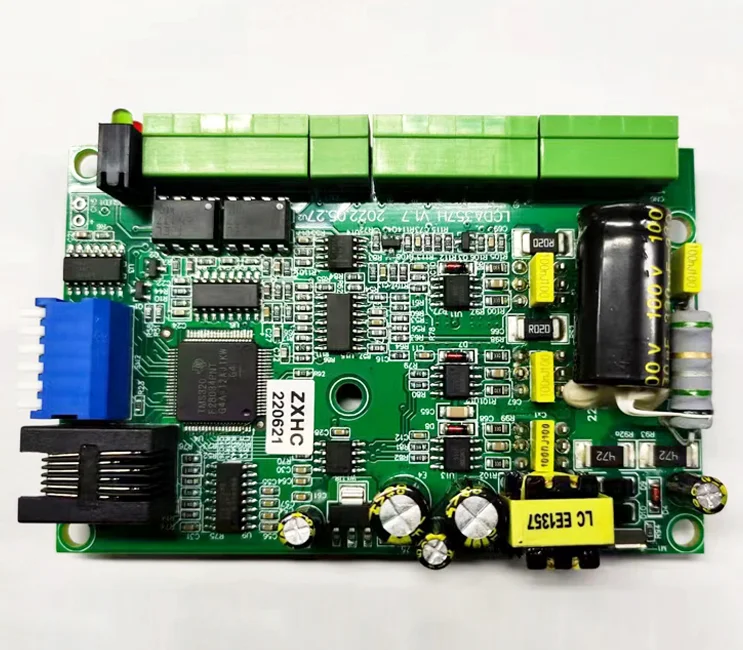

LCDA357H adopts the latest special motor control DSP chip and vector closed loop control
technology, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption, applies to 3 phase Nema23 closed loop stepper motors, is convenient for upgrading traditional stepper driver solutions and largely reduces cost.
technology, completely solves step missing issues for open loop stepper motor, obviously improves motor performance at high speed, reduces heat generation and vibration of motor, increases processing speed and precision of machine, decreases power consumption, applies to 3 phase Nema23 closed loop stepper motors, is convenient for upgrading traditional stepper driver solutions and largely reduces cost.

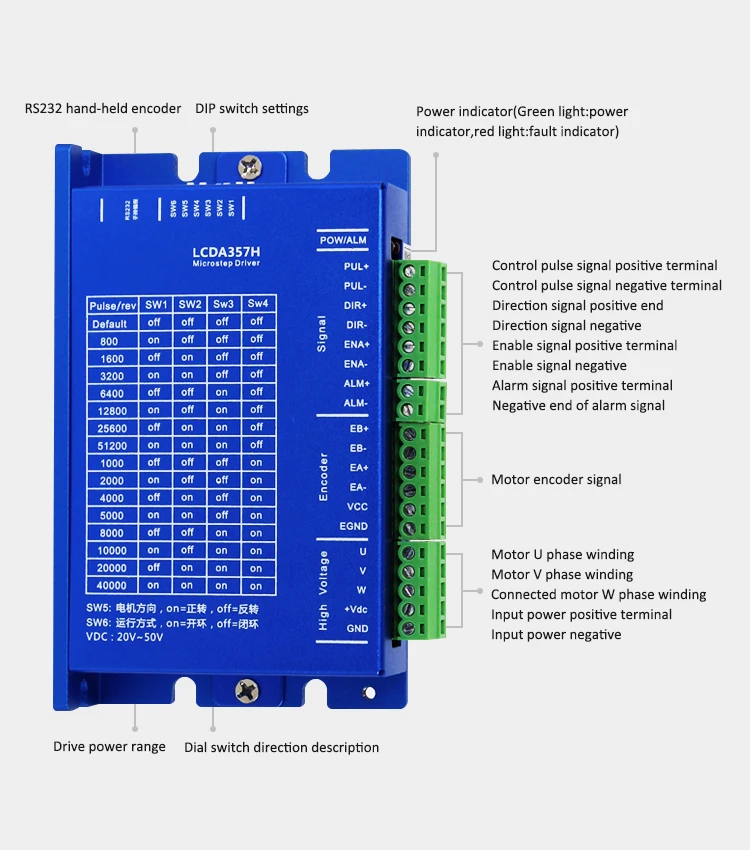

parameter | Driver Details |
Voltage input range | DC20V~50V (36V and above recommended) |
Max peak current | 7A |
Subdivision range | 200 ~ 51200pp |
Signal input | Differential/single terminal, pulse/direction |
Pulse response frequency | 200KHZ |
Match for Motor
Item number | LC57HS355 |
Step Angle (°) | 1.2 |
Length (mm) | 77 |
Holding Torque (N.m) | 1.0 |
Phase Current (A) | 3.5 |
Weight (kg) | 1 |
Encoder Resolution(PPR) | 1000 |
